High Lonesome Express – Winter Park, CO

img_5498
Towers 1 and 2.
img_5502
Compact Poma return station.
img_5529

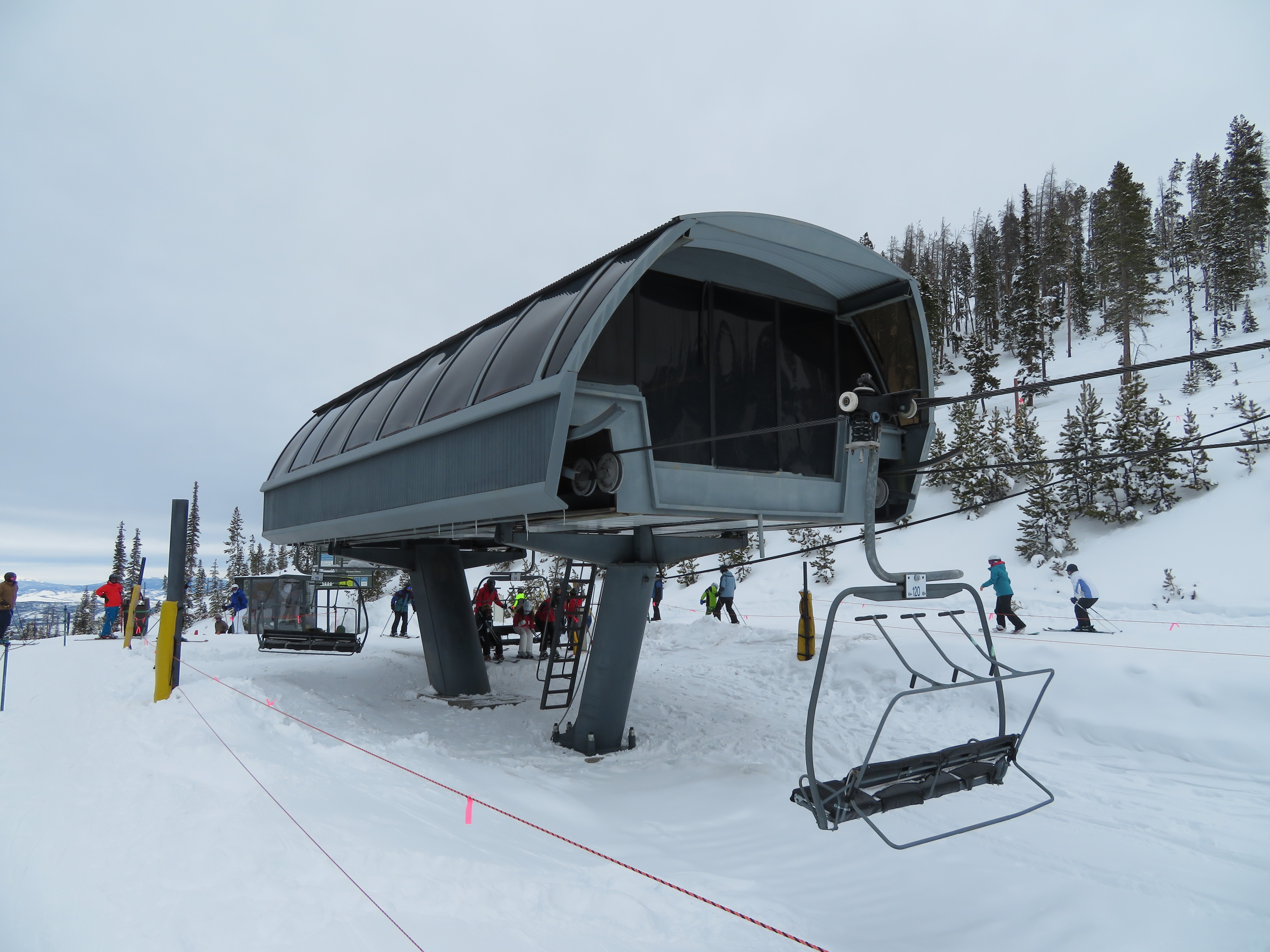

Lower station arrival side.
img_5532

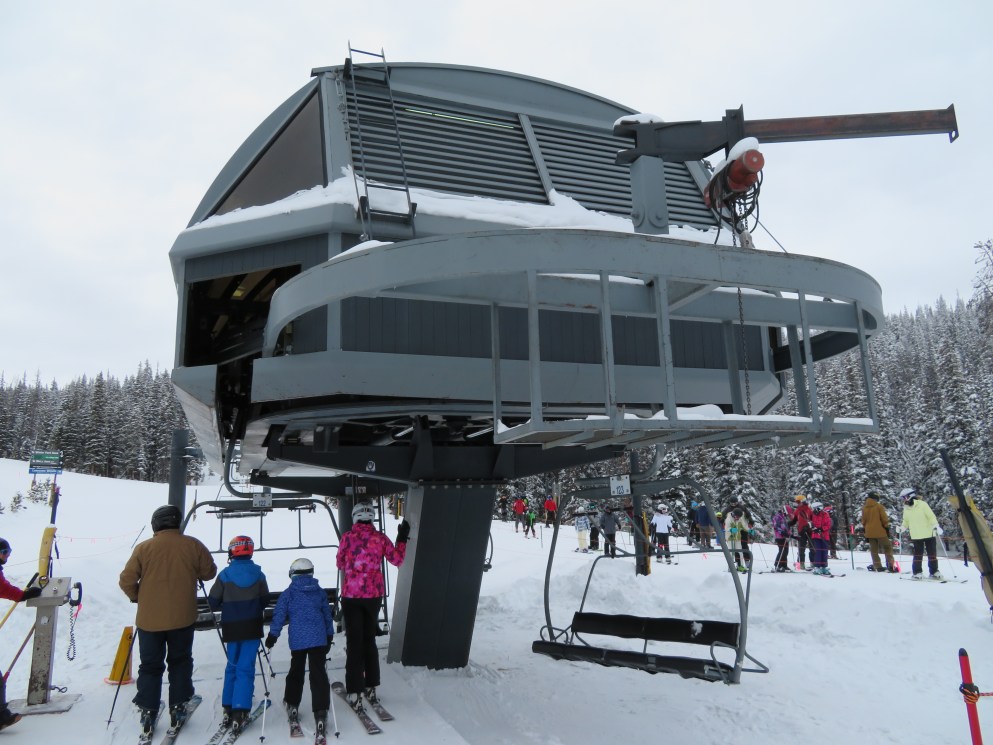

Maintenance rail.
img_5538

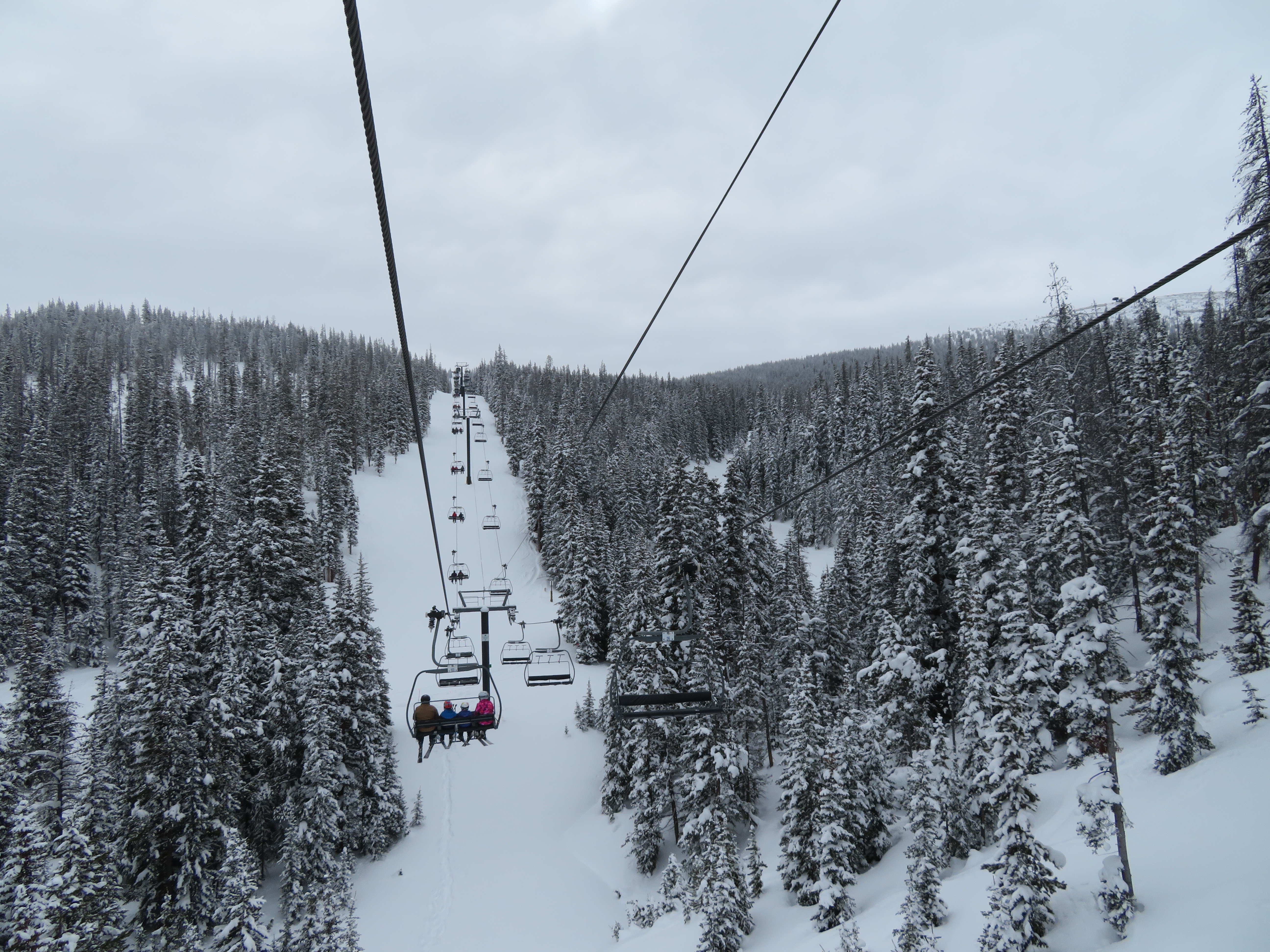

The gully halfway up.
img_5544

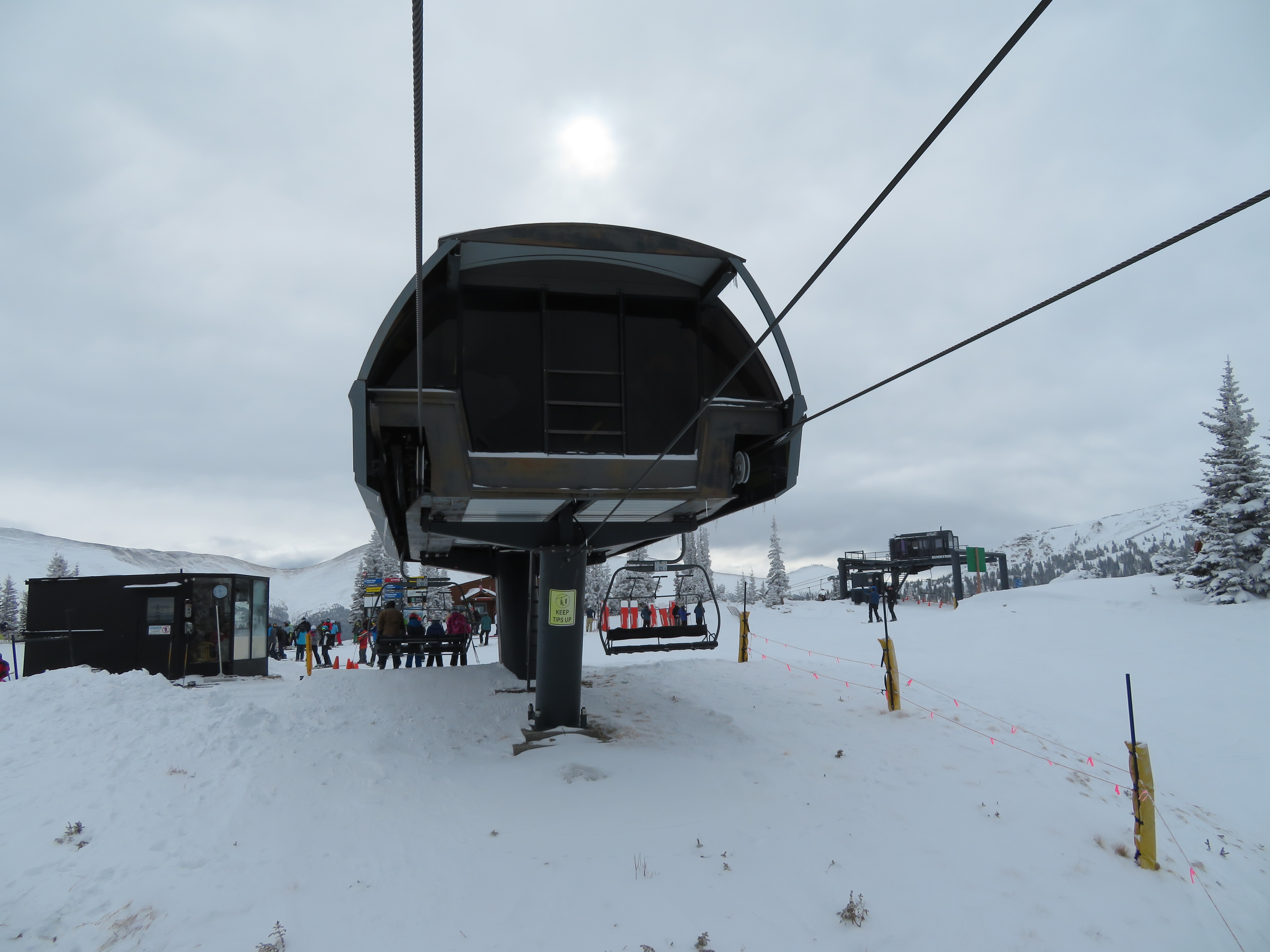

Arriving up top.
img_5549

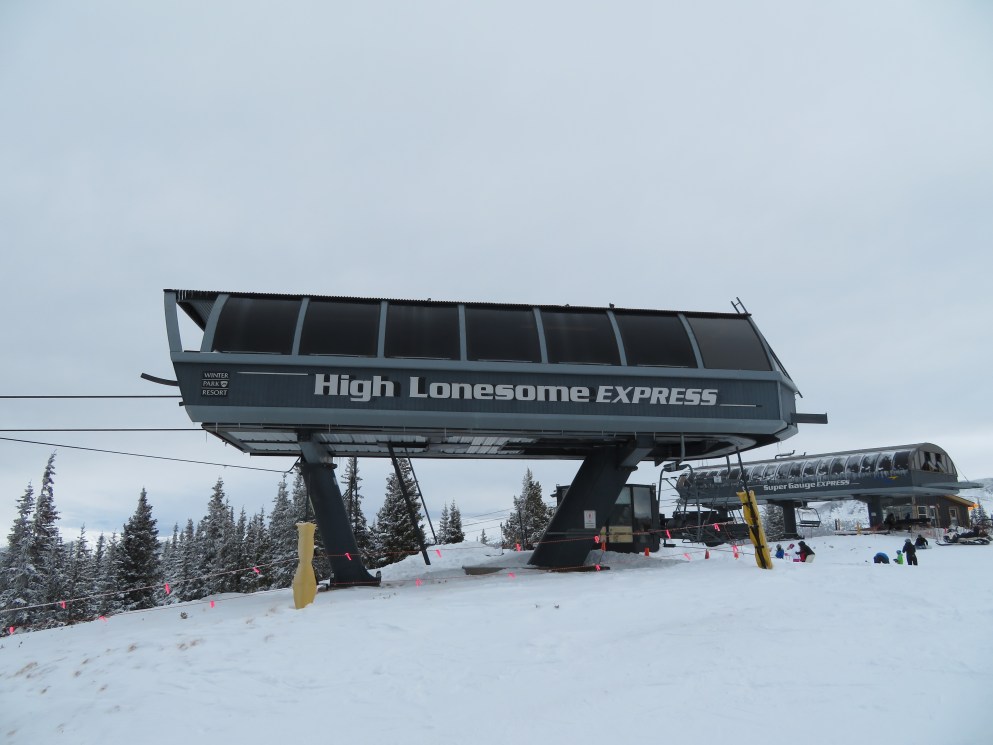

Top station side view.
img_5551

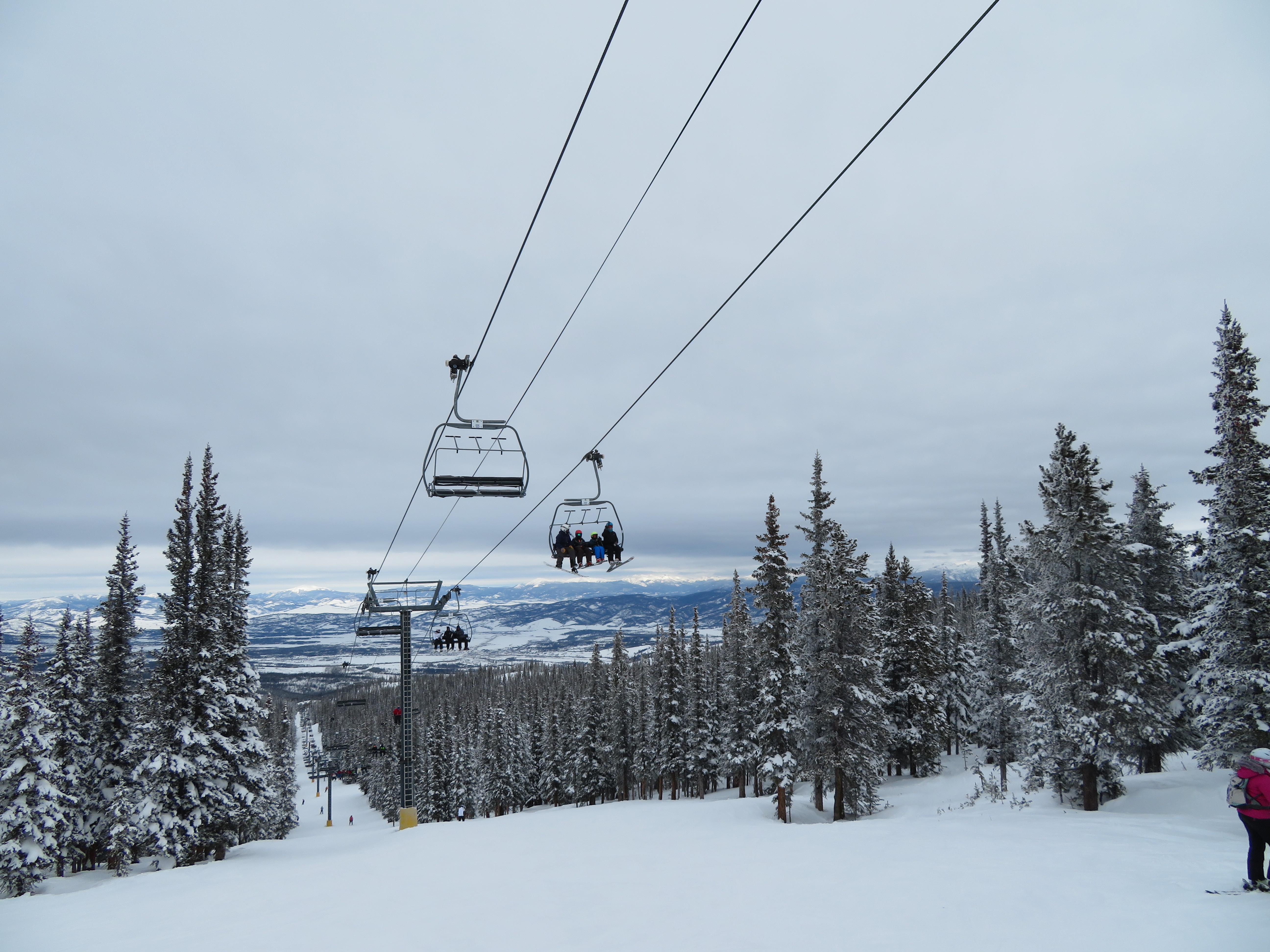

Lift line overview.
img_5552
Upper lift line from below.
img_5554

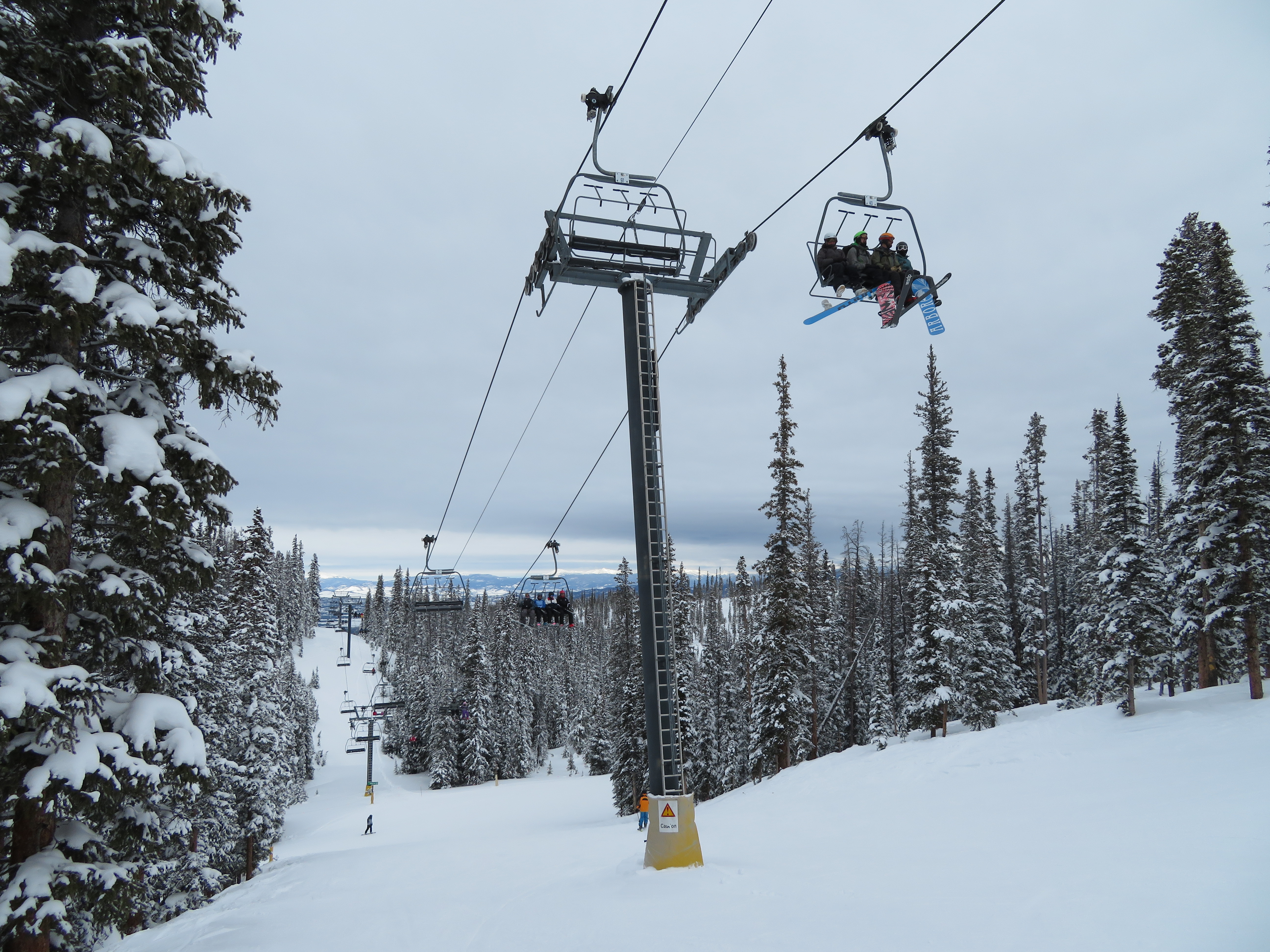

Middle part of the line.
img_5557

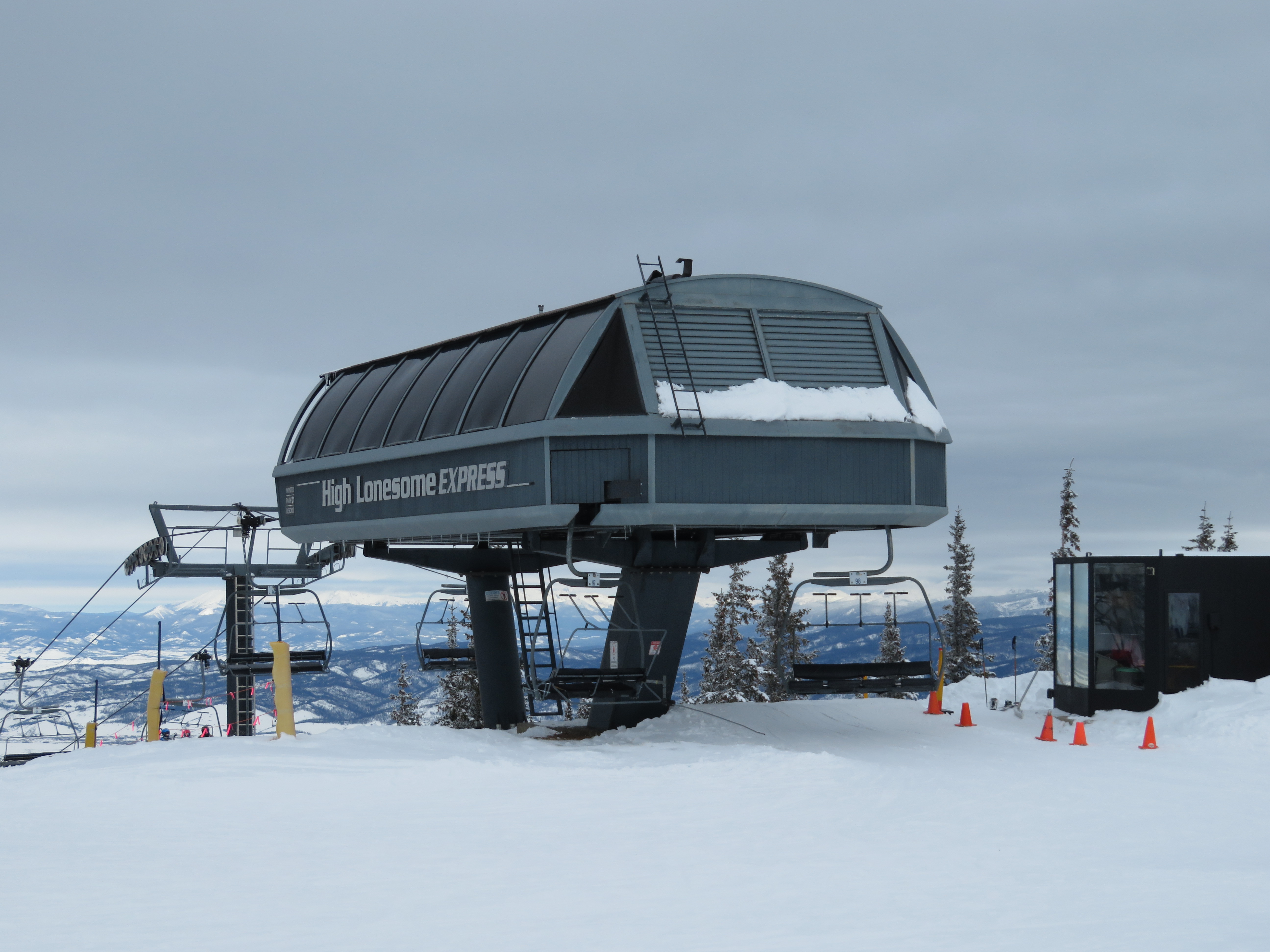

Drive station.

11 thoughts on “High Lonesome Express – Winter Park, CO

  1. Donald M. Reif February 22, 2019 / 9:30 am

    This lift was converted from a fixed grip quad built in 1985. This is the reason for the portal tower at the bottom, and the reason the chairs have three-T-bar footrests that you see on lifts like Gent’s Ridge.

    Like

    • Mark Willits September 20, 2019 / 7:33 am

      I remember when this lift was installed in 1985 and then converted to a detachable (1991). Not completely sure about the portal tower in relation to a fixed grip at the bottom but the old Summit Express (Now the Super Gauge) had a portal tower at the top just before the unloading station. Also, the old Summit had the exact same footrests (three T-Bar) and it was never a fixed grip. The two details you mention could be because of the generation of the lift. The old Summit and High-Lonesome fixed grip were installed the same year (1985).

      Like

      • Donald Reif September 20, 2019 / 11:28 am

        The portal tower is a standard feature of many Poma fixed grip return stations, especially on older lifts. Like Sublette at Jackson Hole:
        [img]https://skiliftblog.files.wordpress.com/2015/09/img_1078.jpg[/img]

        And even some newer lifts like Powder at Big White:

        [img]https://skiliftblog.files.wordpress.com/2019/02/img_9856.jpg[/img]

        The defunct Falcon SuperChair on Peak 10 was a fixed grip quad that was converted into a high speed quad after a single year of operation, and thus had a portal tower:

        [img]https://skiliftblog.files.wordpress.com/2017/01/img_3009.jpg[/img]

        As for the three-footrests design, well, I think that Poma was experimenting as the normal two t-bars footrest option was also available and the majority of their lifts from that timeframe used those instead.

        Like

        • pbropetech December 19, 2019 / 4:13 pm

          The three-footrest comfort bars were manufactured until 1985, and the two-footrest design dates from 1986. The portal towers were used on heavily-loaded towers, both in support and compression and on both fixed and detachable lifts.

          Like

  2. Kaden K June 24, 2019 / 4:42 pm

    This lift is always so miserable and windy. This is probably not going to happen, but they should put bubble chairs on this lift. It would make it so much better.

    Like

    • Donald Reif June 24, 2019 / 8:57 pm

      I think that’d necessitate converting the lift to 90 degree loading and modifying the unload area.

      Like

    • BarkeeStone December 19, 2019 / 2:27 pm

      True the lift is windy and the bars on the chairs are terrible designs. Plus the loading to this lift is just terrible because there is two ways that ppl can get in and it causes more crowding on the left slope.

      What W.P can do is make this a new HSQ with 90° loading on the right side because there isn’t enough room on the left side.

      Btw this is a suggestion.

      Like

      • Donald Reif December 19, 2019 / 3:58 pm

        This lift really does need 90 degree loading. That would make more sense than the two tight 90 degree turns into the loading area. Not to mention those coming from the Eskimo Express and Zephyr Gondola basically have to do a complete 360 while entering the line.

        Like

  3. Raj Thorp February 29, 2020 / 11:24 am

    Why is this lift so slow at only 800 fpm. Is it because it was converted from a fixed grip?

    Like

    • Donald Reif February 29, 2020 / 12:06 pm

      There were two variants of the Challenger terminal. This is the compact version (seven or eight windows per side), used on all of the Winter Park TB-41s except the Pioneer Express, as well as others like Needles Eye (Killington). It maxes out at 900 fpm.

      The longer variant of the Challenger terminal, the one designed for 1,000 fpm lifts, has ten windows.

      Like

    • Max Hart February 29, 2020 / 4:16 pm

      Short terminals.

      Like
