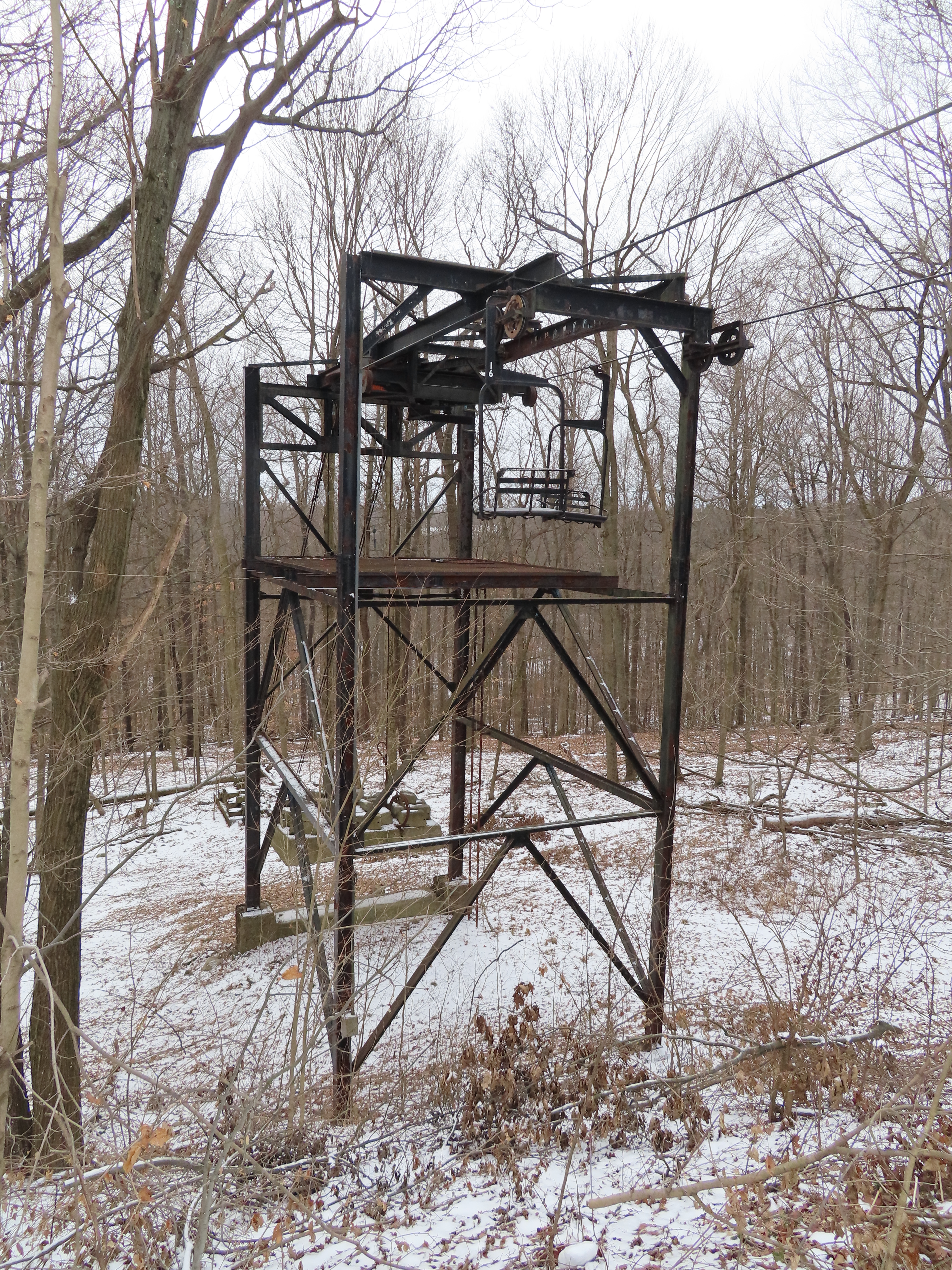

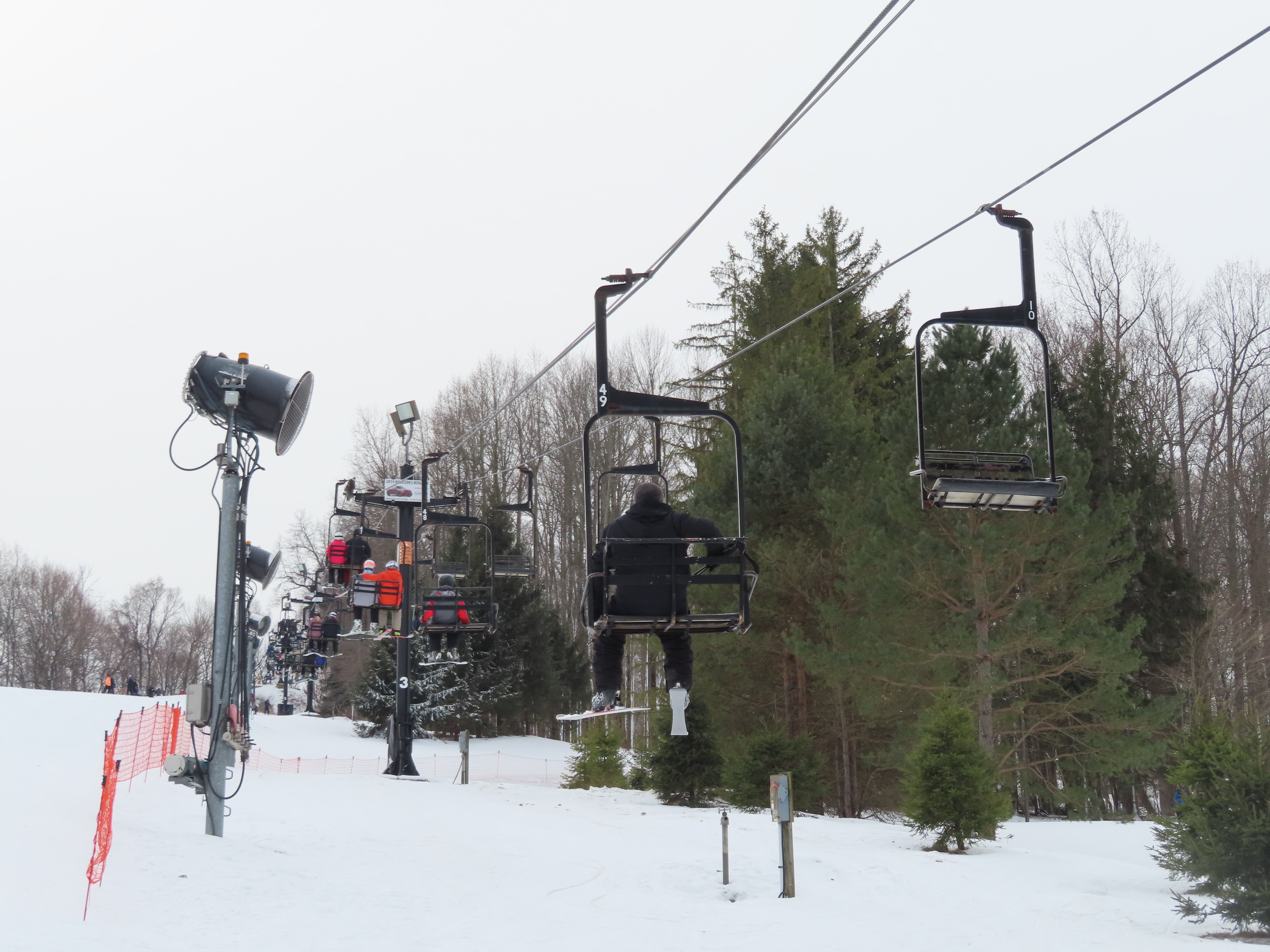

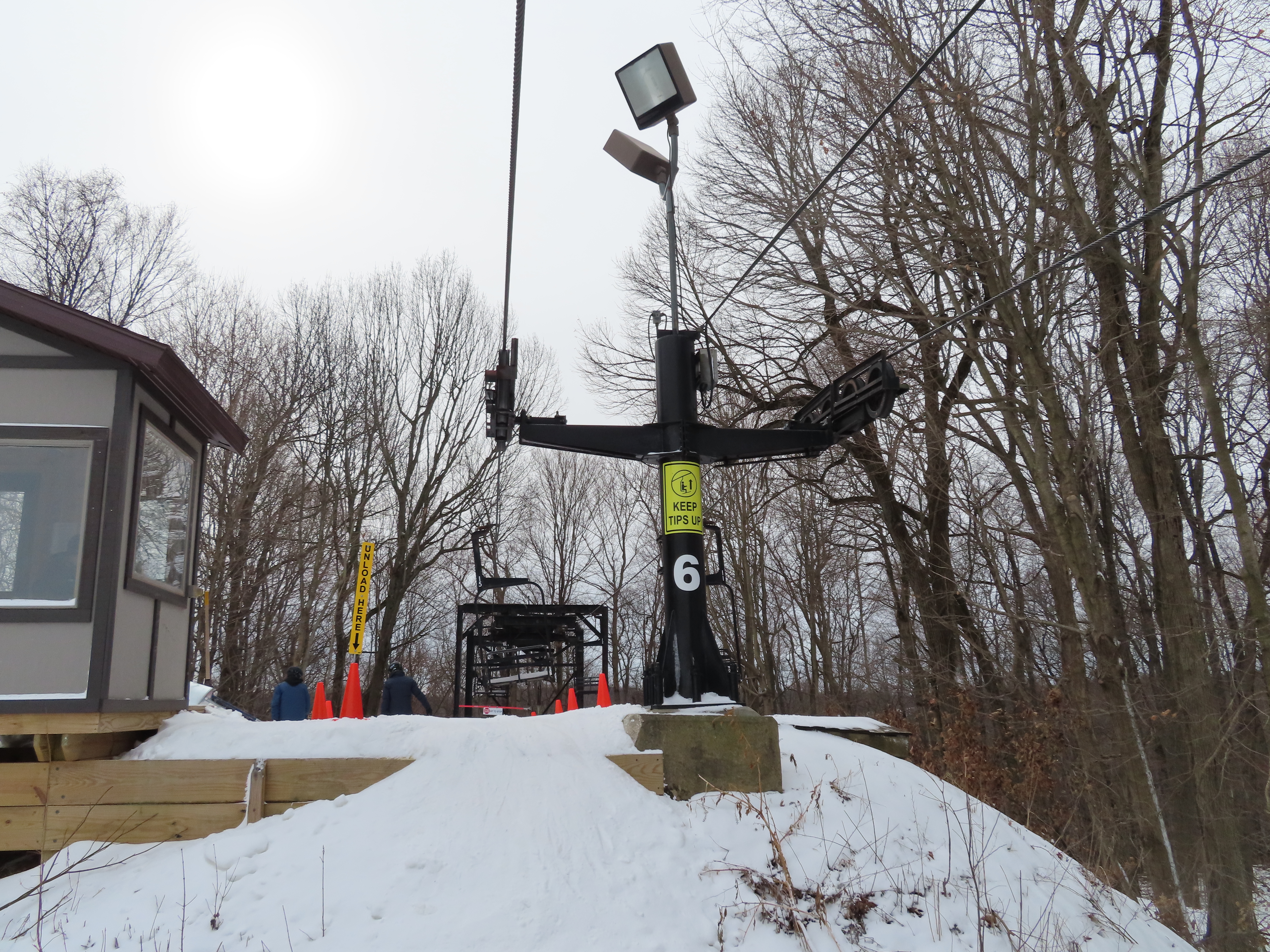

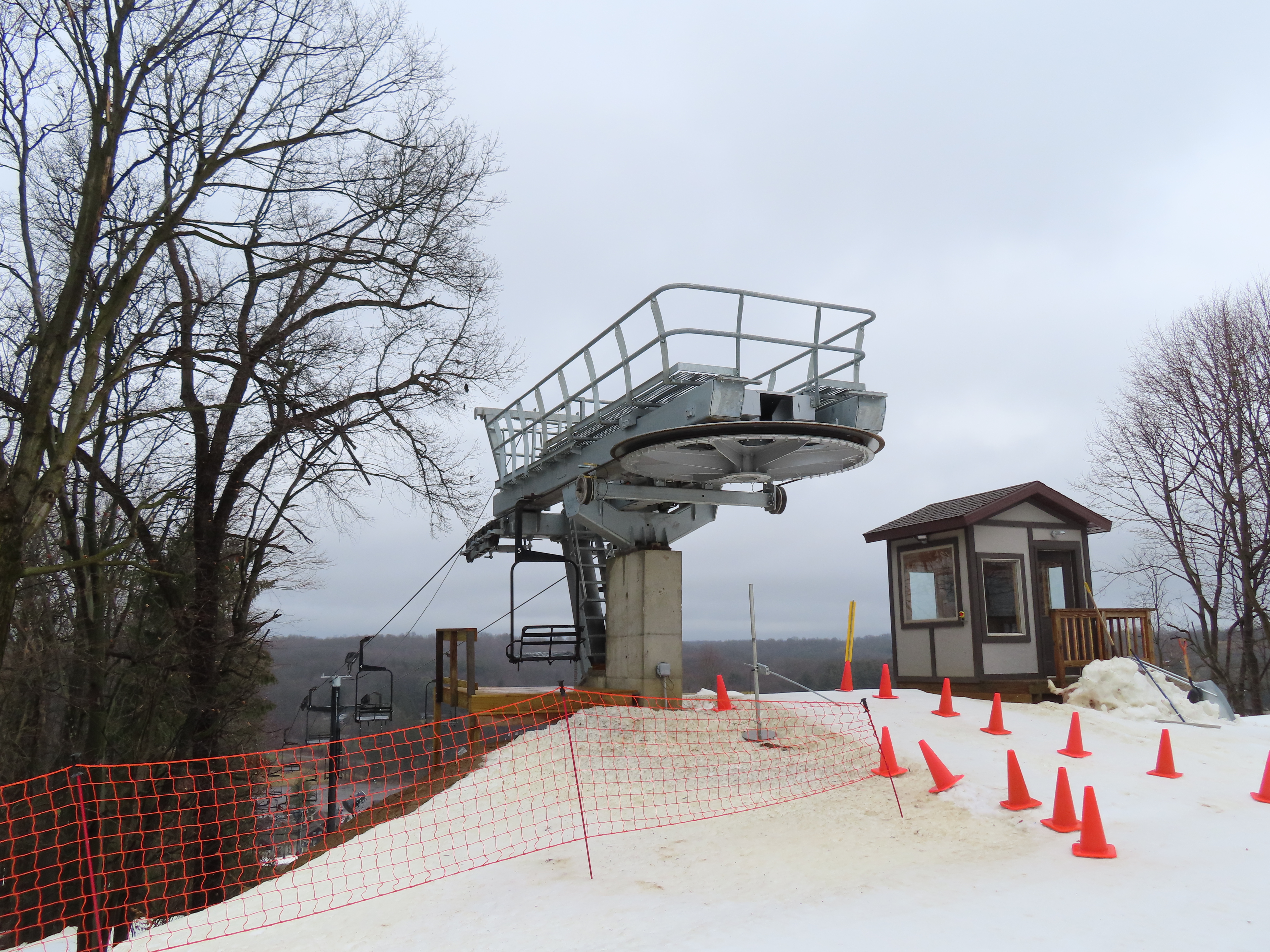

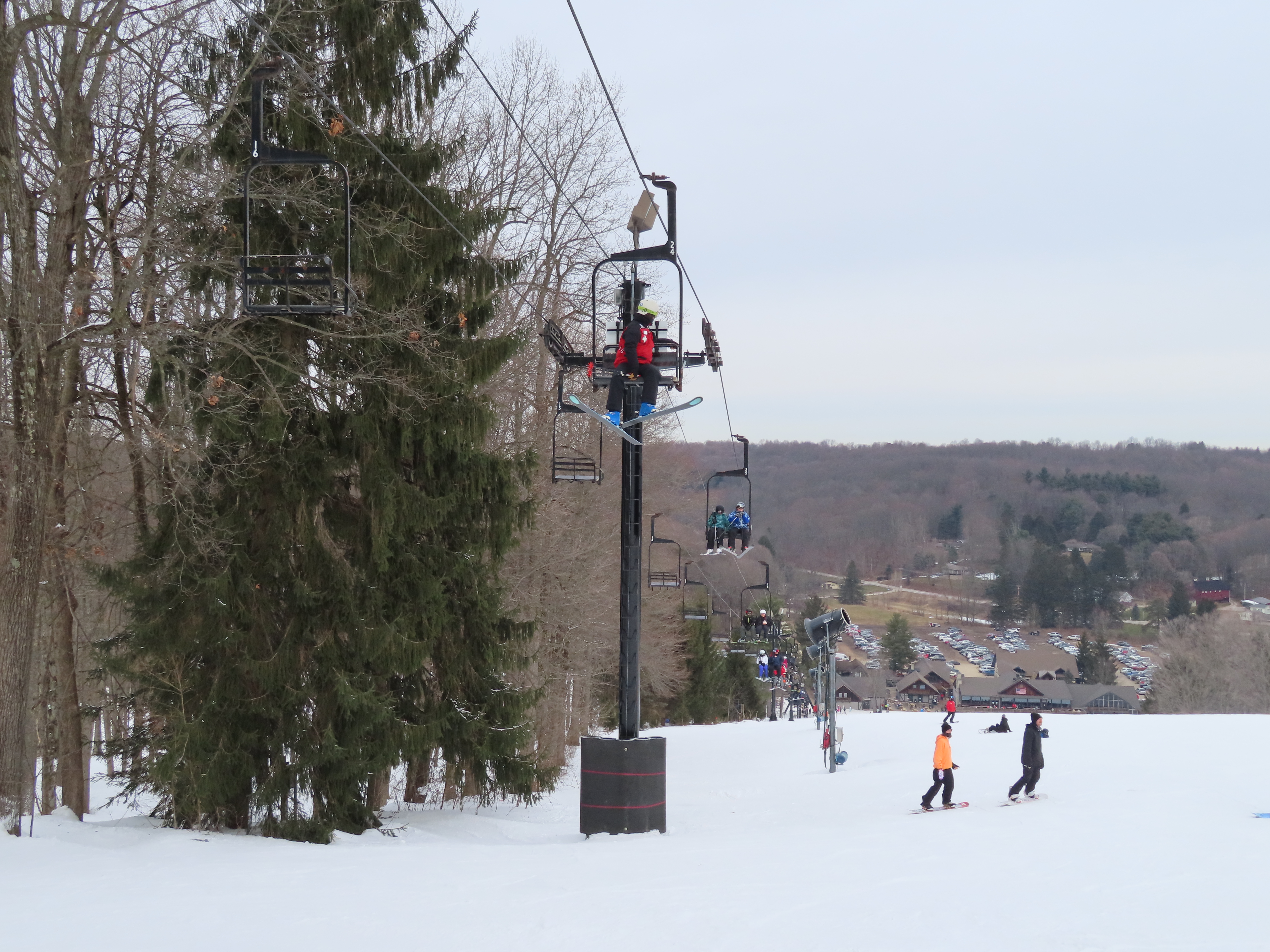

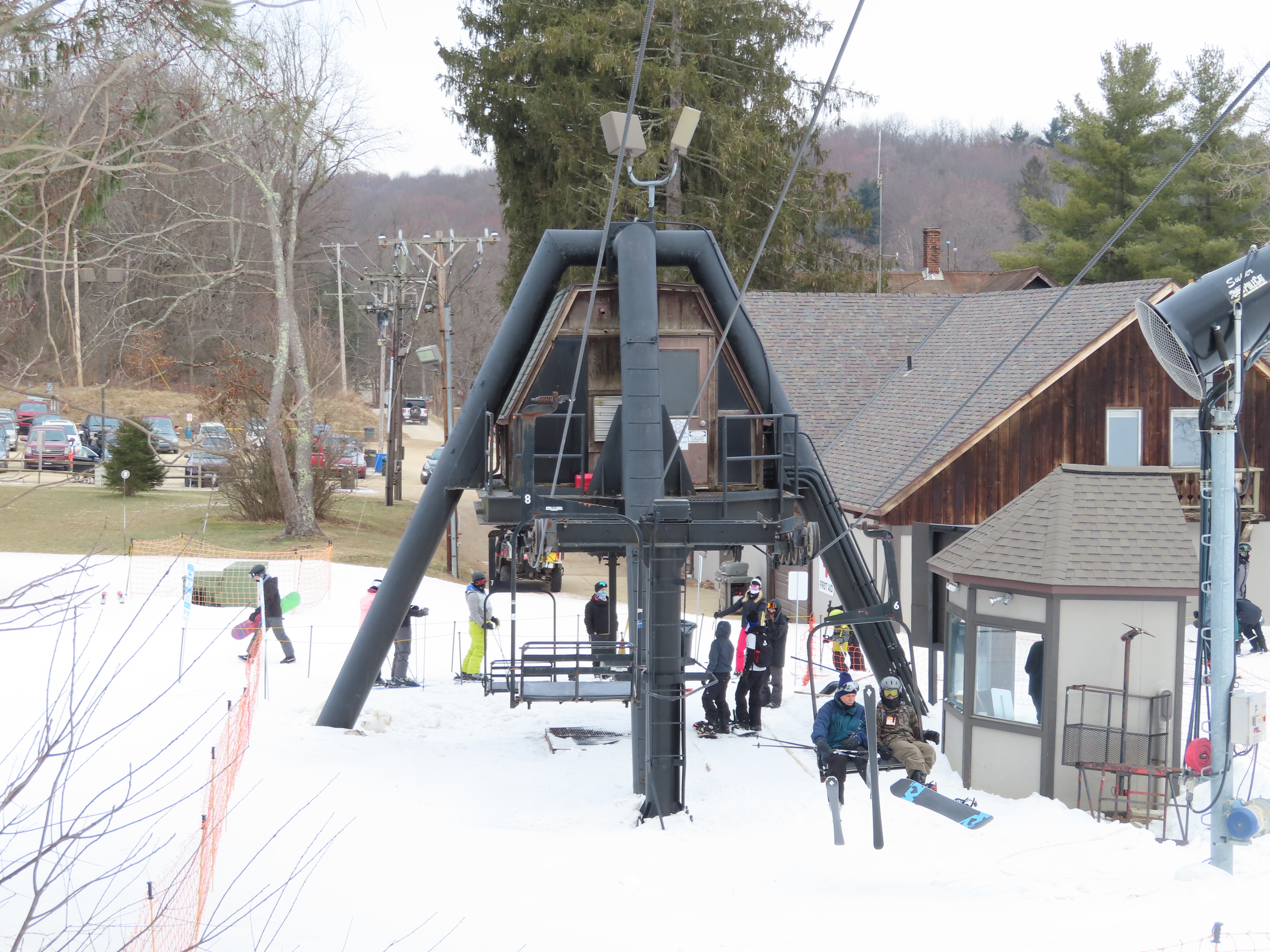

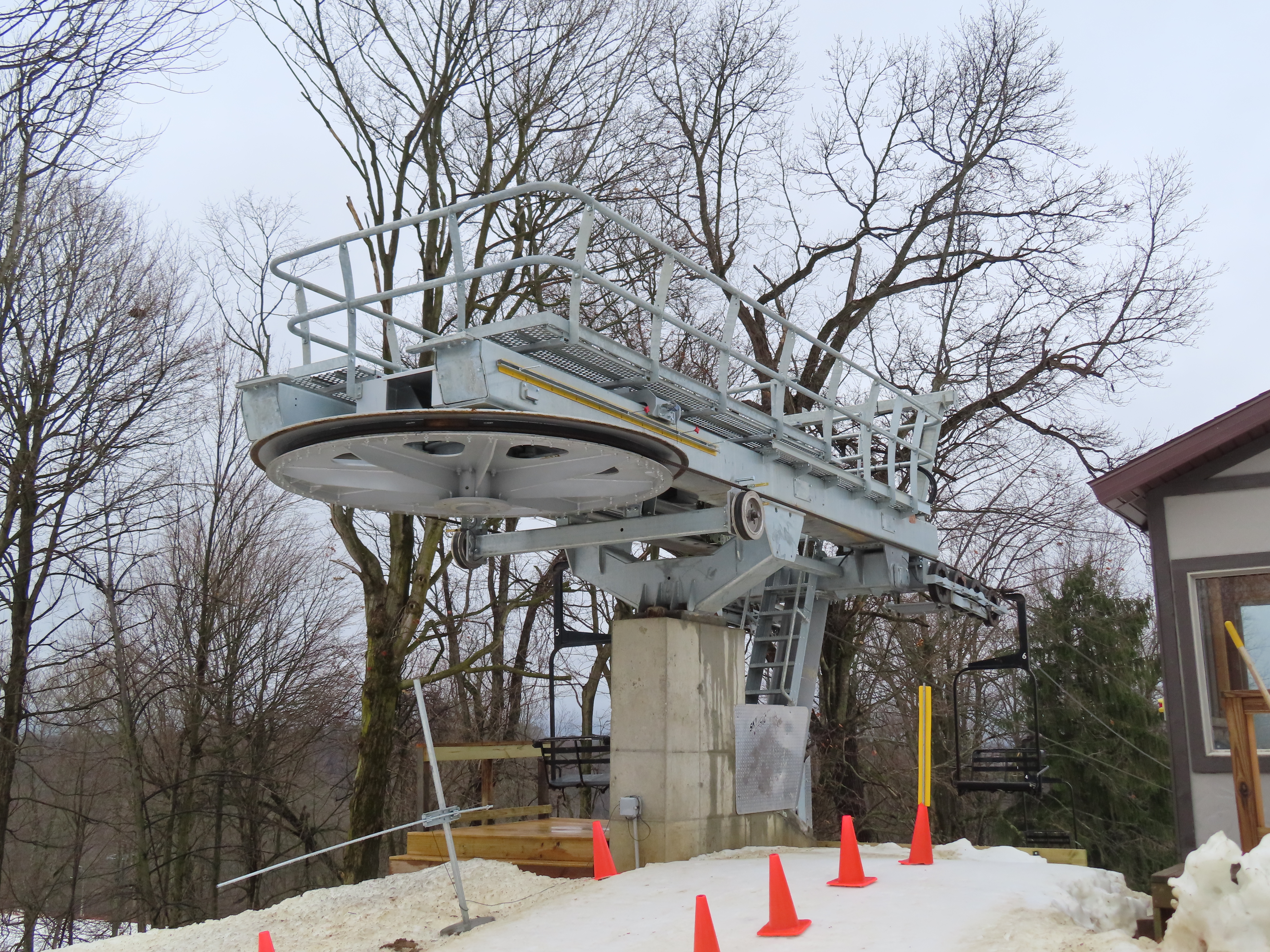

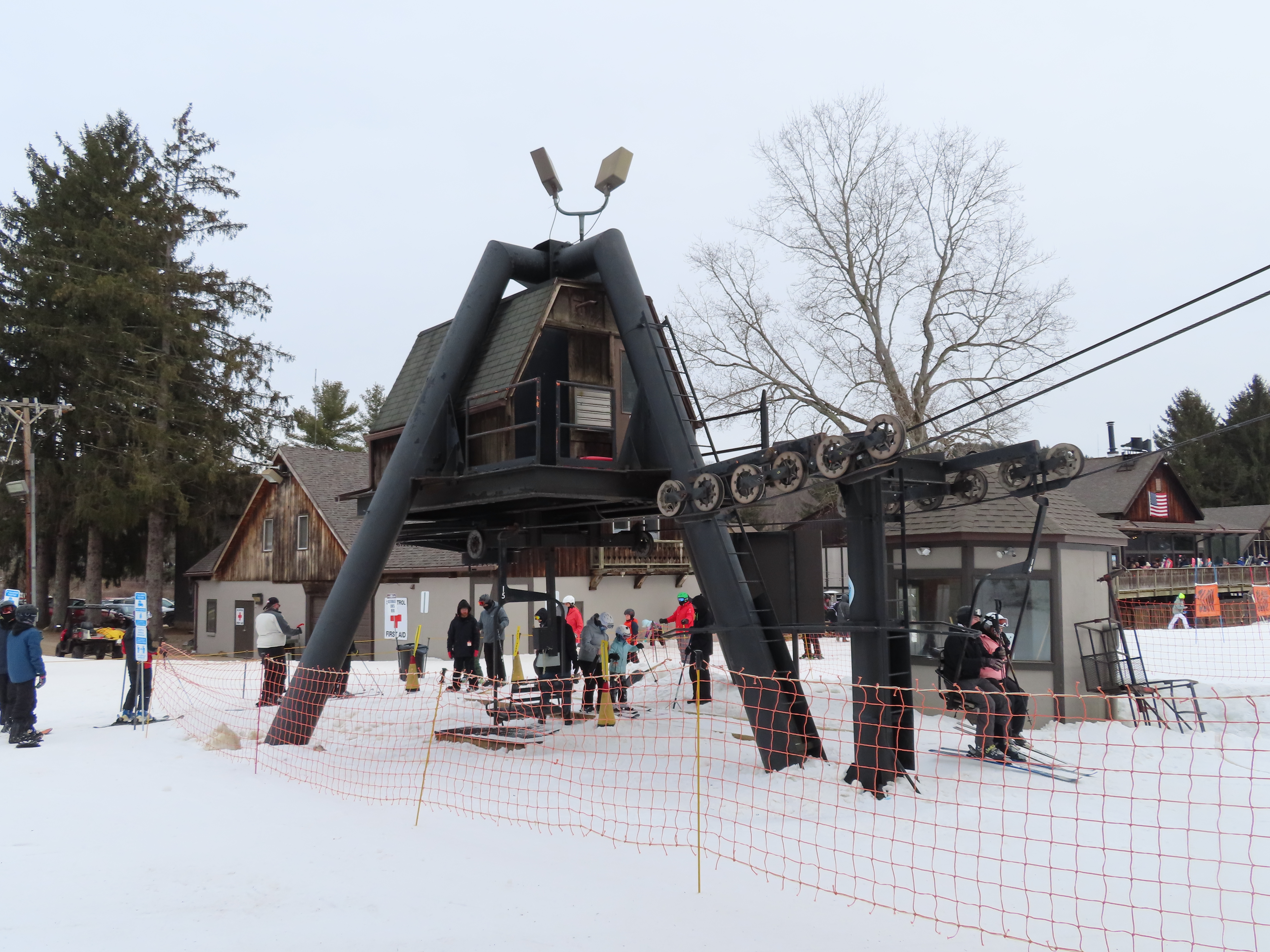

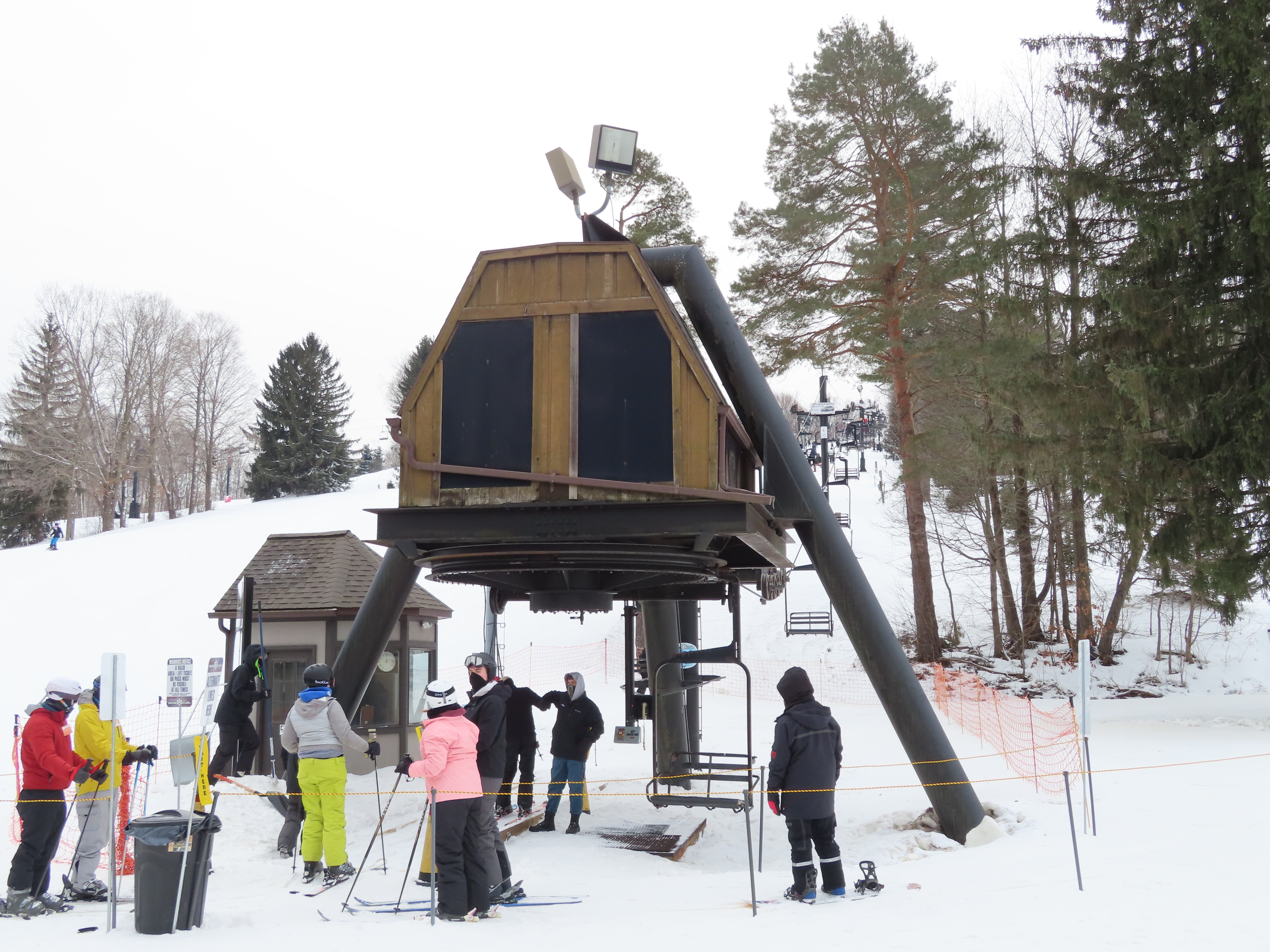

This is likely the very first chairlift built in the State of Ohio.What a cool top terminal!View down the lift line.Looking up from the bottom terminal.At some point the drive terminal was replaced by Thiokol/CTEC.Motor room.Another view of the base station.Skytrac replaced the top terminal with a hydraulic tension return in 2023.The new upper station where tower 6 used to stand.Skytrac station with Hall line equipment.
I call this the fixed Enterprise drive. There is already tensioning at the top. The tensioned enterprise drive is the one more typically used, almost always on bottom drive lifts. The fixed version is typically seen on top drive lifts, but it does not have to be. Another example of a drive typically seen on top drive lifts being used in a bottom drive application is the Summit Express Triple at Hunt Hollow, NY. It was a Hall double converted to a triple by CTEC. They reused the original tensioning, so the new bottom drive didn’t need to have tensioning.
A similar thing happened to Burlingame(t)at Snowmass when it was shortened when the VX was built. Snowmass used the Alpha drive from Fanny Hill which had tension at the drive, so the drive was converted to fixed tension by LP.
kinda interesting that both drive and return were replaced over time and follow the legacy. Thiokol, which became CTEC whos founder went on to form skytrak. Even after his death Jan Leonards designs stick around.
Lift Blog
Seems odd that a top drive terminal would be at the base. Why didn’t they do a regular Enterprise drive? Too much tension for a lift under 1500 feet?
LikeLike
I call this the fixed Enterprise drive. There is already tensioning at the top. The tensioned enterprise drive is the one more typically used, almost always on bottom drive lifts. The fixed version is typically seen on top drive lifts, but it does not have to be. Another example of a drive typically seen on top drive lifts being used in a bottom drive application is the Summit Express Triple at Hunt Hollow, NY. It was a Hall double converted to a triple by CTEC. They reused the original tensioning, so the new bottom drive didn’t need to have tensioning.
LikeLike
A similar thing happened to Burlingame(t)at Snowmass when it was shortened when the VX was built. Snowmass used the Alpha drive from Fanny Hill which had tension at the drive, so the drive was converted to fixed tension by LP.
LikeLike
Any idea when the bottom terminal was replaced? Was it before or after Thiokol designs were bought by CTEC?
LikeLike
kinda interesting that both drive and return were replaced over time and follow the legacy. Thiokol, which became CTEC whos founder went on to form skytrak. Even after his death Jan Leonards designs stick around.
LikeLike
