Month: May 2015

7,000 Vertical Feet in Ten Minutes

Peter Landsman1 Comment

Two new aerial tramways are about to open on the Italian side of Mont Blanc that will be among the steepest in the world.  This is Doppelmayr’s largest project ever on Leitner’s home turf.  The €110 million contract was awarded in late 2011 and construction began in 2012.  Two sets of 80-passenger cabins will ascend a crazy 7,093 vertical feet in ten minutes.  For comparison, Palm Springs’ tram does 5,873 feet in 12 minutes, Jackson Hole’s 4,084 feet in nine minutes.

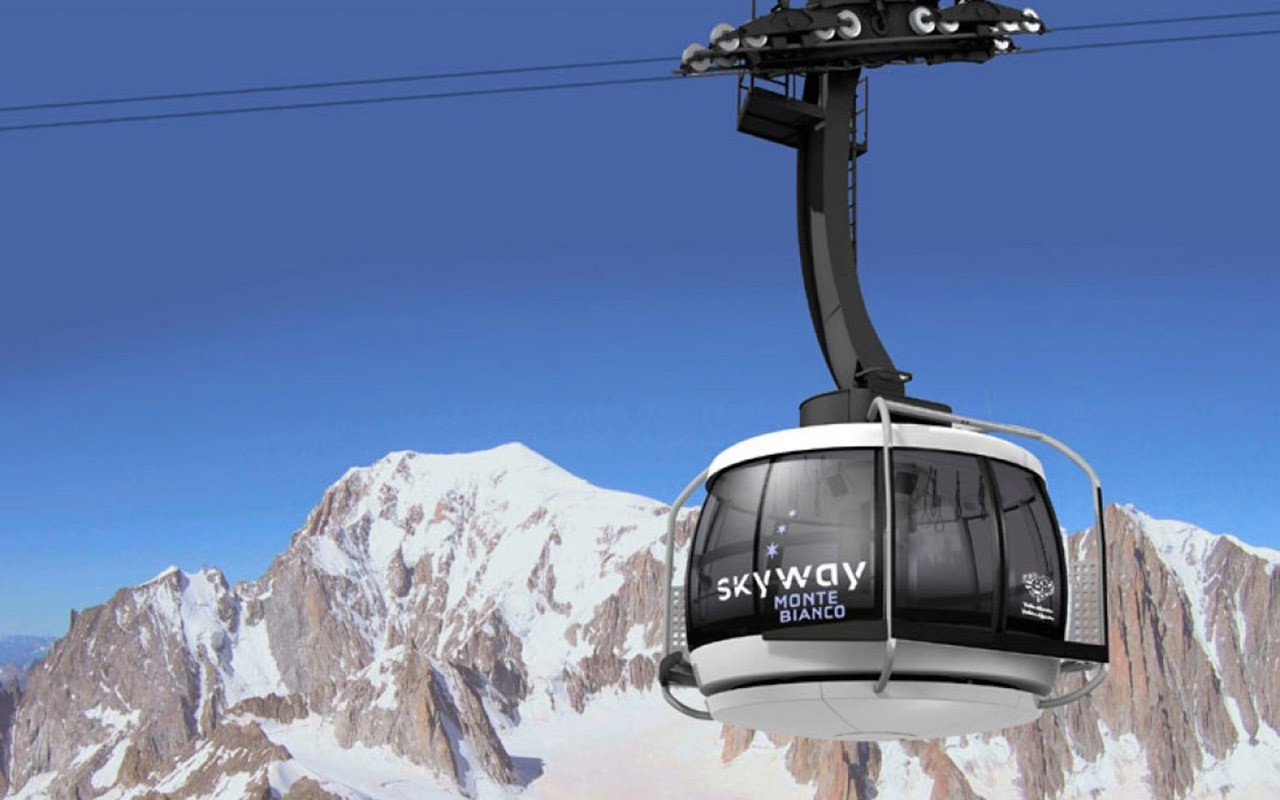

funivia_resize_manuale_298
Mont Blanc will have CWA’s first fully-rotating cabins.

Mont Blanc can be accessed from both the Italian and French sides.  There is also a highway tunnel under the mountain, but that’s not nearly as cool.  The existing setup on the Italian side requires riding three lifts built in the 40s and 50s to reach Point Helbronner at 11,358 feet.  The French side has two tramways, the famous Aguille du Midi 1 & 2 that reach 12,392 feet.  Connecting the French and Italian summits is a 3.1 mile bi-cable pulse gondola that opened in 1957.

Both new trams will have the world’s first 360-degree rotating cabins (others like the Palm Springs Tramway have only rotating floors.)  Built by CWA, these 80-passenger cabins will feature heating, air conditioning and video screens showing live camera views.

System Statistics
System Statistics

Both sections will be in new alignments as shown in Google Maps above.  The first section ascends from the village of Entreves to a mid-station called Le Pavillon with three towers along the way.  It will move 600 passengers per hour with a four minute ride.  The second section from Le Pavillon to Point Helbronner has only two towers and ascends over 4,000 feet in six minutes.  Both sections will operate year-round once they open in mid-June.

News Roundup: Getting There

Peter LandsmanLeave a comment
Moving along at Snow King Mountain, WY.
Getting there at Snow King Mountain, WY.
  • Fire at Misery Mountain (A movie title if I’ve ever heard one!)
  • Another urban gondola proposed, this time in Belgrade, Serbia
  • Poma makes it clear they don’t have a deal with Israel to build a gondola in Jerusalem.
  • Speaking of conflict-torn places, Myanmar may gets its first aerial tram.
  • Another Midwest ski area closes.  Anyone need a Hall double, Riblet quad or VonRoll triple?
  • Environmental group files objection to Eldora’s master plan that includes building 3 new detachables.
  • How does a ski hill with 200 vertical need $15 million to stay afloat?
  • Someone in business development at Doppelmayr has some very dramatic music and a lot of time.
  • Red McCombs’ 28-year battle with the Forest Service over the Village at Wolf Creek may be coming to end.  A private lift would access Wolf Creek Ski Area, although the owners of the ski area do not support the Village.
  • Powderhorn is moving along with their refurbished detachable quad from Marble Mountain, Newfoundland.

Lift Profile: Spokane Falls SkyRide

Peter Landsman7 Comments

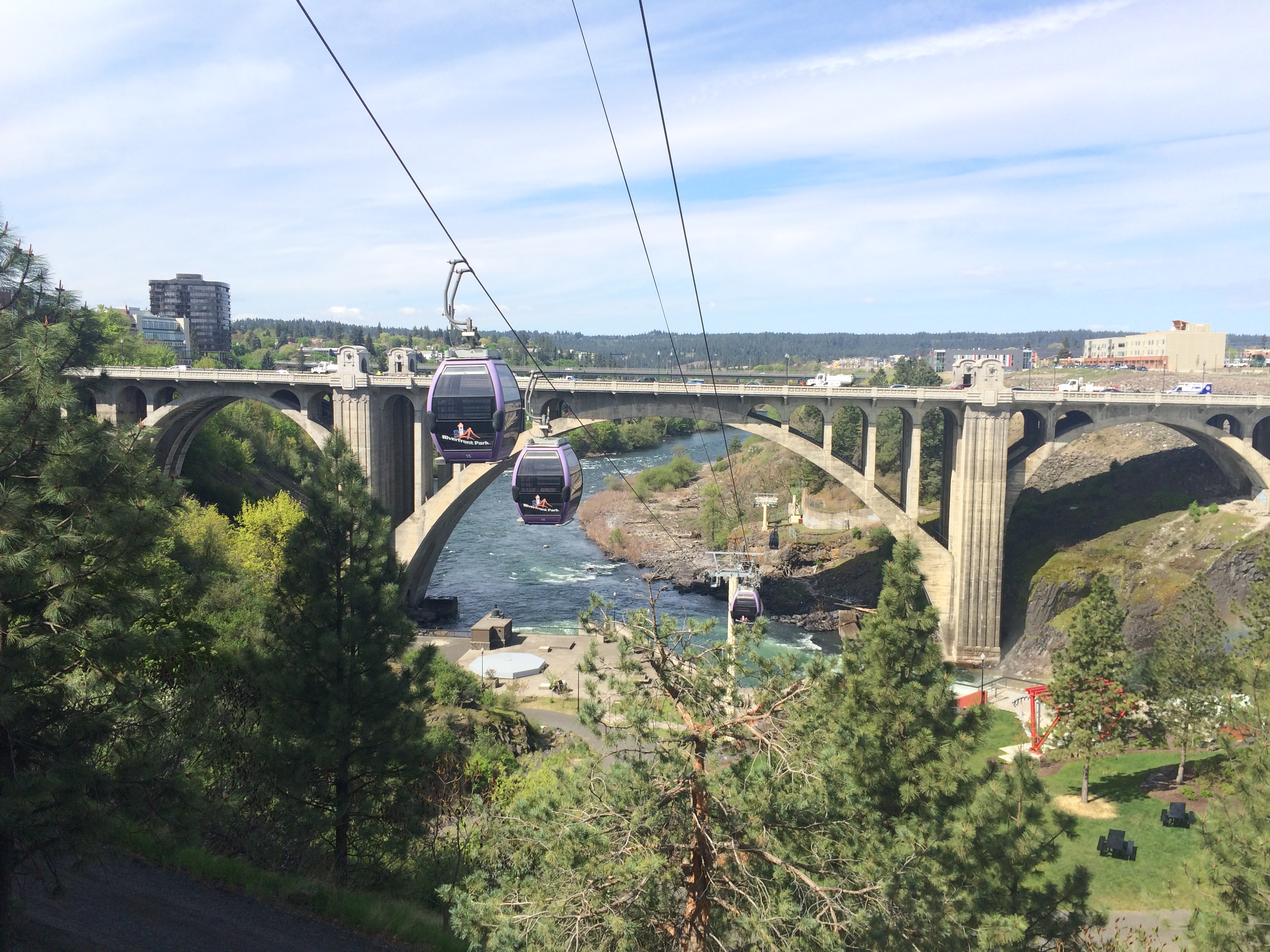

IMG_6921
The only lift I know of that crosses under a major bridge.

The $2.5 million Spokane Falls SkyRide is one of only a handful of lifts in North America owned by city government.  Doppelmayr CTEC built the pulse gondola in 2005 to replace a Riblet version that debuted in 1974.  Riders board at the drive station in downtown Spokane’s Riverfront Park.  The gondola travels down through the park, across the Spokane River and under a four-lane bridge before turning around.  All this happens in only 1,120 feet.  It takes 15 minutes to ride round-trip at a painful 150 feet per minute (the design speed is 600 fpm.)  The gondola’s turnaround station on the far bank of the river does not have loading/unloading or even an operator.  A ticket for the SkyRide costs $7.50 and it operates year-round.

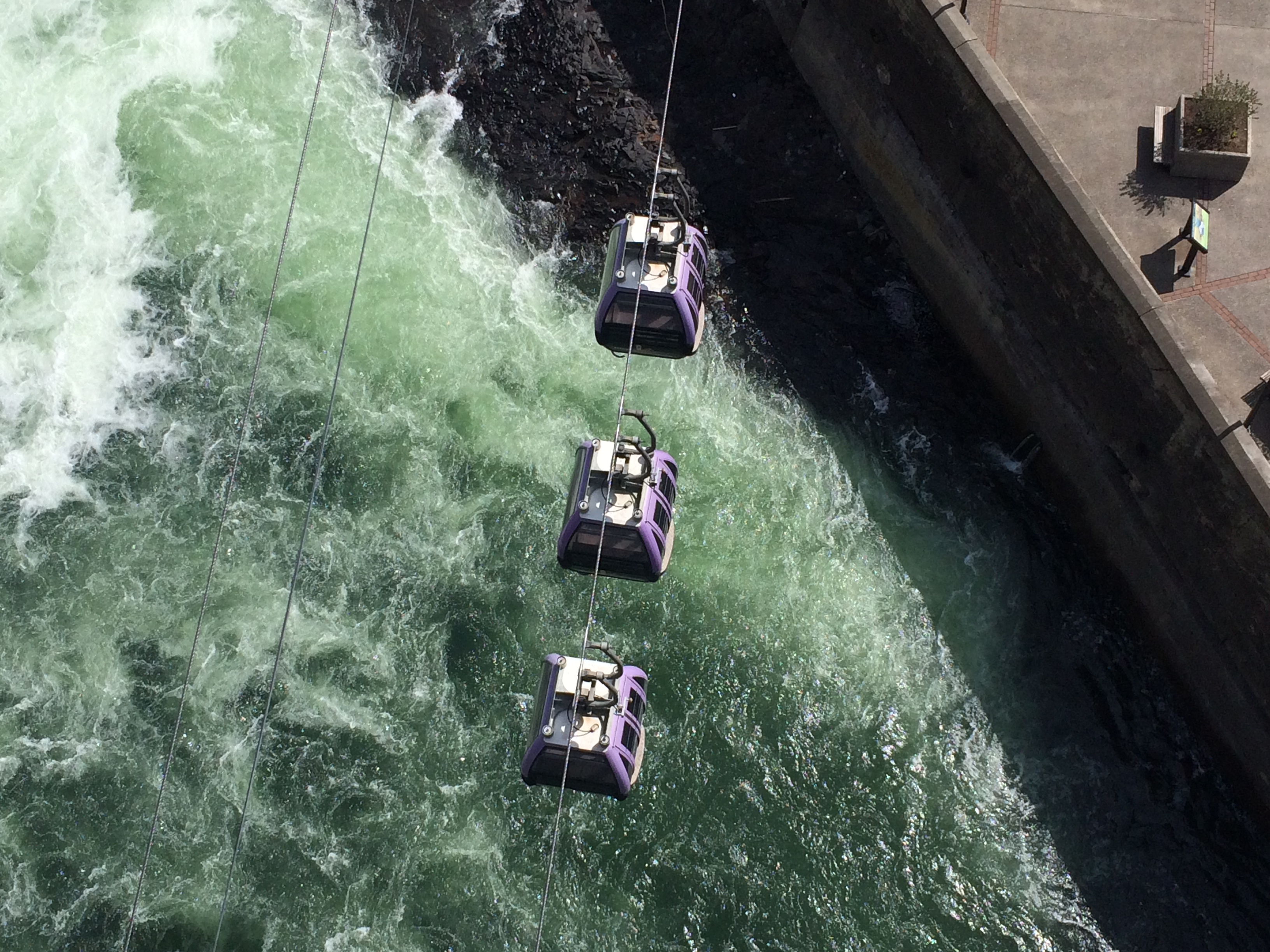

Looking down at one of five pulses of cabins.
Looking down at one of five pulses of cabins.

Spokane’s original Riverfront SkyRide, built by Riblet, ran in a similar alignment from 1974 to 2005.  (Riblet built over 500 lifts in a shop three miles away.)  The Riblet version of the SkyRide had open air cabins but the new one has 15 CWA Omega 6-passenger cabins.  Because the cabins are enclosed, the SkyRide shuts down when the temperature exceeds 85 degrees, which happens fifty days a year in Spokane.  Last year Doppelmayr developed a plan to retrofit cabins with larger opening windows but so far these have not been installed.  Despite this issue, over 70,000 people ride the SkyRide every year.

IMG_6931 IMG_6920 IMG_6915

The Next Big Resort?

Peter Landsman3 Comments

Last Wednesday, New Hampshire Governor Maggie Hassan signed a bill that may create the largest resort in the east out of a tiny, closed ski area called The Balsams.  The resort hotel and Wilderness ski area have been closed since 2011 when the owners began renovations and ran out of cash.  Now Les Otten, founder of American Skiing Company, has partnered with the Balsams ownership group to create the next big eastern ski resort.  The bill the governor signed allows the state to back $28 million in development loans for the $143 million project.

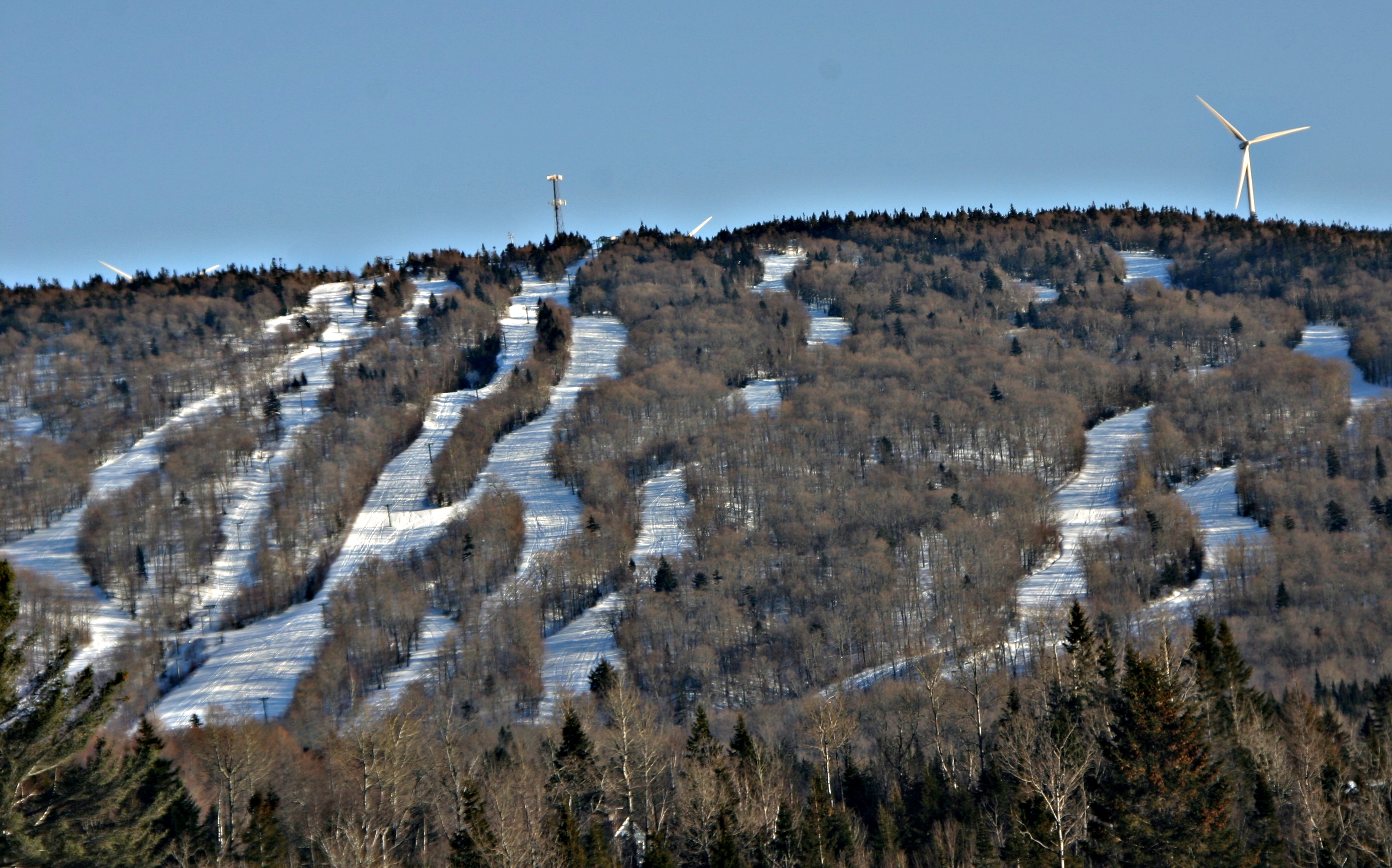

ski
The Balsams Wilderness ski area has been closed since 2011. Photo credit: NH Public Radio

Otten is perhaps best known for turning Sunday River from a one-lift operation to a 525,000 skier visit beast of the east.  Circa 2002, his empire included Sunday River, Sugarloaf, Cranmore, Attitash, The Canyons, Killington, Sugarbush, Mount Snow, Heavenly and Steamboat.  After leaving the ski industry, Otten created a renewable energy company and ran for Governor in Maine.  He lost.  Now, six years after selling The Canyons, he’s back in the lift business.

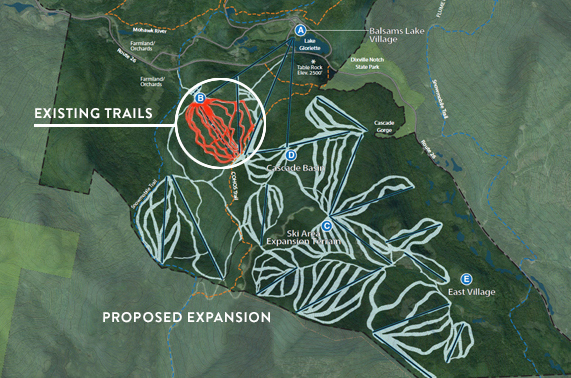

Ski_Map_NEW
The master plan includes 22 lifts in three phases.

Continue reading →

News Roundup: Lifts in Strange Places

Peter LandsmanLeave a comment

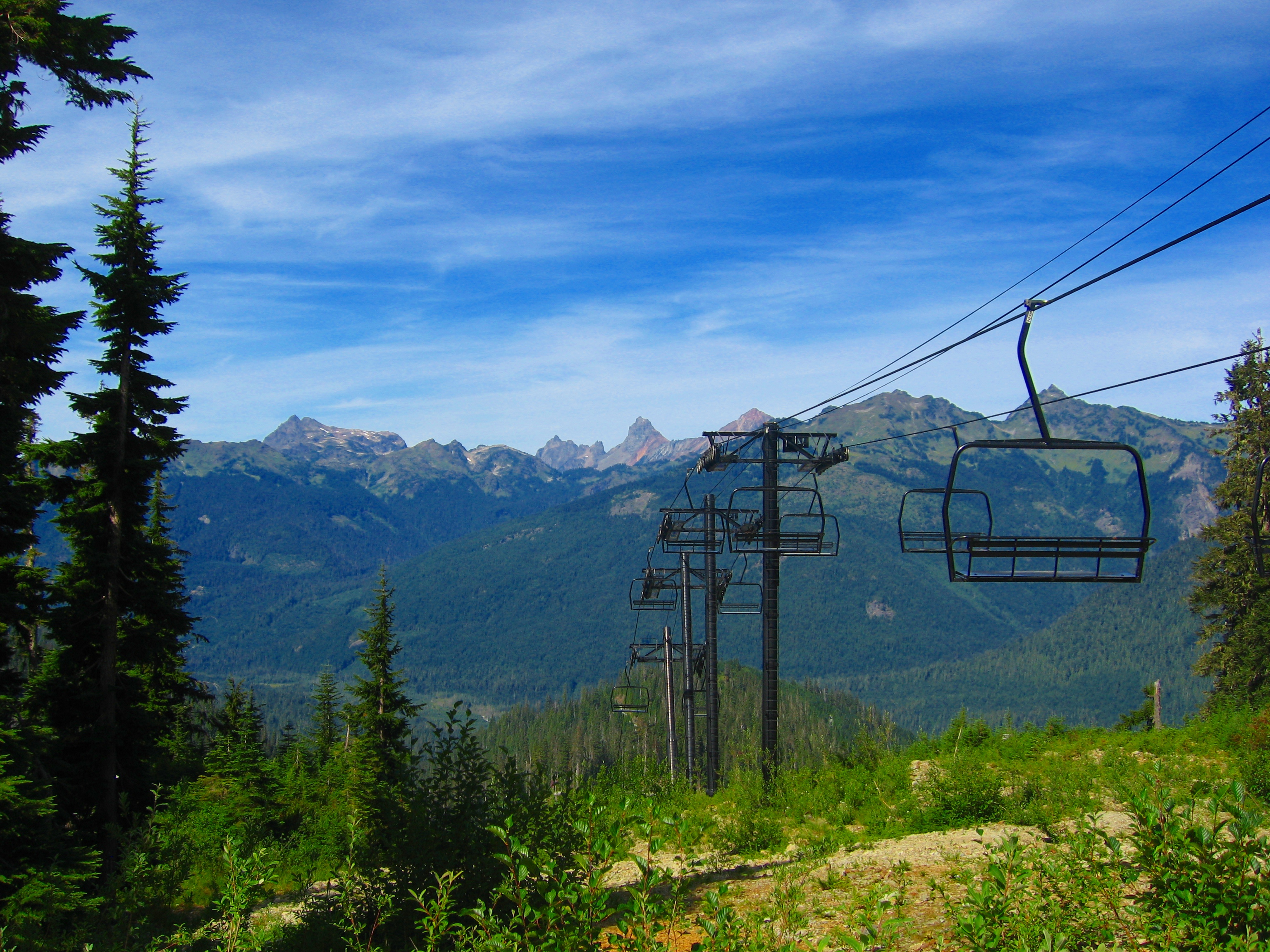

Chair 7 at Mt. Baker, WA
Chair 7 at Mt. Baker, WA

Snow King Rafferty Construction

Peter Landsman2 Comments

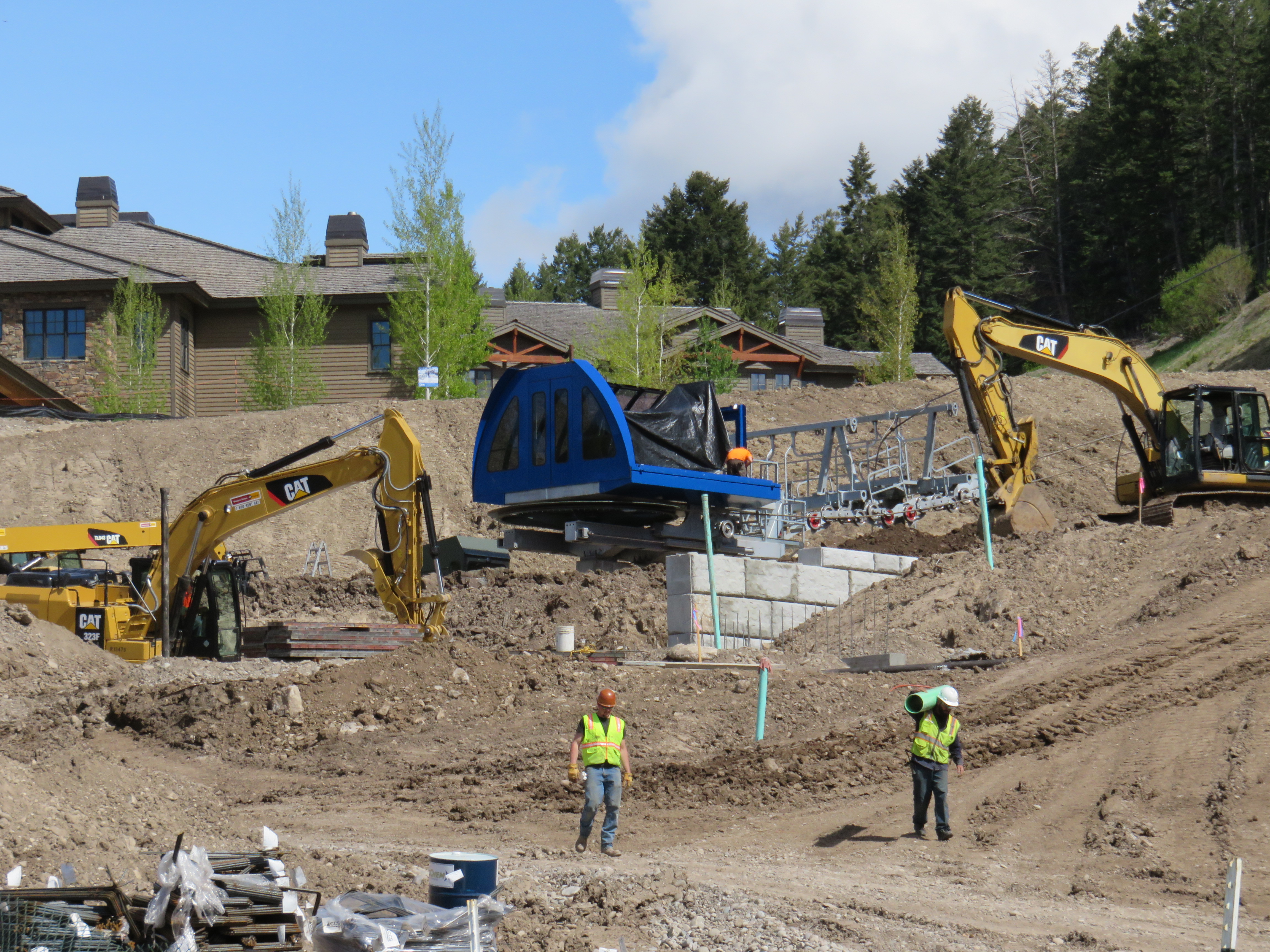

Dopperlmayr's new
Dopperlmayr’s new Alpen Star terminal.

I got to check out the Rafferty lift construction at Snow King Mountain this weekend.  This project is on track to be Doppelmayr USA’s fastest lift installation ever. Snow King actually sells more alpine slide rides in the summer than they do ski tickets in the winter so the lift needed to be completed quickly in between seasons.  Construction began in April and will be done by June 15th.  Snow King is also building a Wiegand Alpine Coaster that will open in August.

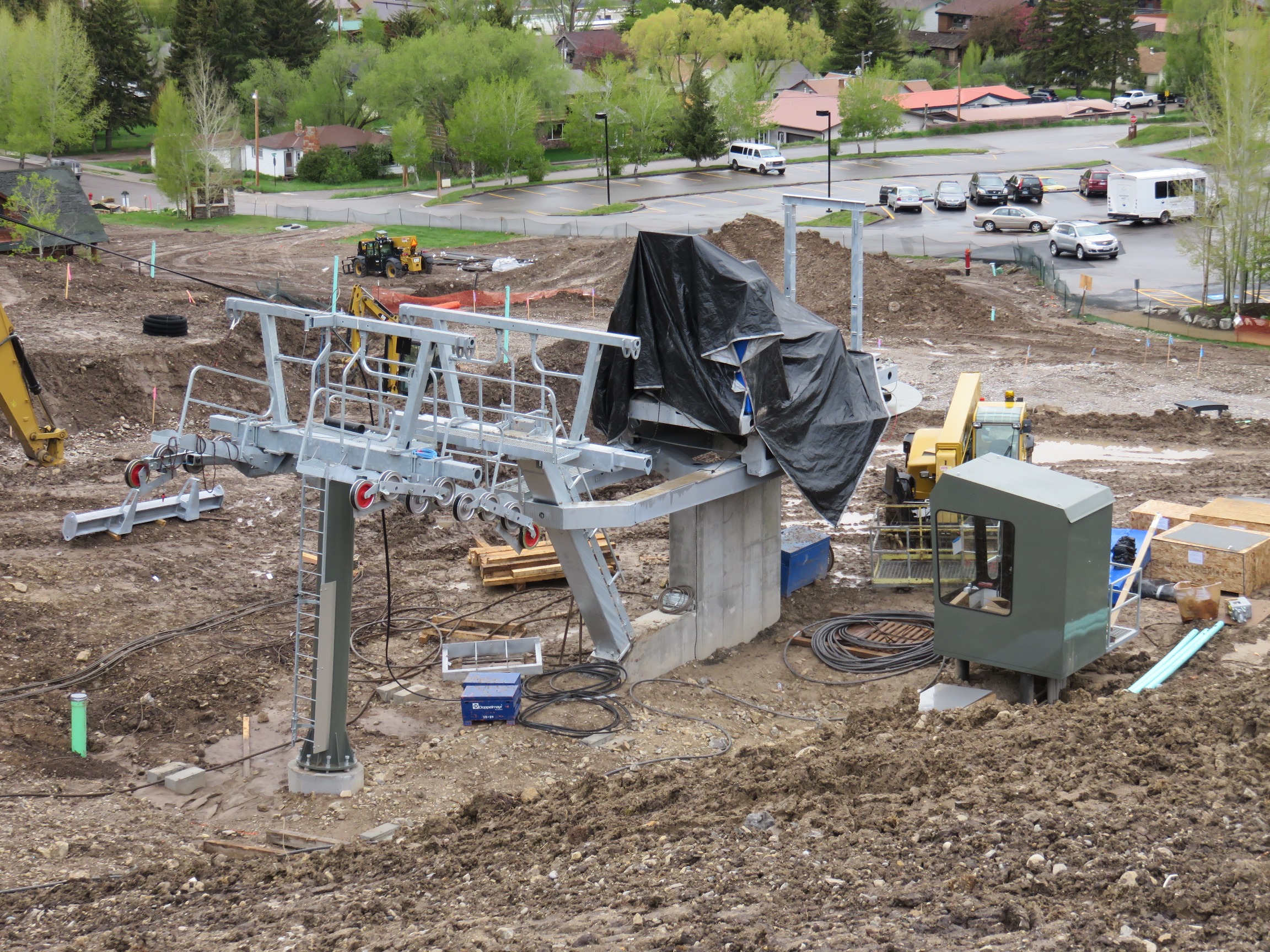

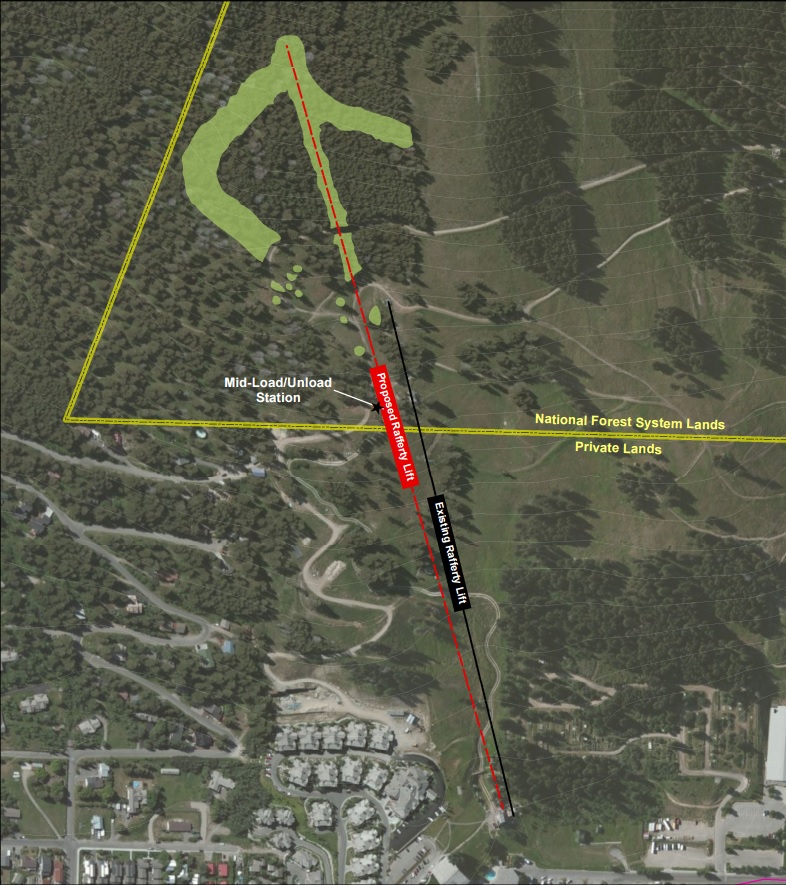

New and old Rafferty lift lines.
New and old Rafferty lift lines.

The old Rafferty was a Hall double installed in 1978.  It will find new life at the Bearizona Wildlife Park in Williams, Arizona.  The new Rafferty quad goes 400 vertical feet higher than the old one but the load- and mid-stations are pretty much in the same spots.  The bottom drive-tension terminal is a brand new design from Doppelmayr called the Alpen Star.  It is a single-mast terminal that looks a lot like SkyTrac’s Monarch design to me.  Check out more pictures below of this $8 million project.

Continue reading →

Summer’s Heating Up

Peter LandsmanLeave a comment

It’s been a great couple of weeks for Leitner-Poma since my last new lifts update.

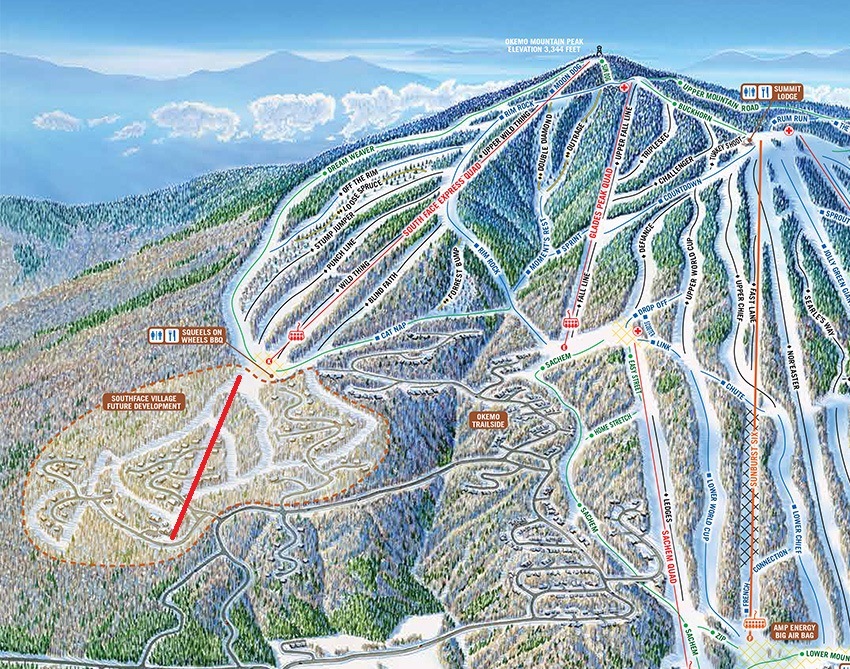

South Face Village at Okemo is moving forward with its first lift.
South Face Village at Okemo is moving forward with its first lift.
  • The $200 million Timber Creek real estate development at Okemo is moving forward with their first lift which will be an Alpha quad.  Also at Okemo the Jackson Gore Express is getting bubble chairs to match the Sunburst Six that went in last summer.
  • For the first time since 1966, Snowmass will be Riblet-less.  Aspen Skiing Company moved the High Alpine replacement up by a year to this summer.    It will be an LPA detachable quad in a new alignment.
  • London Ski Club at Boler Mountain in Ontario is replacing their main lift, Columbia, with an Alpha fixed quad.
  • New Mexico’s James Coleman bought four ski resorts last winter and now he’s gone lift shopping.  Sipapu in New Mexico will get a new L-P beginner lift and Purgatory (No longer Durango Mountain Resort) announced the replacement of the Legends triple with an L-P detachable quad.
  • Squaw Valley is replacing the Siberia Express with an L-P six-pack.
  • Loveland announced a major lift realignment.  Chair 2 (Yan triple) will lose its upper half and be shortened to its mid-station.  The parallel 1970 detachable Poma lift will also be removed and Leitner-Poma will build a new “Ptarmigan” lift from the base of the Poma to the old summit of Chair 2.  I am not sure yet if this will be a triple or a quad.

Continue reading →

2015 Doppelmayr Worldwide

Peter Landsman3 Comments

The 2015 Doppelmayr Worldbook is out!  It’s 150 pages of statistics and pictures of the 83 lifts Doppelmayr and Garaventa built last year.  The book comes out every spring and the last seven of them are available online.

worldbook
CWA’s new Titlis cabin is on the cover.

Some of the projects I found interesting:

  • Universal Studios’ Hogwarts Express, a modern funicular designed to look like a train from Harry Potter.
  • Oakland’s airport connector which is the first Doppelmayr CableLiner Shuttle to have multiple haul ropes and detachable cars.  $484 million buys a pretty cool train.
  • Three gondolas in China including one to the Great Wall with heated seats.
  • The world’s longest chondola at Beaver Creek (also the first with 10 passenger cabins.)
  • World’s tallest 3S gondola in Ischgl, Austria.
  • A two-section system in Greece which runs as a gondola at the bottom and chondola at the top with every 4th cabin making the entire trip.

News Roundup: That’s a first

Peter LandsmanLeave a comment

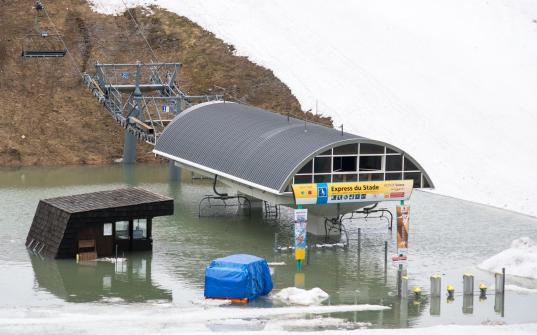

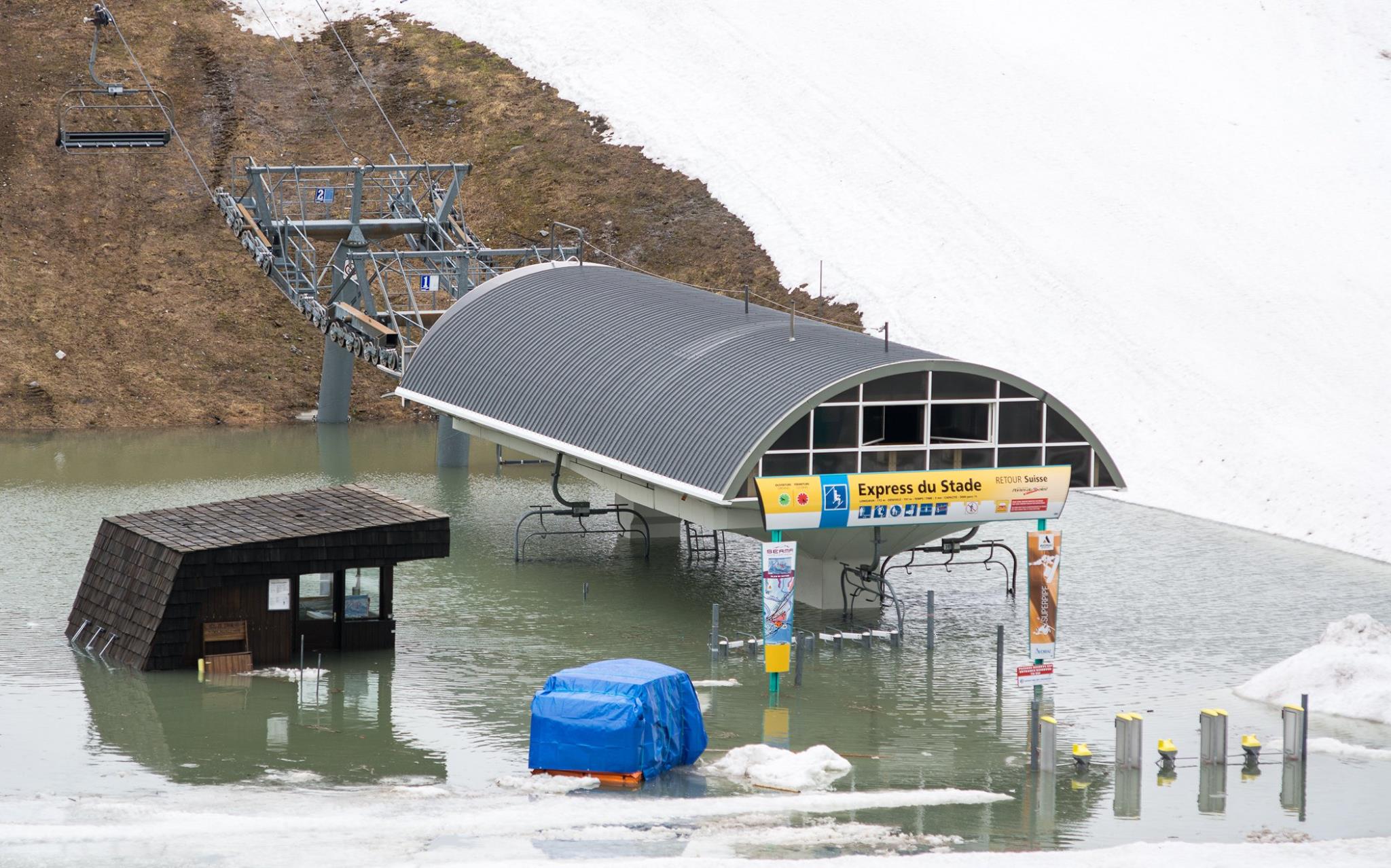

Flooded lift at Avoriaz. Photo Credit: Avoriaz Facebook page.
Flooded lift at Avoriaz, France. Photo Credit: Avoriaz Facebook page.

Skytrac Lifts

Peter Landsman12 Comments

For most of the last 25 years, there has been no major American lift manufacturer.  Sure, Leitner-Poma and Doppelmayr/Garaventa have significant manufacturing here but they are indisputably European.  Before the early 1990’s, prolific American lift builders like Riblet and Hall built more than 500 lifts each.  Then Garaventa bought CTEC in 1992.  Riblet built its last lift at Cooper Spur in Oregon in 2002 and closed the next year. The last remaining US manufacturer, Partek, sold to Doppelmayr in 2005.  Ski Area Management’s headline at the time was “Then there were two.”

2011 SkyTrac Quad at Beaver Mountain, Utah.
2011 SkyTrac Quad at Beaver Mountain, Utah.

That all changed in 2010 when a group of CTEC veterans started Skytrac in Salt Lake City.  One of them was Jan Leonard, the former president of Doppelmayr CTEC who “retired” in 2007.  Skytrac’s first major project was a replacement drive terminal for a Hall double at Monarch Mountain in Colorado.  In tribute to their first customer, Skytrac named its drive terminal models the Monarch and Monarch XL.  Skytrac’s strategy seems to be to build simple and economical lifts that appeal to smaller resorts.  All of their lifts feature the Monarch drive/tension terminal with a fixed return.  One can’t help but notice the resemblance to CTEC’s lifts.

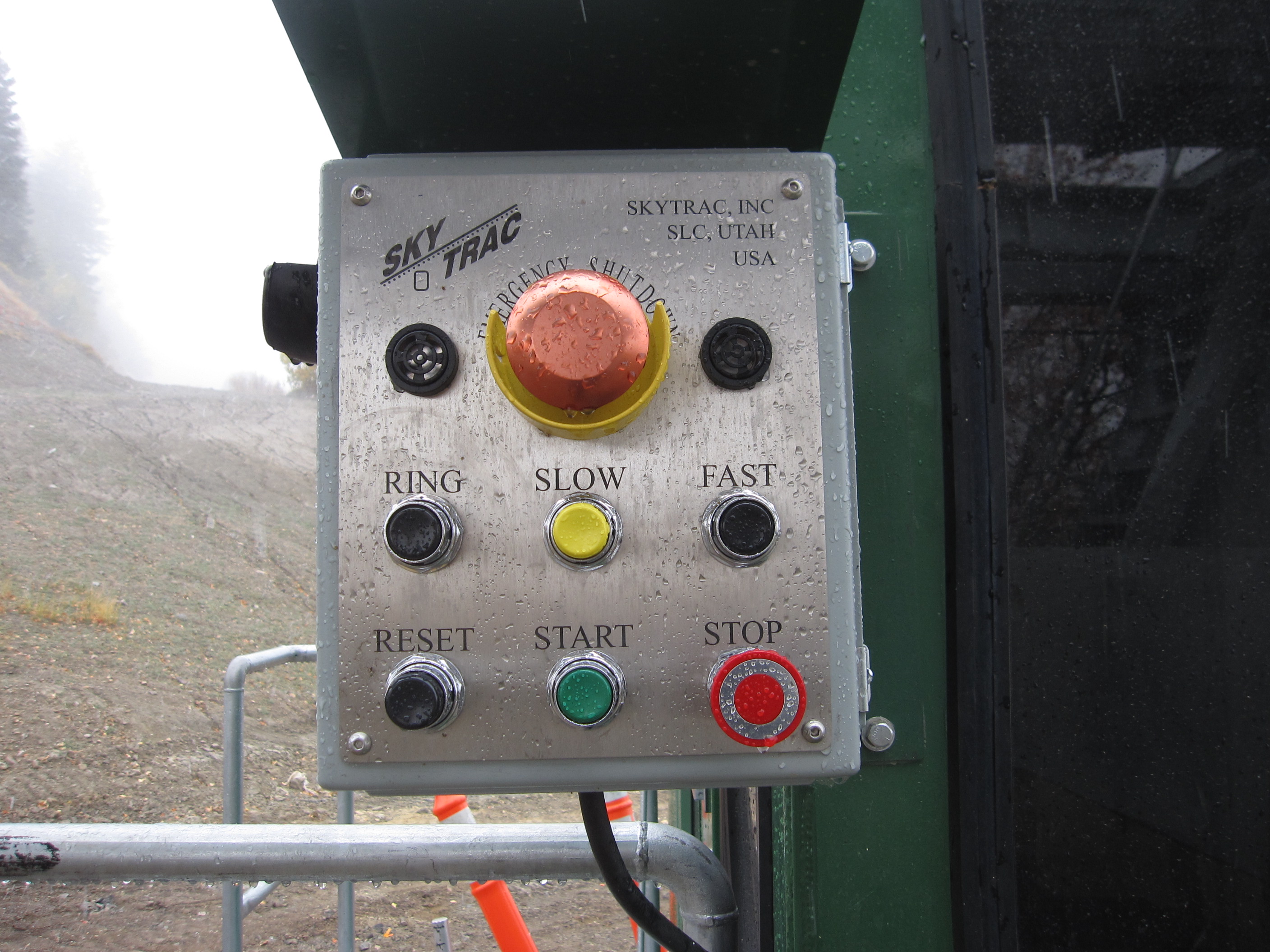

SkyTrac Controls. They look like a CTEC!
SkyTrac Controls. They look like a CTEC!

I couldn’t talk about Skytrac without bringing up their chairs.  For some reason they abandoned the classic bail chair for a Euro-style chair.  I think they look strange.  As someone who operates lifts, I question the practicality of bumping a chair with no bail.

Continue reading →
