Beijing 2022 Olympics: Where are the Ski Venues?

Peter Landsman3 Comments

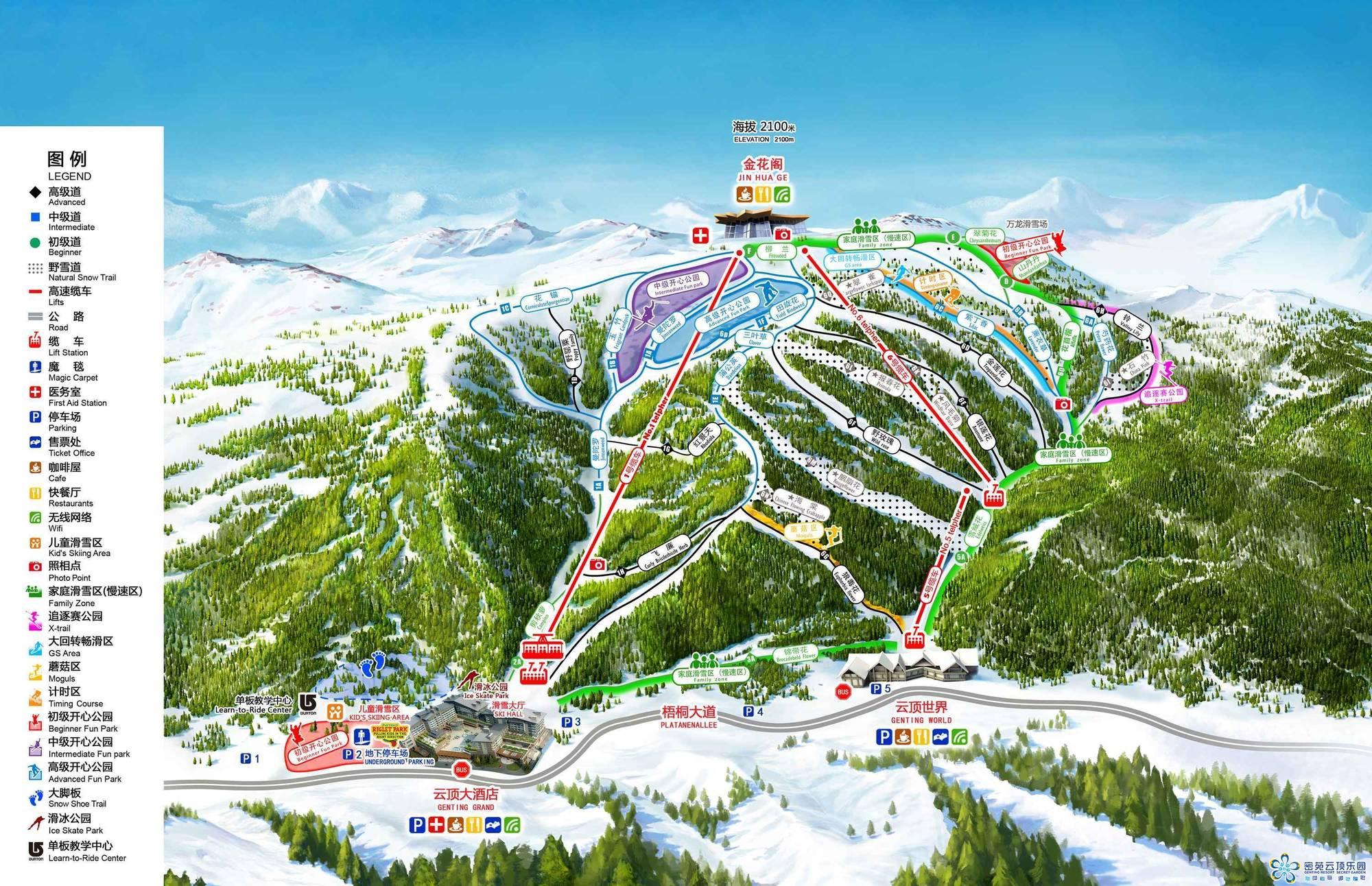

Genting Secret Garden trail map.
Genting Secret Garden trail map.

This morning the International Olympic Committee announced Beijing as the host for the 2022 Winter Olympic Games.  This means the next three Olympics after Rio will be held in Asia.  The 2022 games are shaping up to be a lot like Sochi with entire ski resorts being built for two weeks of competition.  In fact, only two of the four planned skiing and snowboarding venues exist today.  At least in China the facilities will probably be well-used after the games, unlike Russia where entire 3S Gondolas sit shuttered.

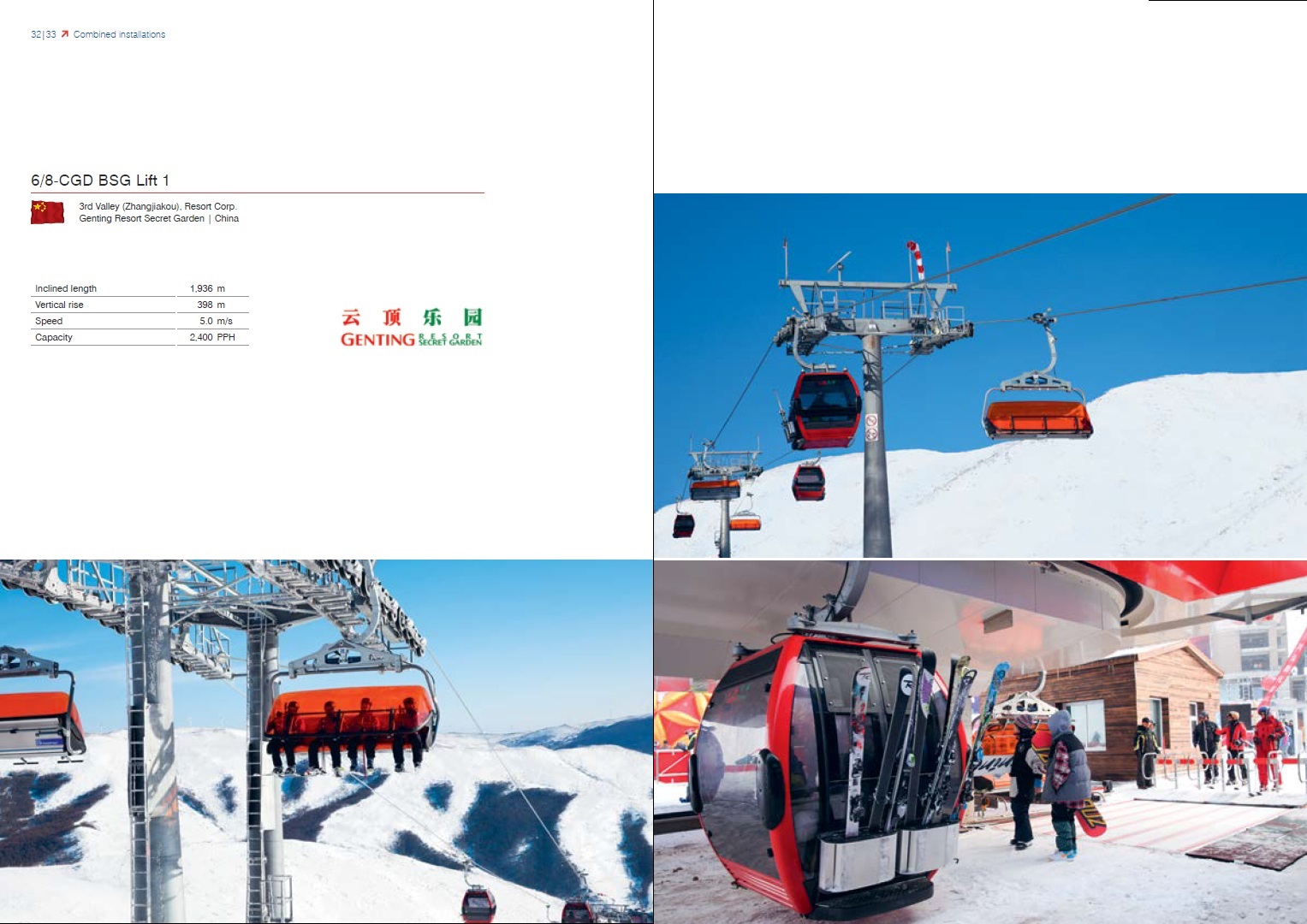

2012 Doppelmayr Worldbook entry for Genting Secret Garden's chondola.
2012 Doppelmayr Worldbook entry for Genting Secret Garden’s chondola.

The snowboarding slopestyle, halfpipe, and some of the freestyle skiing will take place at Genting Secret Garden near Chongli.  This resort opened in 2011 with two Doppelmayr detachable quads with bubbles and heated seats.  It added a Doppelmayr 6/8-passenger chondola the following year that serves 1,300 vertical feet.  Right next door, the older Wanlong Ski Resort will host slalom snowboarding.  It has three fixed-grip double chairs and a quad that look like the fake Doppelmayr lifts that China built for North Korea.  These lifts may have been fabricated in China or the ones China copied when they built the lifts for the North Koreans.  None of the lifts at Wanlong appear in Doppelmayr’s world ropeway map or Worldbooks despite being built relatively recently.

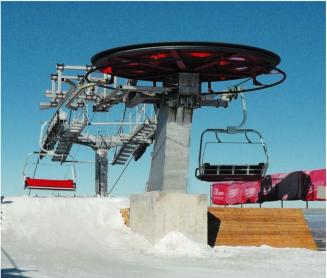

I think this Doppelmayr lift may be a Chinese-made fake.
Doppelmayr or the the Chinese version of Doppelmayr at Wanlong Ski Resort.

Nearby Wanlong and Genting Secret Garden there is a third resort under construction called Taiwu which will host the snowboard cross and freestyle skiing.  Wanlong, Genting Secret Garden and Taiwu are all in a cluster 140 miles from Beijing.  (For reference, Whistler was 75 miles from Vancouver in 2010.)  None of them get much natural snow so snowmaking will be essential.

Continue reading →

News Roundup: Doppelmayr Garaventa 2015

Peter LandsmanLeave a comment
  • Doppelmayr wins a €9.4 million contract for a detachable gondola in Bogota, Colombia.  The 10-passenger, two mile system will carry 2,600 passengers per hour.
  • The US Forest Service accepts Crested Butte’s new master plan for review.  It includes replacing the North Face lift as well as two new lifts in Teocalli Bowl.
  • Rick Spear, the president of Leitner-Poma, thinks an aerial tram from Staten Island to Manhattan is (not surprisingly) a good idea.
  • Arizona Snowbowl’s new lift announcement gets lots of press.
  • Italy’s Leitner and Aguido are merging.  Leitner built a couple dozen lifts in the US and Canada before their joint venture with Poma began in 2002.  Aguido built the Cannon Mountain Aerial Tramway in New Hampshire.
  • Sugarloaf decides it doesn’t have the money to upgrade its oldest lift to acceptable safety standards so it will be removed without a replacement.  Bucksaw was built in 1969.  After it is removed there will be 23 Stadeli lifts remaining in operation, four of which are older than Bucksaw.
  • Construction on The Balsams has been delayed again.  I’ll believe the hype when lift towers start going in.
  • Rumor on Skilifts.org is SkyTrac will complete the abandoned, half-constructed Stagecoach lift on the Moonlight Basin side of Big Sky.  I believe this Doppelmayr double came from the defunct Fortress Mountain in Alberta.

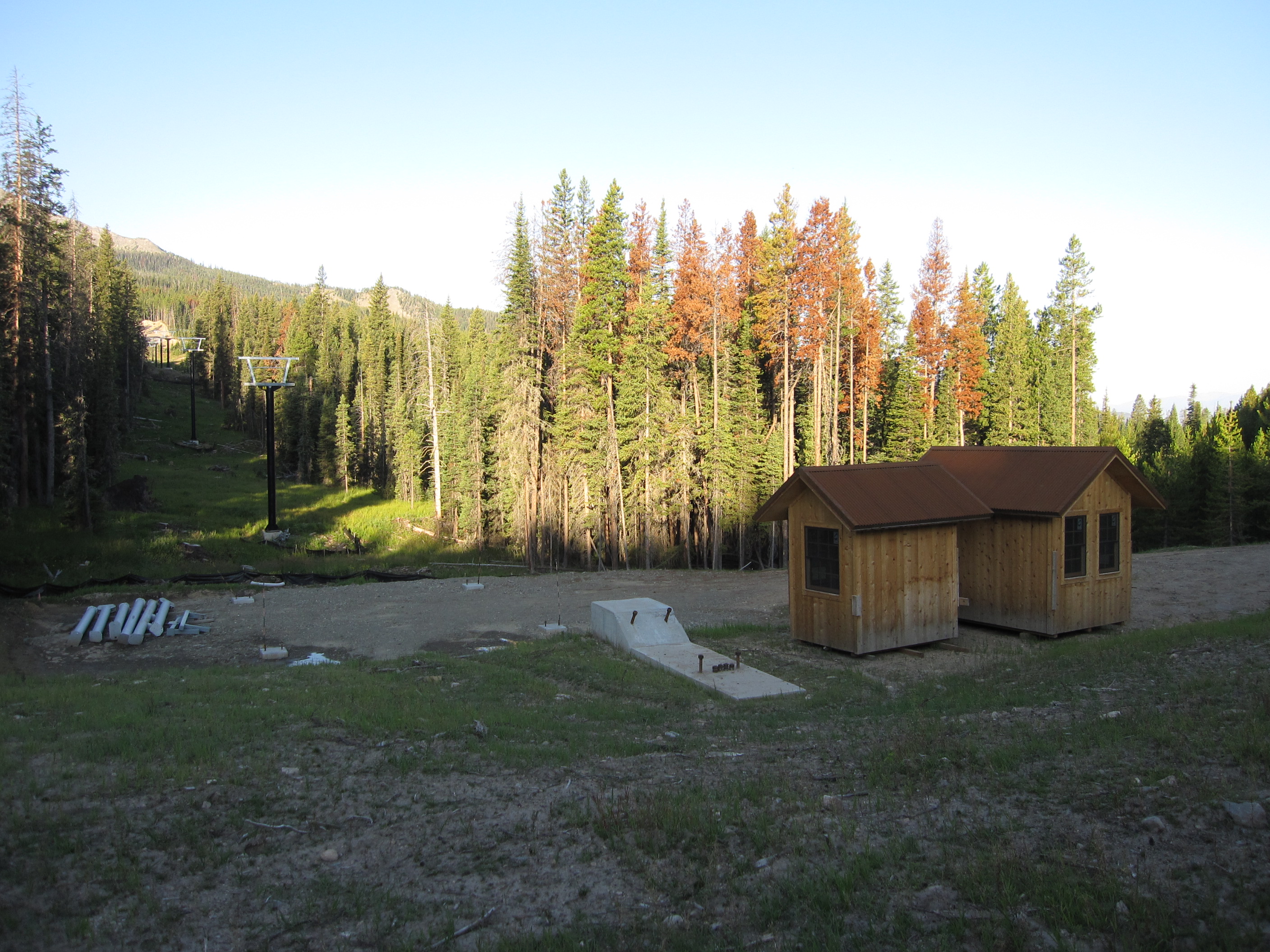

    The Stagecoach lift was partially completed before Moonlight Basin went bankrupt in 2009.
    The Stagecoach lift was partially completed before Moonlight Basin went bankrupt in 2009.

Vail Resorts Unveils Park City’s New Brand

Peter Landsman1 Comment

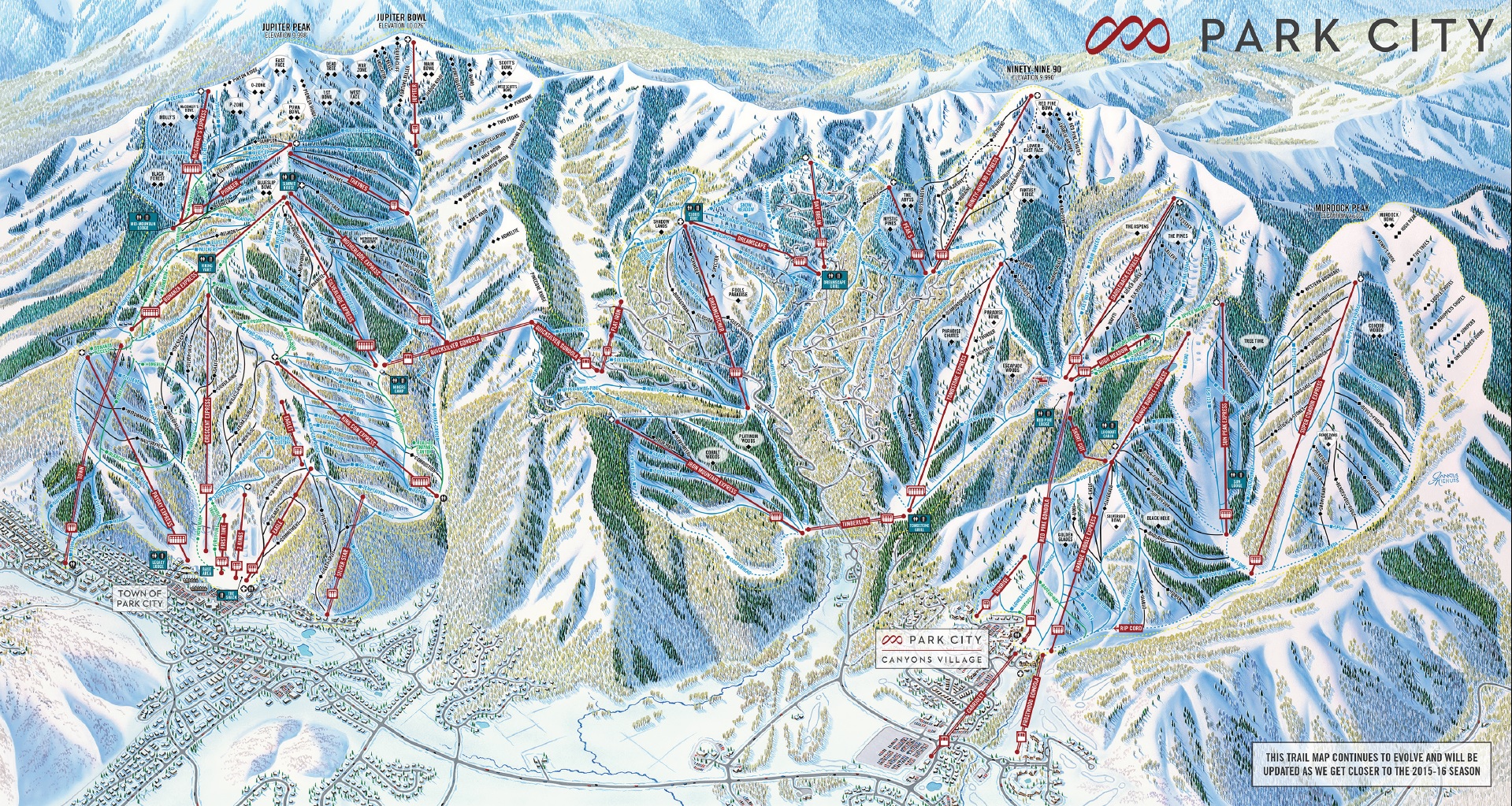

Park City Mountain's new trail map!
Park City’s new trail map!

At an event this afternoon, Vail Resorts officially launched the brand for America’s new largest ski resort.   The new Park City logo combines the Canyons infinity symbol with a new Park City red color and the tagline “There is Only One.”  This is not terribly surprising from a company whose flagship resort is branded “Like Nothing on Earth.”  CanyonsResort.com now redirects to the new Park City website, which ironically is the old Canyons site.  No doubt the new logo and colors look sharp and will serve them well for years to come.  Many of the lifts have already been repainted in the new red and silver color scheme in preparation for this winter.

The new Park City logo takes inspirations from the now retired Canyons logo.
The new Park City logo takes inspirations from the now retired Canyons logo.

Also unveiled today was a new trail map painted by James Niehues.  The working name for the new gondola (Pinecone Gondola) has been scrapped in favor of Quicksilver Gondola in an ode to Park City’s mining heritage.  I liked the Pinecone name; it was chosen for the ridge the gondola crosses but I imagine Vail was worried about confusion with the existing Red Pine Gondola.  Quicksilver fits well with the mining names already in use at Park City such as Silverlode, Bonanza, Motherlode and Payday.  The new lodge at the base of the Quicksilver Gondola will be called Miner’s Camp.  Although it has mostly disappeared, the Canyons name lives on as the northern base area has been renamed Canyons Village.

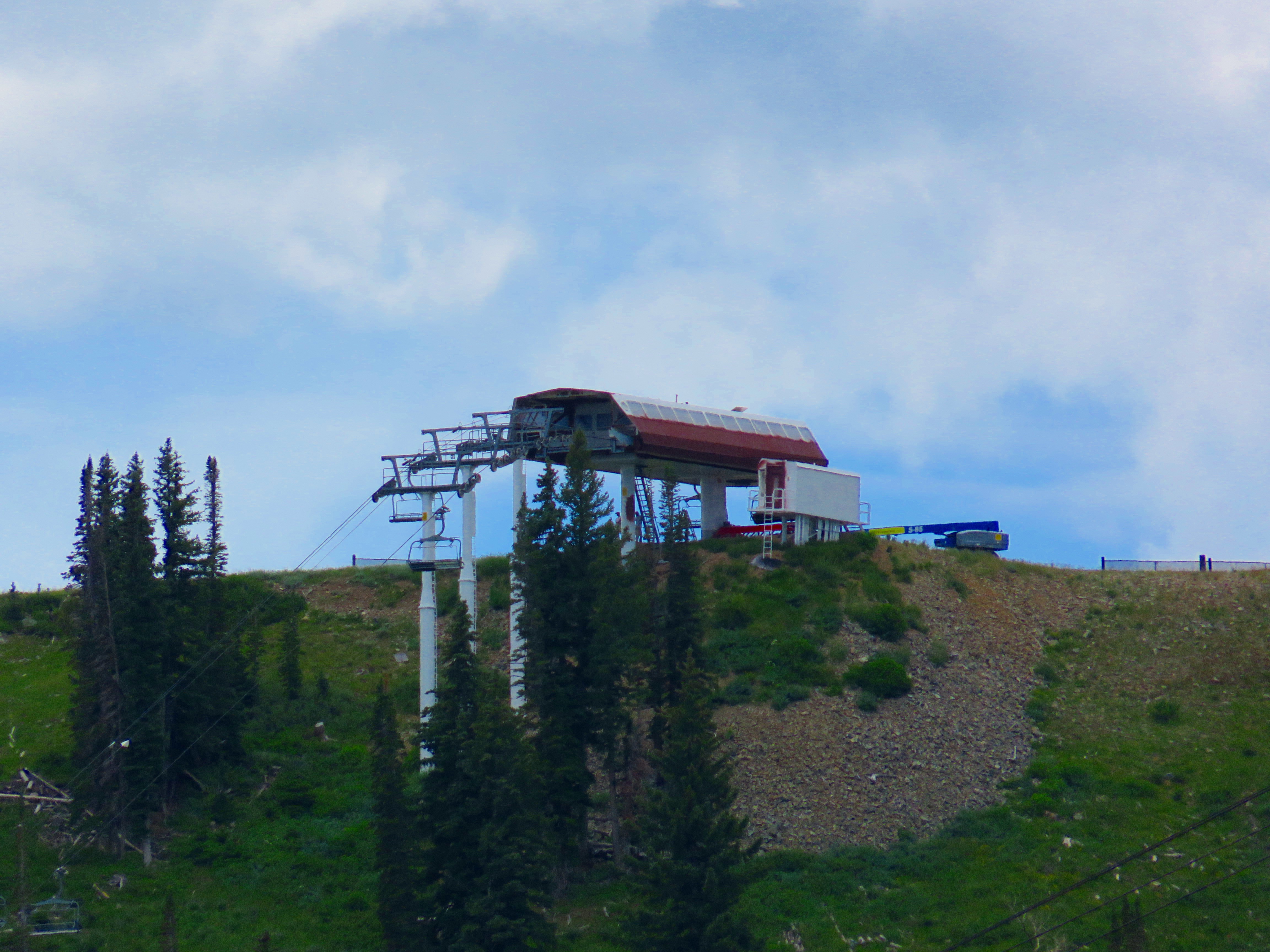

McConkey's six pack in the process of being repainted into the new Park City red and silver color scheme.
McConkey’s six pack in the process of being repainted into the new Park City red and silver color scheme.

Continue reading →

Jackson Hole Tower Flying Part II

Peter LandsmanLeave a comment
IMG_2301

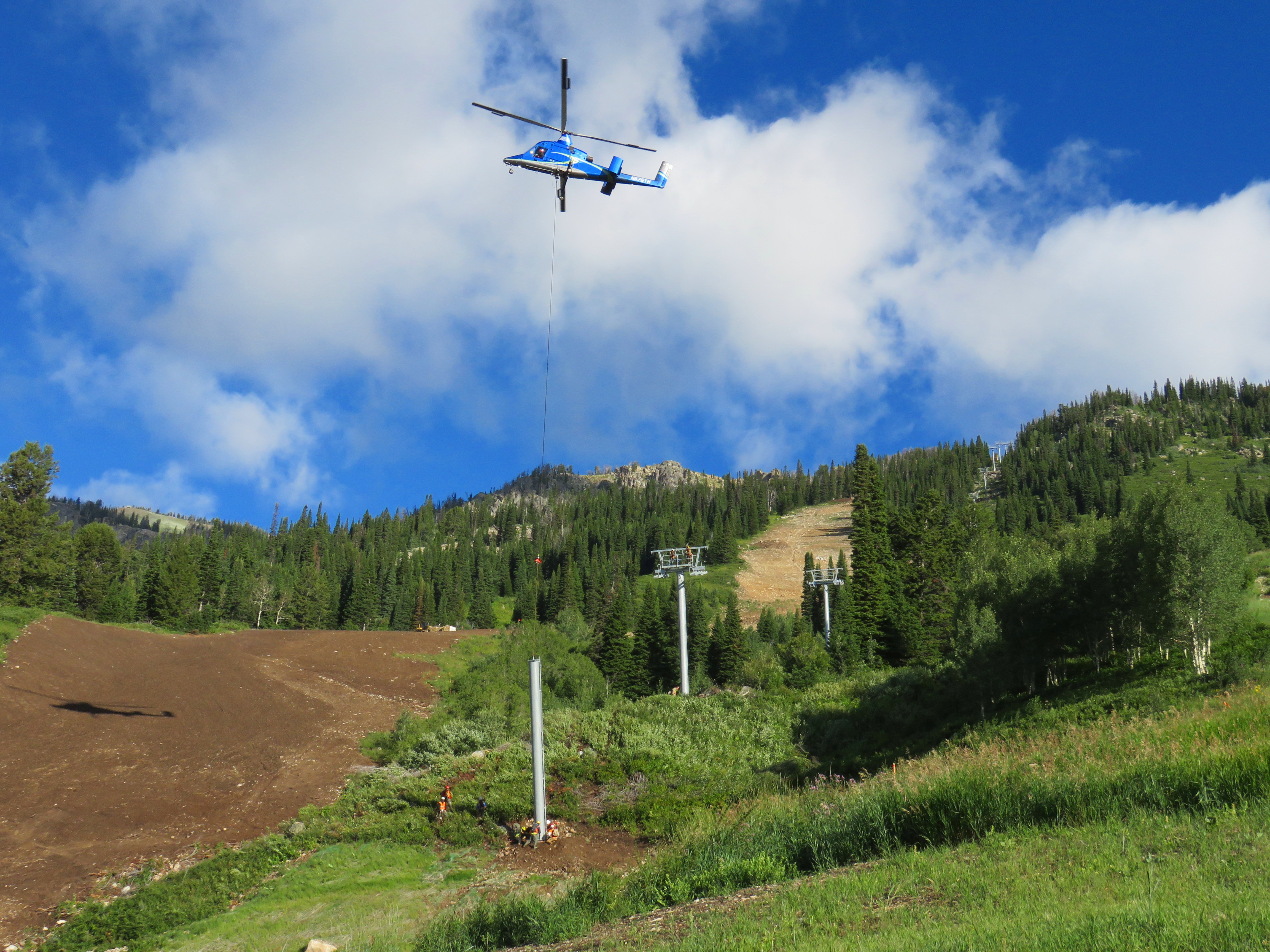

Brian Jorgenson of Timberline Helicopters flying towers for the Teton lift on July 28th, 2015.

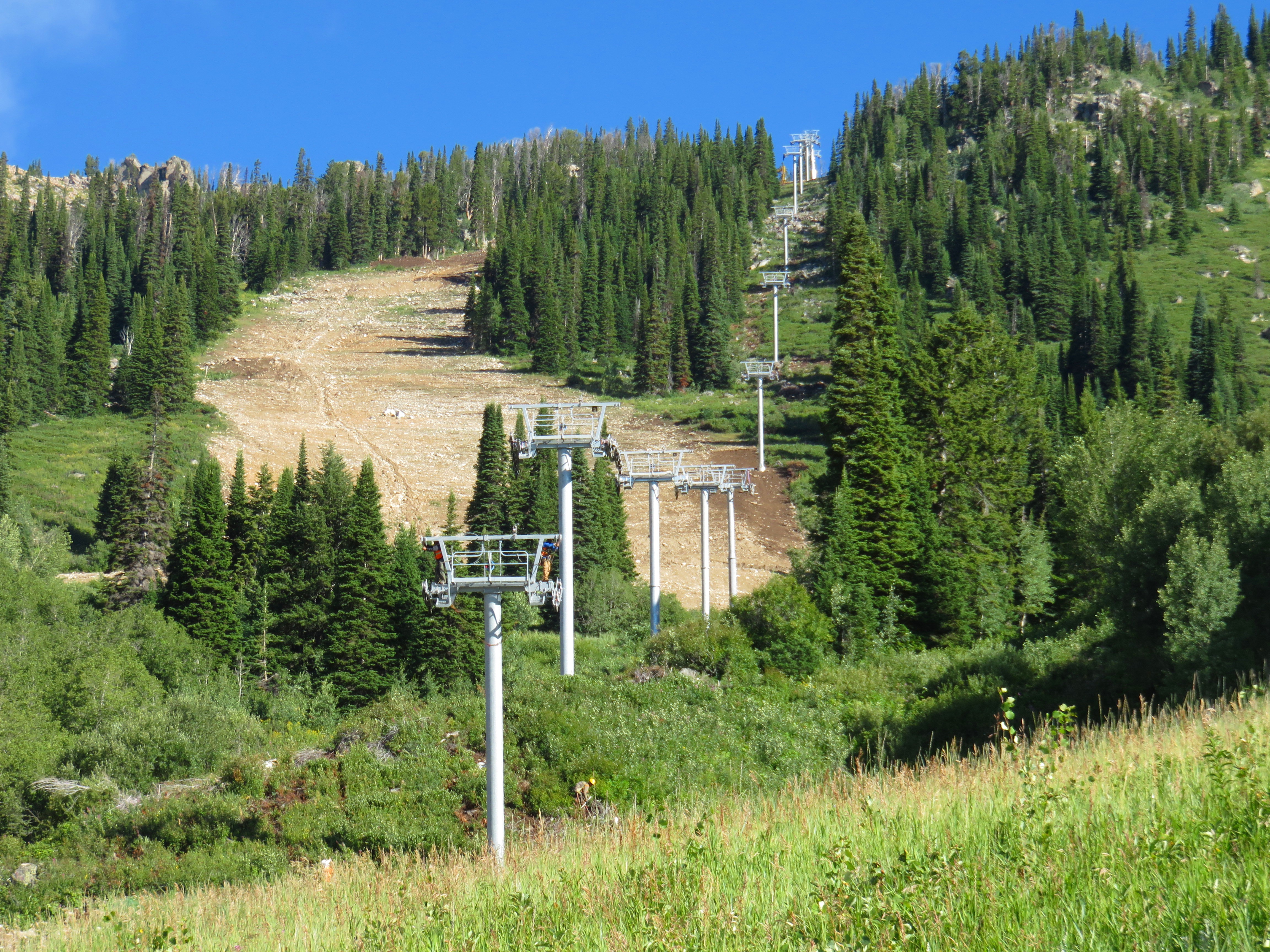

Tower fly day number two for Jackson Hole’s Teton lift went smoothly with crews setting the remaining six towers in less than two hours.  Some of the top and bottom terminal parts were also flown up the hill while the helicopter was here.  With road access at both terminals, I don’t expect to see any more heli work on this project.  Lower Valley Energy is currently running power to the top drive terminal site from Casper and the first lift cabin arrived from Doppelmayr.  Footings for the bottom terminal are about halfway done.  See below for more pictures of today’s flying.

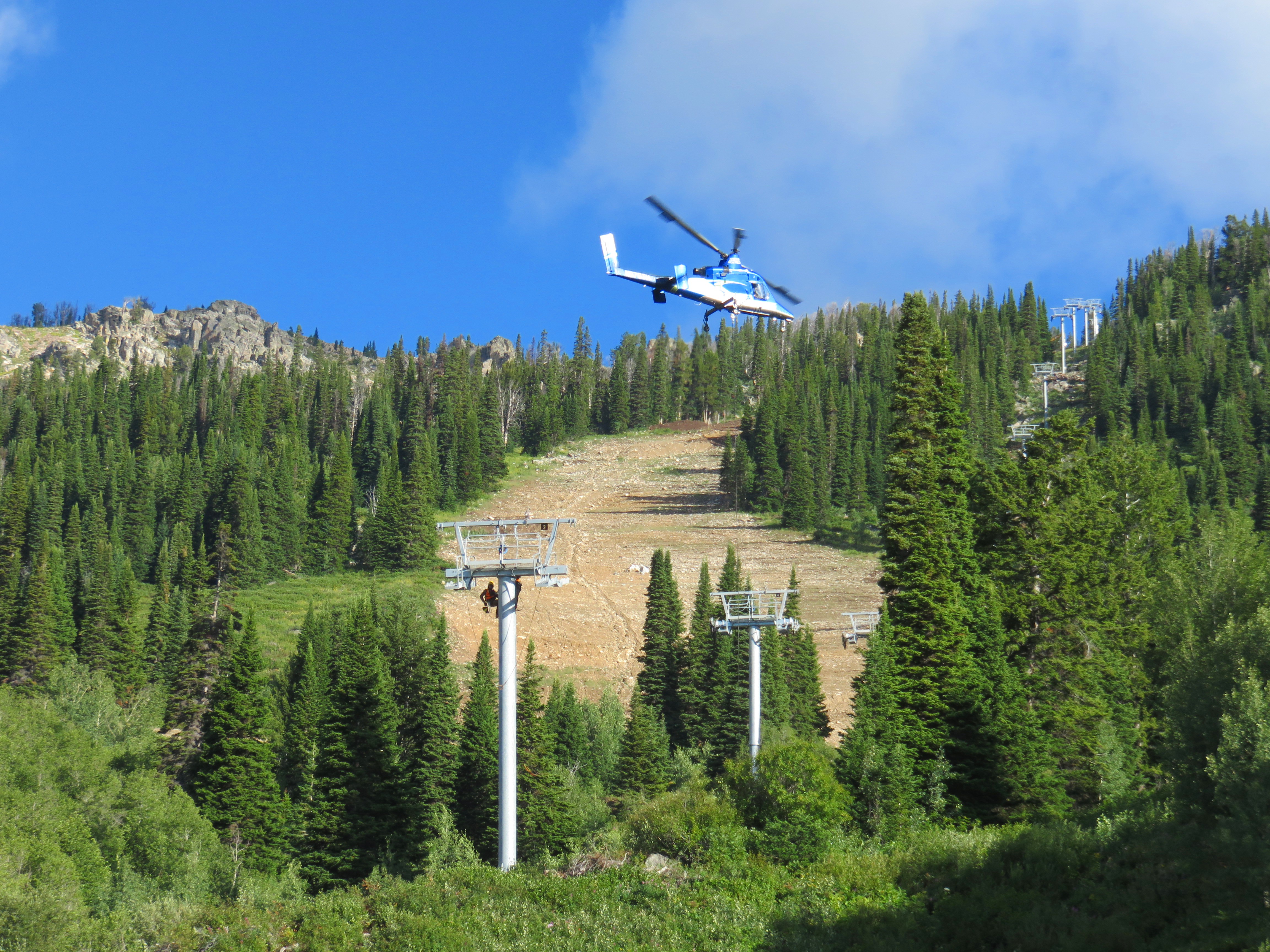

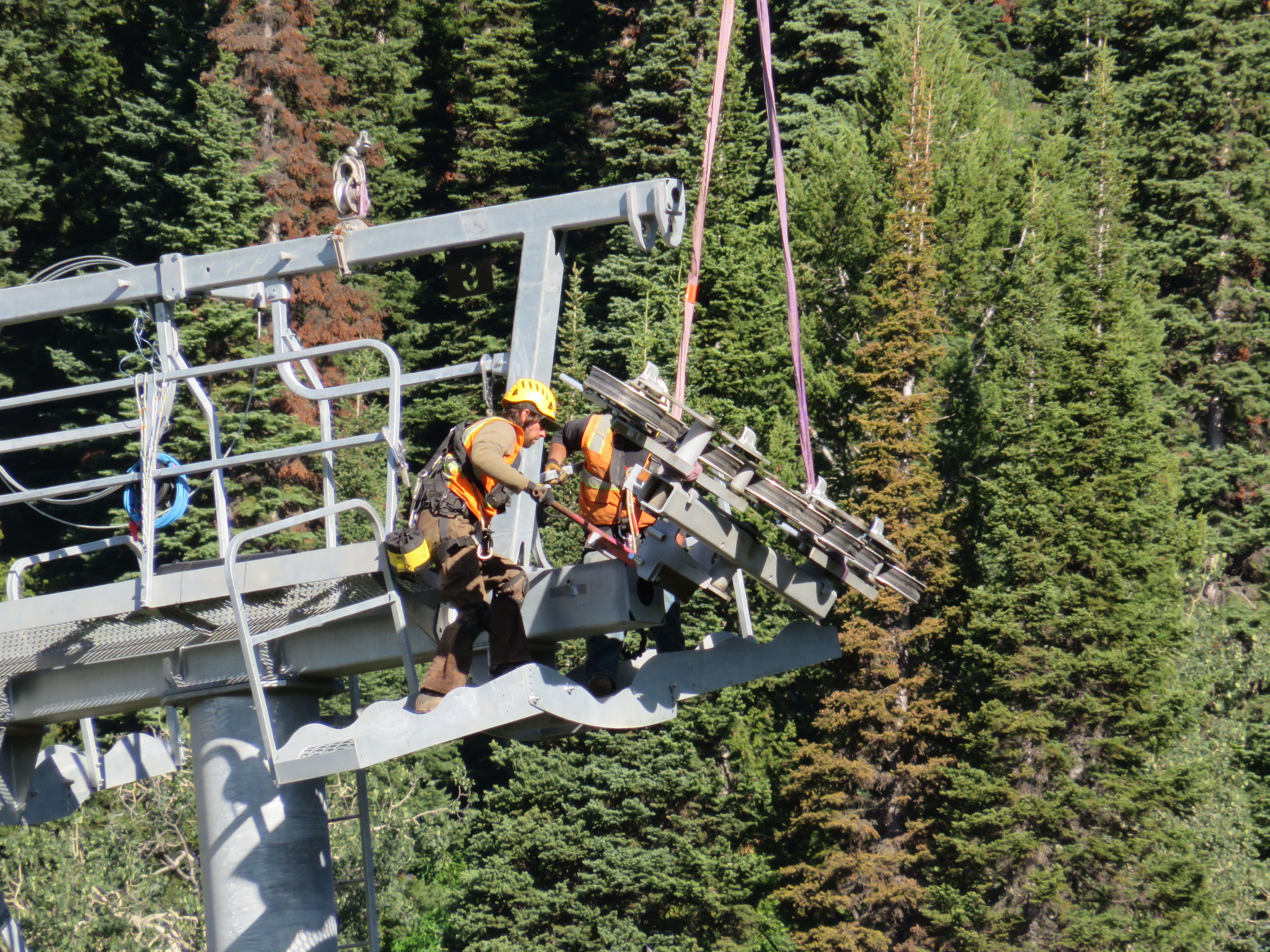

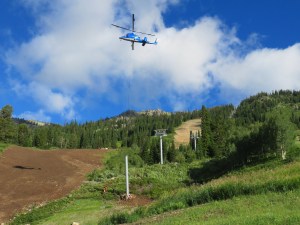

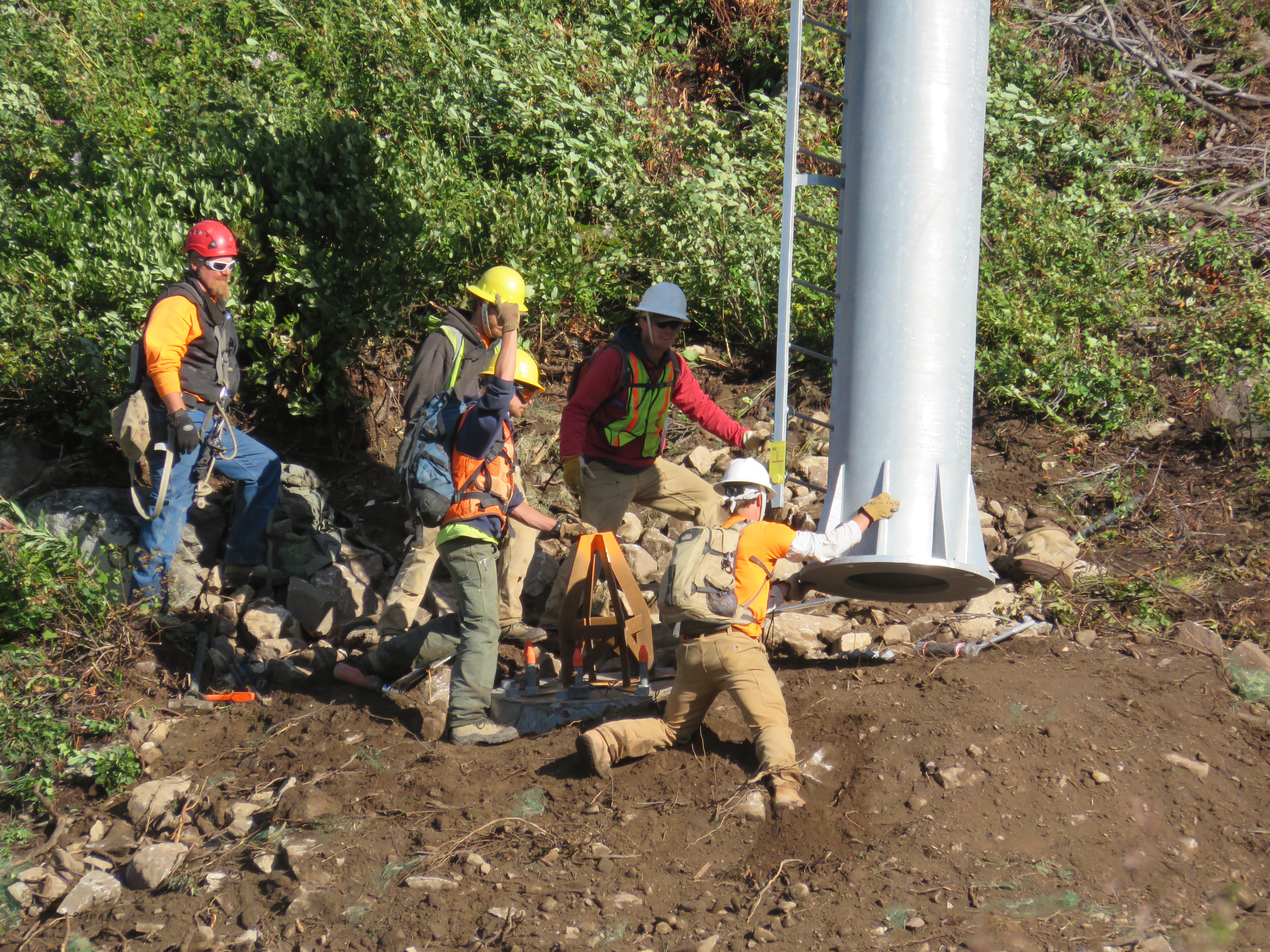

IMG_2563 IMG_2541 IMG_2522 IMG_2489 IMG_2472 IMG_2457

Continue reading →

Arizona Snowbowl to Build First New Lift in 30 Years

Peter LandsmanLeave a comment

James Coleman, the new owner of Arizona Snowbowl and three other resorts in the Southwest has gone lift shopping again.  Snowbowl’s new Humphreys Peak Quad will be built by SkyTrac in Salt Lake City and open for the 2015-16 season.  Coleman already bought two lifts from Leitner-Poma this year – a beginner quad for Sipapu and detachable quad for Purgatory to replace the Legends triple.  Humphreys Peak will be the first new lift at Arizona Snowbowl since CTEC built the Agassiz triple back in 1986.

Flyer for Arizona Snowbowl's 2015 Improvements including a new quad chairlift and snowmaking upgrades.
Flyer for Arizona Snowbowl’s 2015 improvements including a new quad chairlift and snowmaking upgrades.

Snowbowl’s new lift will be located between the Hart Prarie and Agassiz lifts, serving intermediate terrain.  It will be 3,060 feet long and rise 780 vertical feet with a very low hourly capacity of 1,000 skiers per hour.  SkyTrac has committed to complete the project by December despite the late start.  This is SkyTrac’s second complete lift project this summer after Pomerelle, Idaho announced a new triple chair last week.

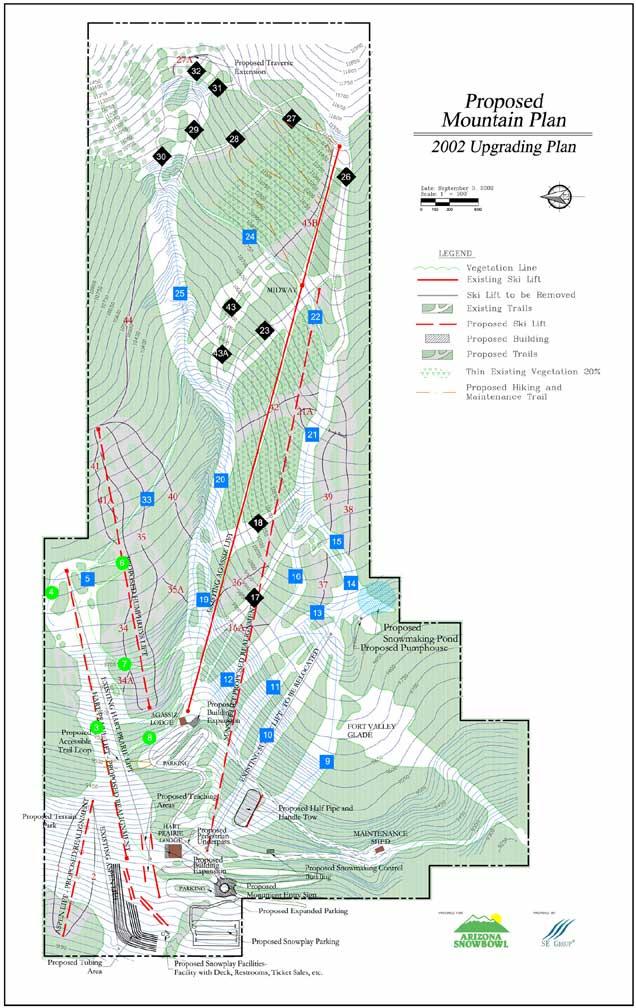

Snowbowl's master plan includes replacing and realigning several lifts.
Snowbowl’s master plan includes replacing and realigning several lifts.

Arizona Snowbowl also announced today planning for the new Grand Canyon Express which will be the resort’s first high speed lift and serve 90% of its skiable terrain.  Although a timeline was not announced, I would not be surprised to see the project happen next summer.  Arizona Snowbowl’s master plan also includes replacing and realigning the Aspen and Hart Prarie lifts which are both Riblet doubles.  It seems James Coleman has no shortage of money to spend on capital improvements.

Instagram Tuesday: Build More Lifts

Peter LandsmanLeave a comment

https://instagram.com/p/5ryobXTUHm/

https://instagram.com/p/5hspN3iuZY/

https://instagram.com/p/5hY5vmvh77/

Continue reading →

Fly Day in Teton Village

Peter Landsman1 Comment
IMG_1868

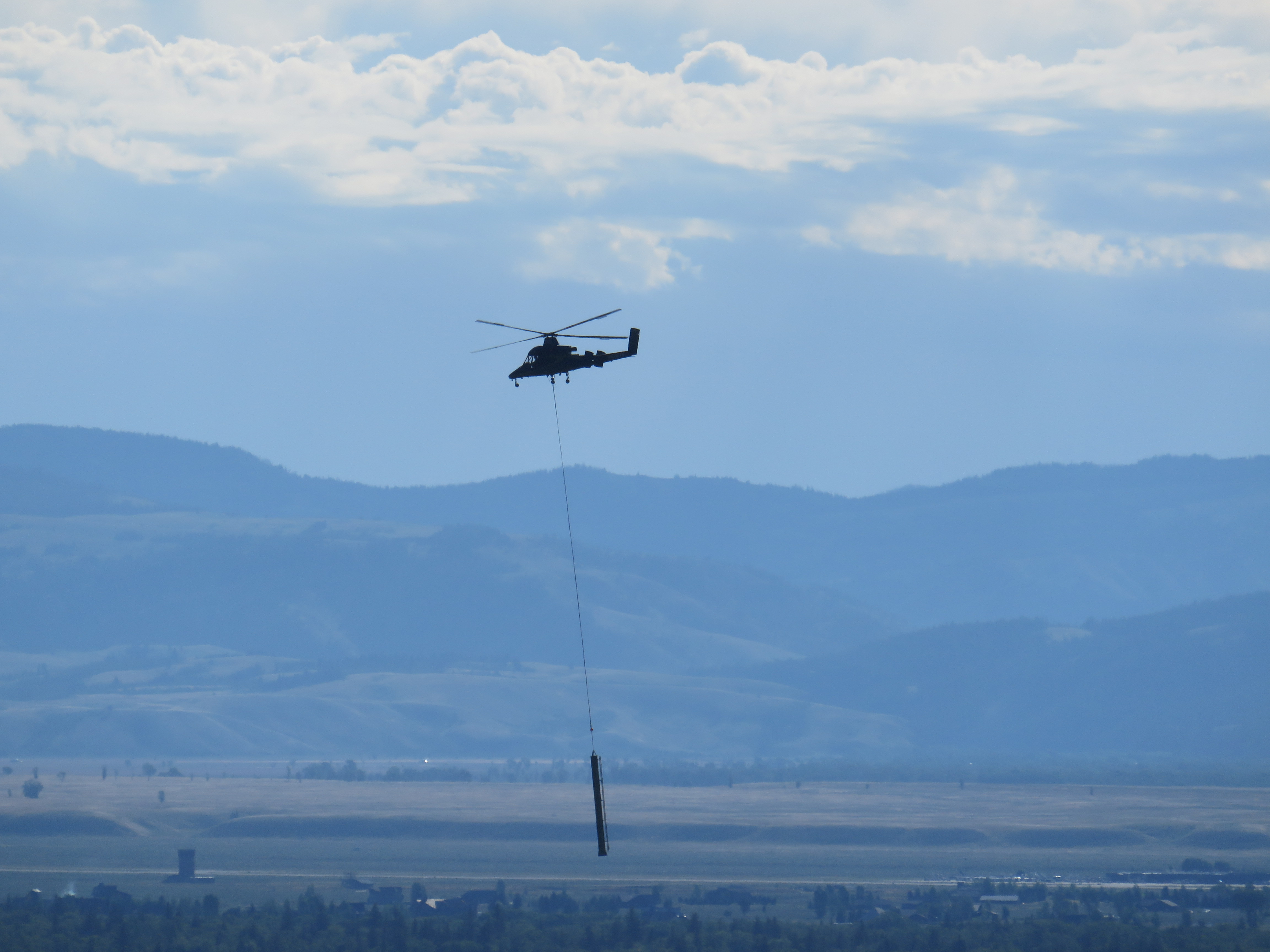

Flying a tower tube with a K-Max.

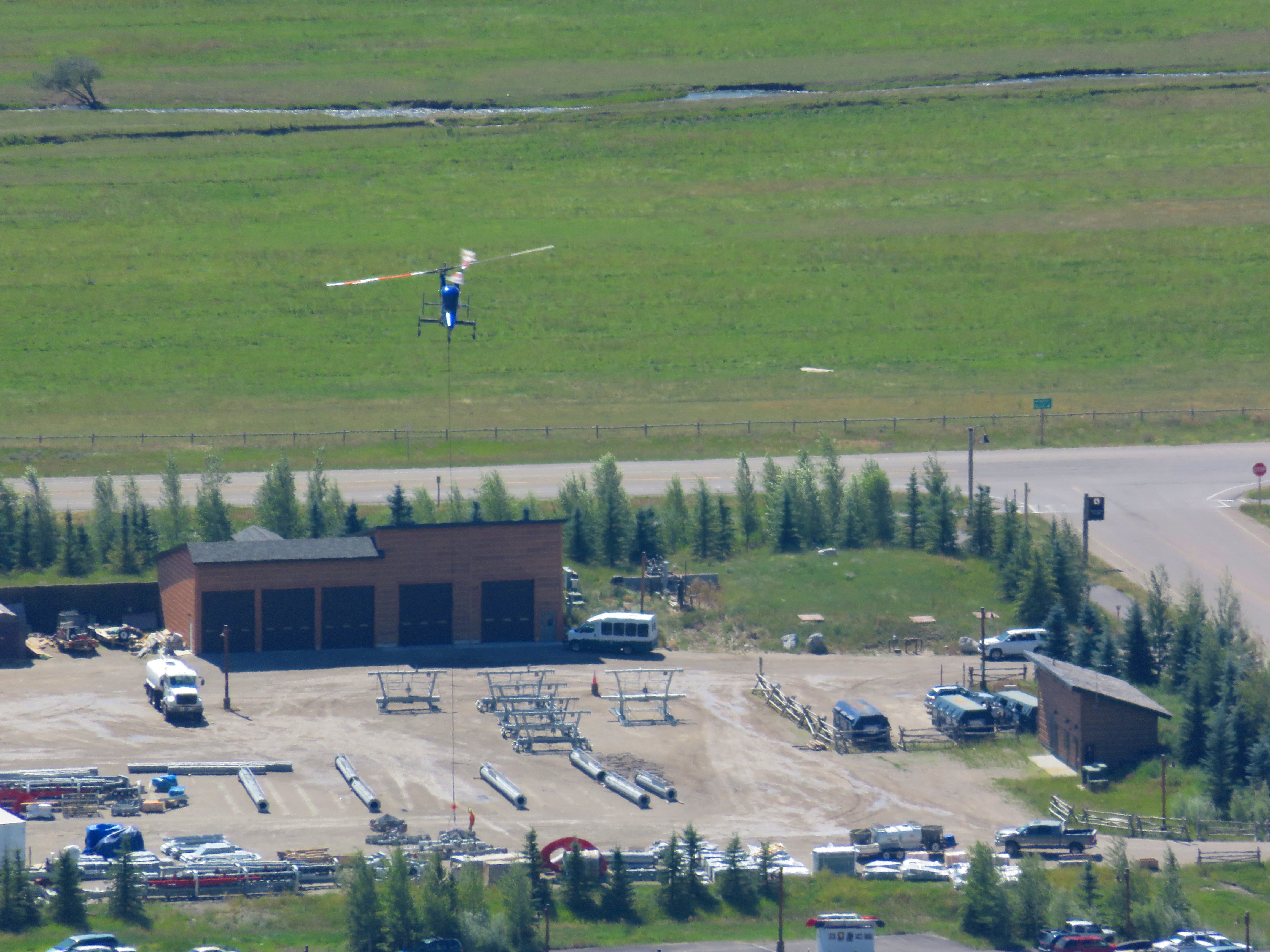

Last night I heard the unmistakable sound of a helicopter flying over my house.  Around here it’s usually a search and rescue chopper but this time I looked out to see the double rotors of a Kaman K-Max.  It’s the same helicopter that did the concrete footings for the Teton lift last week. Doppelmayr started flying towers early this morning and the crew worked their way down from the top, setting towers 15 through 5 before wind and snow shut them down around noon.

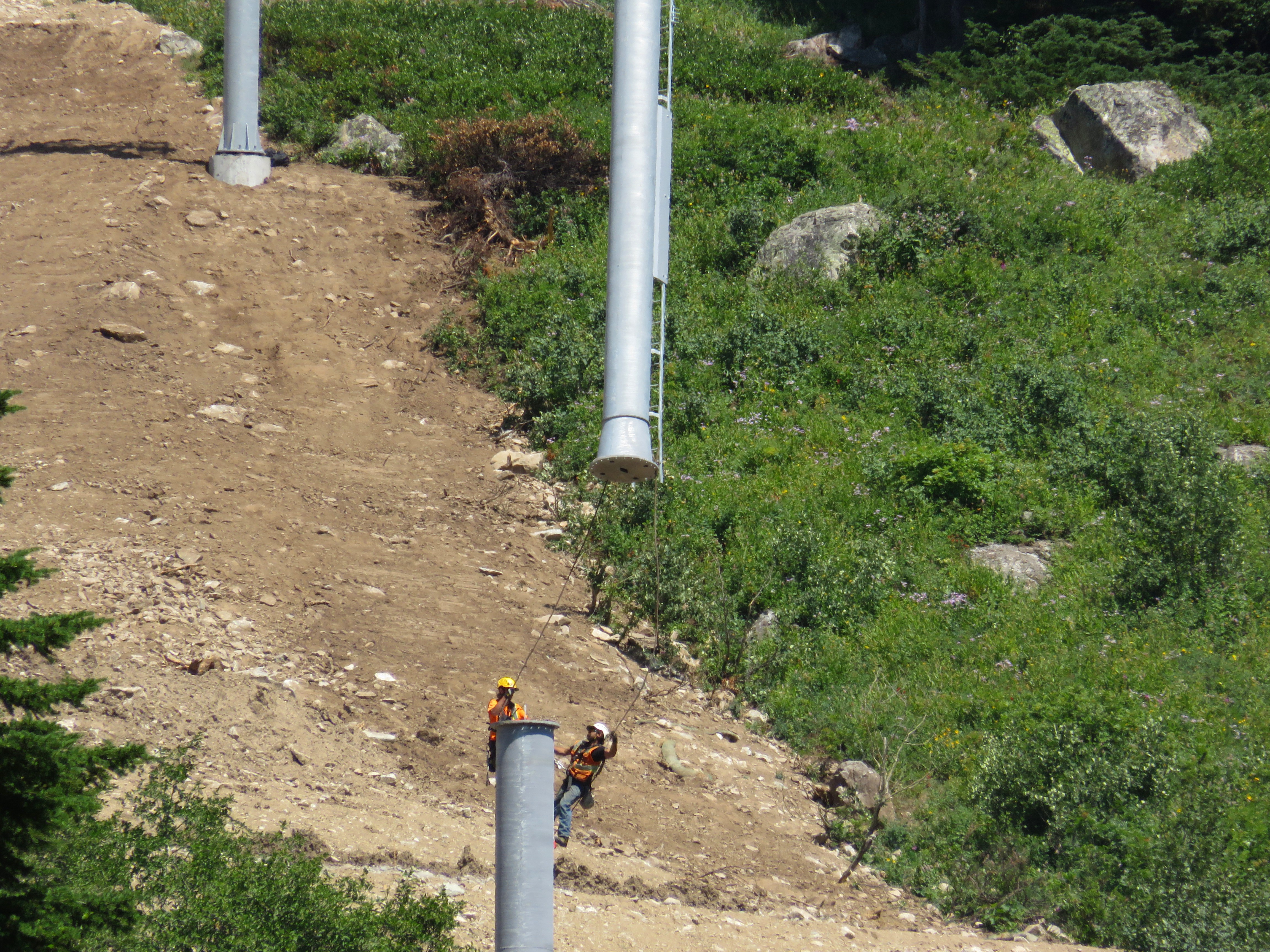

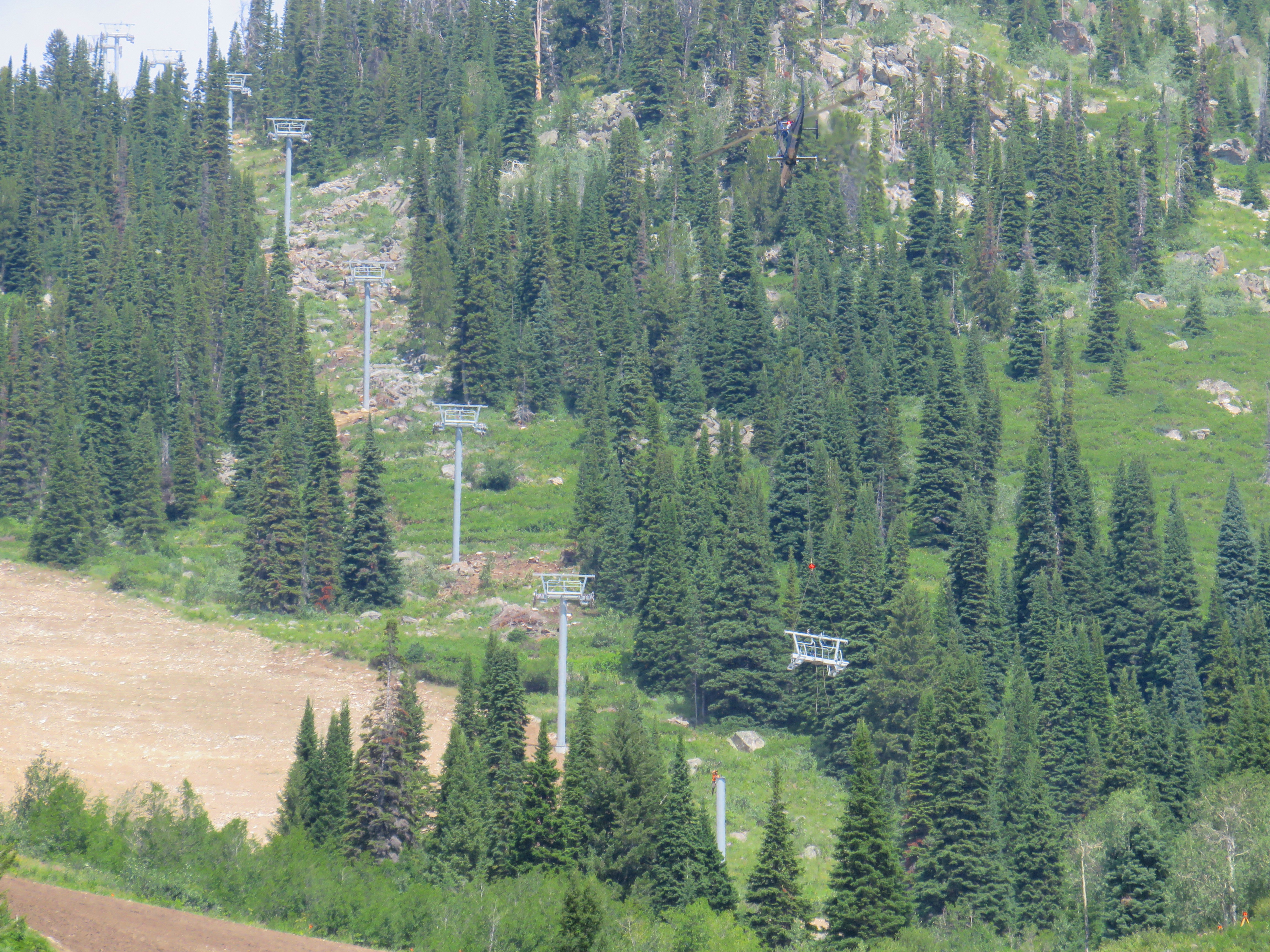

IMG_2181 IMG_2155 IMG_2141 IMG_2118

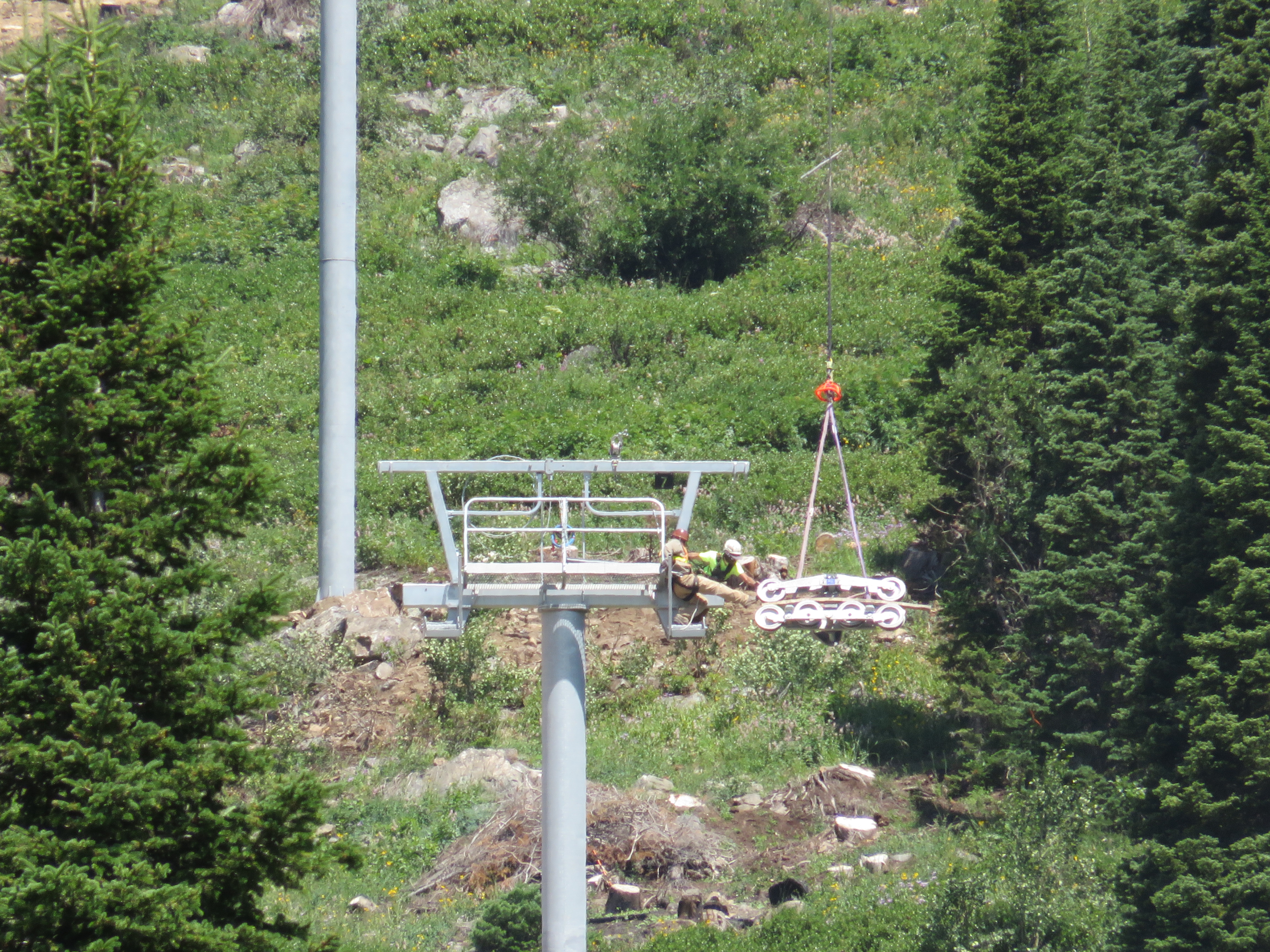

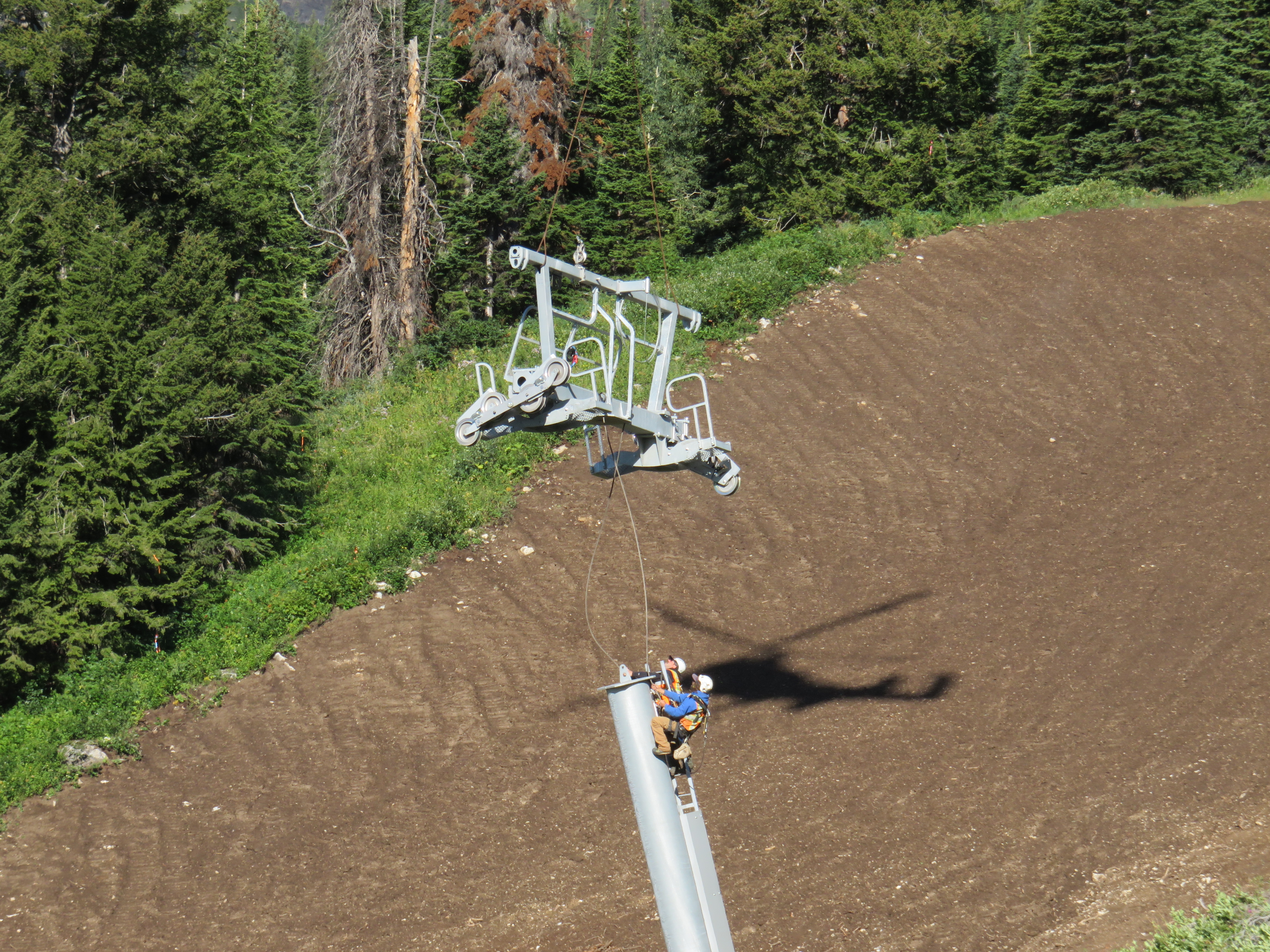

The K-Max can’t fly complete towers at 9,000 feet so the tubes, crossarms and sheave trains were flown separately.  As the wind picked up, the pilot had to call it a day while working on tower 5 so it sits for now missing a crossarm.  Tower 1 can be done with a crane when the lower terminal goes in so there are only a handful left to fly.

Continue reading →

Top Ten Biggest Lifts in North America by VTFH

Peter Landsman3 Comments

Vertical transport feet per hour (VTFH) is the best way to measure how lifts move people up mountains.  VTFH combines hourly capacity and vertical rise into one number, usually measured in millions.  Ski Area Management uses this metric each fall when they look at how good of a year it was for the lift-building business.

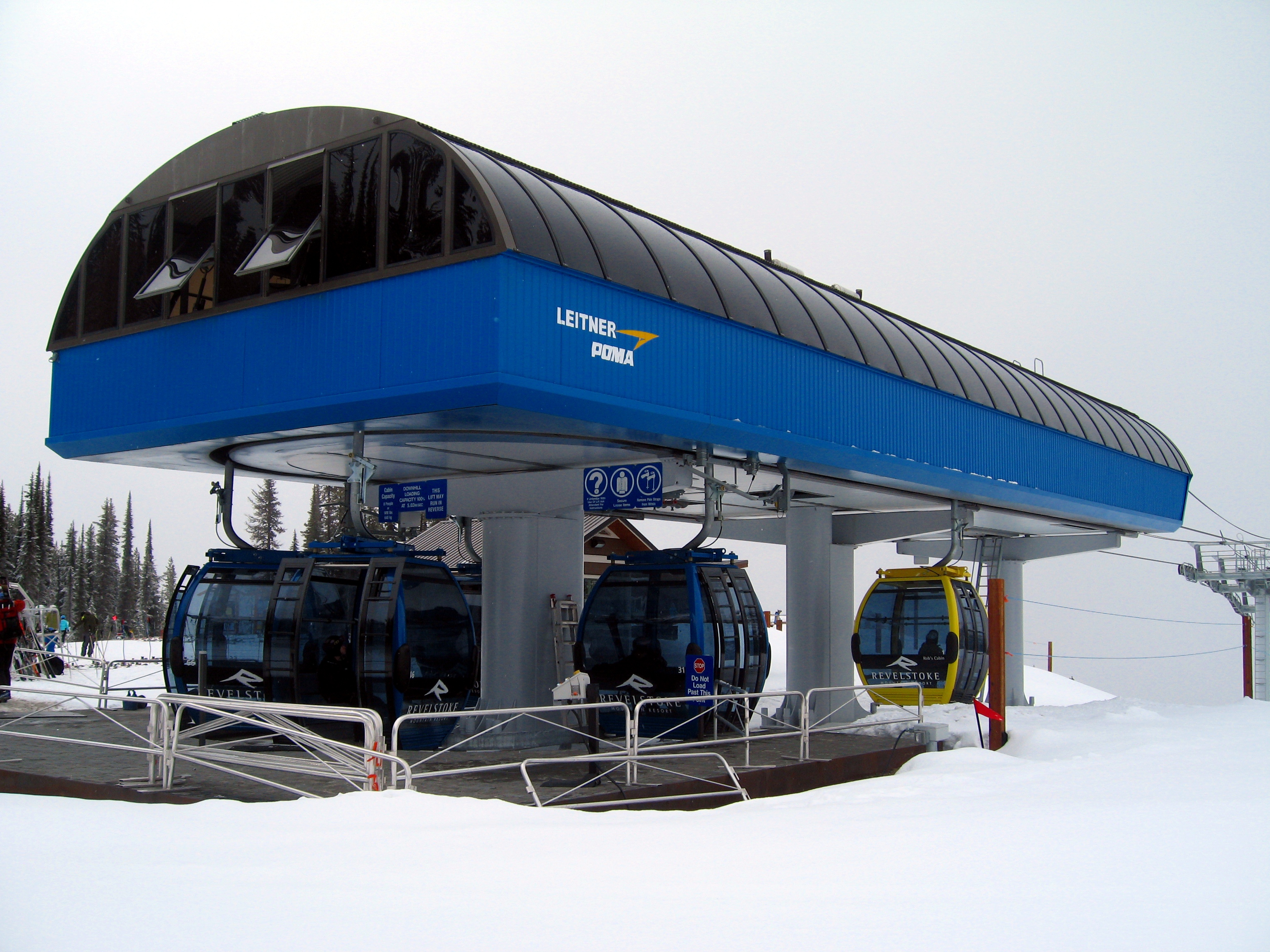

The second stage of Revelstoke's Revelation Gondola has a VTFH of over 8 million, the highest in North America.
The second stage of Revelstoke’s Revelation Gondola has a VTFH of over 8 million, the highest in North America.

For a lift to score big it has to have a high hourly capacity (think lots of carriers, high speed) and large vertical rise (think big slope length with many towers.)  The Jackson Hole tram has a huge vertical (over 4,000′) but very low capacity so its VTFH is only 2,654,600 – not even in the top 400.  The Peak 2 Peak Gondola has a huge capacity but only rises 119 feet for a dismal VTFH of 243,950.  There are 49 lifts in the US and Canada that move enough people high enough to achieve a VTFH over five million.  Below are the top ten.

1. Revelation Gondola Stage II, Revelstoke Mountain Resort, British Columbia

2007 Leitner-Poma 8-passenger gondola

2,952′ vertical x 2,800 passengers per hour = 8,265,600 VTFH

2. Gold Coast Funitel, Squaw Valley, California

1998 Garaventa CTEC 28-passenger funitel

2,000′ vertical x 4,032 passengers per hour = 8,064,000 VTFH

3. Heavenly Gondola, Heavenly Mountain Resort, California

2000 Doppelmayr 8-passenger gondola

2,874′ vertical x 2,800 passengers per hour = 8,047,200 VTFH

4. Gondola One, Vail Mountain, Colorado

2012 Leitner-Poma 10-passenger gondola

1,996′ vertical x 3,600 passengers per hour = 7,185,600 VTFH

5. Centennial Express, Beaver Creek Resort, Colorado

2014 Doppelmayr 6/10 chondola combination lift

2,102′ vertical x 3,400 passengers per hour = 7,146,800 VTFH

Continue reading →

Lift Profile: Portland Aerial Tram

Peter Landsman2 Comments

IMG_6432

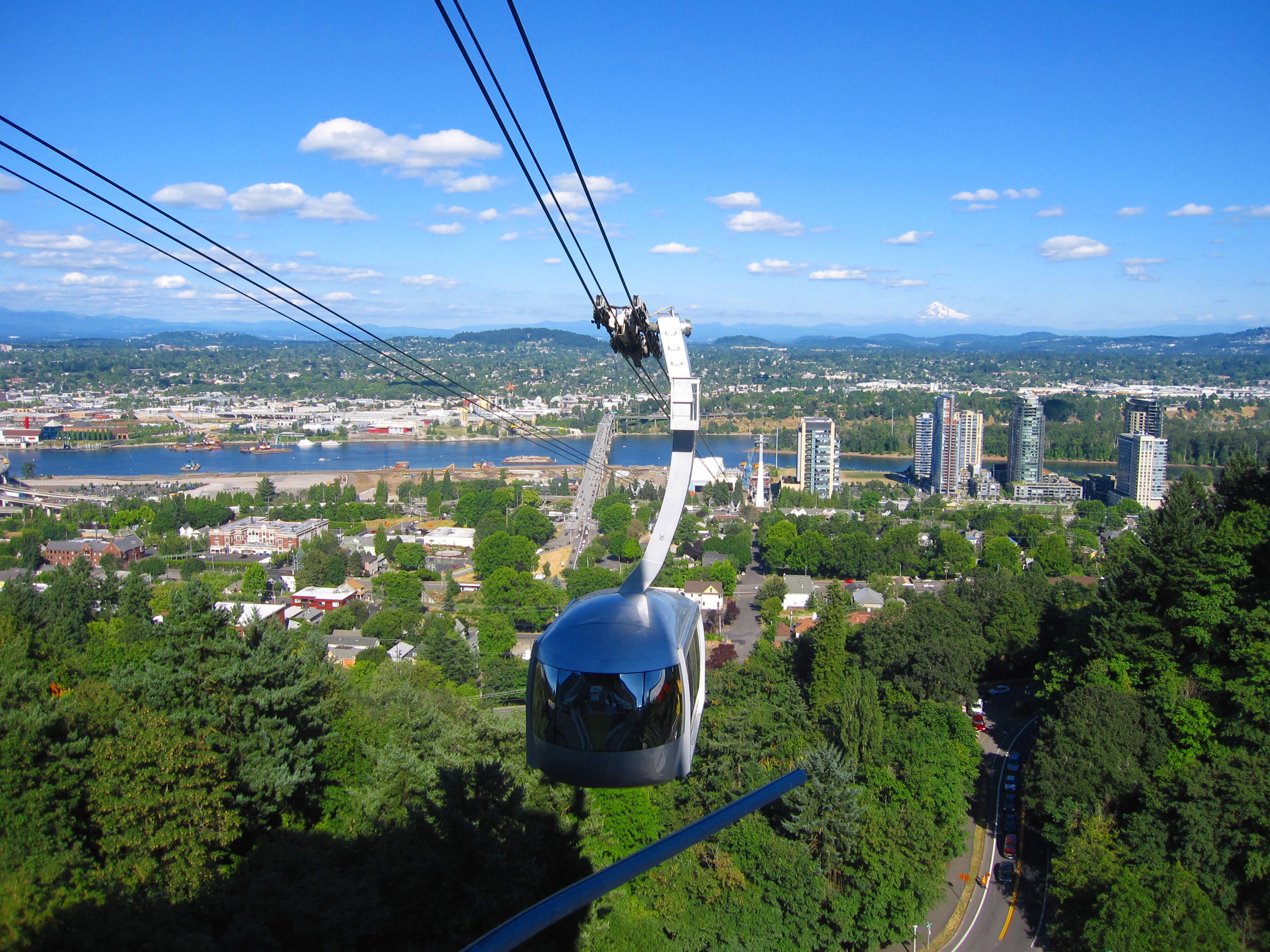

The Portland Aerial Tram, opened in January 2007, is one of only a handful of urban commuter lifts in the United States.  It connects the campus of the Oregon Health & Science University with Portland’s up-and-coming South Waterfront neighborhood.  The tram was built for $57 million during Doppelmayr-Garaventa’s North American golden years when they completed three projects worth $150 million in less than two years (the others being Jackson Hole’s new tram and the Peak 2 Peak Gondola.)  The Portland tram now carries more than 3,300 passengers a day, far exceeding initial projections.

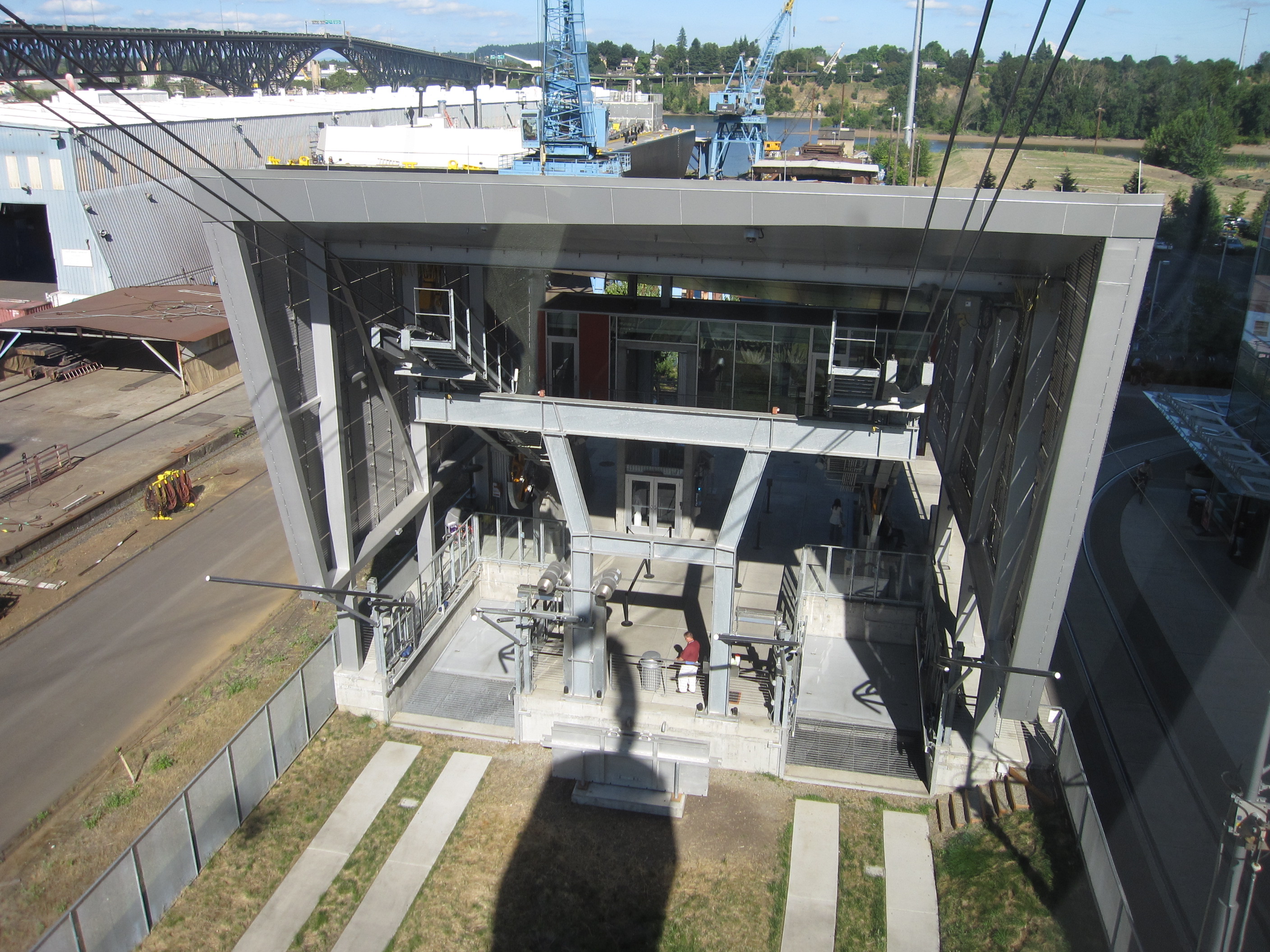

Leaving the bottom terminal on Portland's South Waterfront.
Leaving the bottom terminal on Portland’s South Waterfront.

The tram only rises 496 feet but it crosses a light rail line, eight lanes of Interstate 5 and eleven other roads.  The bottom terminal houses the 600 HP drive motor and tram offices while the 80,000 lb. counterweight sits underneath the top station.  Slope length is only 3,437 feet, allowing quick three-minute trips at 2000 feet per minute or 7 m/s.  This achieves a capacity of 1,014 passengers per hour, per direction.

A tram cabin approaches the top dock.
A tram cabin approaches the top dock.

Why did a tram one quarter of the size of Jackson Hole’s cost $25 million more?  Two words: politics and aesthetics.  Designers wanted the system to be unique to Portland and aesthetically pleasing.  The city held an international design competition and selected AGPS Architecture of Zurich to design the terminals, tower and cabins.  The 197-foot tower is entirely covered in steel panels and lit up in colors at night.  Gangloff custom-designed the tram’s two 78-passenger cabins to look like flying reflective bubbles.  The top station is perhaps the most complex piece of the project, sitting 140-feet above ground and supported by angled columns.

Continue reading →

Top Ten Longest Chairlifts in North America

Peter Landsman4 Comments
Lodge lift at The Yellowstone Club is among the world's longest chairlifts.
The Lodge lift at The Yellowstone Club is the 6th longest chairlift in North America at 9,847 feet.

There are 63 chairlifts in the US and Canada that stretch longer than 7,000 feet but only four over 10,000′.  Six of the top ten are in the State of Colorado and all but two are detachable quads.  Sun Peaks Resort near Kamloops, BC claims the title of the longest fixed-grip chairlift in the world and the only non-detachable among North America’s hundred longest lifts.  A ride on the Burfield Quad takes a painful 21 minutes to go 9,510 feet (and that’s at full speed.)  Below are the top ten longest chairlifts in the US and Canada.

1. Slide Brook Express, Sugarbush, Vermont – 11,012 feet

1995 Doppelmayr Detachable Quad

2. Chile Express, Angel Fire Resort, New Mexico – 10,992 feet

1996 Poma Detachable Quad

3. Sunshine Express, Telluride, Colorado – 10,732 feet

1986 Doppelmayr Detachable Quad

4. Village Express, Snowmass, Colorado – 10,074 feet

2005 Leitner-Poma Detachable Six

5. American Flyer, Copper Mountain, Colorado – 9,907 feet

1986 Poma Detachable Quad
