Disney Unveils Bold Skyliner Gondola Plan

DisneySkyliner

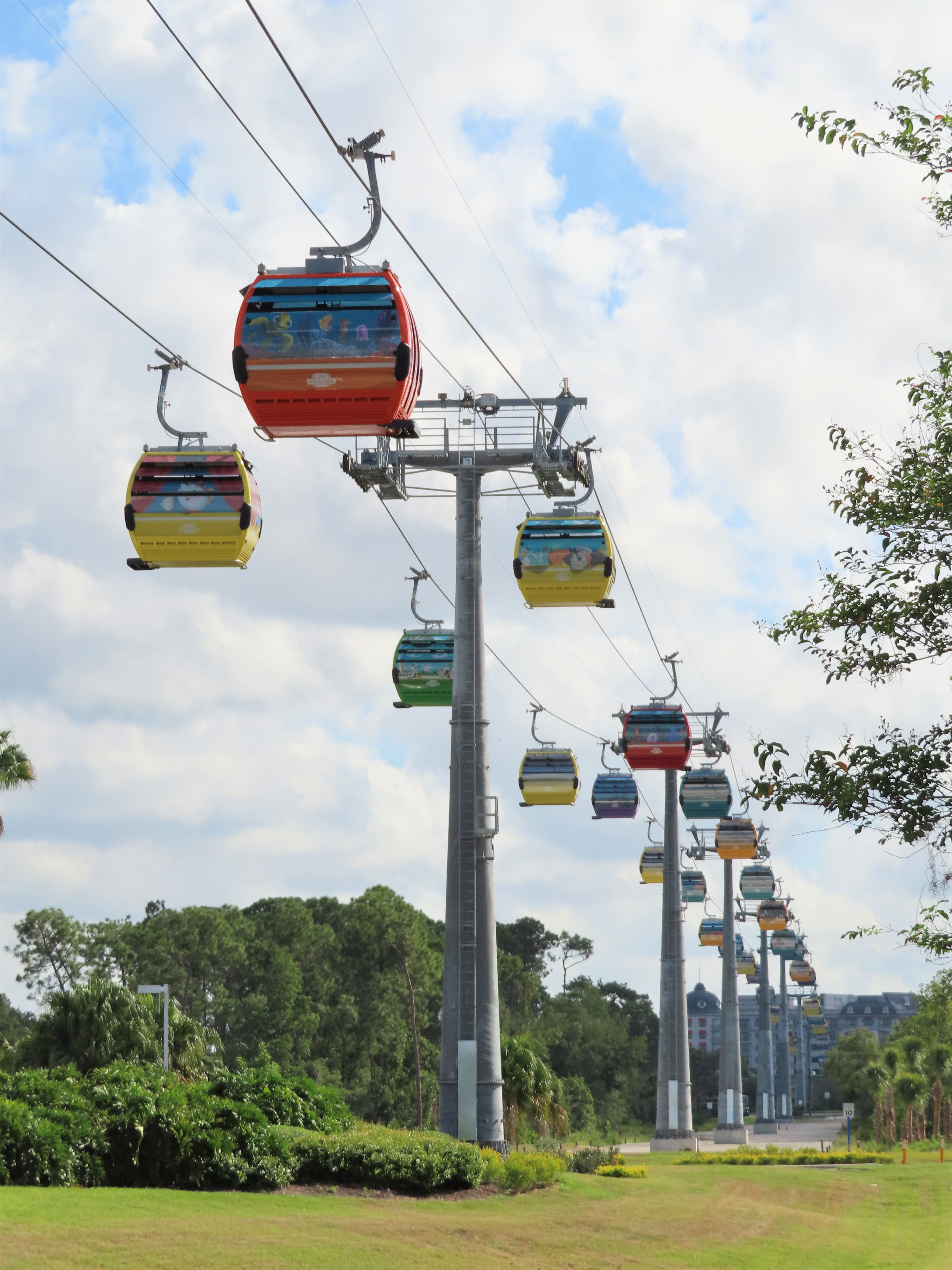

A six-station Disney Skyliner gondola network will connect two parks with four vacation resorts at Walt Disney World, the company announced yesterday.

It’s official: North America’s largest-ever gondola network is coming to Walt Disney World in Orlando.  Bob Chapek, Chairman of Walt Disney Parks & Resorts announced the project in a Steve Jobs-esque keynote at a Disney fan convention in Anaheim yesterday. The name for the new system will be Disney Skyliner in a nod to the Skyway VonRoll gondolas which operated at three Disney Parks from the 1950s until 1990s.  “I’m proud to announce that we’re building a whole new transportation system,” Chapek said onstage to wild applause.  “The Disney Skyliner will soon give our guests a bird’s eye view of Walt Disney World.  Many of these gondolas will feature your favorite Disney characters and what a better way to get around the resort than with your pals in the sky.”  A simultaneous post on the Disney Parks Blog noted, “[This] new transportation system will add even more magic to your future vacation experiences.”

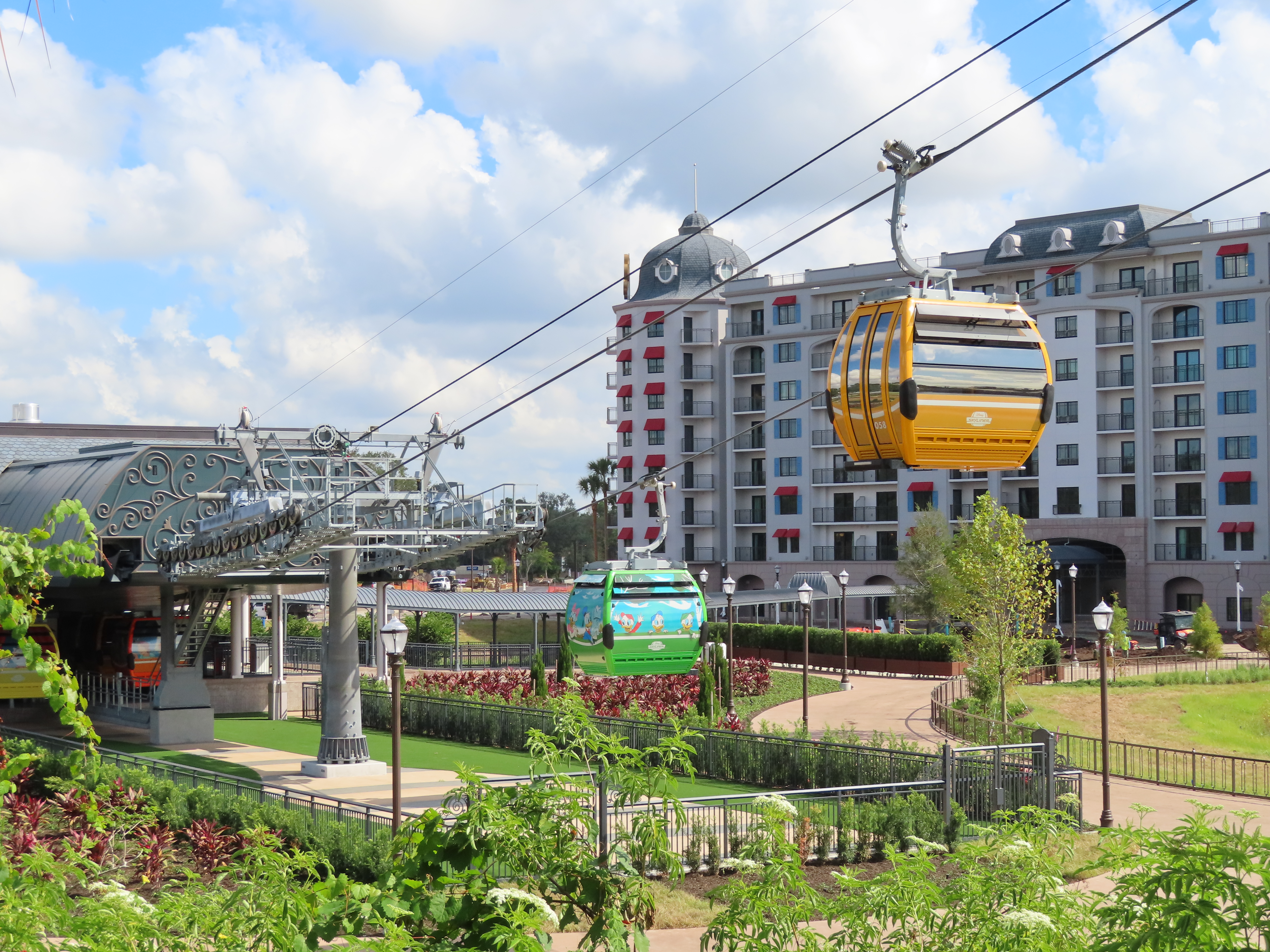

As rumored since February, there will be five stages connecting Disney’s Pop Century, Art of Animation, Caribbean Beach Resort, and new Riviera Resort to Hollywood Studios and the International Gateway at EPCOT.  Whistler Blackcomb currently operates the most gondola sections in North America – six – but they are not contiguous and utilize varying technologies. The longest of three individual lines at Walt Disney World will have two angle stations, one of which will serve the all-new Disney Riviera Resort opening in 2019.  All three lines will meet at a hub on the south side of Caribbean Beach Resort, where guest can change cabins based on destination.  Renderings confirm Doppelmayr and CWA ropeway technology and this is probably Doppelmayr USA’s largest lift contract ever (excluding DCC rail-based systems like the Oakland Airport Connector.)  Air conditioning does not appear to be included but the Omega cabins will include more open windows than normal like those on the recently completed Arthurs Seat Eagle in Australia and California Trail at the Oakland Zoo Singapore Cable Car.

Disney Parks Chairman Bob Chapek shows off Skyliner’s five stages and six stations at the D23 convention yesterday.  Photo credit: Inside the Magic.

Continue reading

Advertisements

Going Blue: Fourth Gondola Line to Launch Friday in La Paz

16426132_1745241388834662_6782592918566574891_n

The world’s largest urban gondola network leaps forward this week with the addition of the Línea Azul (Blue Line) in the Bolivian twin cities of La Paz and El Alto. Since debuting with just one line in May 2014, the state-owned Mi Teleférico (My Cable Car) system has now transported more than 75 million passengers on its Green, Yellow, and Red gondolas.  In 2015, My Cable Car committed $450 million to build six additional lines through 2020, and it ordered two more last year.  Mi Teleférico has quickly become one of Doppelmayr’s largest customers, exclusively utilizing the Austrian company’s ten-passenger monocable detachable gondola technology.

Los trabajos de pruebas se realizan para cumplir con normas internacionales que serán completadas el año entrante y antes de que la #LíneaAzul comience a brindar servicio a la población en 2017. Resaltar que el objetivo de #MiTeleférico es ofrecer una óptima #seguridad de operación y calidad de servicio a los usuarios. La línea Azul inicia en inmediaciones de la Estación Jach´a Qhathu de la línea Roja (16 de Julio – El Alto) y se extenderá en dirección a la Plaza Libertad, continuando por la avenida La Paz, pasando por la UPEA y arribando a la estación de servicio en el cruce de Río Seco. *Características: Tiempo de viaje: 20 minutos (aproximadamente) Longitud de la línea: 4,9 kilómetros Número de cabinas: 208

A post shared by Mi Teleférico (@miteleferico) on

Construction commenced on Línea Azul in late May 2015 with cable pulling (by drone!) wrapping in September 2016.  The first cabin launched later that month with Bolivian President Evo Morales taking the inaugural ride in November.  After three more months of terminal buildout and system testing, the Blue line’s five stations are ready for show time.  Línea Azul is La Paz’s longest to date, with 208 CWA Omega IV-10-LWI cabins that will cover an impressive 32,700 feet per revolution beginning March 3rd, just 645 days after groundbreaking.

Like the Red, Yellow and Green lines, the Blue line is actually two lifts with two separate haul ropes and two drive systems with cabins transferring between them.  Nearly all of the Mi Teleférico network will be built this way, with multiple haul rope loops forming single “lines” with two to five stations each (most have either three or four.)  Multi-stage gondolas operating with this principle in North America include Whistler Village and Excalibur at Whistler Blackcomb, Panorama at Mammoth and Revelation at Revelstoke Mountain Resort.

Continue reading

News Roundup: The People

Instagram Tuesday: CWA Omega

Every Tuesday, we pick our favorite Instagram photos from around the lift world.

At top of Savoleyres lift. #iloveswitzerland #alps #skilift #view #gondola #verbier

A post shared by Martha Juhl (@mjojuhl) on

Continue reading

Soelden Announces Record-Breaking Giggijochbahn

Giggijochbahn_Tal CAM-1

Soelden, Austria unveiled its record-breaking gondola today called Giggijochbahn, to open next winter with the ability to carry 4,500 passengers per hour. The ropeway will feature Doppelmayr’s next-generation D-Line components and two modern terminal buildings, one featuring panoramic images of the Alps and the other showing off ropeway technology behind real glass.  The top terminal will have parking for most of the lift’s 134 CWA Omega IV-10-D cabins.  Innsbruck architect Johann Obermoser designed the stations in collaboration with Soelden and Doppelmayr.

Giggijochbahn_Berg CAM-2

This will be an impressive system by any measure with 3,022 feet of vertical rise and an 8,688-foot slope length.  Travelling at the record-breaking speed of 6.5 m/s (1,280 fpm) the ride will take just 8.87 minutes.  The fastest monocable gondolas in the world currently top out at 1,212 fpm.  The Giggijochbahn will have 26 towers and a 62 mm haul rope driven by a ~2,180 HP electric motor.  The biggest innovation will be the capacity – reaching 4,500 passengers per hour, per direction.  I believe 3,600 is the current capacity record for a monocable gondola, a record shared between many lifts including the 10-passenger Gondola One at Vail and the 15-passenger Village Gondola at Mammoth.

Continue reading

News Roundup: Hauling

c12fe3d6-ccbb-4467-89cd-7cf3e452d794
Caberfae Peaks staff bring tower tubes to the summit of North Peak for a new triple chair.  Thanks to Lawrence W. for the photo.

See How CWA Builds Gondola Cabins in Switzerland

Cesar Dockweiler is the General Manager for Mi Teleferico, the growing state-owned gondola network in Bolivia’s capitol city.  This week, he’s in Switzerland visiting suppliers working on the Blue and White lines for La Paz, which are about 75 percent complete. Throughout the trip, Mr. Dockweiler has been tweeting updates from CWA and Fatzer to his more than 3,000 followers.

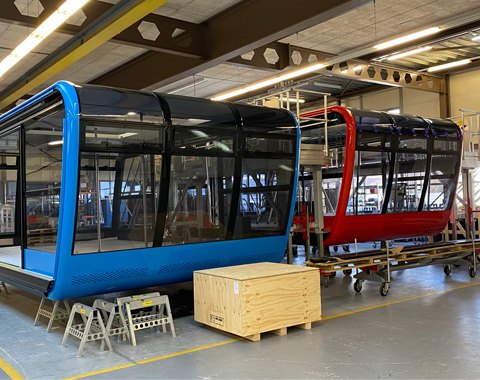

Pictures from CWA show how workers still make gondola cabins one at a time and largely by hand.  Because the company builds on demand, even a lift with just four cabins can have its own custom design.

Continue reading

CWA Delivers Monster Cabins for Ha Long Queen

1958537_639627576191381_488106394260921512_n
All photos credit Skyscrapercity forum user tmanhthang

We now know what the world’s largest tramway cabins look like.  One bright yellow and the other red, CWA’s largest Kronos cabins built to date will hold 230 passengers plus one operator each with six sets of doors on two levels.  They will soon be hung on the Ha Long Queen cable car, whose track cables already stretch 5,000 feet across Vietnam’s Ha Long Bay at heights up to 617 feet. The Queen will supplant the 200-passenger Vanoise Express as the world’s highest capacity aerial tram when it opens early this summer.

Mi Teleférico to Add 9th Gondola Line in La Paz

The world’s largest gondola-based public transit network, Mi Teleférico “My Cable,” announced on social media this week it has ordered a 9th gondola from Doppelmayr for delivery in 2019.  The Linea Plateada (Silver Line) will connect the existing Yellow/Red and under construction Purple/Blue lines in Bolivia’s capitol city of La Paz.  When complete, it will connect nine separate lines and 42 miles of cable together for the first time.



The brainchild of President Evo Morales, Bolivia went all-in on gondolas in 2012, ordering three lines (with 4 haul ropes, 11 stations and 450 cabins) for phase one.  The experiment proved wildly successful, offering safe, clean and reliable transport to the masses in La Paz and neighboring El Alto.  Less than two months after the first gondola opened, President Morales announced construction of five additional lines on July 1, 2015.

Not many public transit systems are as revered as this one, which has more than 160,000 likes on Facebook  (the largest subway system in the world, New York’s MTA, has just 50,000.)  Mi Teleférico’s slogan is Uniting Our Lives and it serves more than 100,000 passengers every weekday.  For 40 cents a trip, riders even get free wi-fi.

Continue reading

More on Doppelmayr’s D-Line

More pictures and details are filtering out from Hochgurgl, Austria where the Kirchenkarbahn opened Dec. 10th.  This 10-passenger gondola wouldn’t be particularly notable but for the fact that it’s Doppelmayr’s first production model of the next-generation detachable lift called D-Line.

12322575_926354417444850_8428745707875203902_o

First a little history.  Doppelmayr introduced the Uni-G terminal in 2000, replacing the “Spacejet” model of the 1990s.  After the merger of Doppelmayr and Garaventa in 2002, the company continued to offer Stealth III and Uni-G detachable lifts in the US.  In 2003, Doppelmayr CTEC added a North American-design called the Uni-GS and built 88 of them before discontinuing the model in 2009.  With the Stealth gone since 2004, the Uni-G became the only Doppelmayr detachable product worldwide until now.

DoppTerminalComparison
Doppelmayr graphic shows terminals getting shorter over the years despite  faster line speeds.

German architect Werner Sobek designed the D-Line terminal and he’s apparently well known-enough to have an English Wikipedia page.  His enclosure is almost entirely composed of windows with a modern, boxy look that I’m not sold on.  Setting appearance aside, Doppelmayr says D-Line can support line speeds of up to 7 m/s or 1,378 feet a minute.  This is a big deal; the fastest circulating ropeway I know of today maxes out at 1,212 FPM.  The Kirchenkarbahn uses a gearbox from Eisenbeiss and controls from Frey Austria.
