The 3S Gondola

A “3S” is a detachable gondola with two track ropes and one haul rope.  It combines the speed and stability of a tram with the capacity of a gondola.  Cabins generally hold about 30 passengers.  3S systems can move up to 4,500 passengers per hour at up to 8.5 meters per second.  They can withstand high winds and traverse long spans between towers.  These highly capable lifts are also expensive.  Only 12 3S gondolas have been built.  Perhaps the most famous of them, Whistler’s Peak 2 Peak, cost $51 million!

3S Gondolas are huge machines.
3S Gondolas are huge machines.

The 3S was developed by VonRoll of Switzerland.  The first one to open was the Alpin Express at Saas-Fee in 1991.  A second section opened in 1994.  When Doppelmayr merged with VonRoll in 1996, they inherited the 3S technology.  Doppelmayr built its first 3S in 2002 at Val d’Isere, France.  Called L’Olympique, it accesses the famous ski area of Escape Killy.

Kitzbuhel, Austria opened the 3S Bahn in 2004.  It connects two ski areas across a valley with an 8,200 foot-long unsupported span.  Four years later, Doppelmayr connected Whistler and Blackcomb with the Peak 2 Peak, featuring an even longer unsupported span of 1.88 miles.  Peak 2 Peak’s highest point above ground is an incredible 1,427 feet.  It remains the only 3S gondola outside of Europe.

Whistler-Blackcomb's Peak 2 Peak Gondola.
Whistler-Blackcomb’s Peak 2 Peak Gondola.

Leitner got into the 3S business in 2009 with a system in northern Italy.  The towns of Renon and Ritten were connected by a 2.8 mile-long 3S.  This was the first 3S built outside of a ski resort.  Another urban 3S was built across the Rhine River in Koblenz, Germany in 2010.  This Doppelmayr system moves 3,800 passengers per hour in each direction.  Also in 2010, Doppelmayr built the Gaislachkogl 2 at Solden, Austria.

Doppelmayr built two 3S lifts for the 2014 Olympics in Sochi, Russia.  The Olympic Village 3S connects to the downhill finish zone at Rosa Khutor ski resort.  It is the only two-stage 3S built to date.  In addition to moving 4,500 persons per hour, it has special carriers for automobiles.  This lift is no longer shown on the resort’s trail map and has apparently not operated since the games.  (Many of the 35 lifts Doppelmayr built in Sochi are abandoned.)  The second 3S at Rosa Khutor is called Psekhako.  It’s the longest and fastest gondola in the world, spanning 17,671 feet at 8.5 m/s.

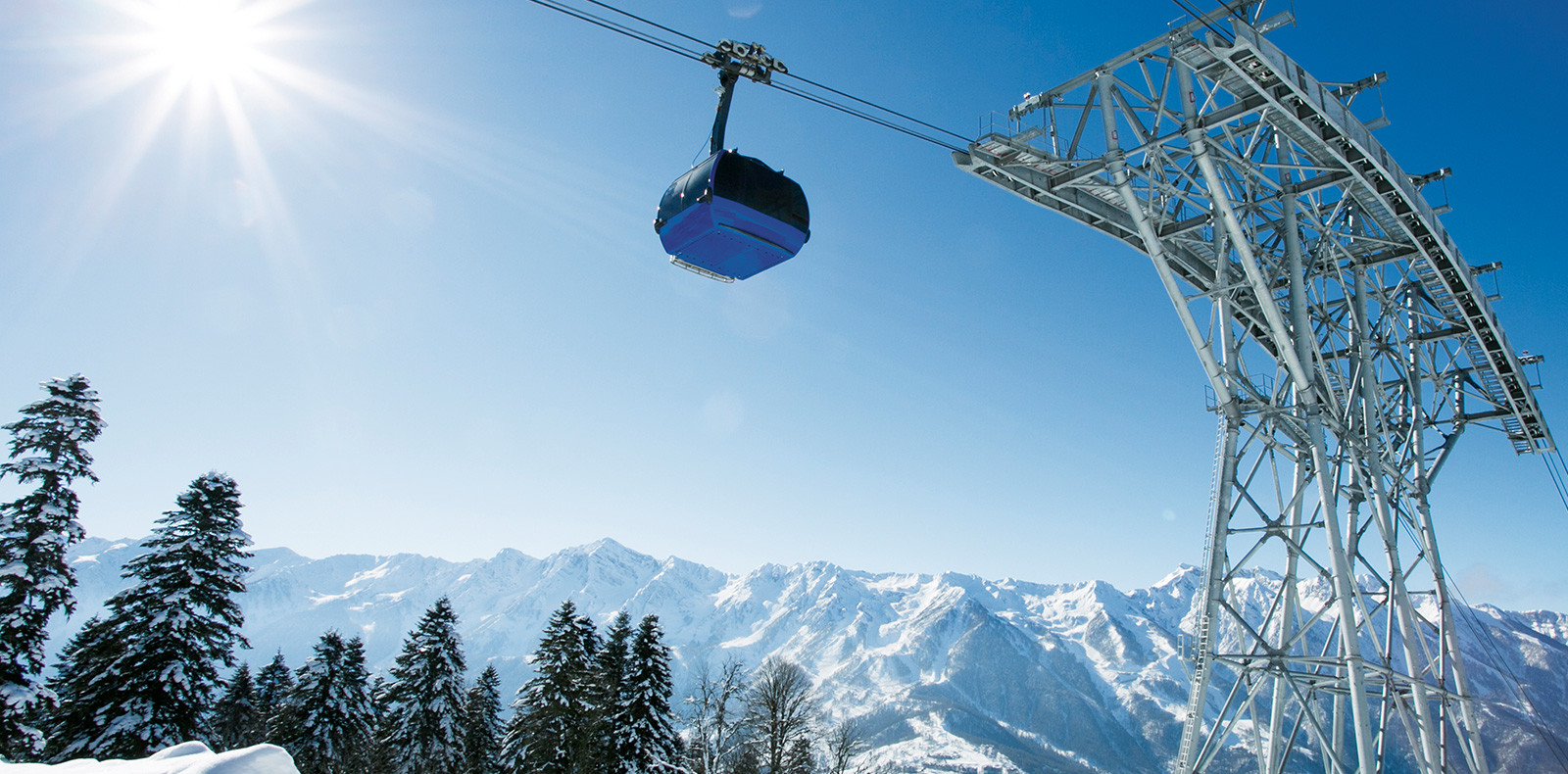

World's longest and fastest 3S in Russia.  Photo credit: Doppelmayr
World’s longest and fastest 3S in Russia. Photo credit: Doppelmayr

Poma built its first 3S in 2013, the Prodains Express in France.  It replaced a 50 year-old jig-back tramway connecting the ski towns of Morzine and Avoriaz.  It features 30-passenger Sigma Sapphire cabins.

The newest 3S is the Pardatschgrat, built by Doppelmayr at Ischgl, Austria.  It replaced a 4-passenger gondola for the 2014-15 season.  It has the largest vertical rise of any 3S at 4,100 feet.  31 of CWA’s new Taris cabins hold 28 passengers each.

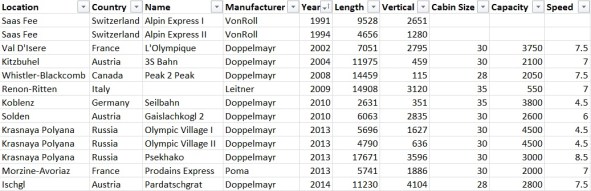

Comparison of the 12 3S gondolas built so far.
Comparison of the 12 3S gondolas built so far.

See above for a statistical comparison of all of these lifts.  I think we will continue to see a couple 3S gondolas built each year.  Just last week, Leitner and Zermatt announced plans for the world’s highest elevation 3S to open in 2018.

Advertisements

9 thoughts on “The 3S Gondola

  1. Matt July 3, 2016 / 11:10 am

    Peter

    Great Blogg. Thanks a lot for all those updates from North America.

    Found a tipo in the article.

    Quote: Another urban 3S was built across the Rhone River in Koblenz, Germany in 2010.

    It is the Rhine River not the Rhone River. The Rhone River runs from Switzerland to France. The 3S still does a pretty good job.

    Cheers
    Matt

    Like

    • Peter Landsman July 3, 2016 / 12:53 pm

      Thanks Matt, that should be fixed now.

      Three more 3S systems have opened since this post was written:
      -Penkenbahn at Mayrhofner Bergbahnen, Austria (Doppelmayr)
      -Fasipan Legend in Sa Pa, Vietnam (Doppelmayr)
      -Eisgratbahn at Stubaier Glacier, Austria (Leitner)

      Like

  2. judy August 17, 2016 / 3:54 am

    Peter,

    good blog. Enjoyed reading it and so much of information in the text.

    just one more question. Do you also know the Volume of investment of 3S Psekhako in Sochi and Gaislachkogl 2, Austria ? I just want to do some comparison.

    Regards

    Ji

    Like

    • Peter Landsman August 17, 2016 / 7:42 am

      22 million Euros for the Gaislachkogl II according to Remontées-Mécaniques.net. I don’t think the Russian Government ever said how much they spent on lifts for Sochi. Hundreds of millions.

      Like
