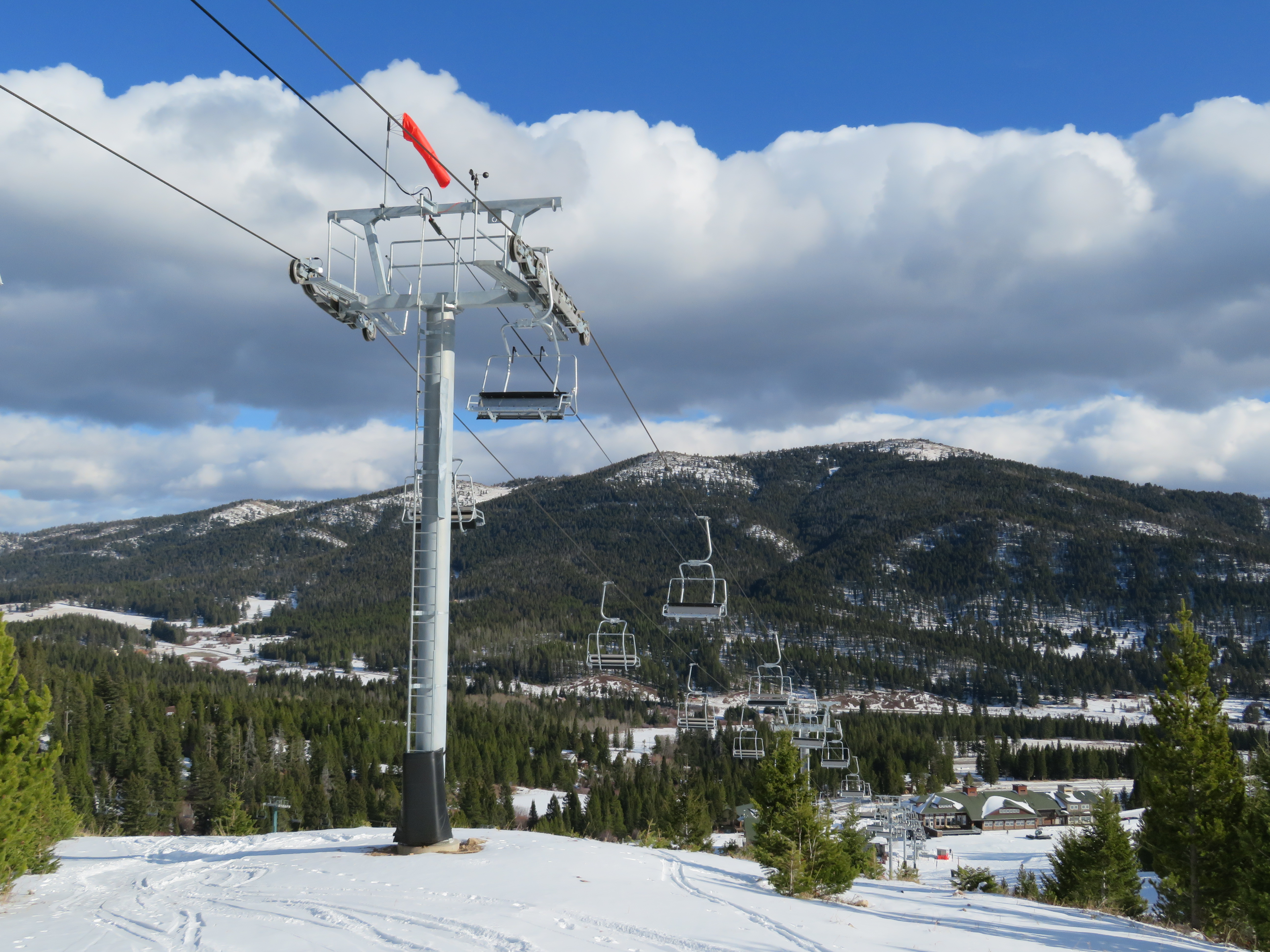

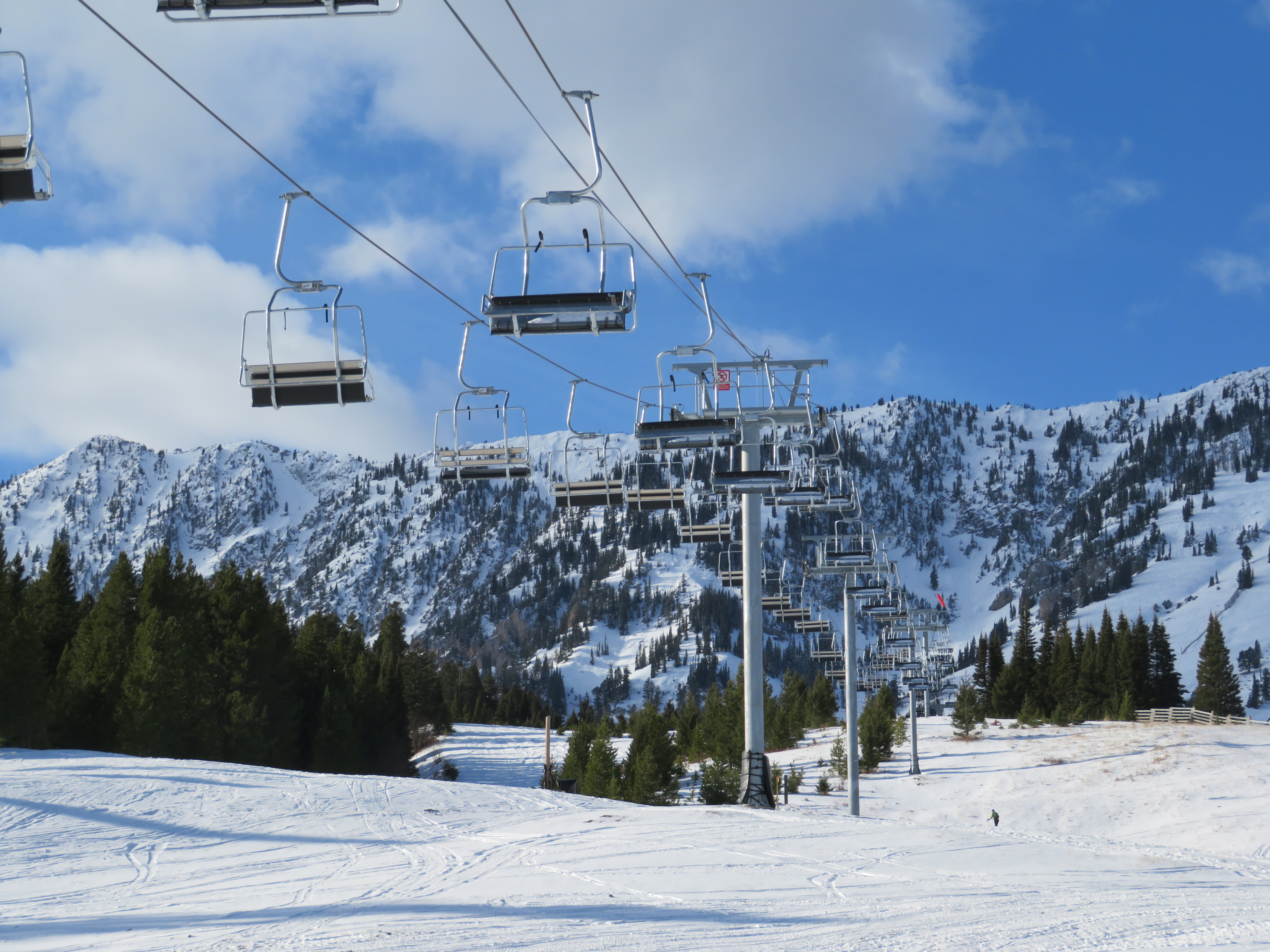

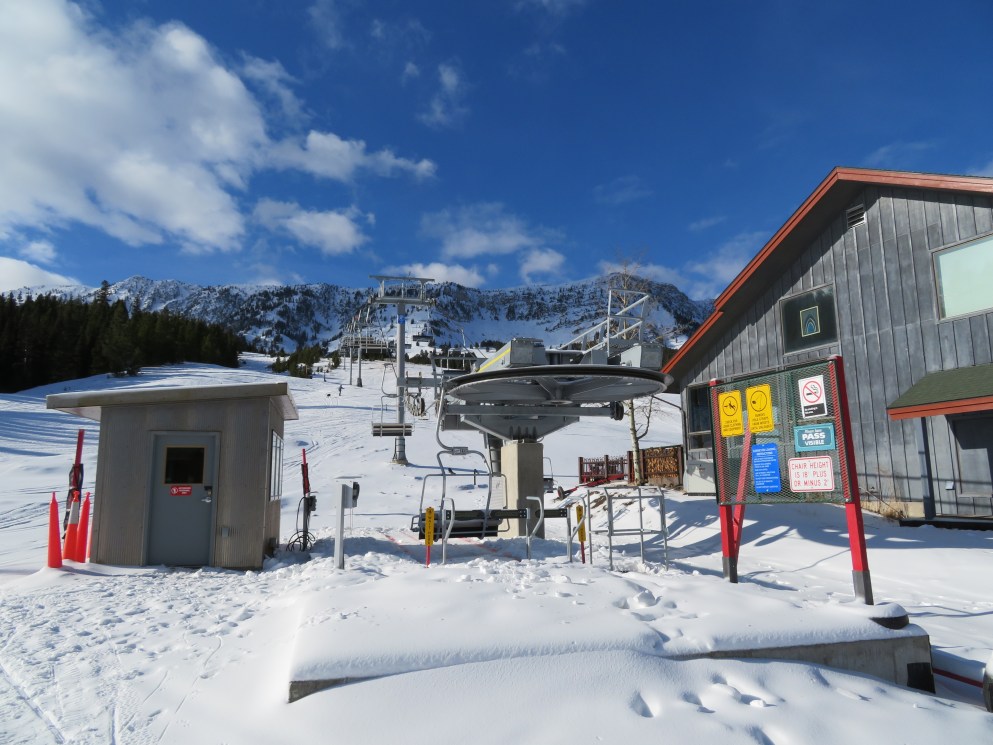

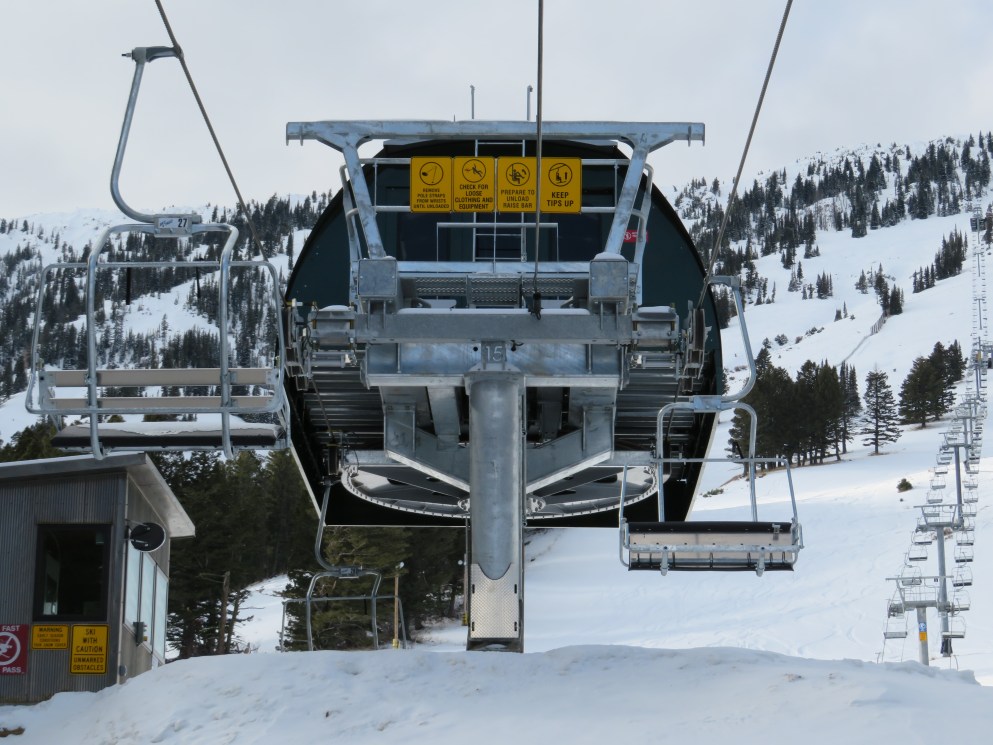

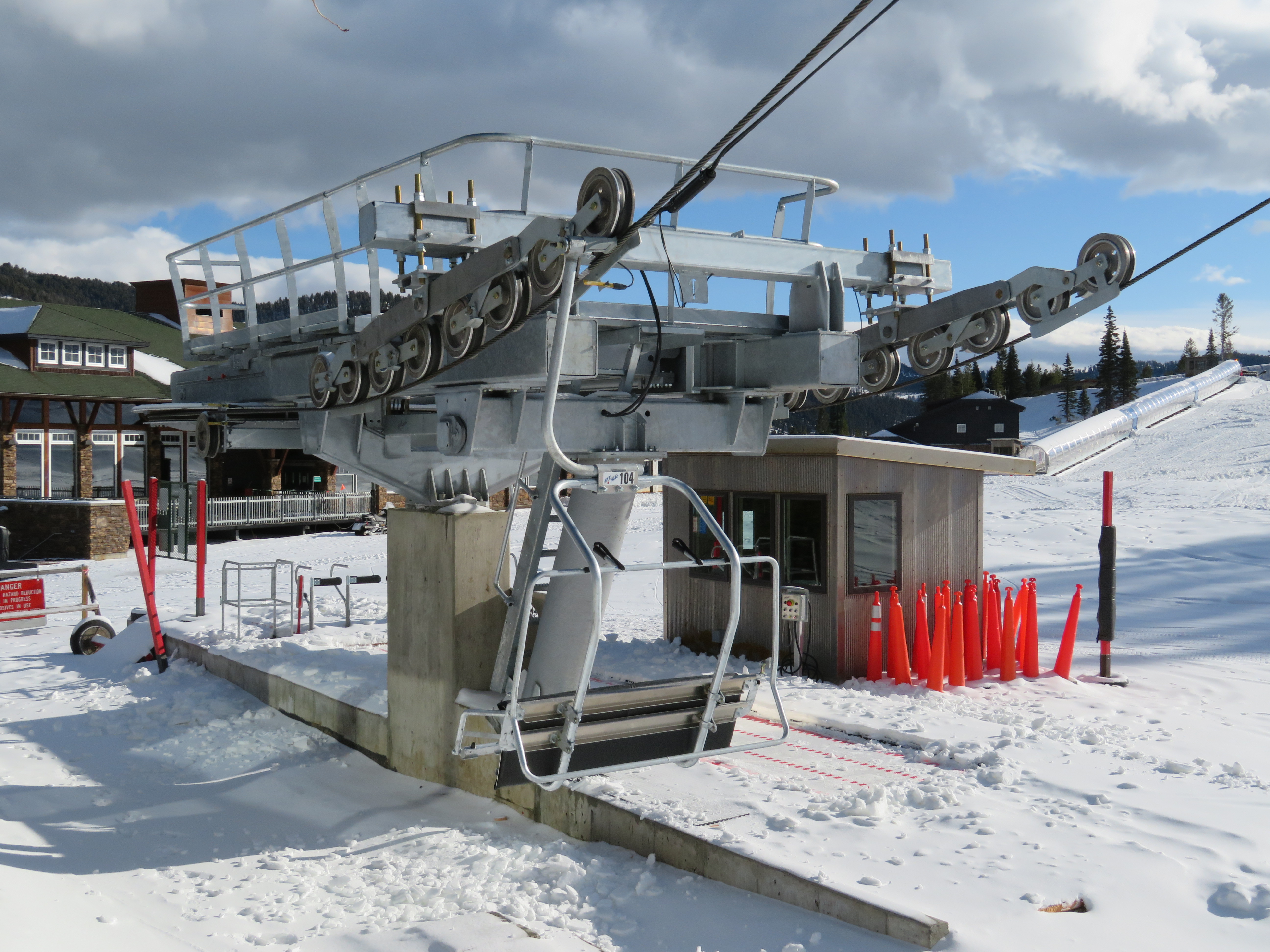

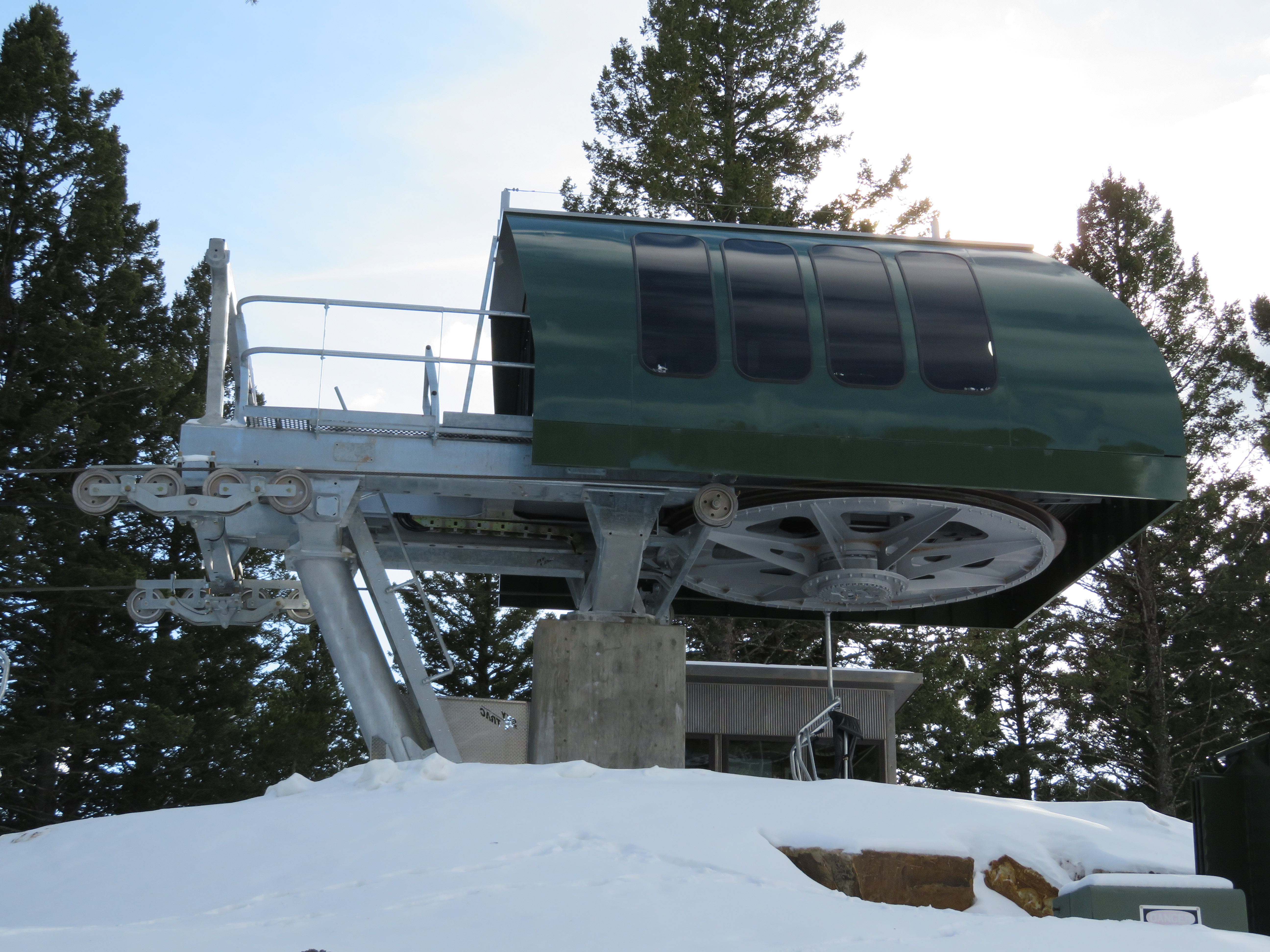

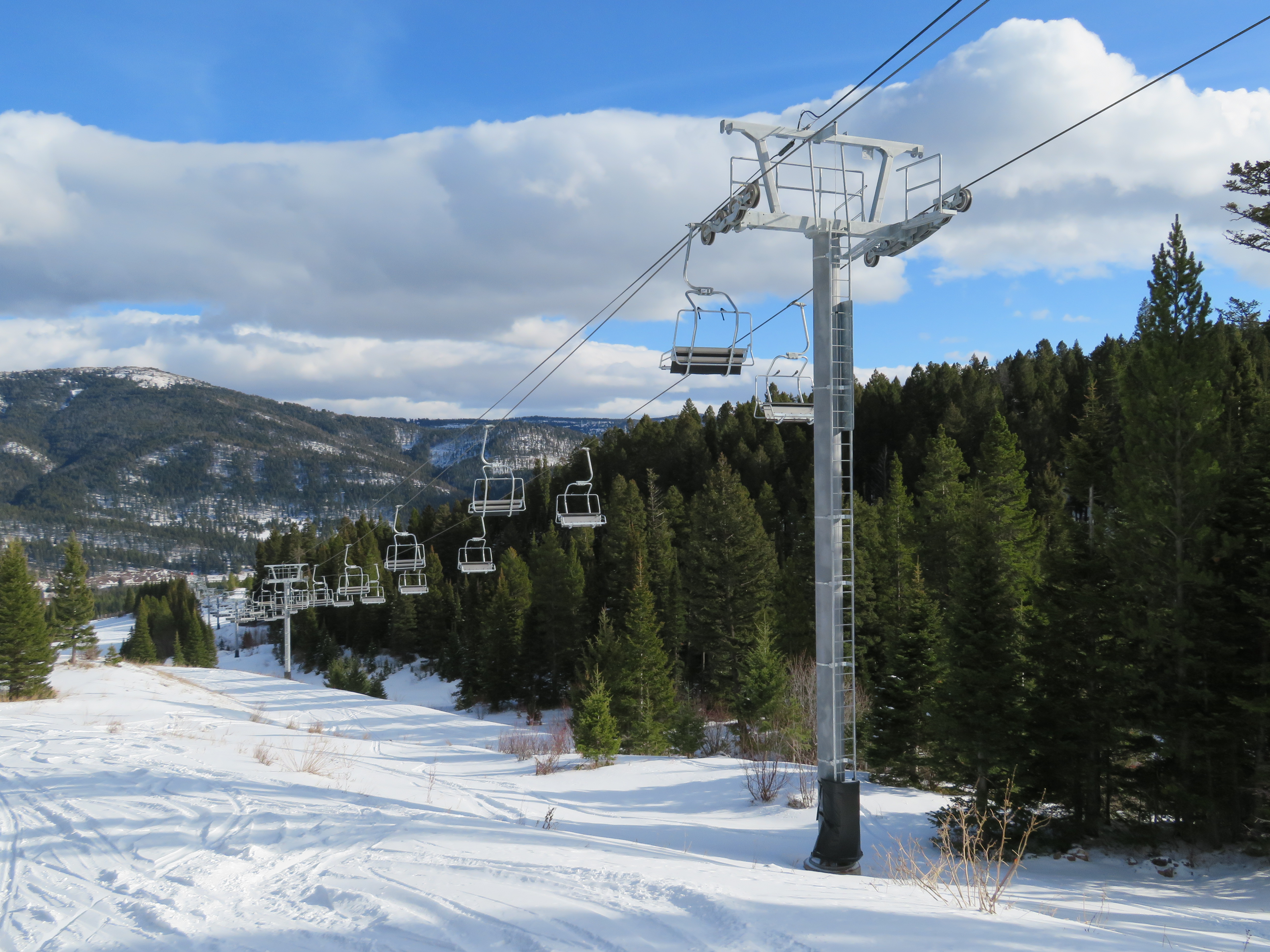

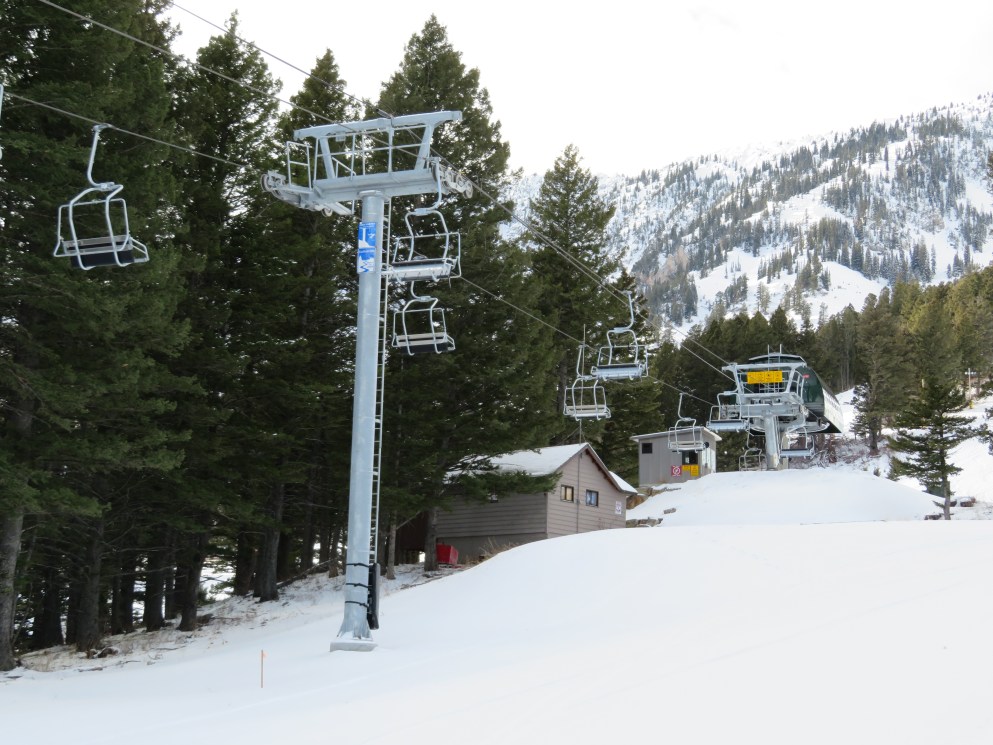

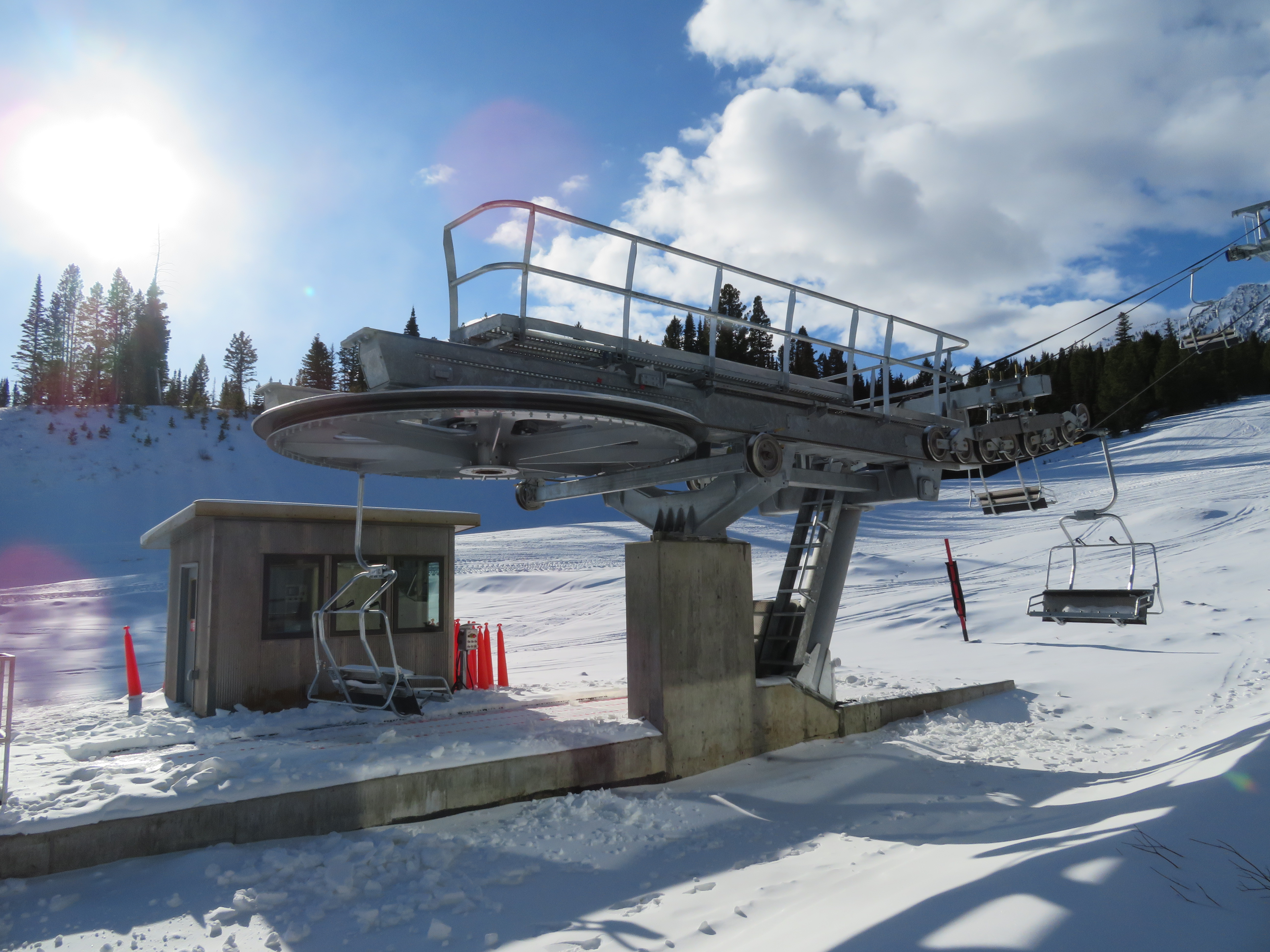

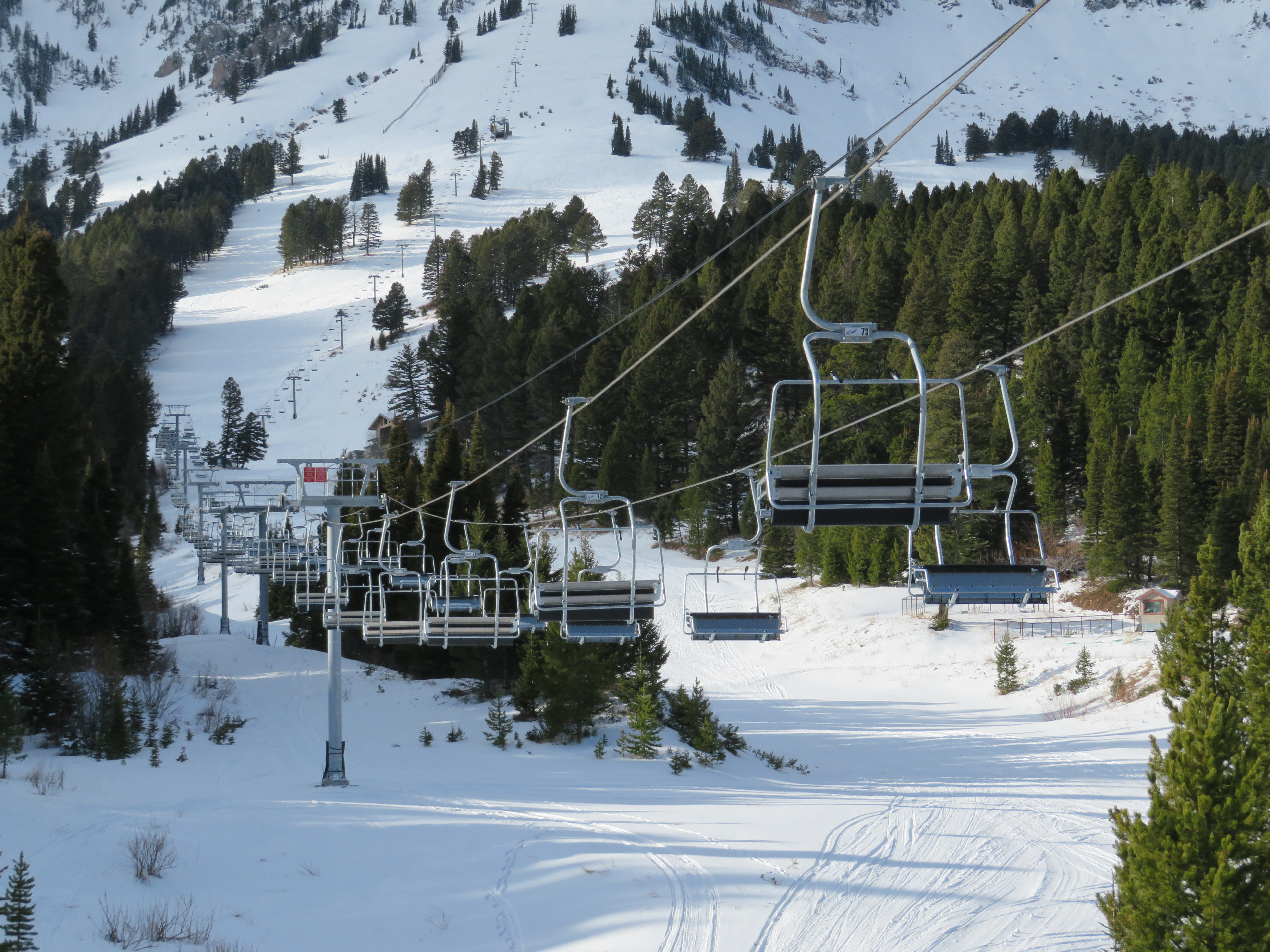

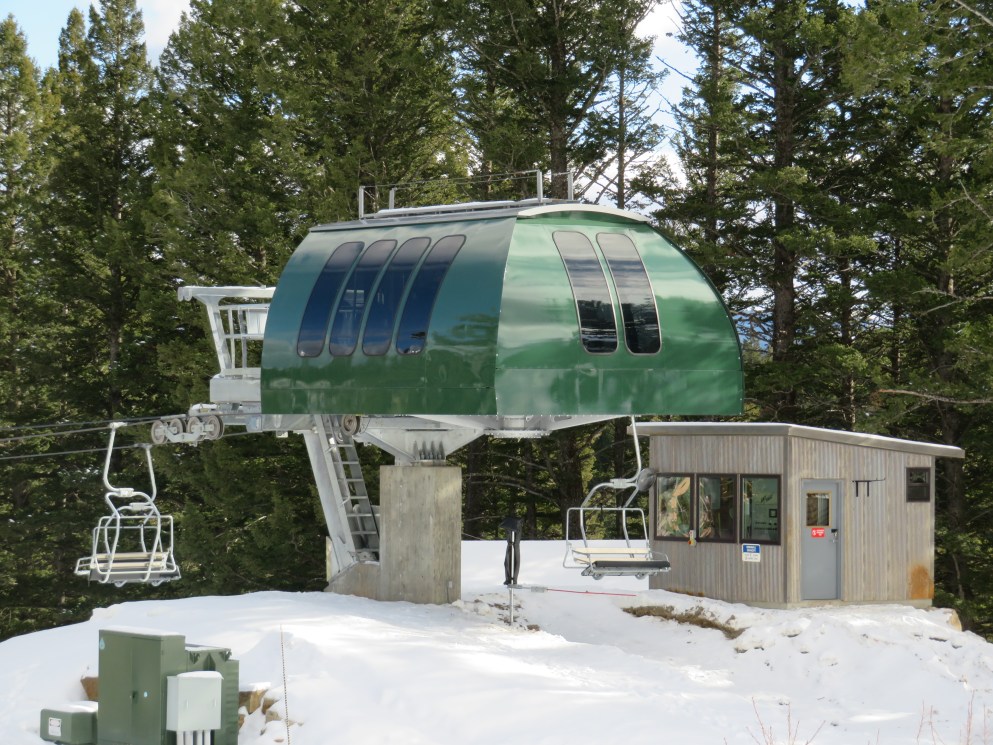

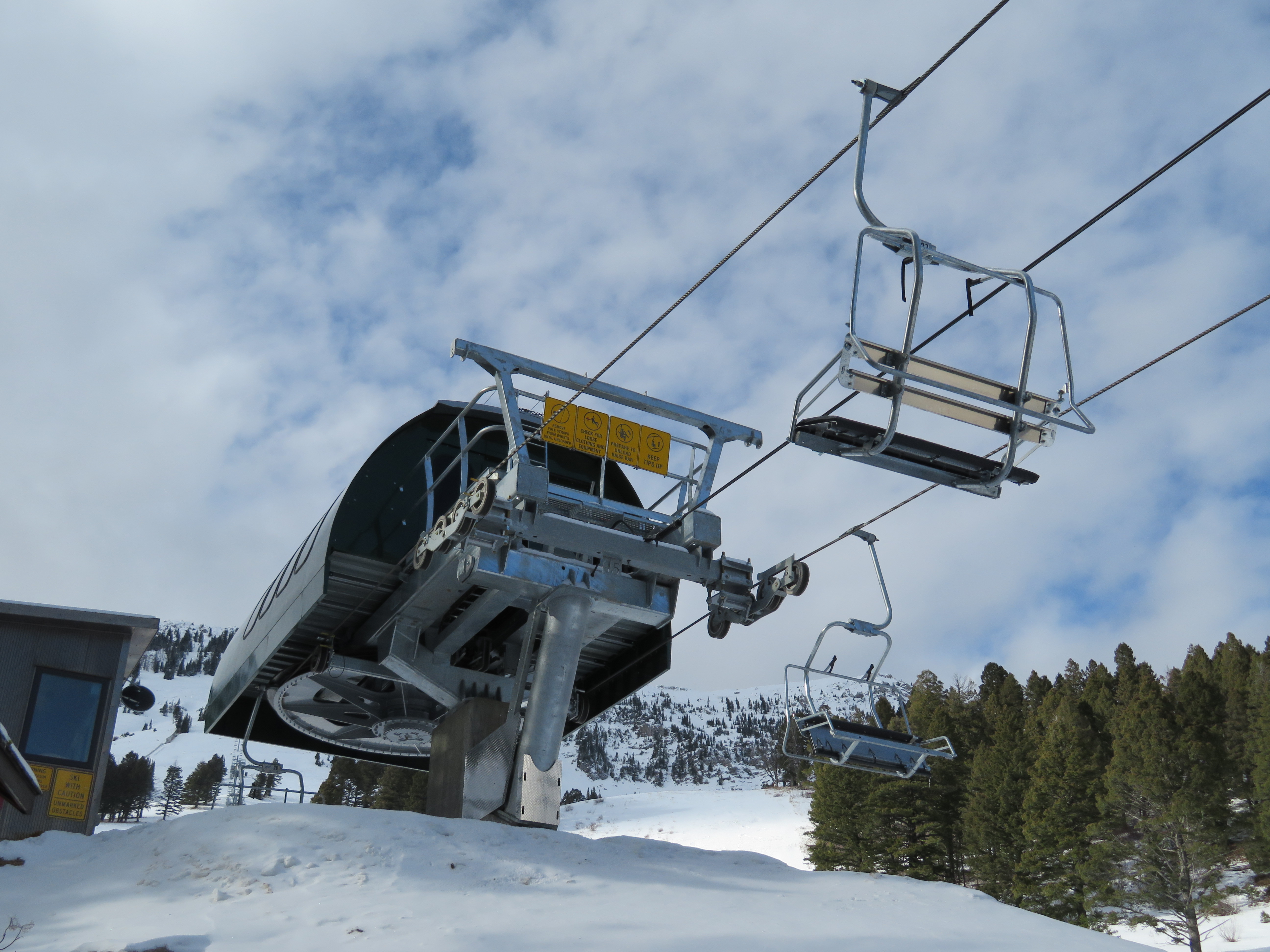

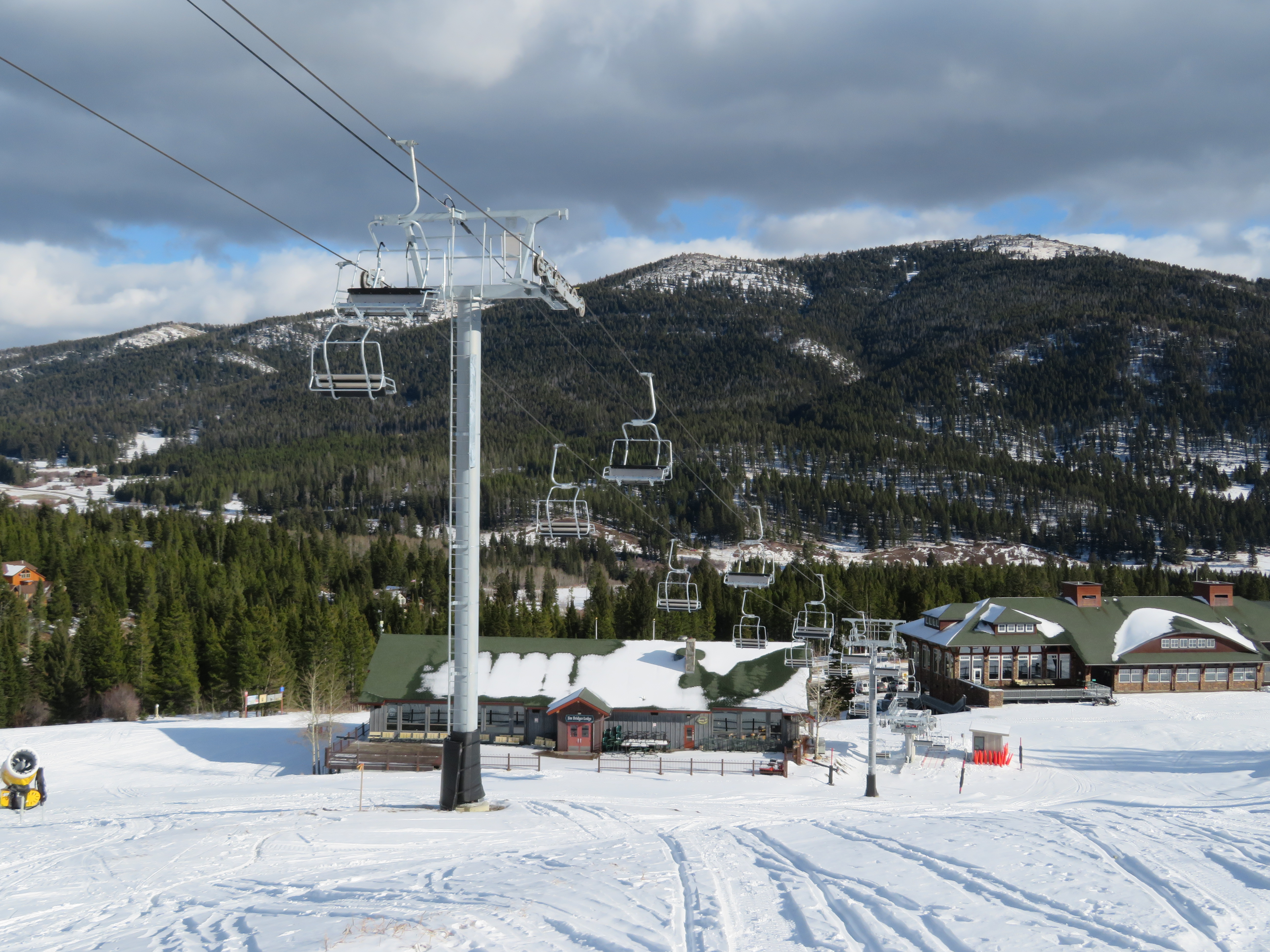

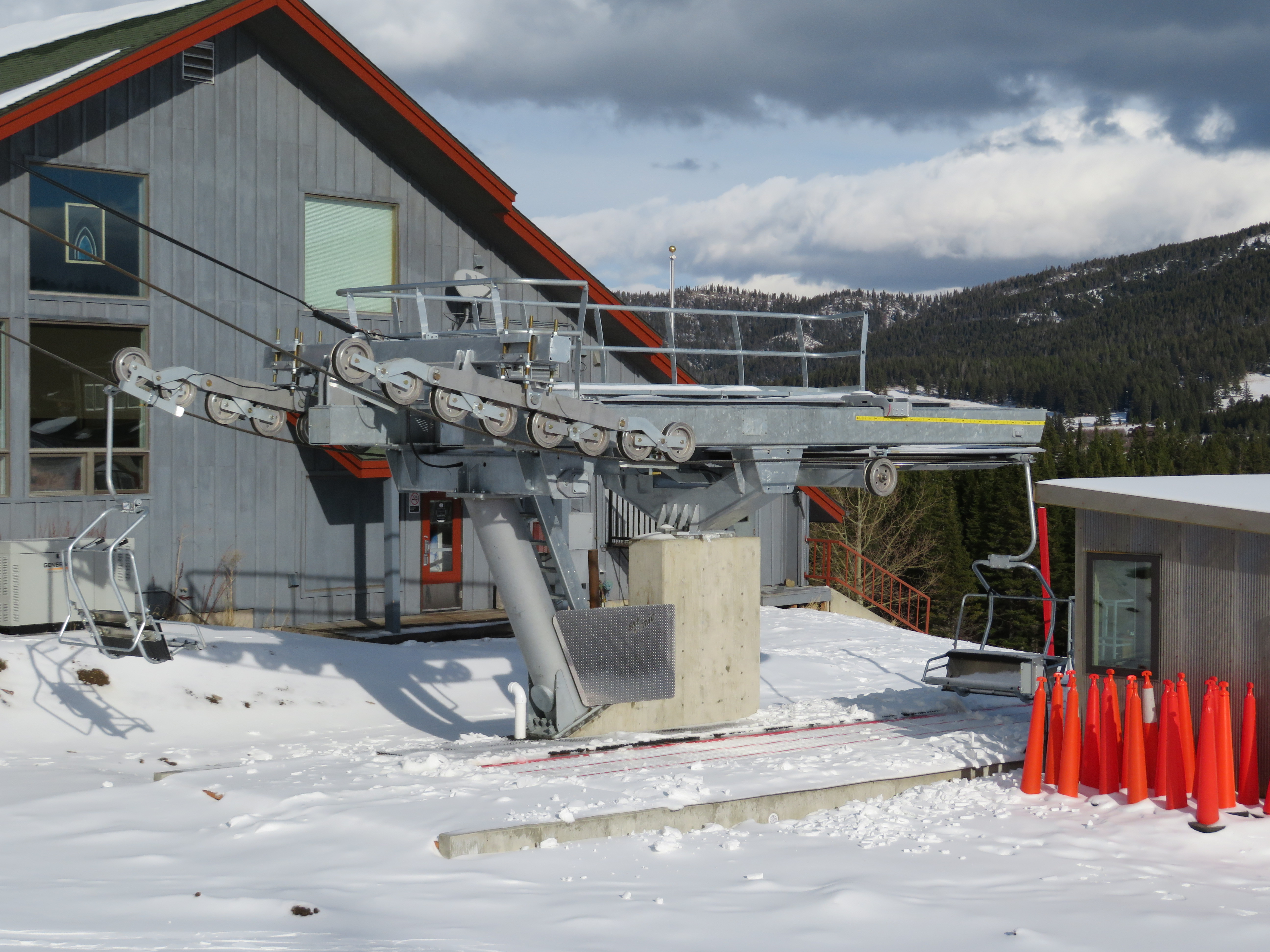

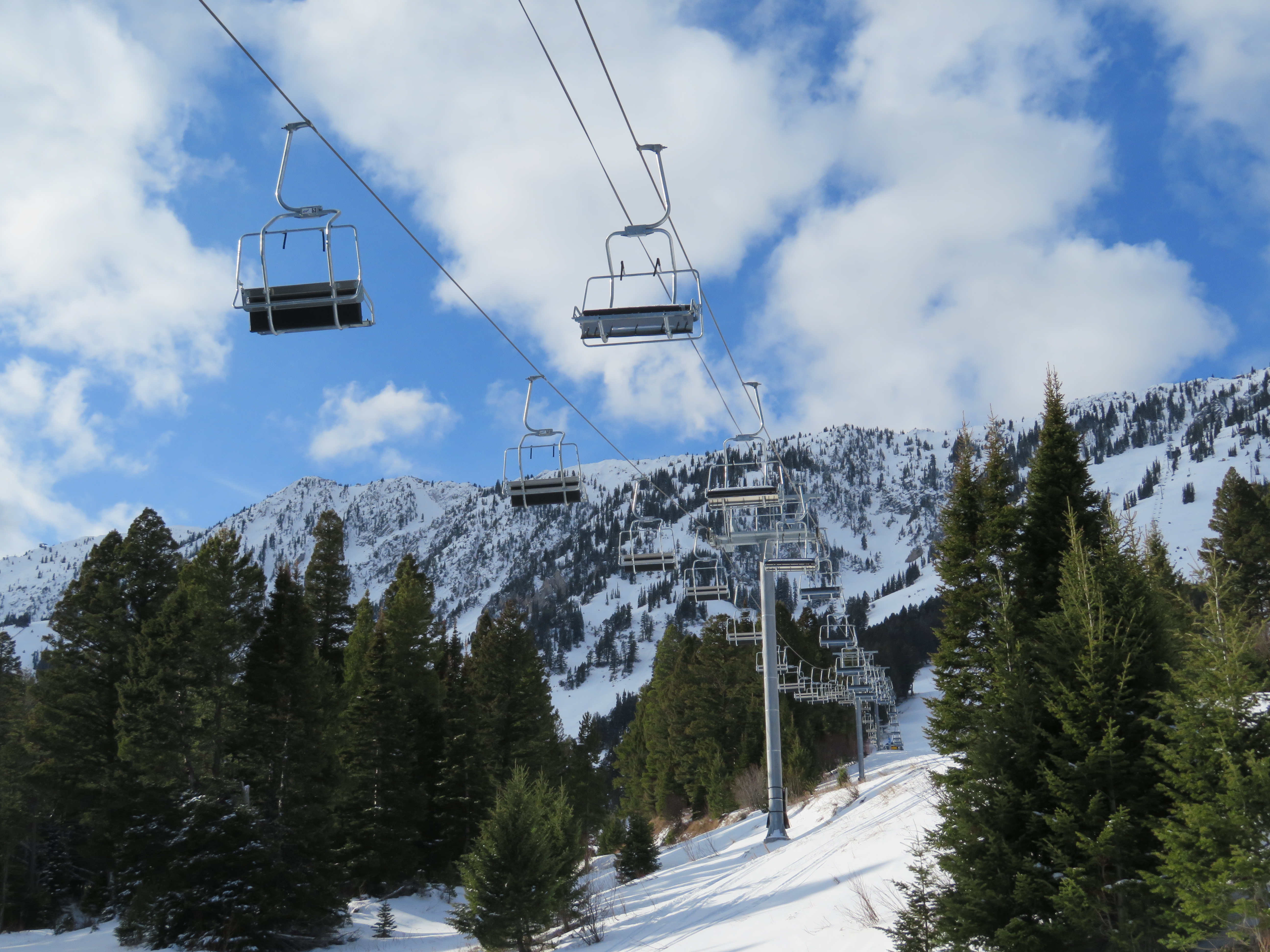

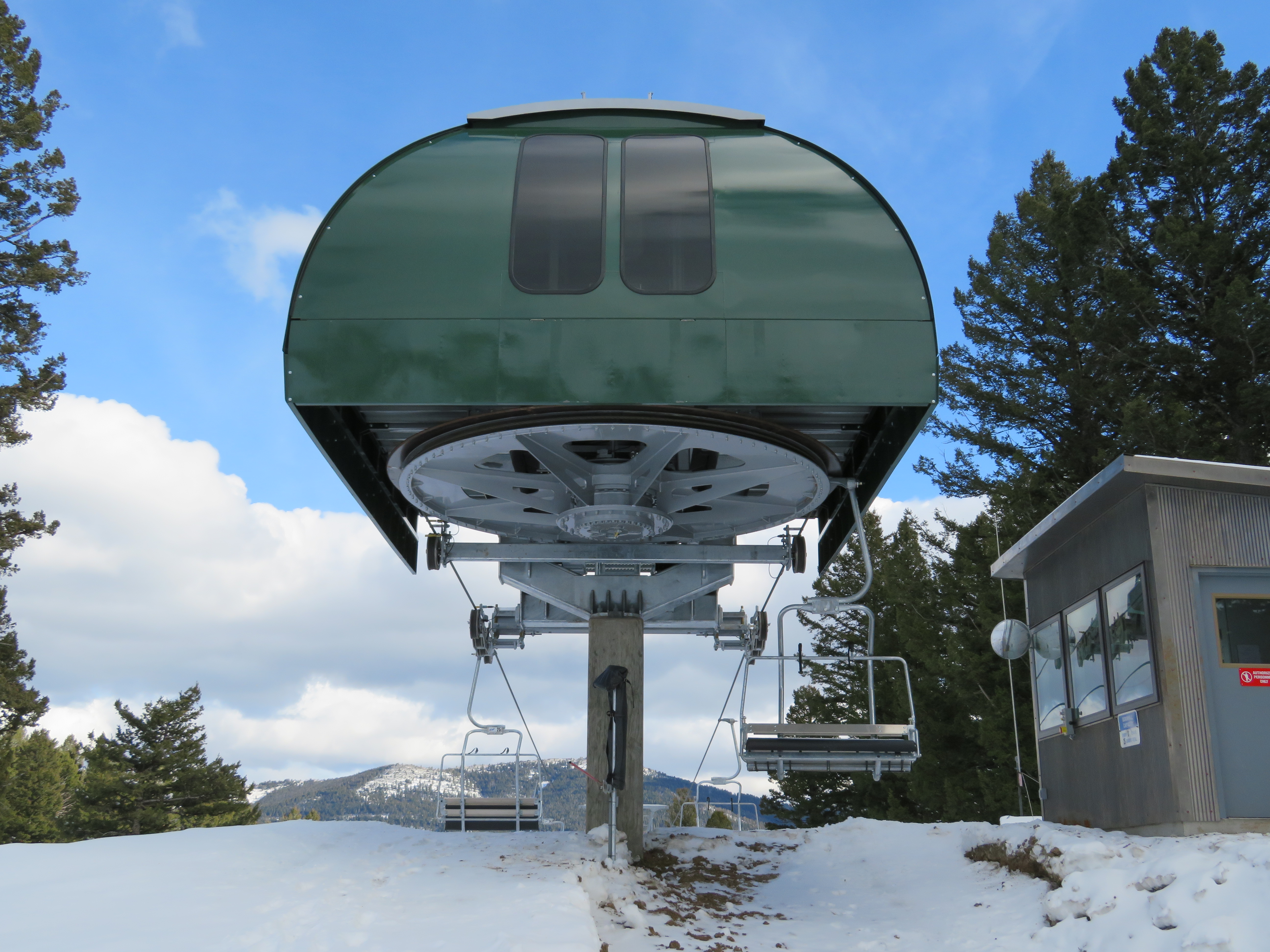

Like its Riblet predecessor, the new Virginia City is bottom tension/top drive.Only a few Skytracs have featured this setup to date.Looking up the lift line.First sheaves integrated into the bottom terminal.First face of the line.Towers 1 and 2.View down towards the base area.Middle part of the line.Another lift line angle.Tower 14.Underside of the Monarch drive terminal.Drive bullwheel and unload ramp.Top station overview.Drive station seen from below with Bridger behind.Another look at the top terminal.Upper section of the lift line.The load has a carpet and gates.
This is the first Skytrac to get a bottom tension terminal and first skytrac Monarch fixed drive terminal. though the top looks similar it lacks rams to move and utilizes shorter runway beams, though there is still 4ft of passive travel which can be utilize with some rigging required to move the carriage.
