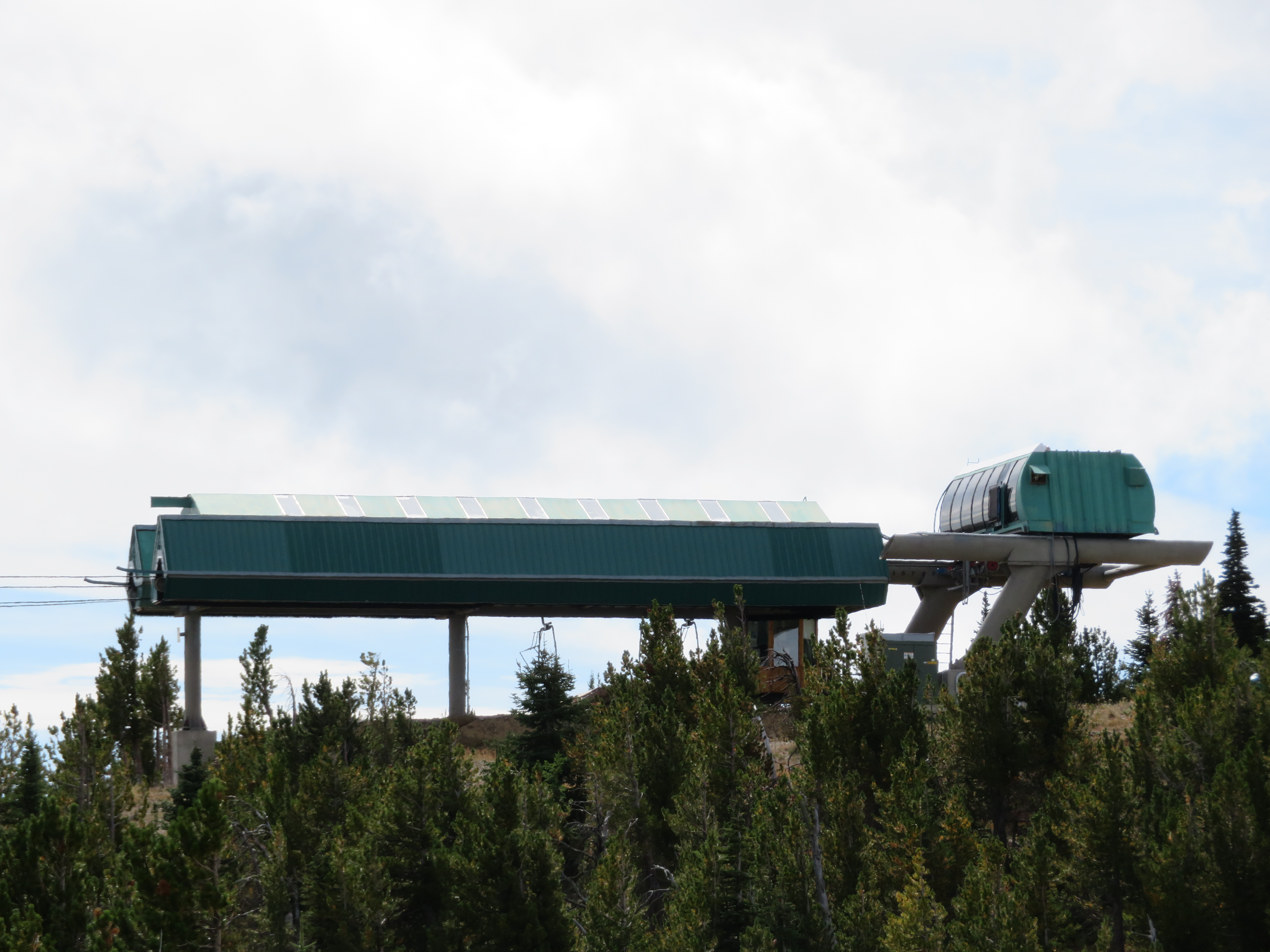

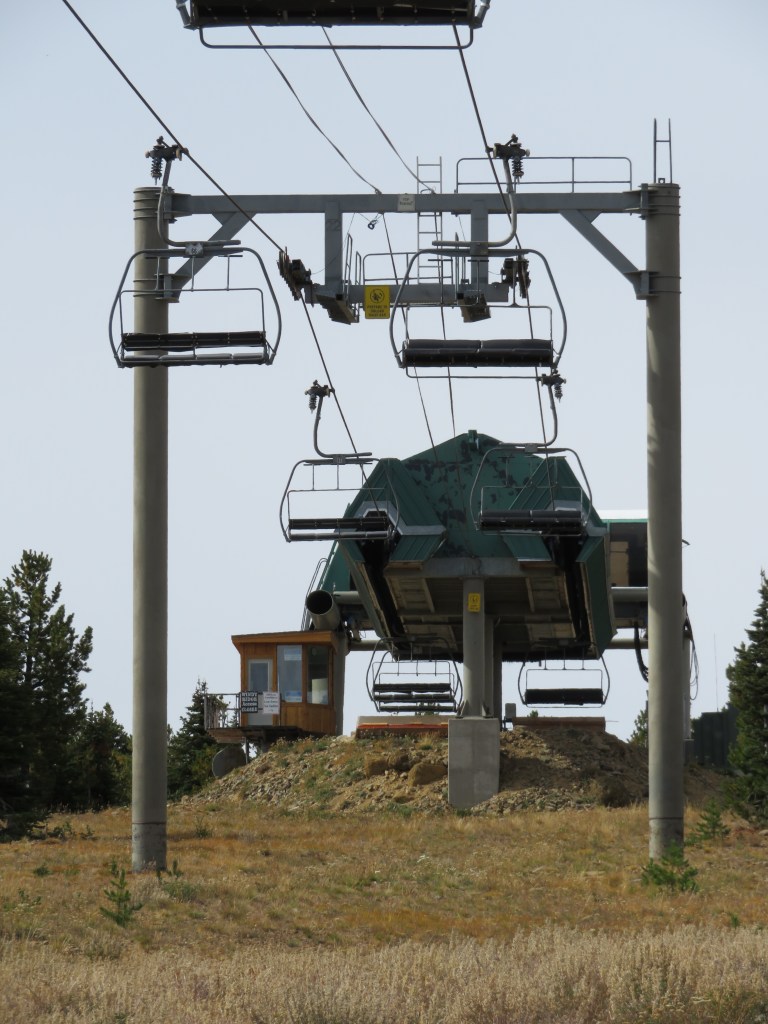

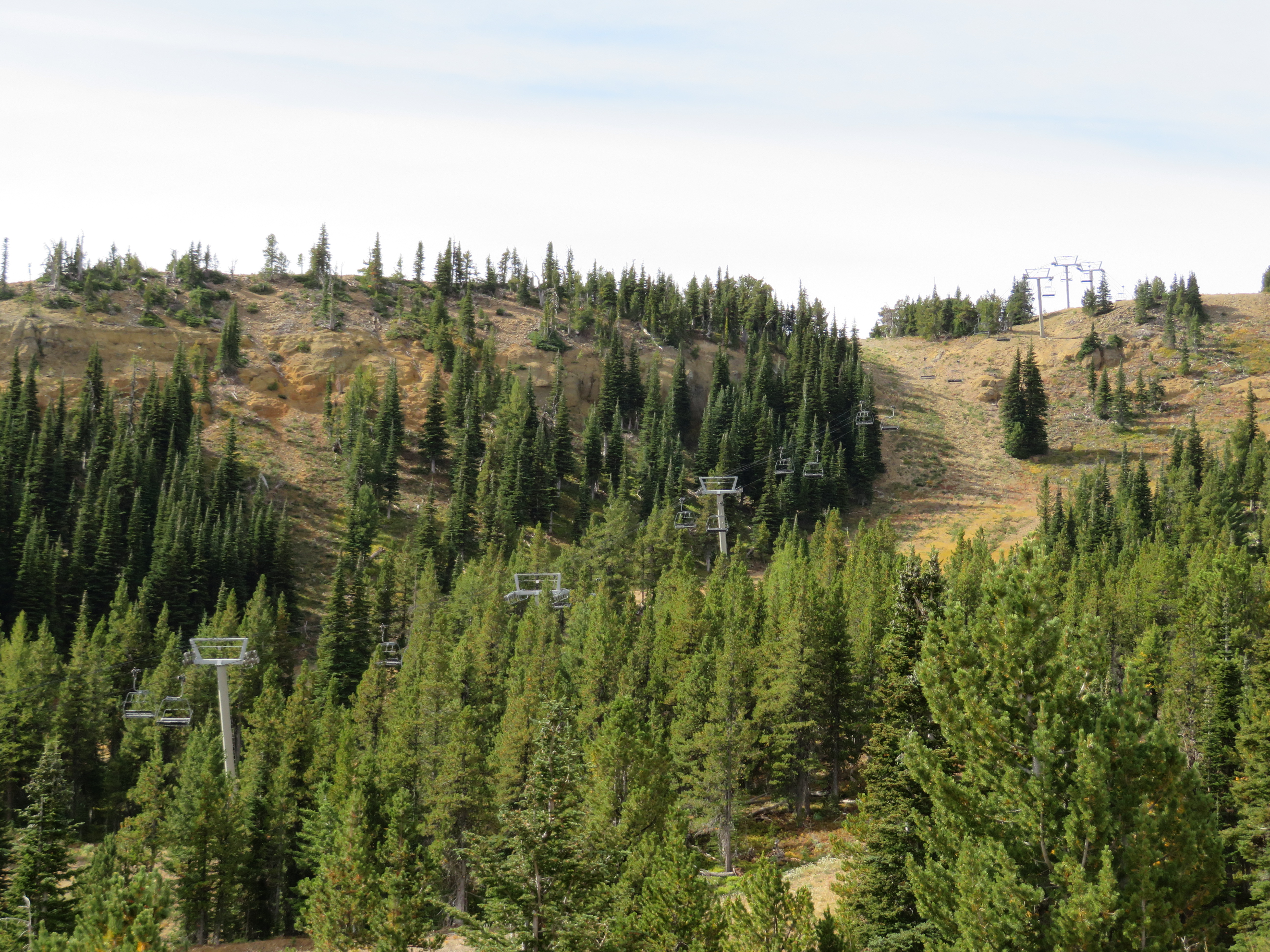

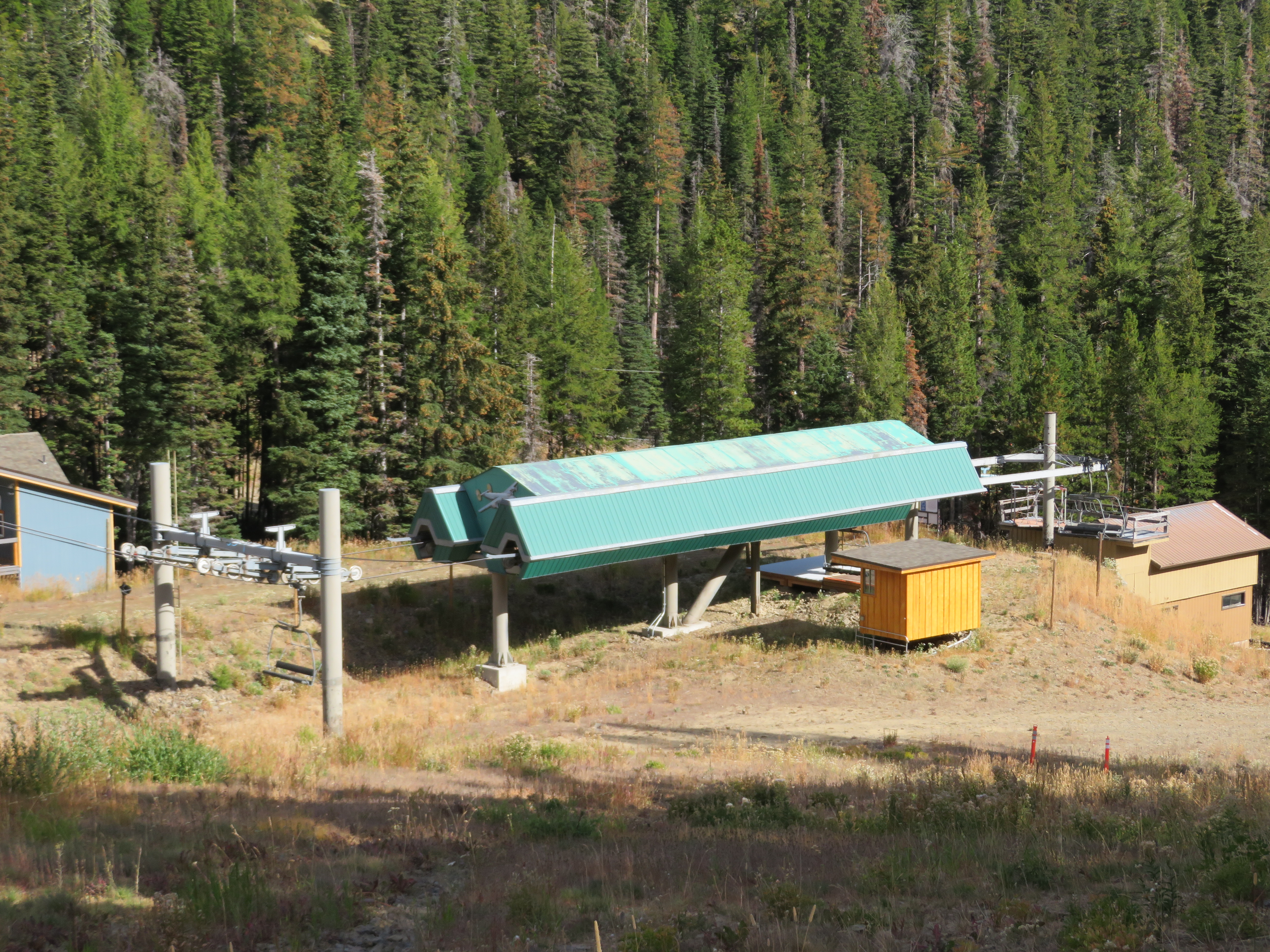

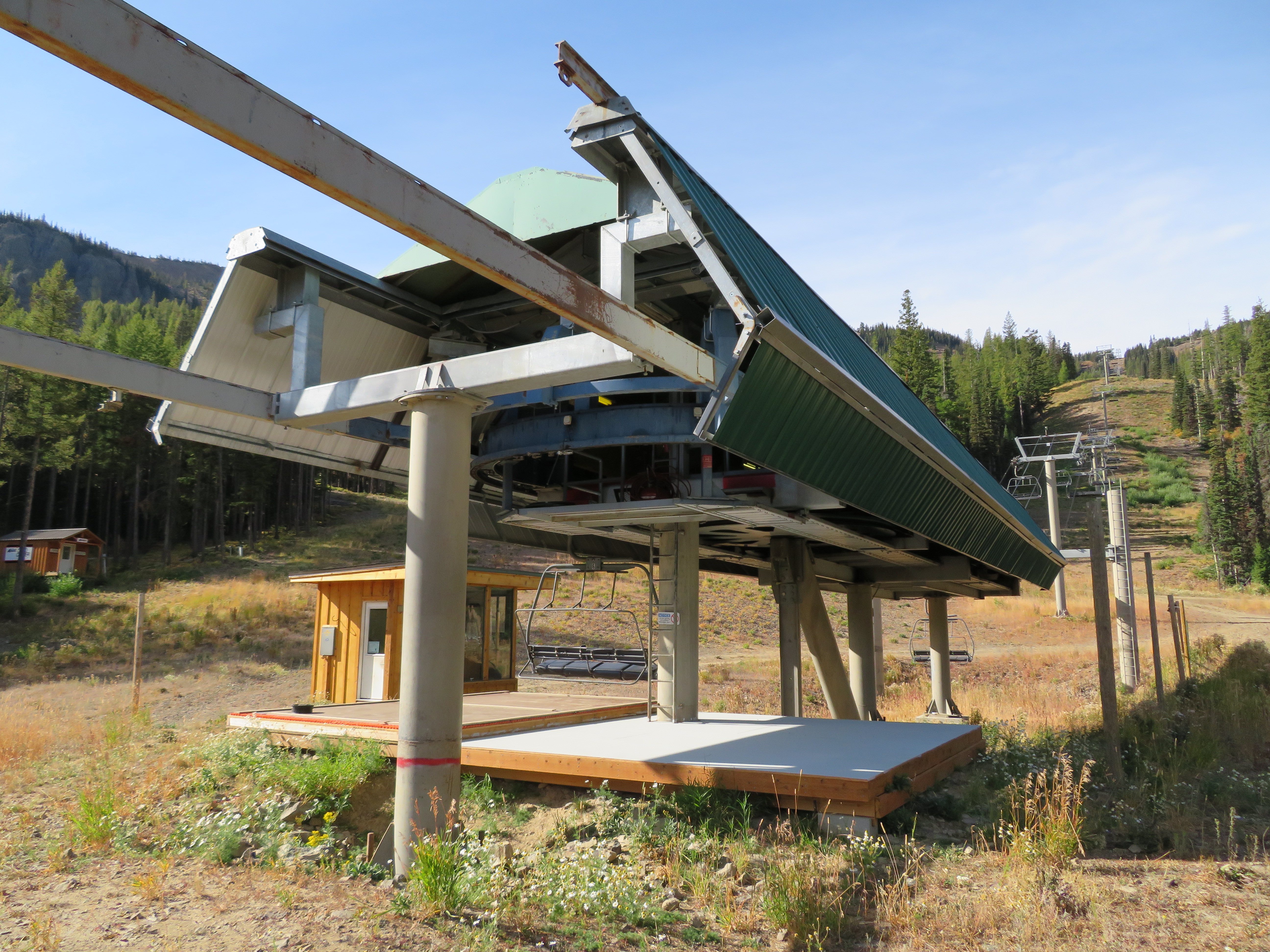

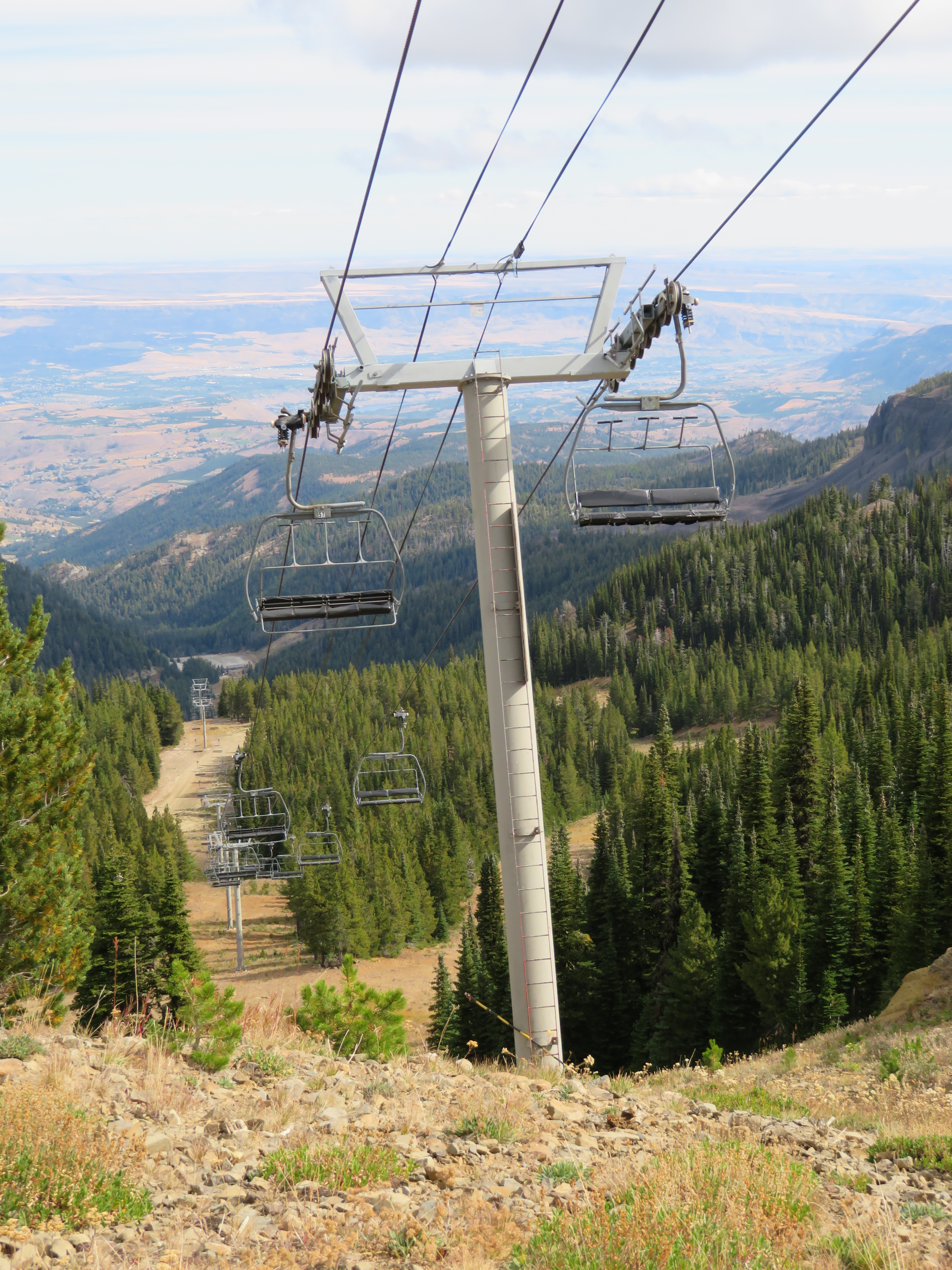

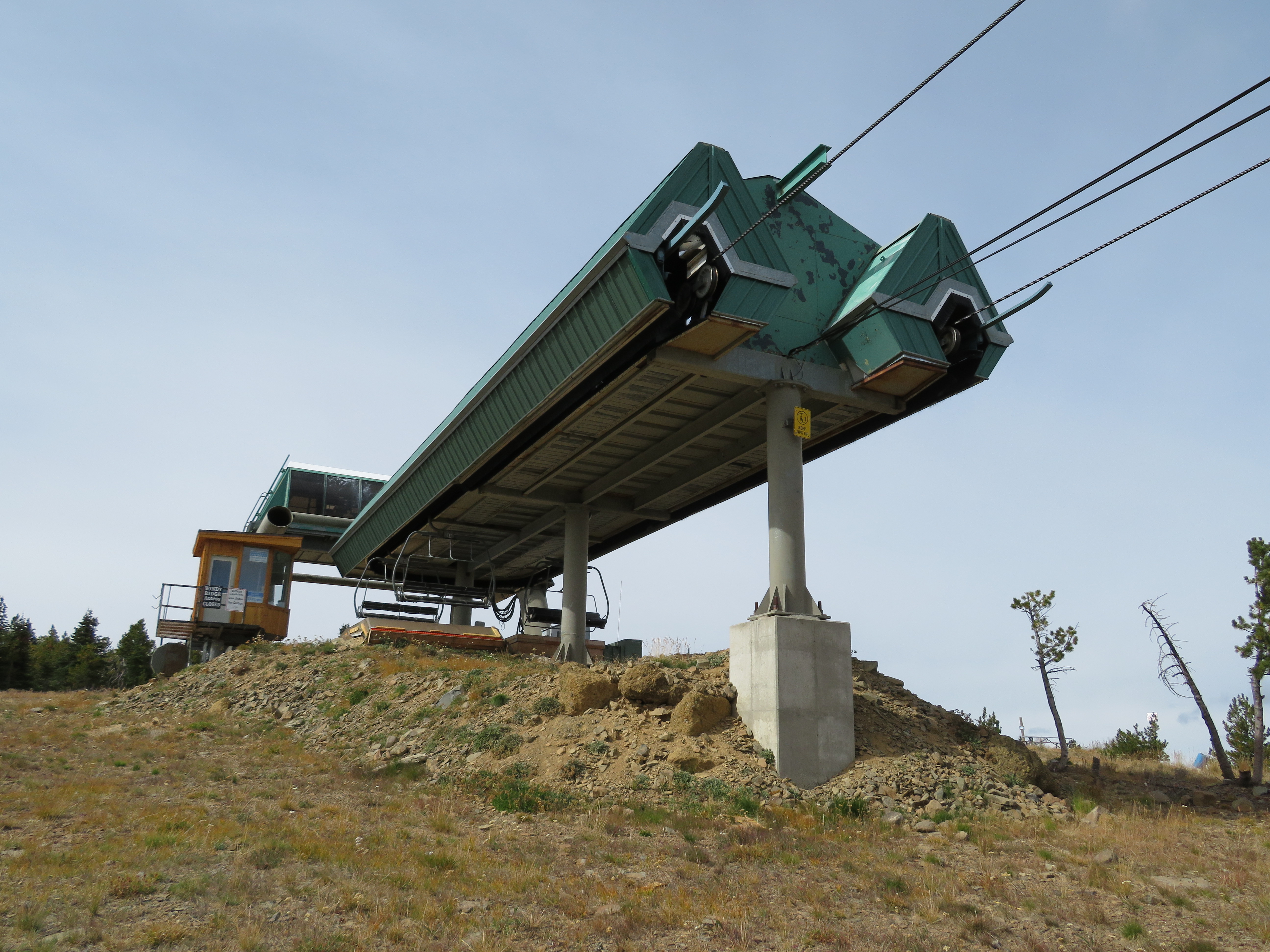

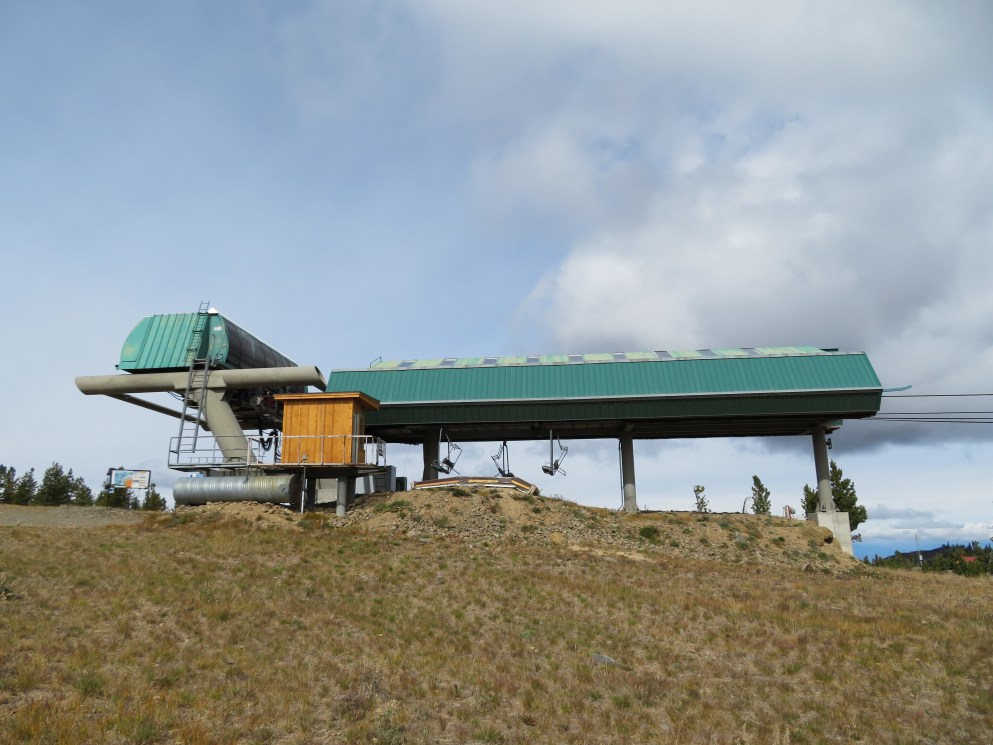

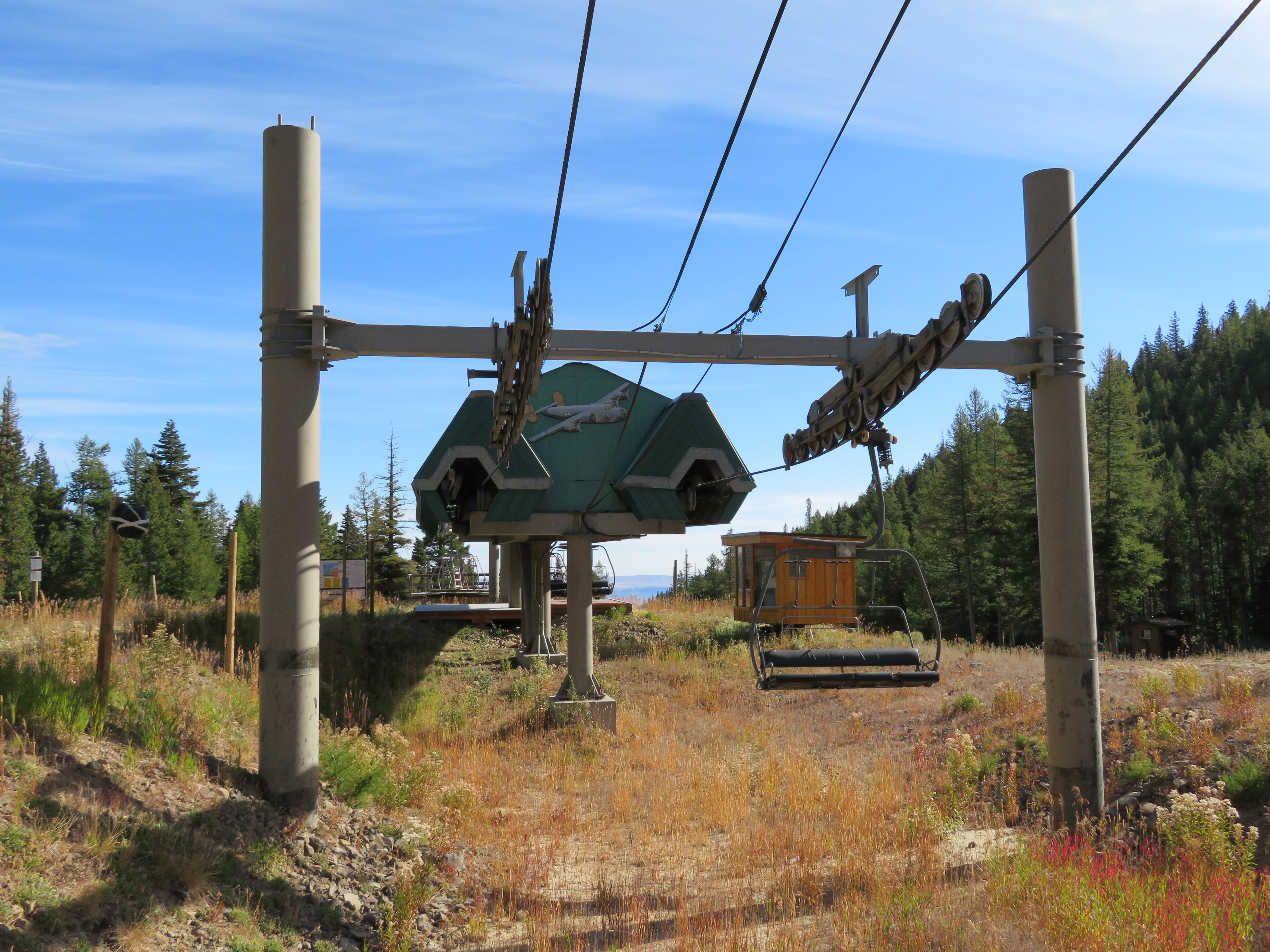

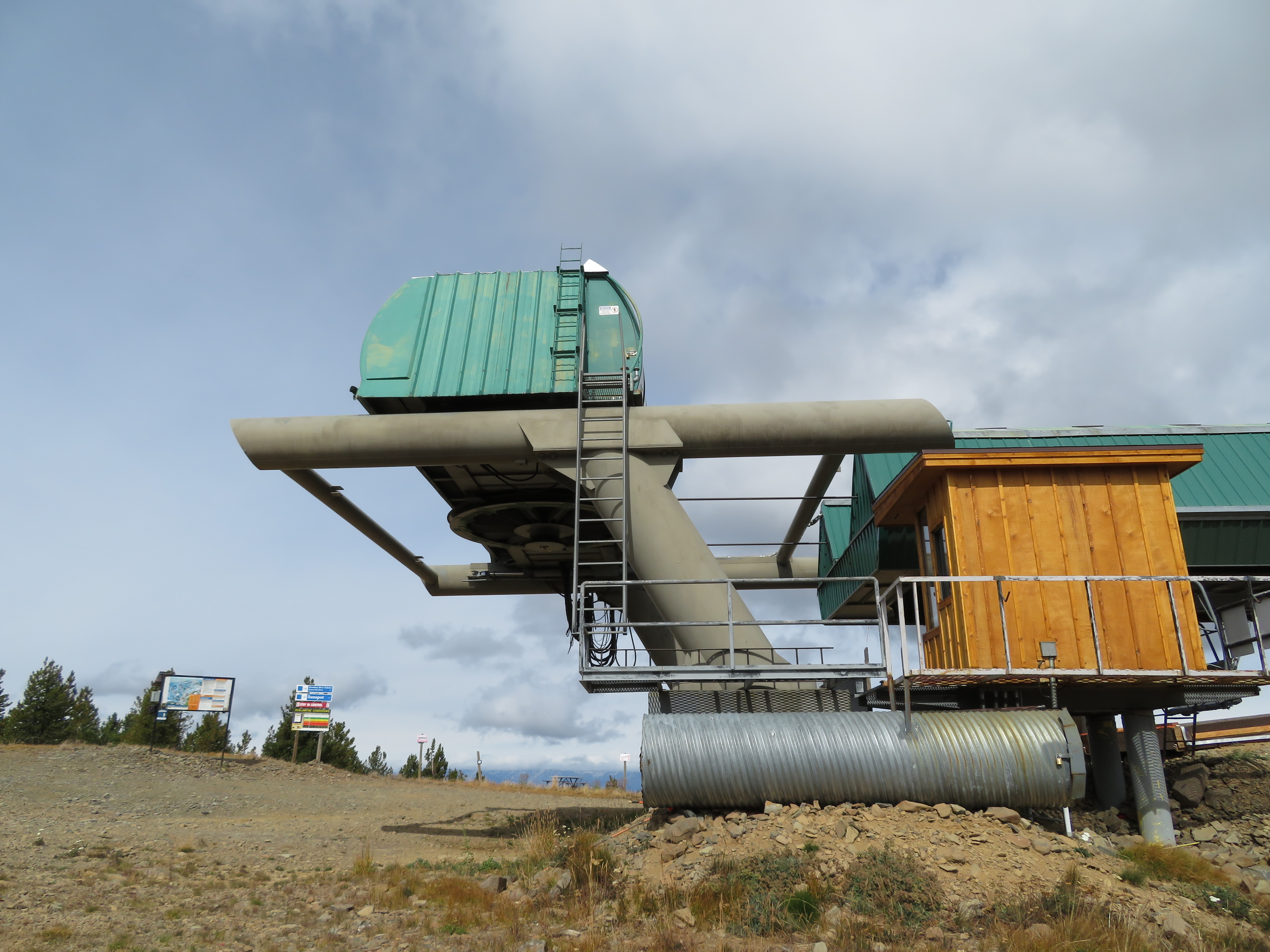

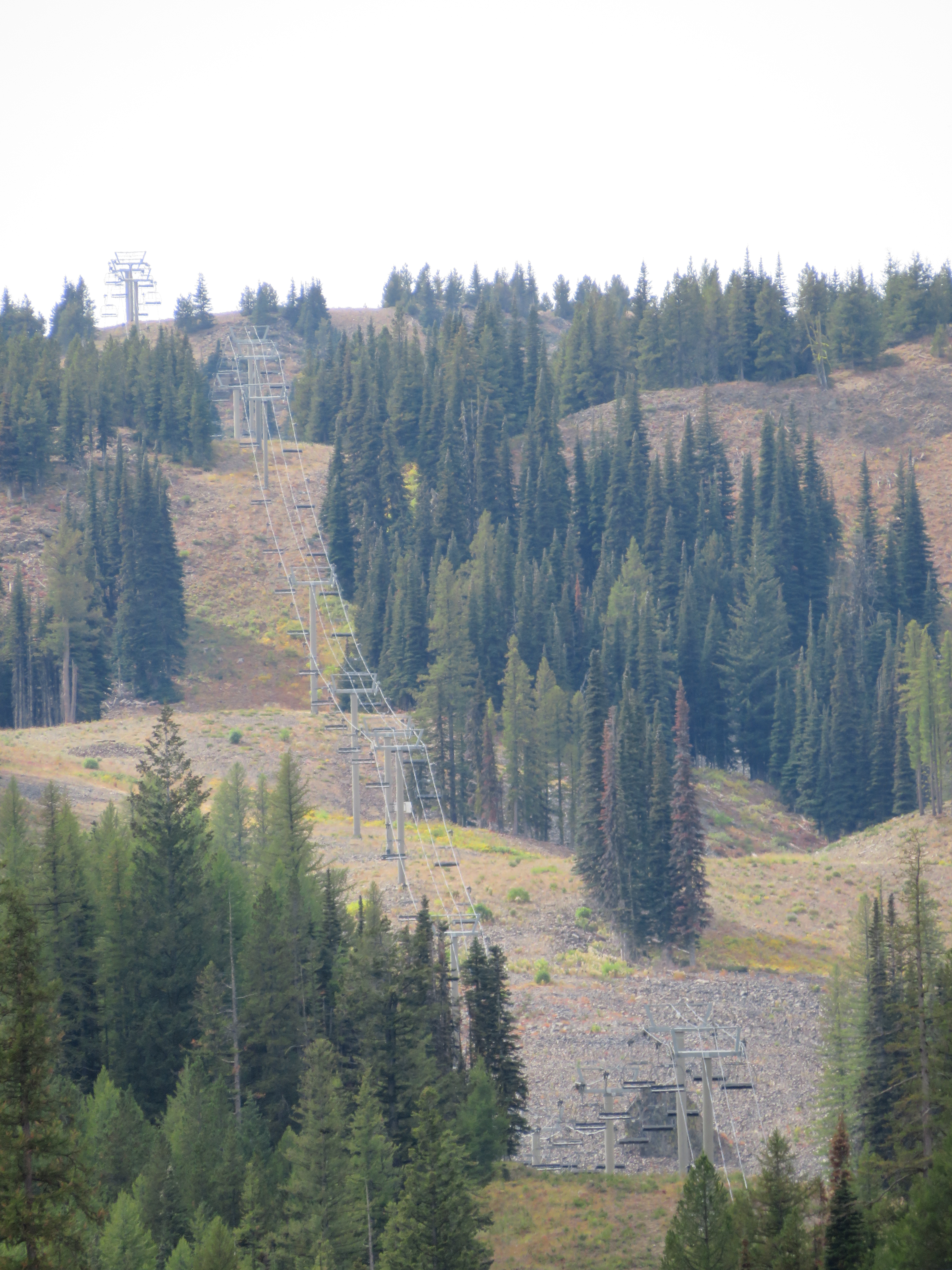

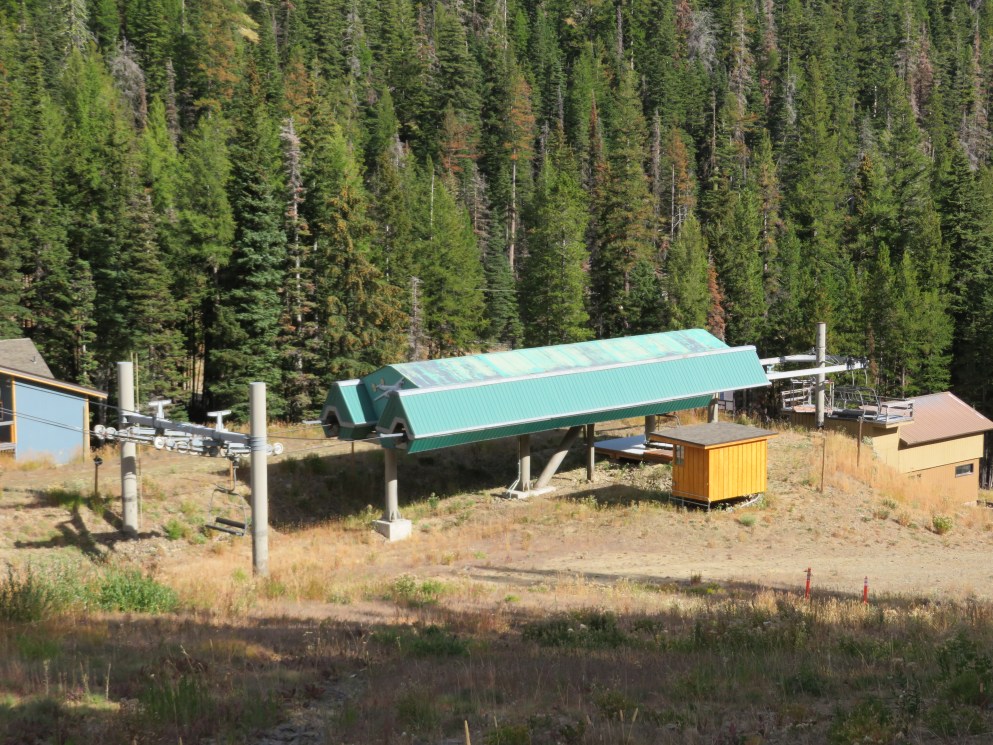

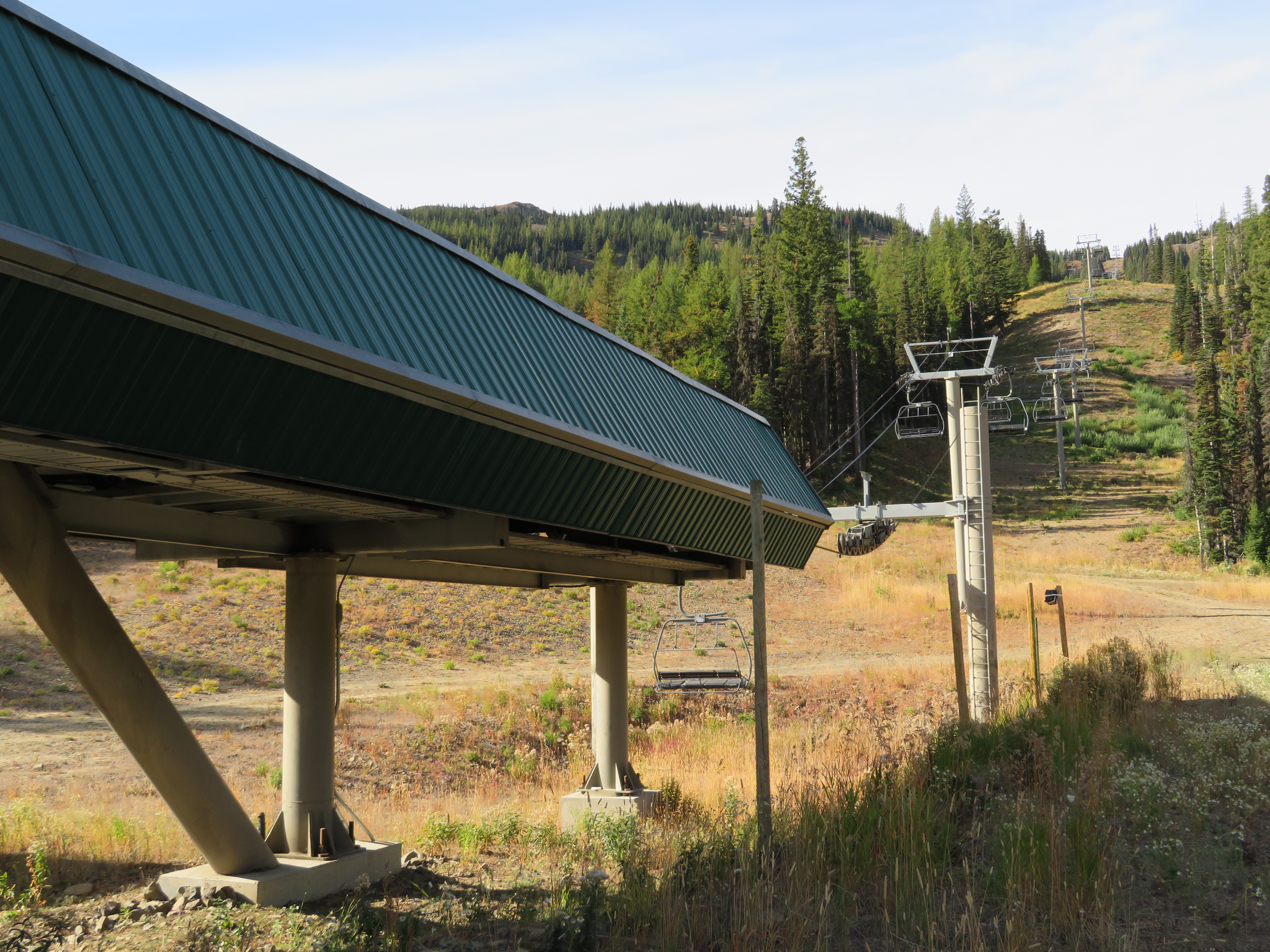

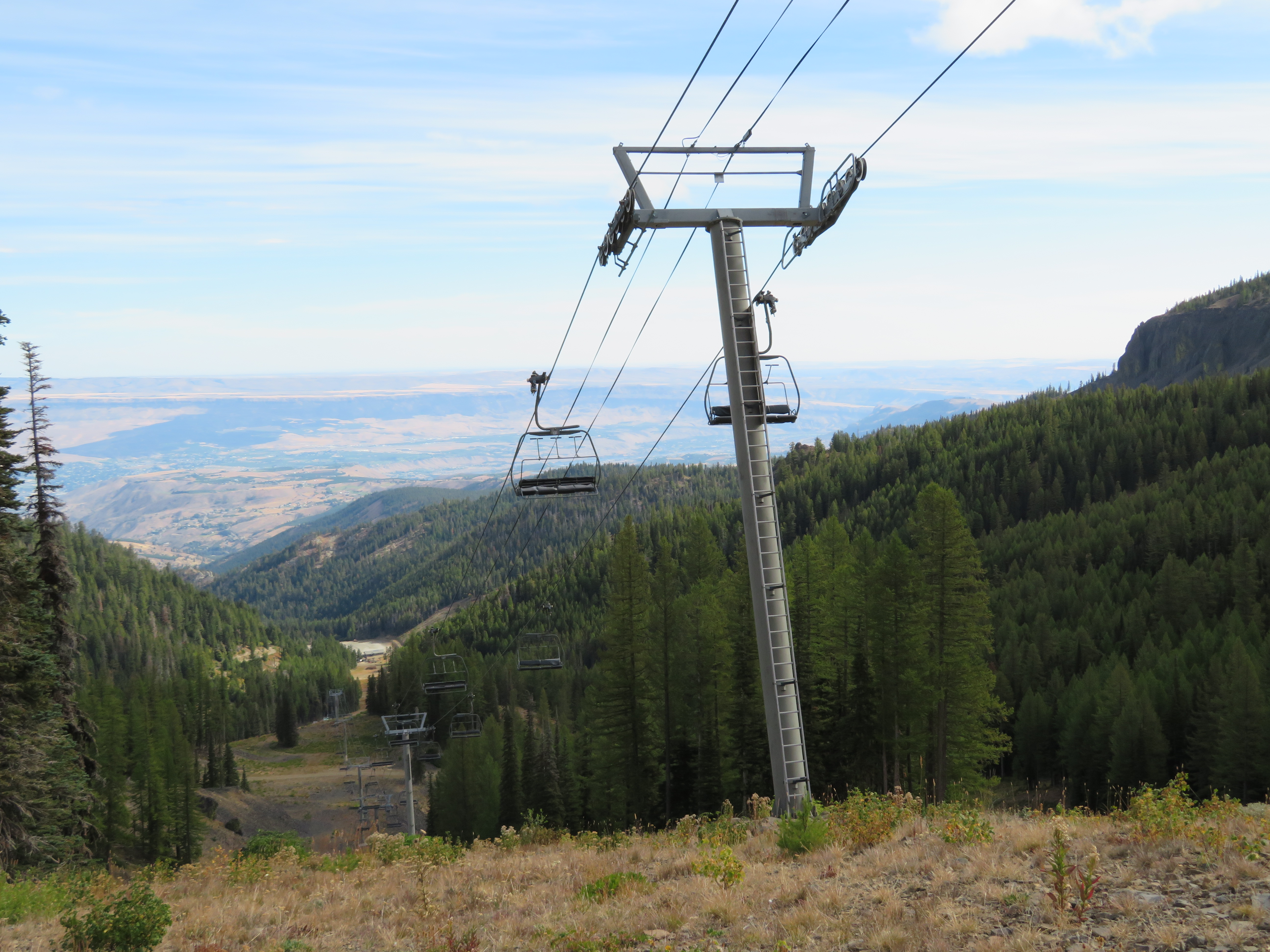

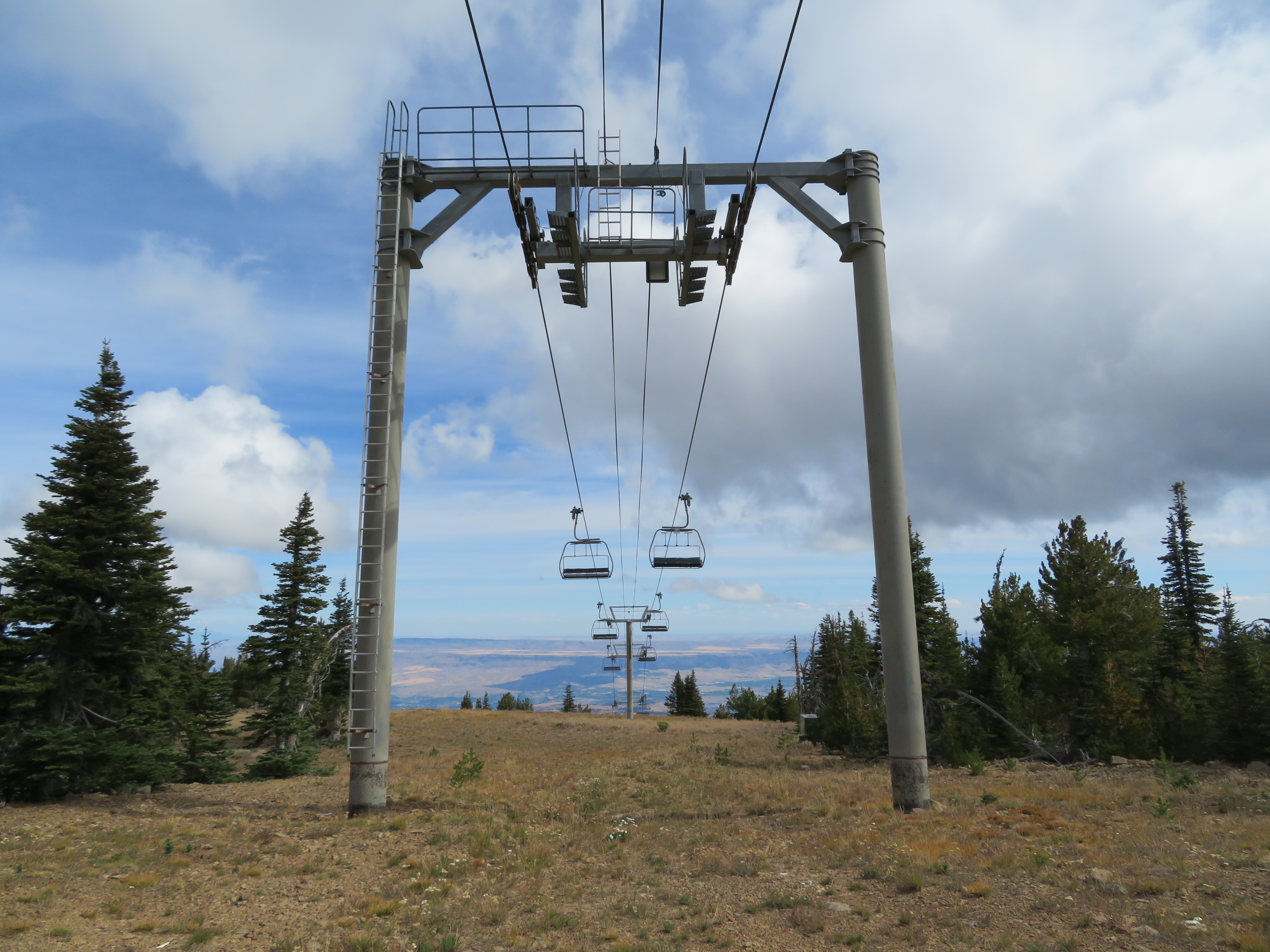

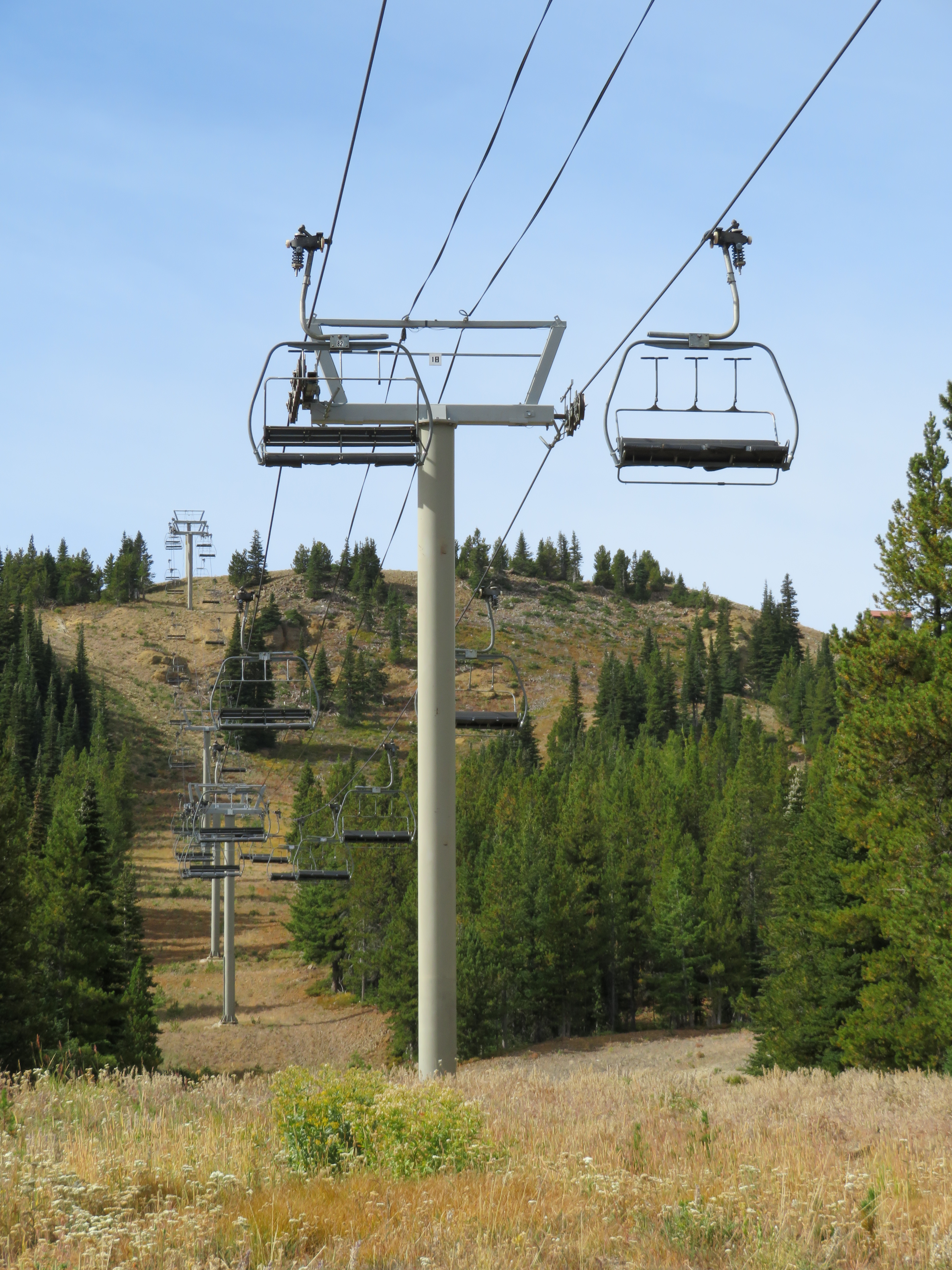

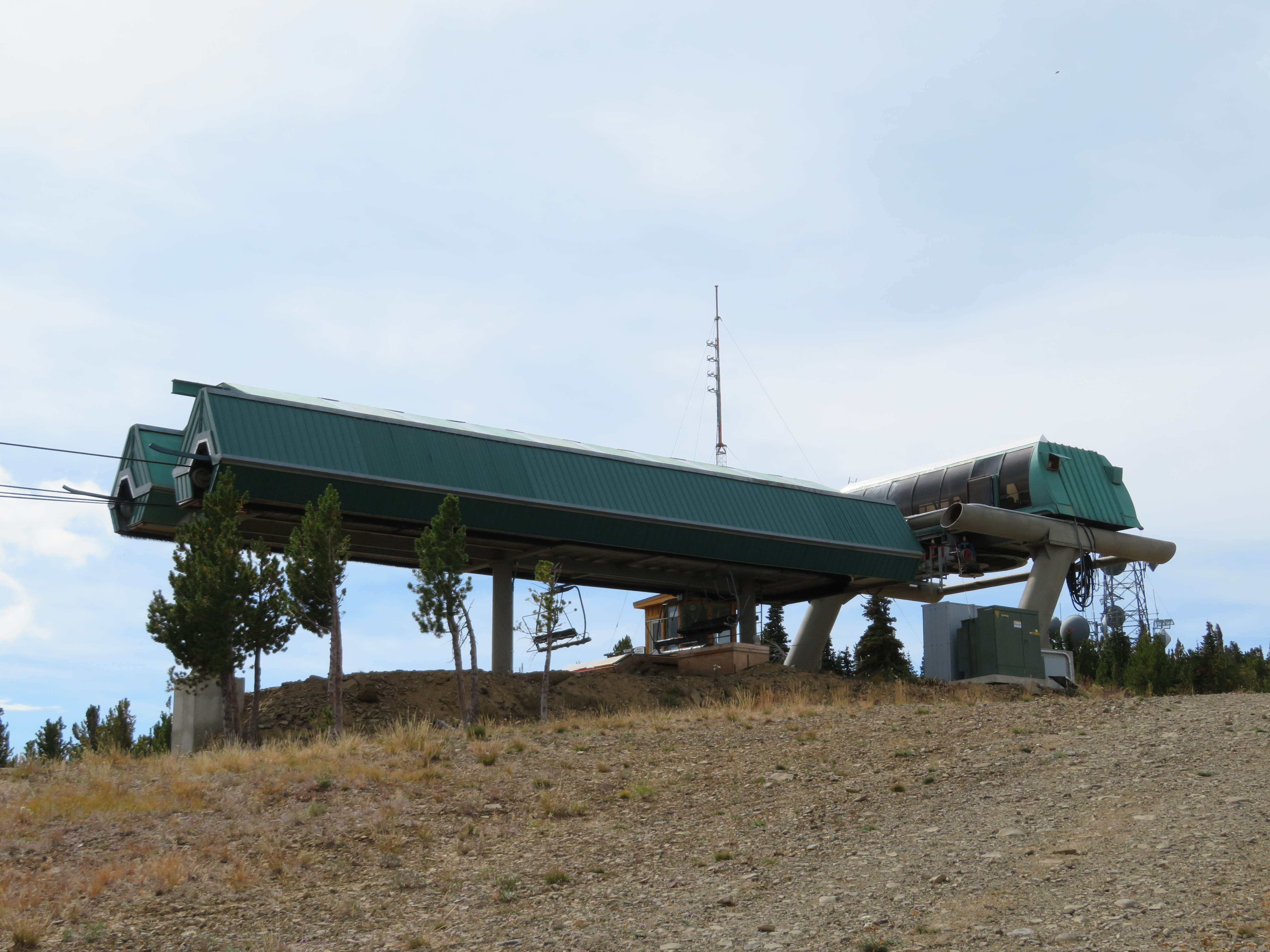

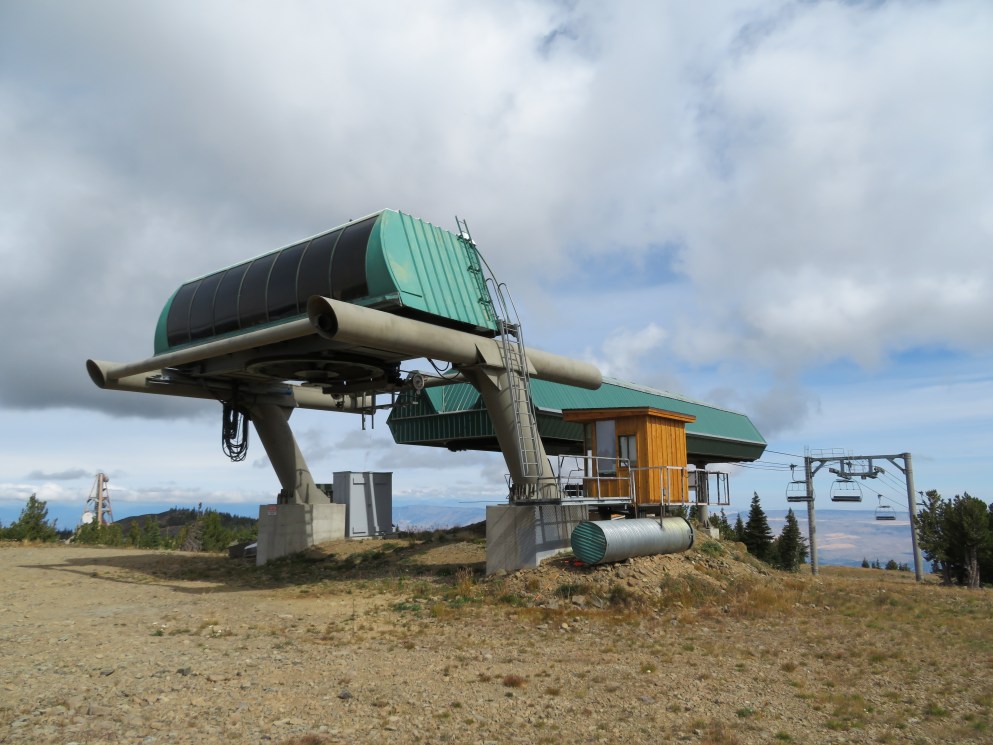

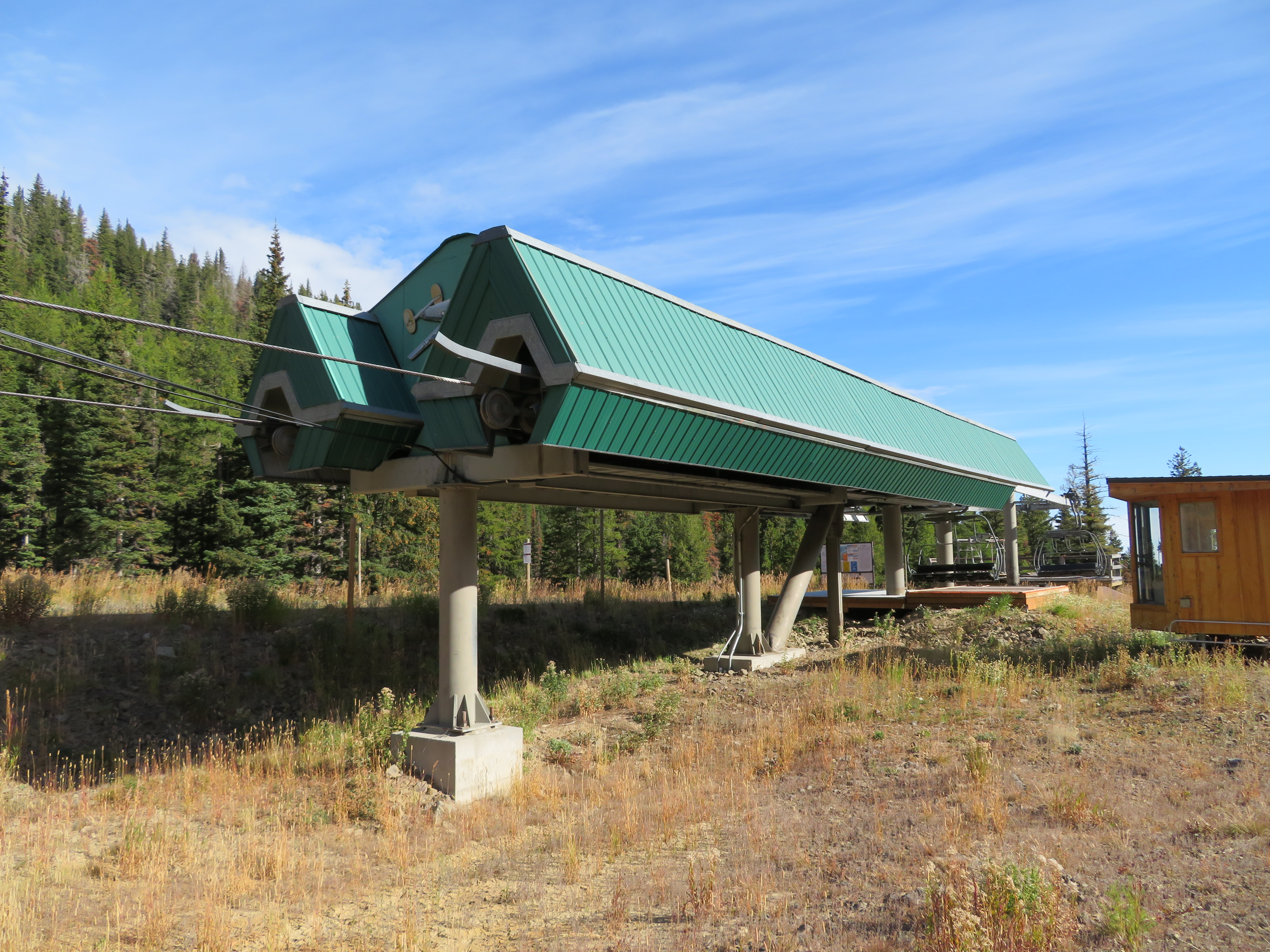

Mission Ridge needed a detachable lift to replace Chair 2, a 6,500′ Riblet. To save money, the mountain opted to buy the Summit Express from Winter Park rather than a new lift.Portal tower 1.Parking rail with work carrier.Interestingly, this is the oldest detachable chairlift in Washington but wasn’t the first.The lift line seen from the lower station.Return terminal overview.View up the lift line.Lower section of the line.Poma towers.Upper section of the line.Another view near the summit.Side view of the top drive terminal.View down near the top.Portal tower #25.Another look at T25.The two part top terminal.Lifts like this used Alpha drive terminals with a separate detach/attach building.Side view of the drive station.Unloading area and top operator house.A side view of the top station.Lift line overview.
Poma often had portal towers for breakover and depression towers on their earlier detachables. Siberia at Squaw Valley (which has since been removed and scrapped) is another example.
In its original Winter Park location, it only had one mid-line hold-down tower, at about tower 3 or 4 (around where tower 3 on the current Super Gauge Express is located).
Portal towers were situated at the bottom or top of lifts. This can be seen with the High Lonesome Express, and it was also the case on the defunct Falcon SuperChair.
It appears to be a POMA Alpha series fixed that was turned into a detatch. Similar to Peak 10 Falcon lift at Breckenridge, prior to the replacement last year.
I don’t believe this lift was ever a fixed grip. It was originally installed at Winter Park in 1985, and then moved here in 2005 when Winter Park replaced it with a 6 pack. Falcon at Breckenridge was definitely converted from a fixed grip. The only other Poma detachable I know of that was originally built as a fixed grip was High Lonesome at Winter Park, but that was done by replacing the Alpha drive and whatever return it had with 1st-gen Challenger detachable terminals as it happened in 1991. Poma installed these Alpha-Falcons as their regular detachable terminal design in 1985, 1986, and 1987. Customers could also opt for a vault drive instead of the separate Alpha drive, as was done with the Colorado Superchair at Breckenridge and the American Flyer at Copper. Both lifts are no longer in service. Back then they didn’t know how to build an overhead drive for detachable lifts, so those were the options.
Hunter’s Zephyr Express was originally on the front side of the mountain and called the Snowlite Express. It was installed new as a high speed quad in 1987. It was never converted.
Very nice motor sound on this lift, it’s in surprisingly good shape for it’s age. This is to my knowledge the last remaining Alpha-Falcon in the Western US outside Colorado. https://www.youtube.com/watch?v=qSp-wM4fNoc&t=8s
in my opinion, early model Poma detach chairs have the best motor sounds. Siberia and this chair had great motor sound so does the one in my PFP. https://youtu.be/xs3xvzmflvc?t=566
On the Mission Ridge webcam, you can see they’re taking the haul rope down this morning. Will be pretty neat to watch construction of the new lift over the next few months.
I just used the replacement 8/10 chondola replacement of it the first time a couple of weeks ago. The new lift looks so gigantic compared to the old one.
The drive is still up there at the top, with Wenatchee’s unload area right below it. I wonder what will become of it. Seeing it reused for a fixed grip quad seems like it would be the most practical choice, given the Alpha terminal design hasn’t changed at all in 36 years.
I think they already have a fixed grip quad from Stevens Pass. I wonder if they sold a few chairs if they were going to build a shorter lift with the parts from Liberator. Considering how long it took for them to build a detachable, I would think they’re waiting a year before they build another lift.
I was up at Mission earlier today and talked to a guy who apparently knew the owner. Supposedly this lifts top terminal was off by a whole 6 feet from the bottom terminal. I can imagine that contributed to this lift’s generally difficult nature.
Along with multiple gondolas, but they don’t have the Performant skin, rather inclosed in buildings (Lake Louise’s Grizzly gondola is the exception, with its terminals in Leitner skins). WWG at Whistler and Stratton’s gondola are some examples, Mansfield Gondola at Stowe is a Competiton model, but still pretty close.
Right, forgot about that one, but it does not have an alpha drive seperate from the detach/attach building, in fact, i’m pretty sure all Performant Gondolas have vault drives.
The Queen does not have an Alpha drive, and there’s no such thing as a Falcon terminal. It is a double TB-50 six-passenger gondola with partial Performant terminals (half of each end is enclosed in a building). It has a vault drive, yes; basically a sibling of the original Colorado at Breck and Flyer at Copper.
There were four models of this grip. There was the original T grip, which operated the same as the TB but had a much different mobile jaw configuration and lasted only a couple seasons; the TB-40, -41, and -50; and the double TB-50. The TB-40 was a tad smaller than the -41 and wasn’t found much. The -41 was almost ubiquitous, and the -50 must have been for smaller gondola cabins in Europe or elsewhere since the double is found on all North American gondolas of that vintage.
Lift Blog
Why the portal tower at the end?
LikeLike
Poma often had portal towers for breakover and depression towers on their earlier detachables. Siberia at Squaw Valley (which has since been removed and scrapped) is another example.
LikeLiked by 1 person
Odd, I watched a video and this lift has 3 other depression towers that are normal.
LikeLike
In its original Winter Park location, it only had one mid-line hold-down tower, at about tower 3 or 4 (around where tower 3 on the current Super Gauge Express is located).
LikeLike
Portal towers were situated at the bottom or top of lifts. This can be seen with the High Lonesome Express, and it was also the case on the defunct Falcon SuperChair.
LikeLike
It appears to be a POMA Alpha series fixed that was turned into a detatch. Similar to Peak 10 Falcon lift at Breckenridge, prior to the replacement last year.
LikeLike
I don’t believe this lift was ever a fixed grip. It was originally installed at Winter Park in 1985, and then moved here in 2005 when Winter Park replaced it with a 6 pack. Falcon at Breckenridge was definitely converted from a fixed grip. The only other Poma detachable I know of that was originally built as a fixed grip was High Lonesome at Winter Park, but that was done by replacing the Alpha drive and whatever return it had with 1st-gen Challenger detachable terminals as it happened in 1991. Poma installed these Alpha-Falcons as their regular detachable terminal design in 1985, 1986, and 1987. Customers could also opt for a vault drive instead of the separate Alpha drive, as was done with the Colorado Superchair at Breckenridge and the American Flyer at Copper. Both lifts are no longer in service. Back then they didn’t know how to build an overhead drive for detachable lifts, so those were the options.
LikeLiked by 3 people
The original Ajax Express at Aspen Mtn. was also a true Alpha-Evolution system.
LikeLike
Also include Zephyr Express at Hunter
LikeLike
Hunter’s Zephyr Express was originally on the front side of the mountain and called the Snowlite Express. It was installed new as a high speed quad in 1987. It was never converted.
LikeLike
The lifting frames on the towers on this lift are an interesting hodgepodge.
LikeLike
As in, some of them are the mid-1980s style, some are more late 80s/early 90s, and a few are clearly from 2005.
LikeLike
Wasn’t this planned to be replaced this year with a used Doppelmayr bubble chair?
LikeLike
It got delayed and instead is planned to happen this summer.
LikeLiked by 1 person
The line speed is 984 fpm. I don’t know how many chairs or towers but I do know the speed
LikeLike
Very nice motor sound on this lift, it’s in surprisingly good shape for it’s age. This is to my knowledge the last remaining Alpha-Falcon in the Western US outside Colorado. https://www.youtube.com/watch?v=qSp-wM4fNoc&t=8s
LikeLiked by 1 person
in my opinion, early model Poma detach chairs have the best motor sounds. Siberia and this chair had great motor sound so does the one in my PFP. https://youtu.be/xs3xvzmflvc?t=566
LikeLike
On the Mission Ridge webcam, you can see they’re taking the haul rope down this morning. Will be pretty neat to watch construction of the new lift over the next few months.
LikeLike
Where did the new chair come from?
LikeLike
The new lift is the former Zinsbergbahn link to the info
https://lift-world.info/en/lifts/1813/datas.htm
LikeLike
https://www.remontees-mecaniques.net/bdd/reportage-tsd4b-zinsbergbahn-doppelmayr-2889.html more pictures of the chair that will be here.
LikeLike
I just used the replacement 8/10 chondola replacement of it the first time a couple of weeks ago. The new lift looks so gigantic compared to the old one.
LikeLike
The drive is still up there at the top, with Wenatchee’s unload area right below it. I wonder what will become of it. Seeing it reused for a fixed grip quad seems like it would be the most practical choice, given the Alpha terminal design hasn’t changed at all in 36 years.
LikeLike
they should have kept the chairs and towers to re-use on a FGQ elsewhere.
LikeLike
I think they already have a fixed grip quad from Stevens Pass. I wonder if they sold a few chairs if they were going to build a shorter lift with the parts from Liberator. Considering how long it took for them to build a detachable, I would think they’re waiting a year before they build another lift.
LikeLike
Is it the Jupiter Quad? Some guy keeps saying it’s scrapped but I don’t think that is true.
LikeLike
I think he was trying to chat troll. The reasons that he listed didn’t make a whole lot of sense.
LikeLiked by 1 person
The top terminal remains today!
LikeLike
I was up at Mission earlier today and talked to a guy who apparently knew the owner. Supposedly this lifts top terminal was off by a whole 6 feet from the bottom terminal. I can imagine that contributed to this lift’s generally difficult nature.
LikeLike
Is there any other Alpha-Flacon’s in North America other than Coney Glade remaining?
LikeLike
They are not called Alpha Falcon terminals, they are called Performant terminals.
The only other Poma detachable chairlift with Performant terminals is Zephyr Express at Hunter Mountain, NY.
LikeLiked by 1 person
Along with multiple gondolas, but they don’t have the Performant skin, rather inclosed in buildings (Lake Louise’s Grizzly gondola is the exception, with its terminals in Leitner skins). WWG at Whistler and Stratton’s gondola are some examples, Mansfield Gondola at Stowe is a Competiton model, but still pretty close.
LikeLike
SQG at Aspen is an Alpha-Falcon with vault drive gondola.
LikeLike
Right, forgot about that one, but it does not have an alpha drive seperate from the detach/attach building, in fact, i’m pretty sure all Performant Gondolas have vault drives.
LikeLike
The Queen does not have an Alpha drive, and there’s no such thing as a Falcon terminal. It is a double TB-50 six-passenger gondola with partial Performant terminals (half of each end is enclosed in a building). It has a vault drive, yes; basically a sibling of the original Colorado at Breck and Flyer at Copper.
LikeLiked by 1 person
@PBROPETECH, what is a TB-50 grip, I thought there were only TB-41 and TB-41 double positions?
LikeLike
There were four models of this grip. There was the original T grip, which operated the same as the TB but had a much different mobile jaw configuration and lasted only a couple seasons; the TB-40, -41, and -50; and the double TB-50. The TB-40 was a tad smaller than the -41 and wasn’t found much. The -41 was almost ubiquitous, and the -50 must have been for smaller gondola cabins in Europe or elsewhere since the double is found on all North American gondolas of that vintage.
LikeLike
