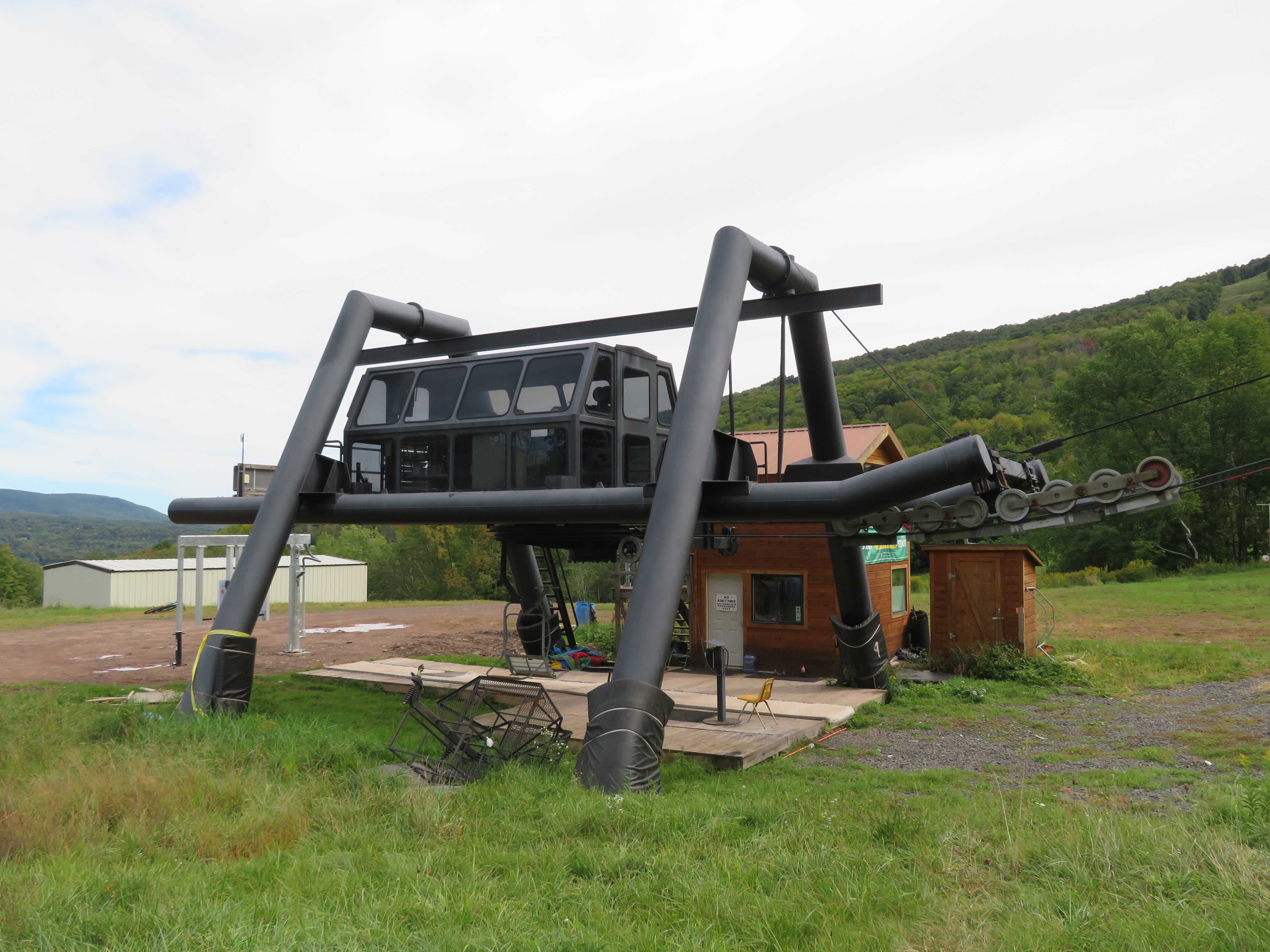

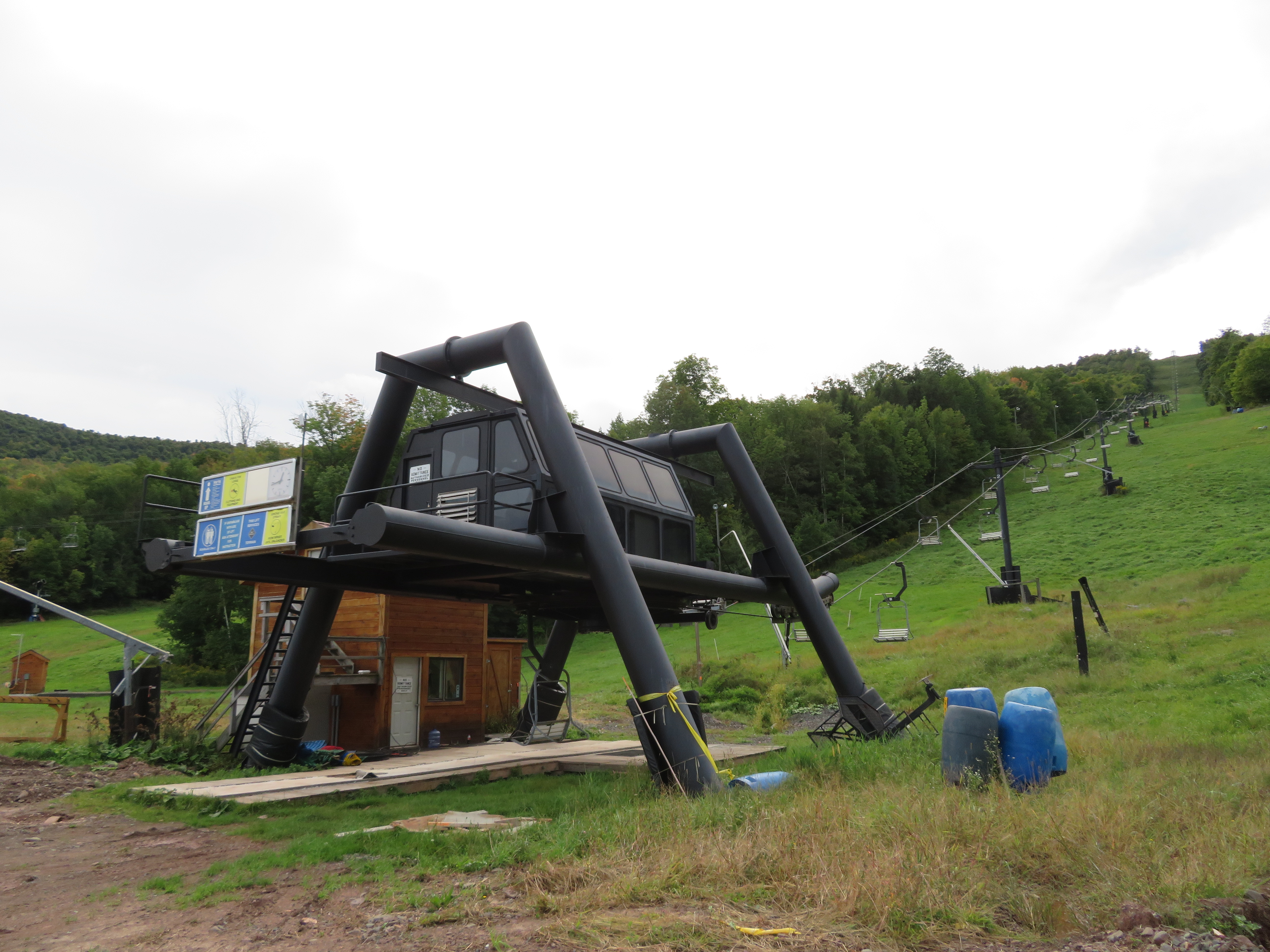

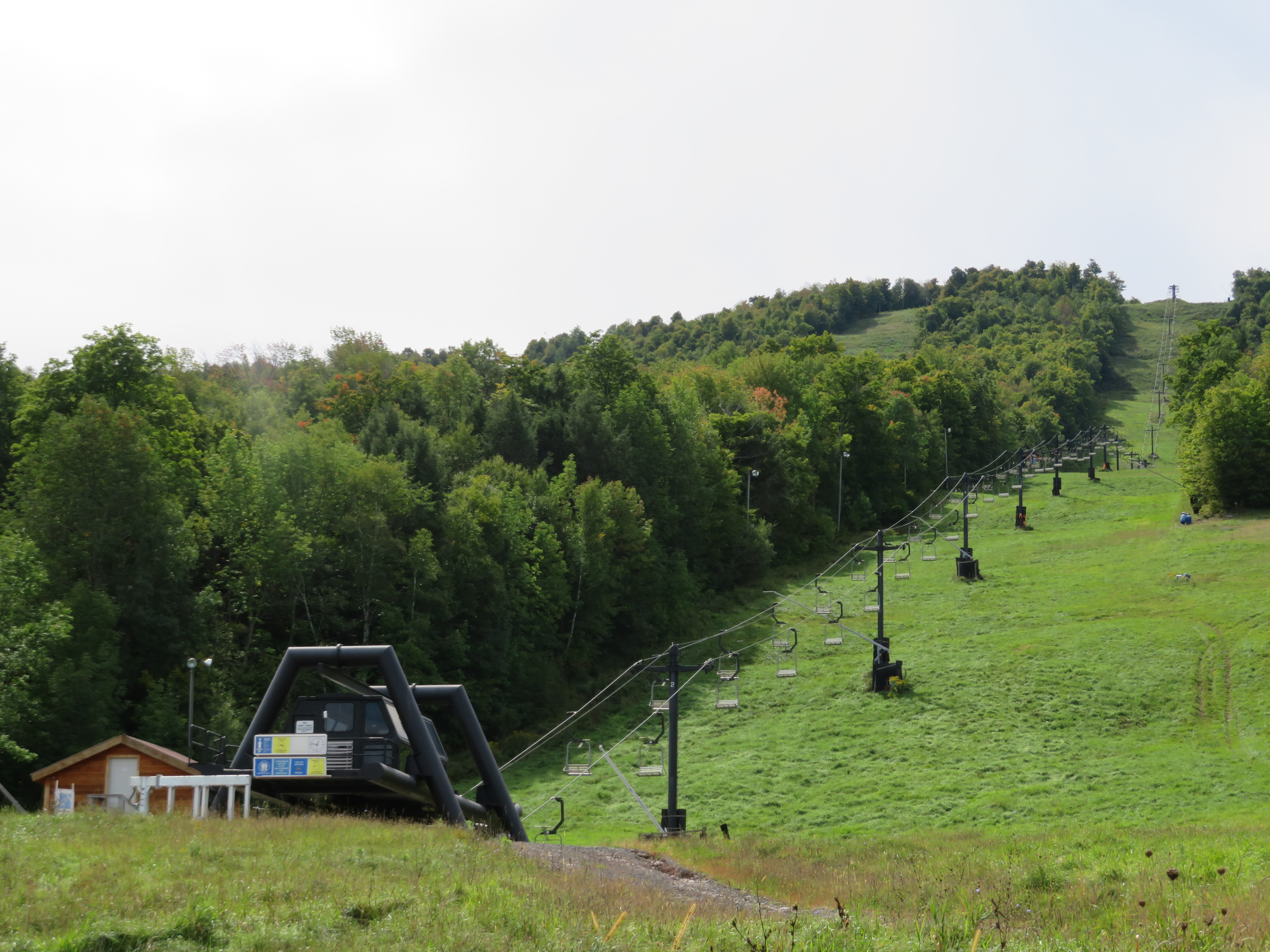

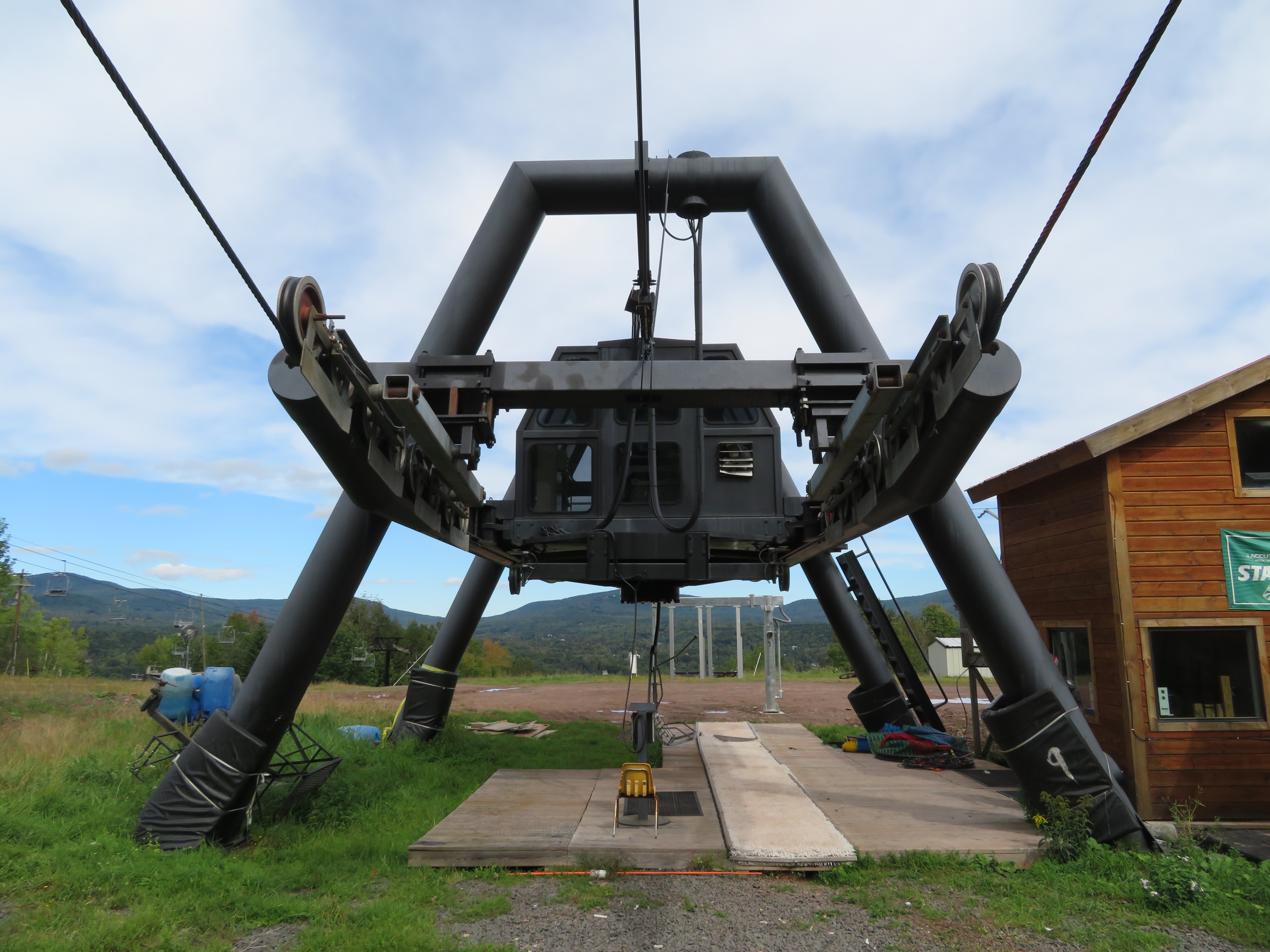

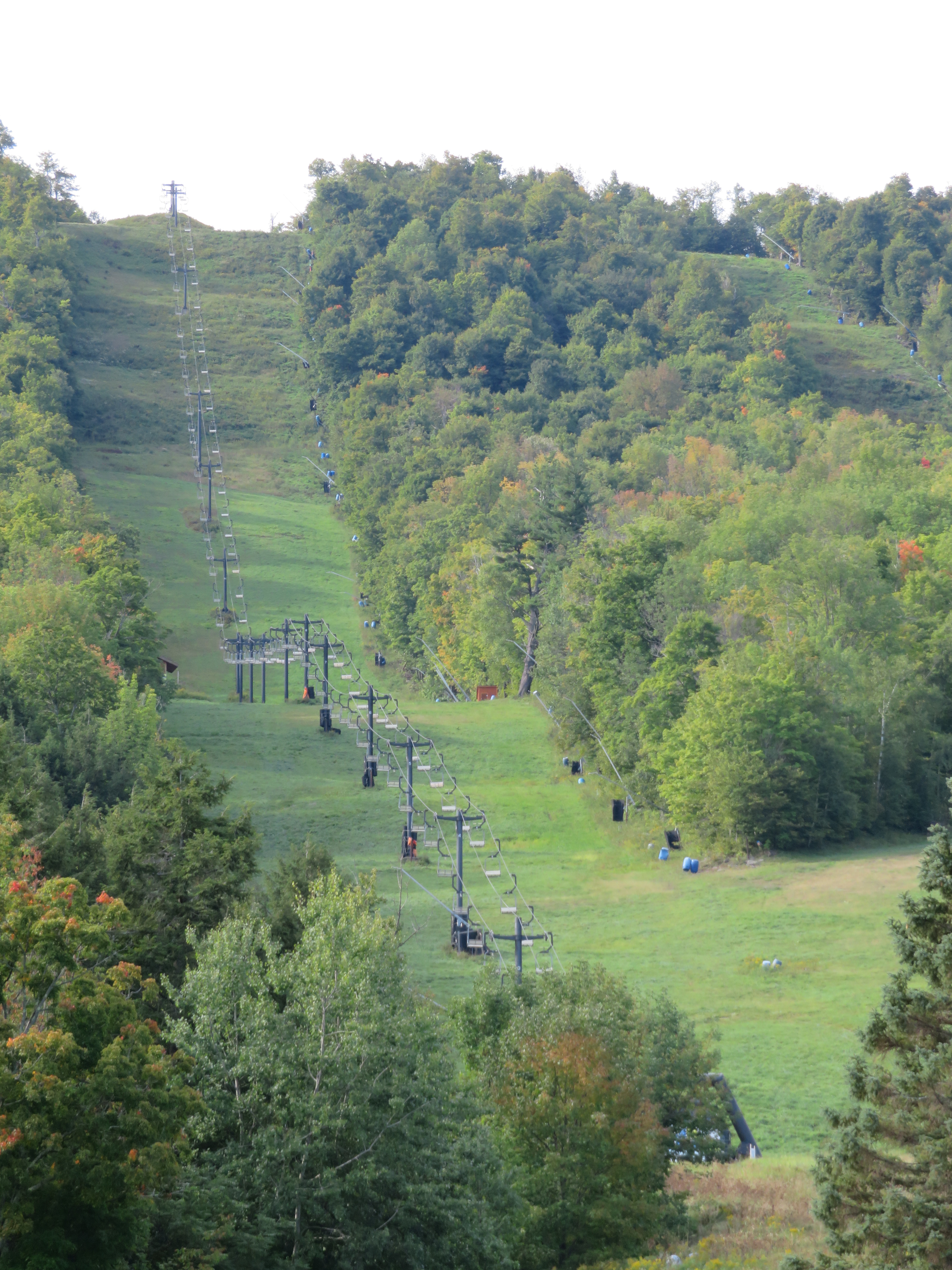

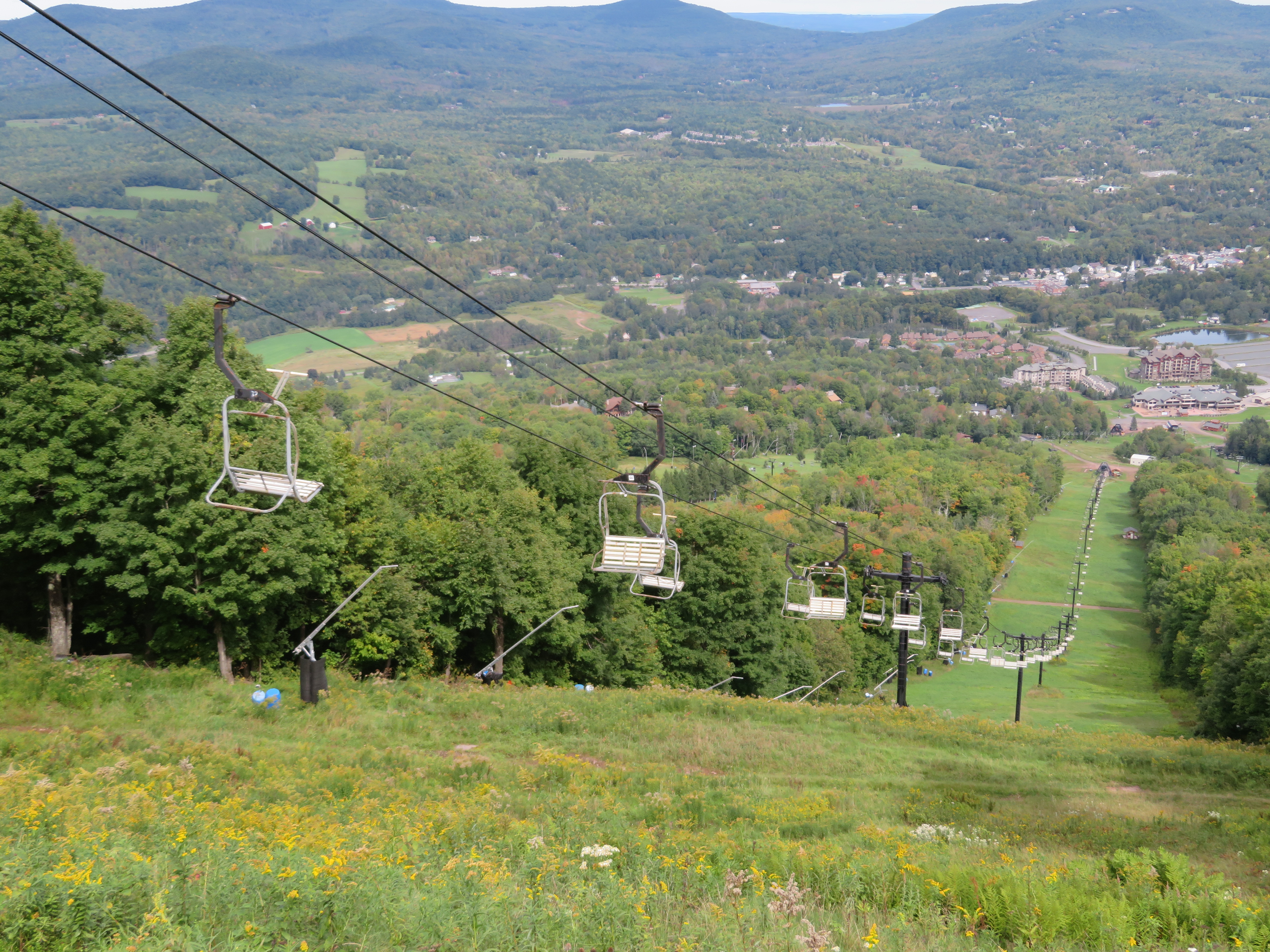

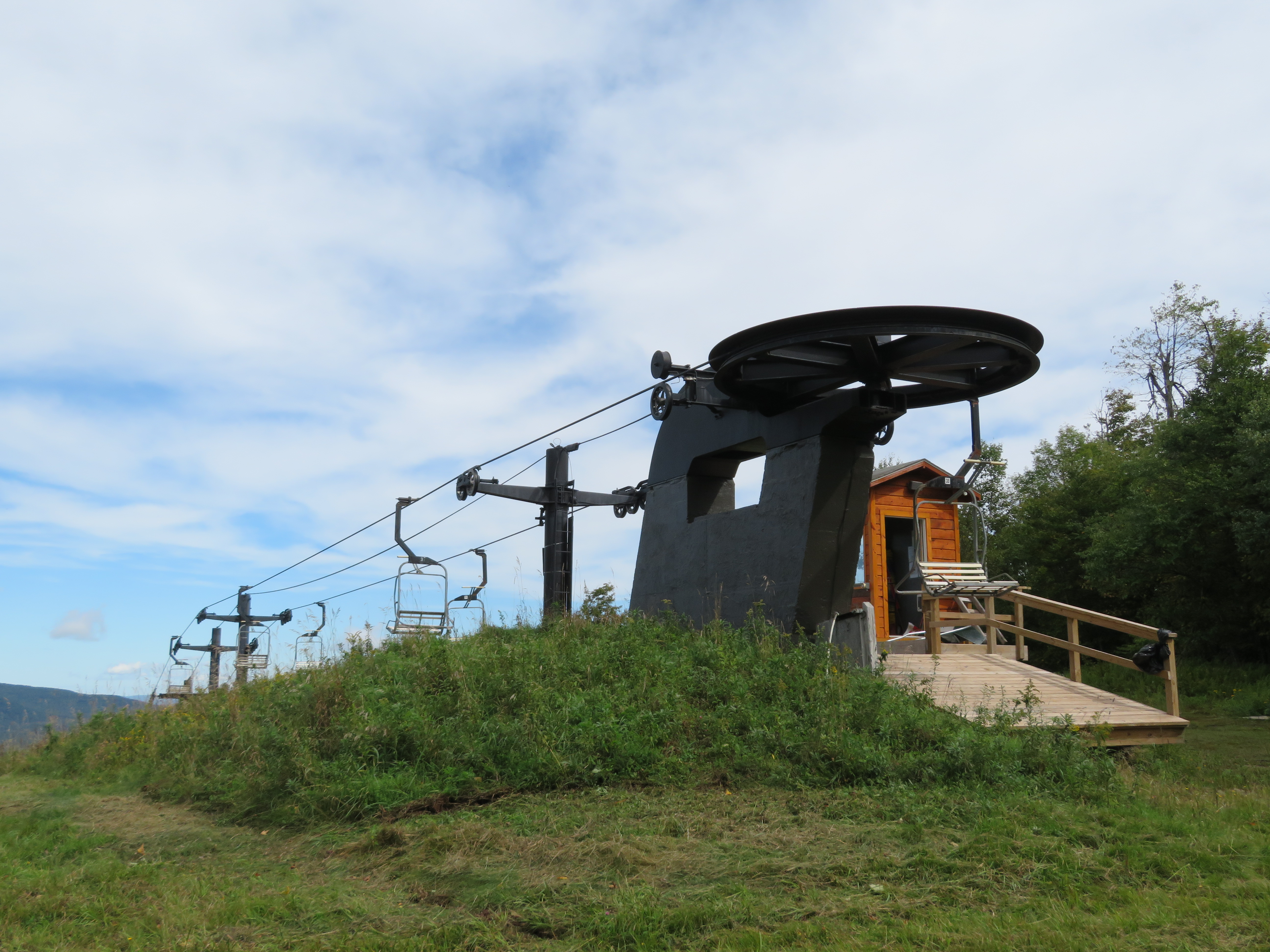

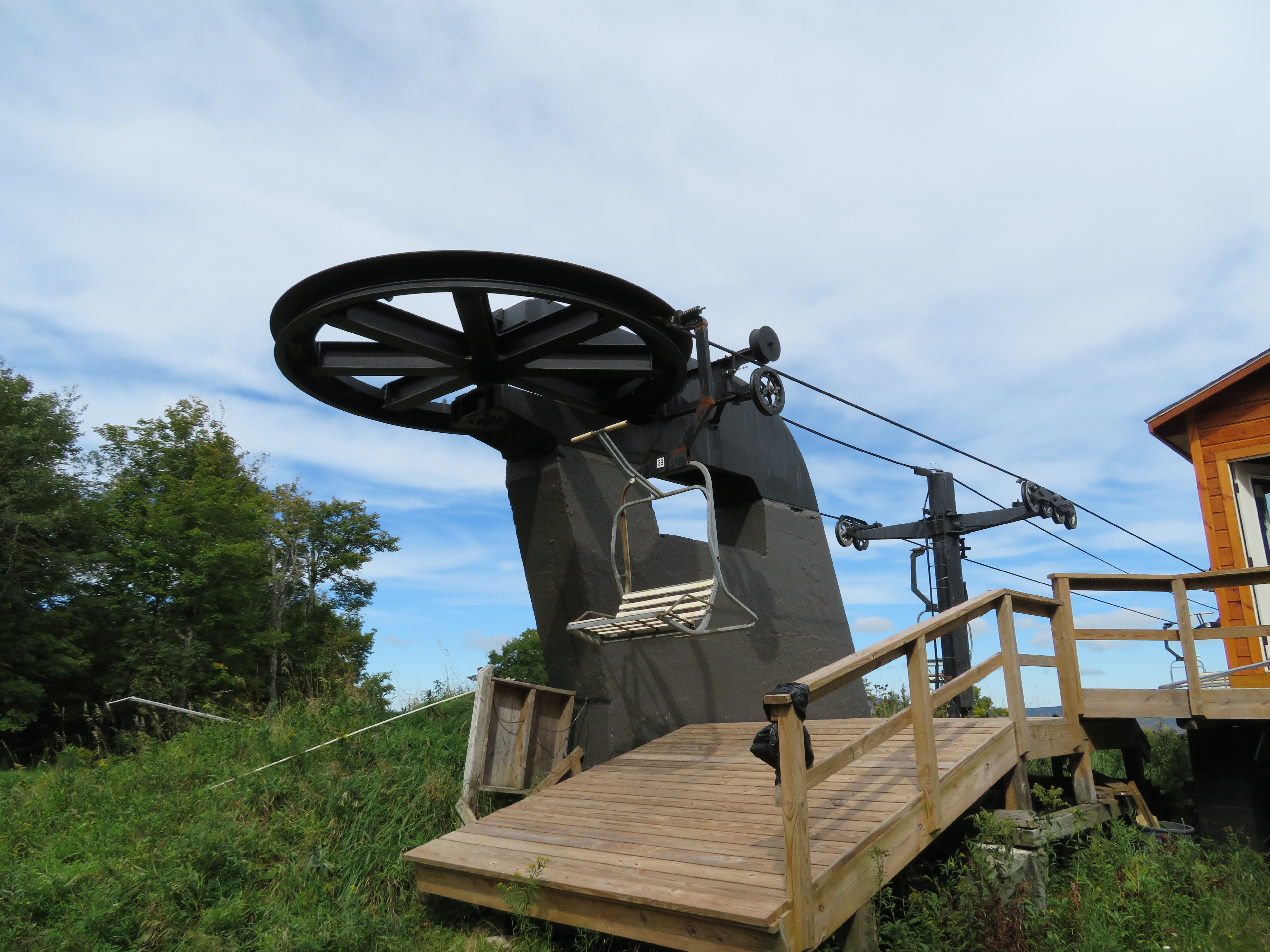

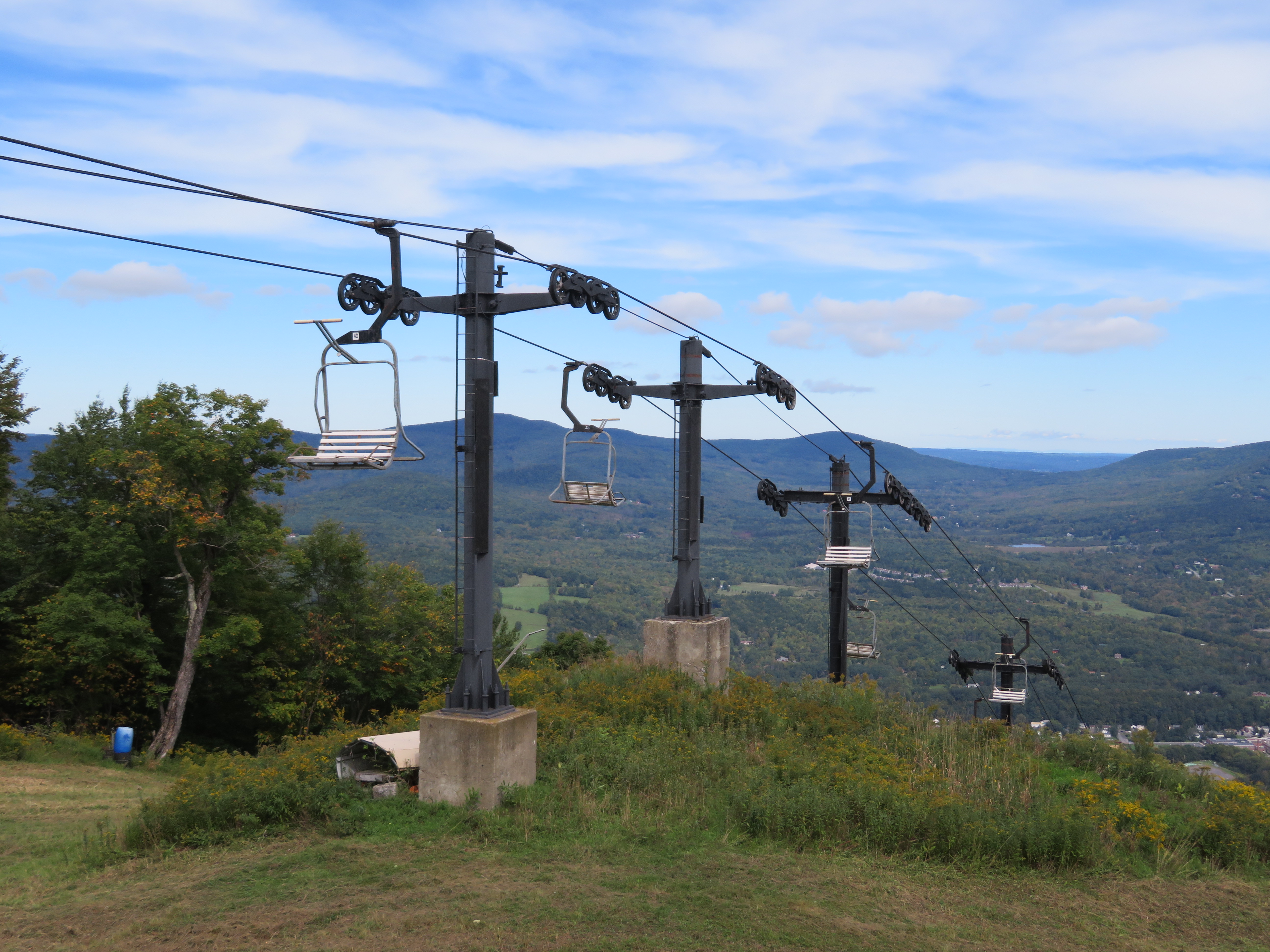

This Hall double chair was retrofitted with Doppelmayr chairs and a CTEC drive station.Fixed top terminal and breakover towers.Unloading ramp.Towers 18-21.View down the lift line.Lift overview.Enterprise terminal at the base.Depress sheaves integrated into the bottom terminal.Another view of the line.
The hanger arms ARE the original Hall hanger arms. They just cut and re-welded part of it to be at an angle and added the attachment points to the Doppelmayr chairs. I think the modification was done either in-house, by Doppelmayr, or a contractor either could have hired.
The original base configuration of this lift was really weird. It used to go all the way to the bottom. It actually crossed over the original C-Lift just after the load point. I believe the point where it crossed was the load point for the original C-Lift so it didn’t have to be super high up. Unfortunately, there are no pictures of this on the internet, though you can see where everything was on the historical imagery on Google Earth. When imagining how much of a mess that was, it’s pretty easy to see why it got shortened. This happened sometime between 1999 and 2003 according to Skimap.org.
At some point (I think in the 80’s), a mid-station was built (at where the current drive terminal is), and for a number of years, the lift loaded only at mid-station, even though the chairs would go all the way down to the base (and cross over C-lift). After many years of mid-station loading, the lift was shortened to its current configuration. I may be wrong, but I think that the trail map reflected the lift not existing below midstation for some time before it was shortened.
Were the custom-made hanger arms made after the Hall-CTEC merger, or did Hall make them themselves?
LikeLike
The hanger arms ARE the original Hall hanger arms. They just cut and re-welded part of it to be at an angle and added the attachment points to the Doppelmayr chairs. I think the modification was done either in-house, by Doppelmayr, or a contractor either could have hired.
LikeLike
The original base configuration of this lift was really weird. It used to go all the way to the bottom. It actually crossed over the original C-Lift just after the load point. I believe the point where it crossed was the load point for the original C-Lift so it didn’t have to be super high up. Unfortunately, there are no pictures of this on the internet, though you can see where everything was on the historical imagery on Google Earth. When imagining how much of a mess that was, it’s pretty easy to see why it got shortened. This happened sometime between 1999 and 2003 according to Skimap.org.
LikeLike
At some point (I think in the 80’s), a mid-station was built (at where the current drive terminal is), and for a number of years, the lift loaded only at mid-station, even though the chairs would go all the way down to the base (and cross over C-lift). After many years of mid-station loading, the lift was shortened to its current configuration. I may be wrong, but I think that the trail map reflected the lift not existing below midstation for some time before it was shortened.
