Snowflake – Breckenridge, CO

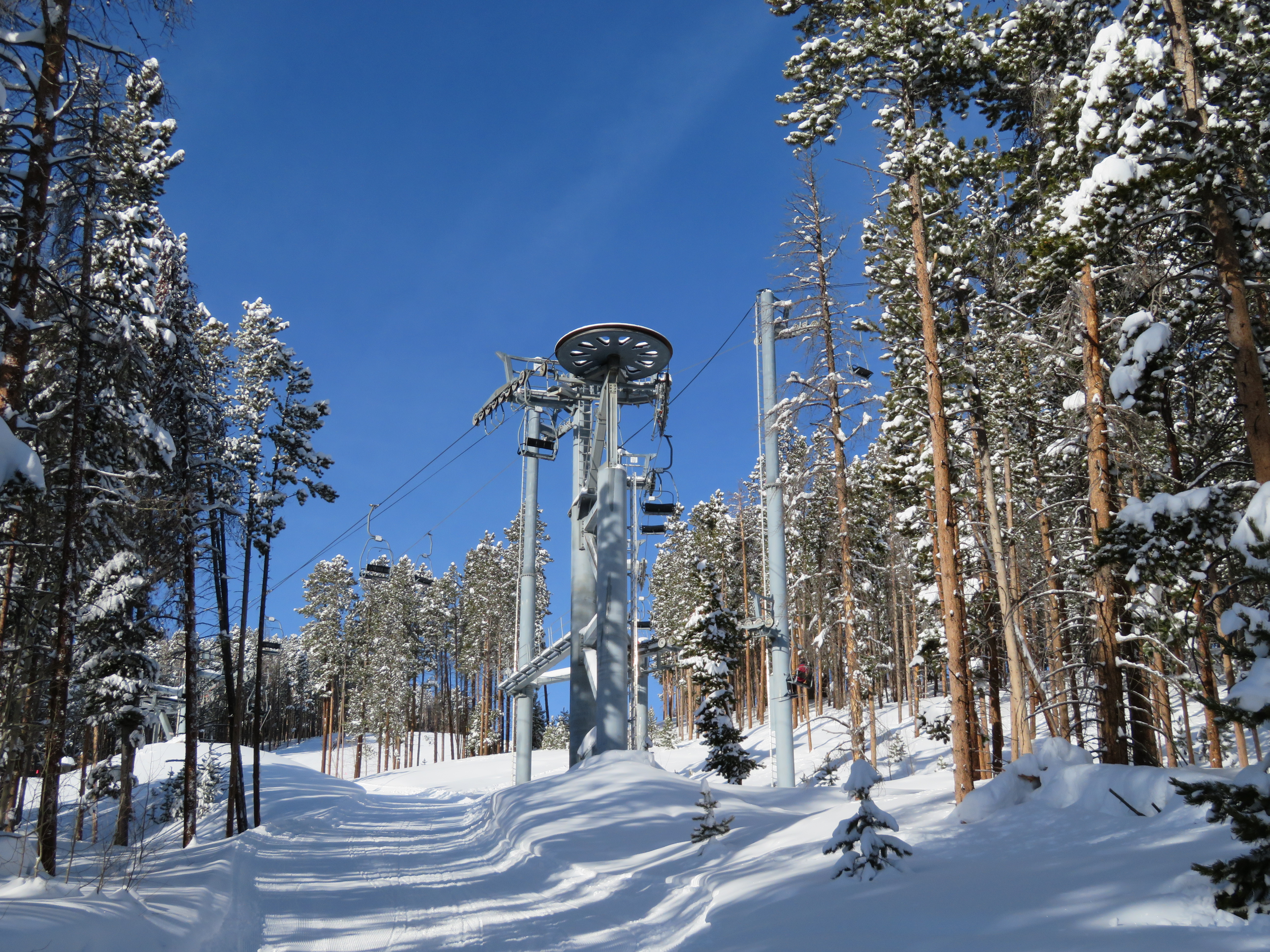

img_2729
This is one of the most unique lifts in North America, with a mid-station and a 70-degree turn accomplished through two bullwheels and horizontal sheaves.

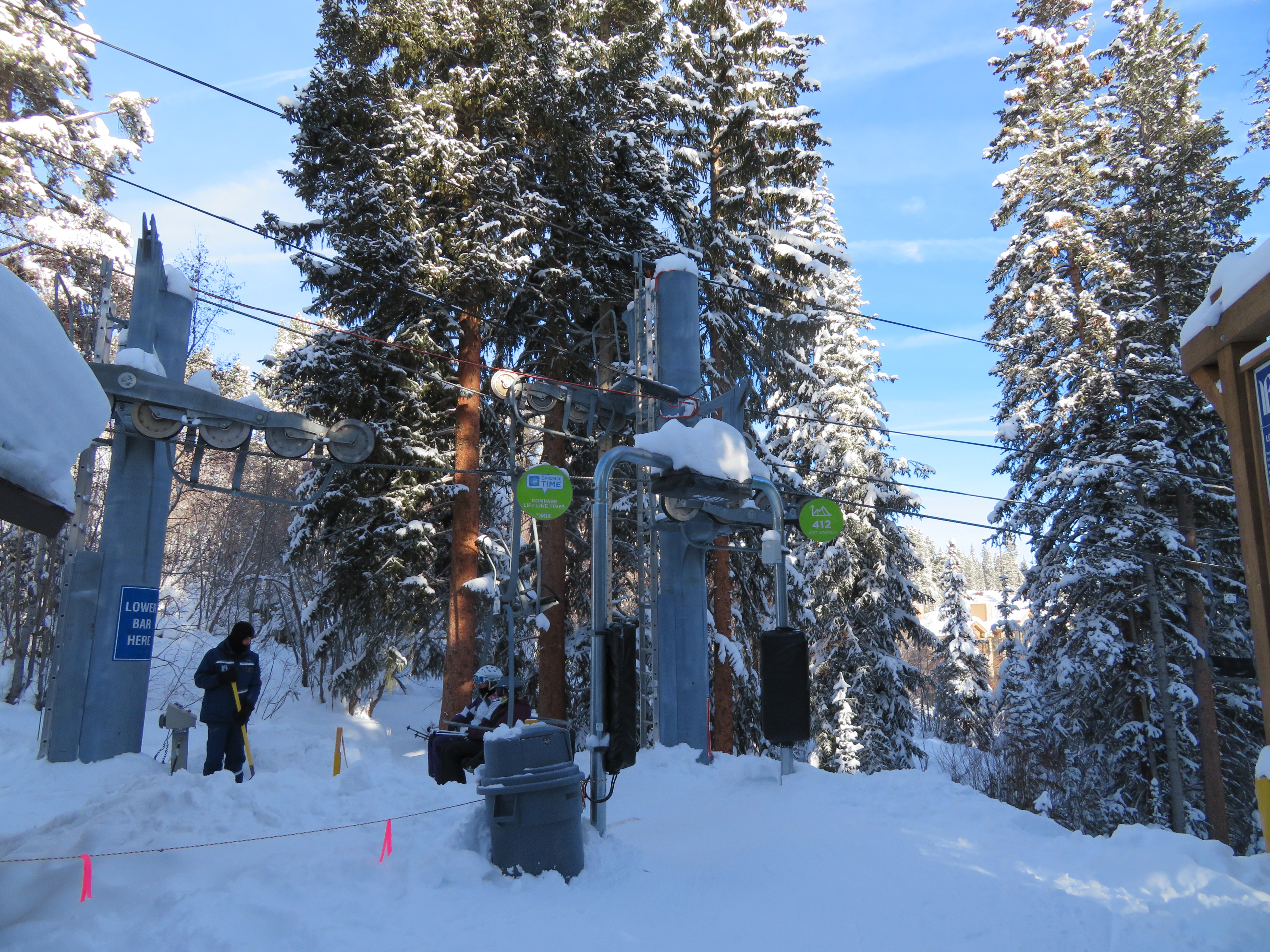

img_2730
Mid-load just before the turn.

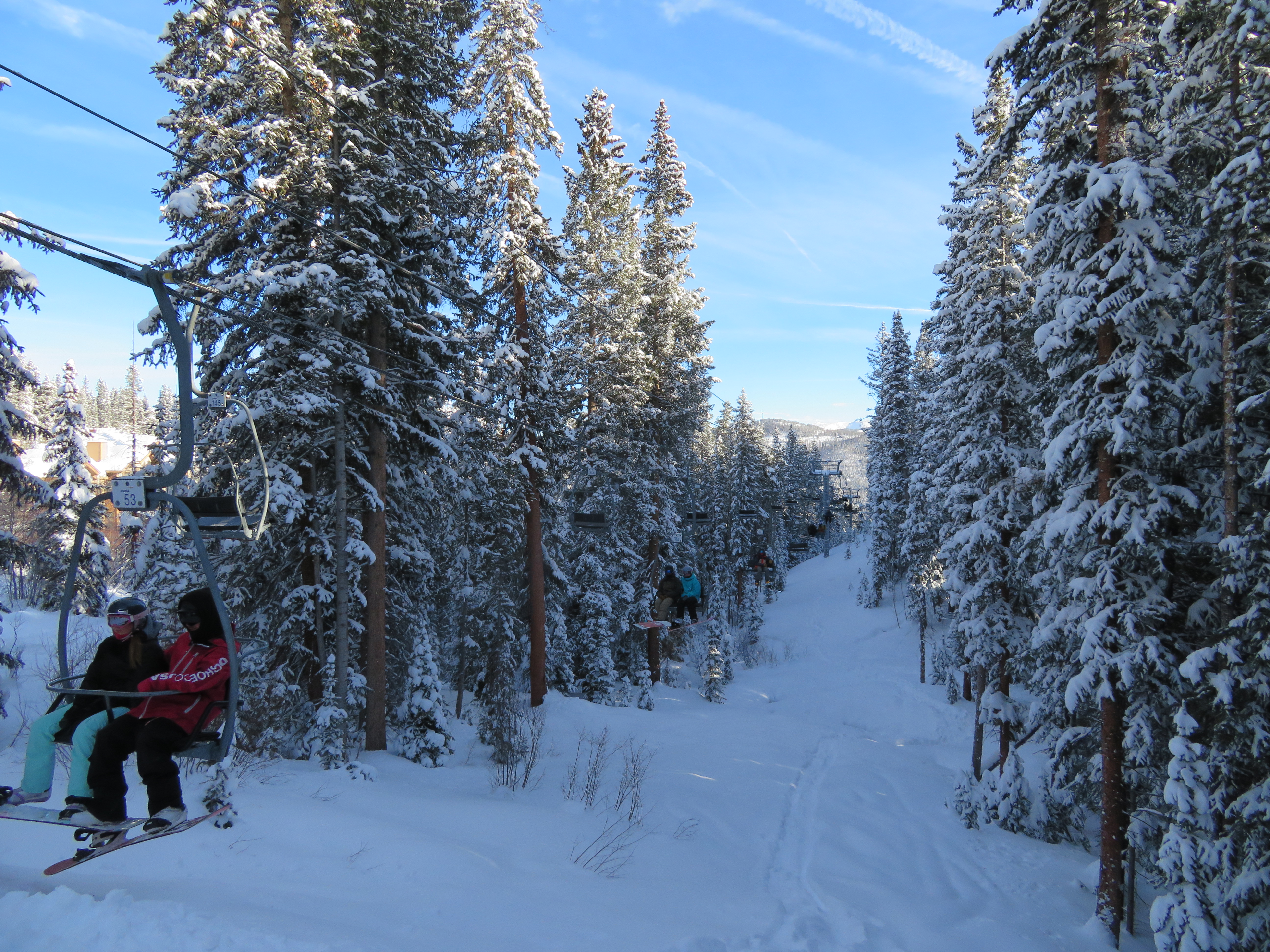

img_2731
View down the lower line.
img_2737

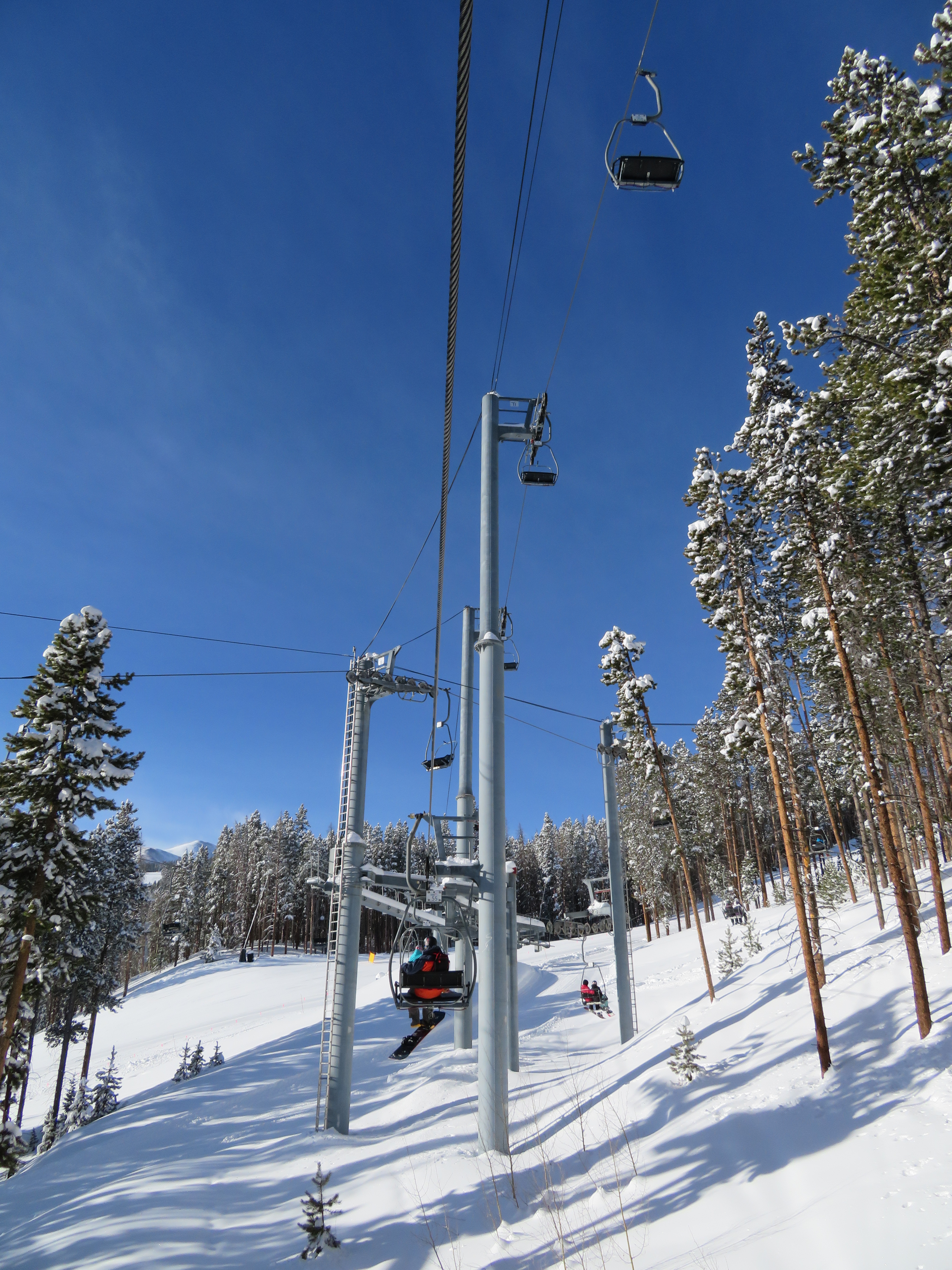

Approaching the turn, where the downhill side crosses overt the uphill side twice.

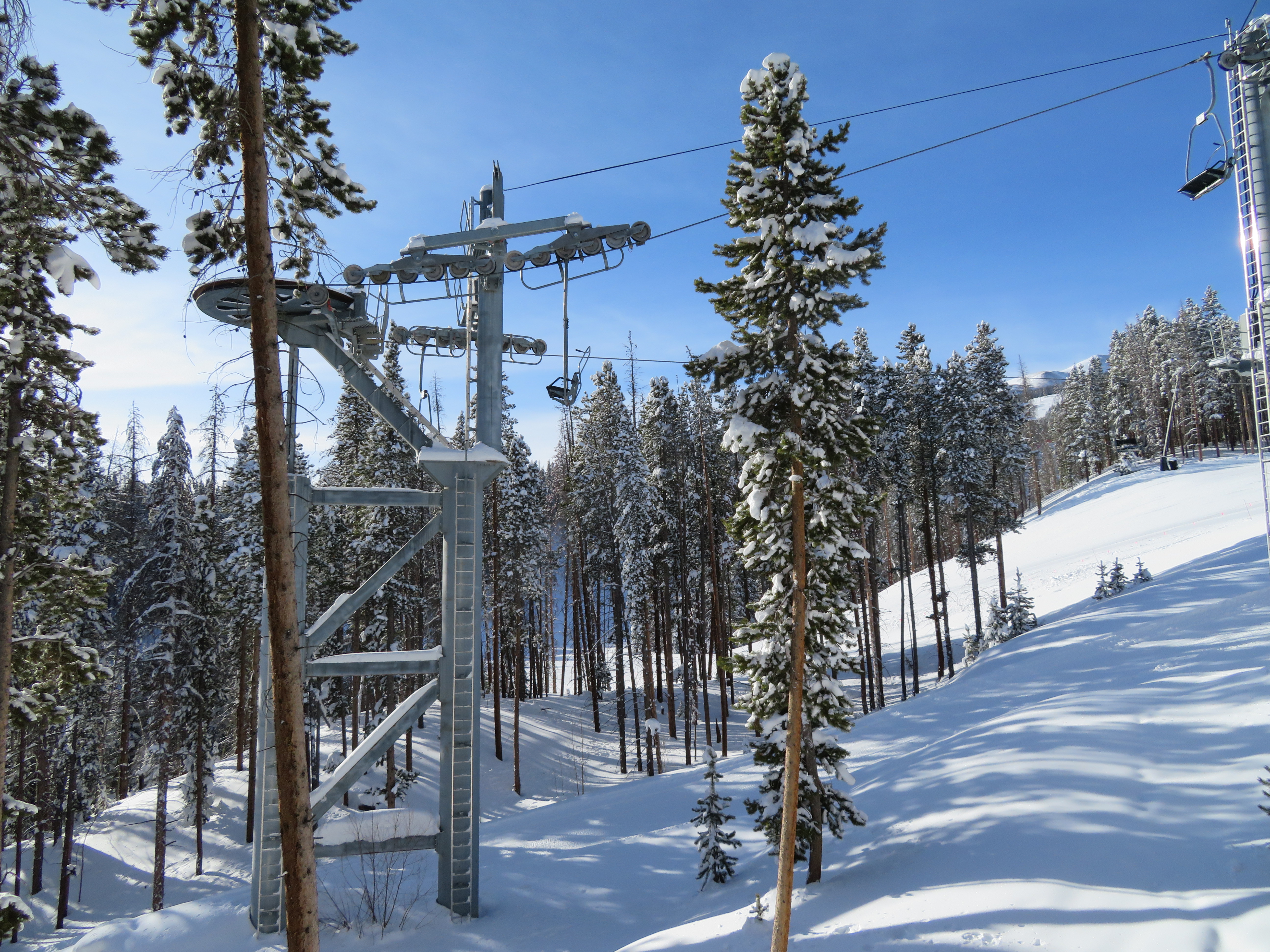

img_2738
Bullwheel one.

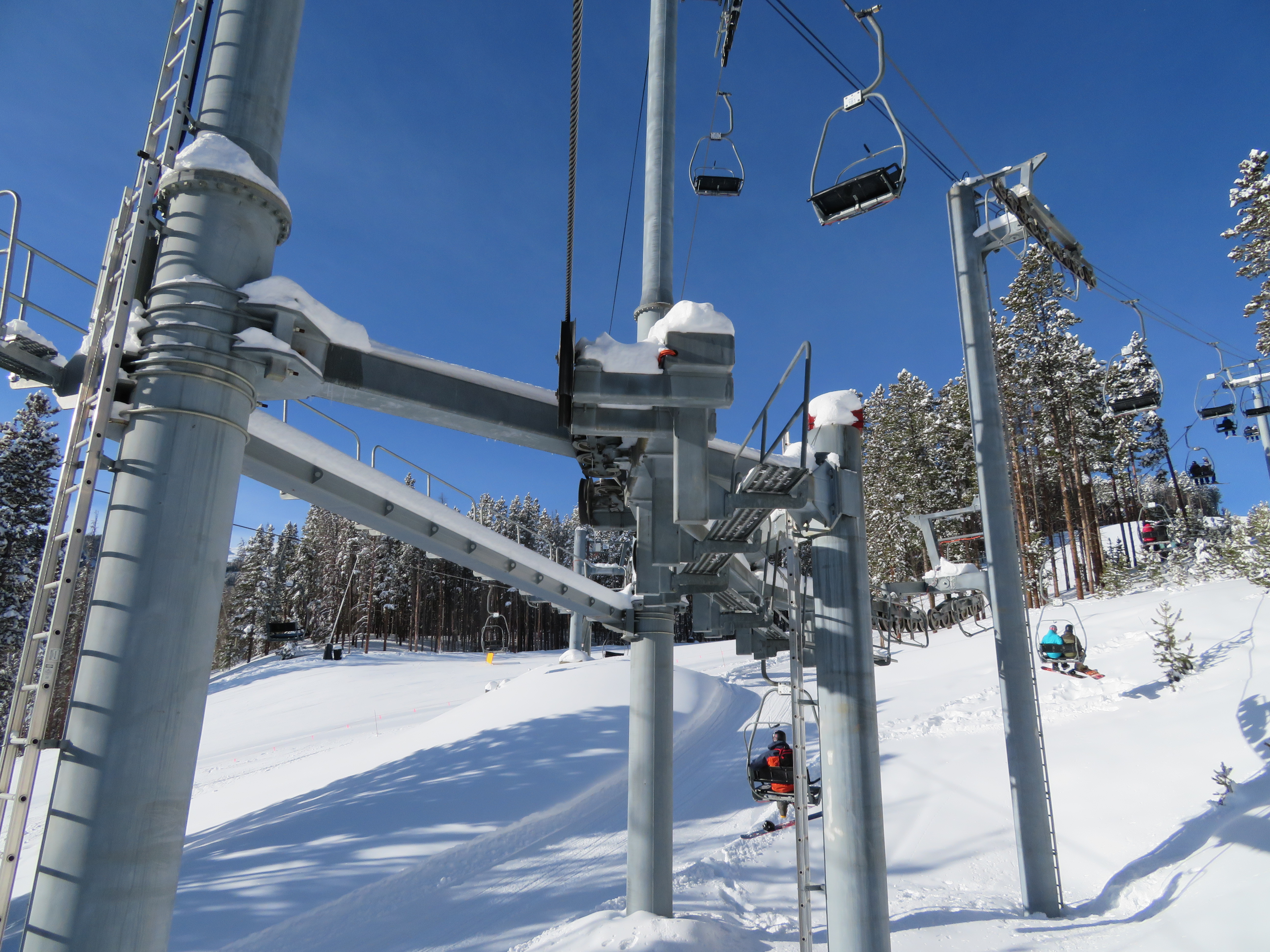

img_2743
Horizontal sheaves, uphill side.

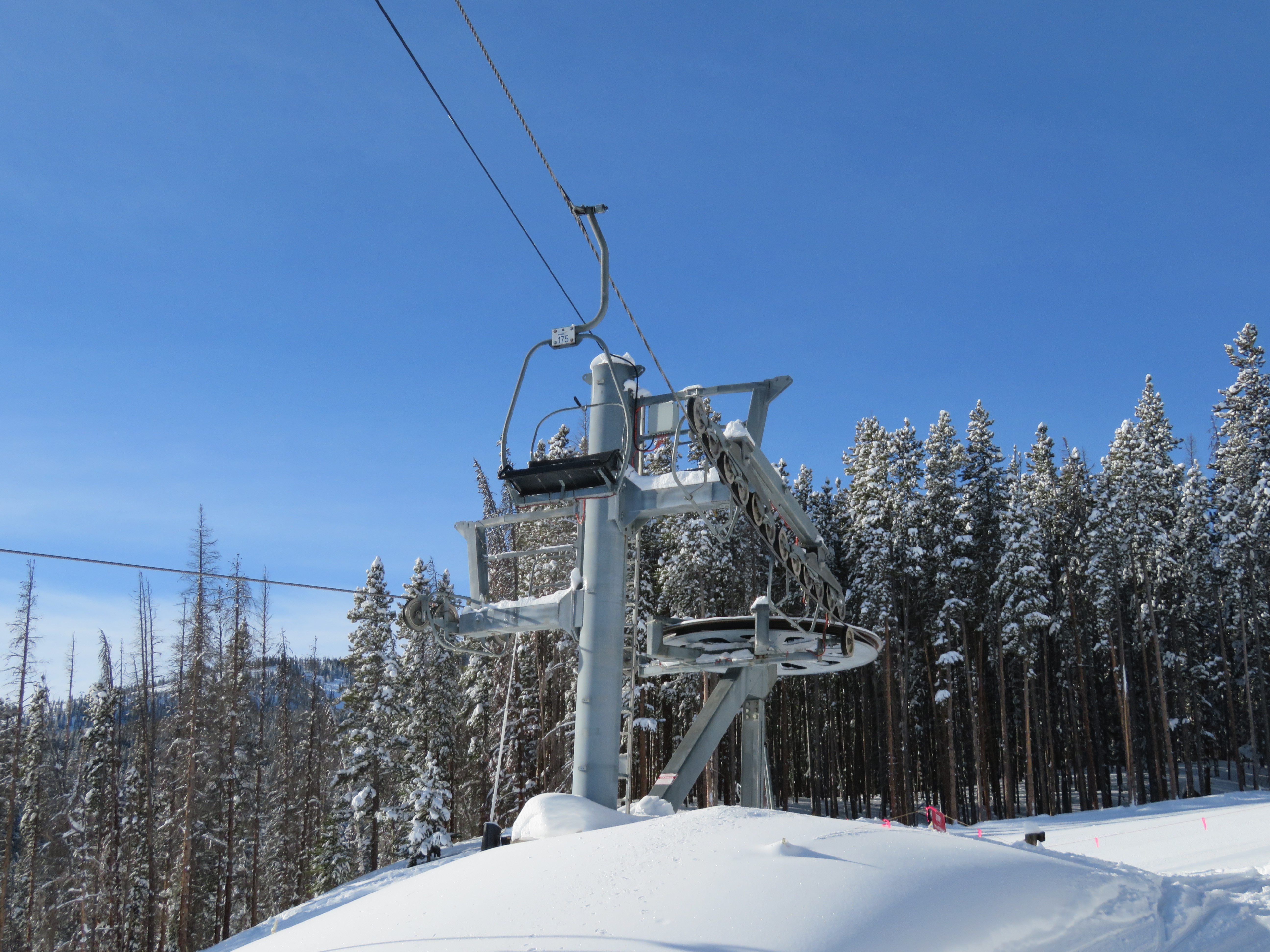

img_2747
Bullwheel two.

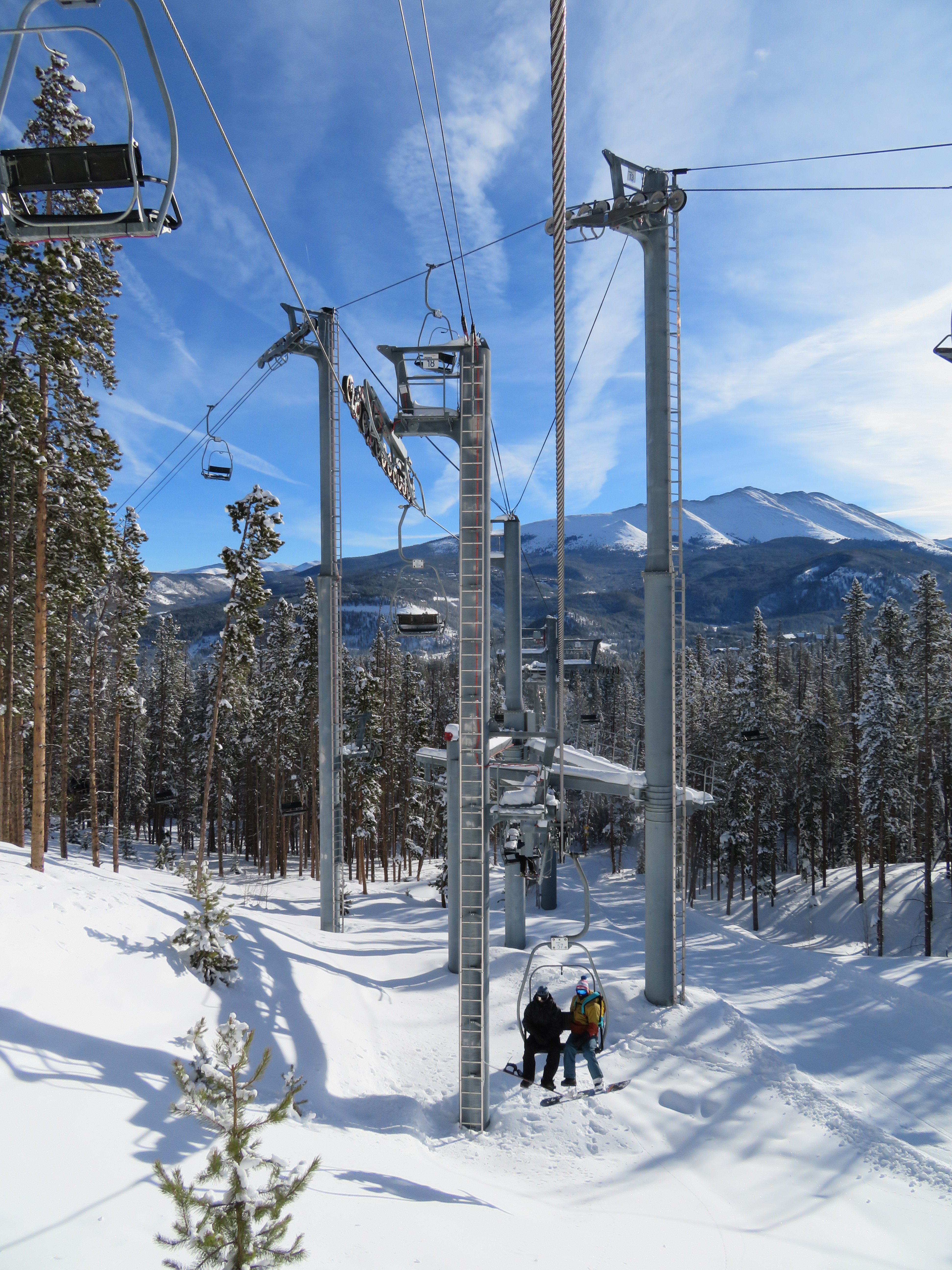

img_2749
Poma engineers had some fun with this one.

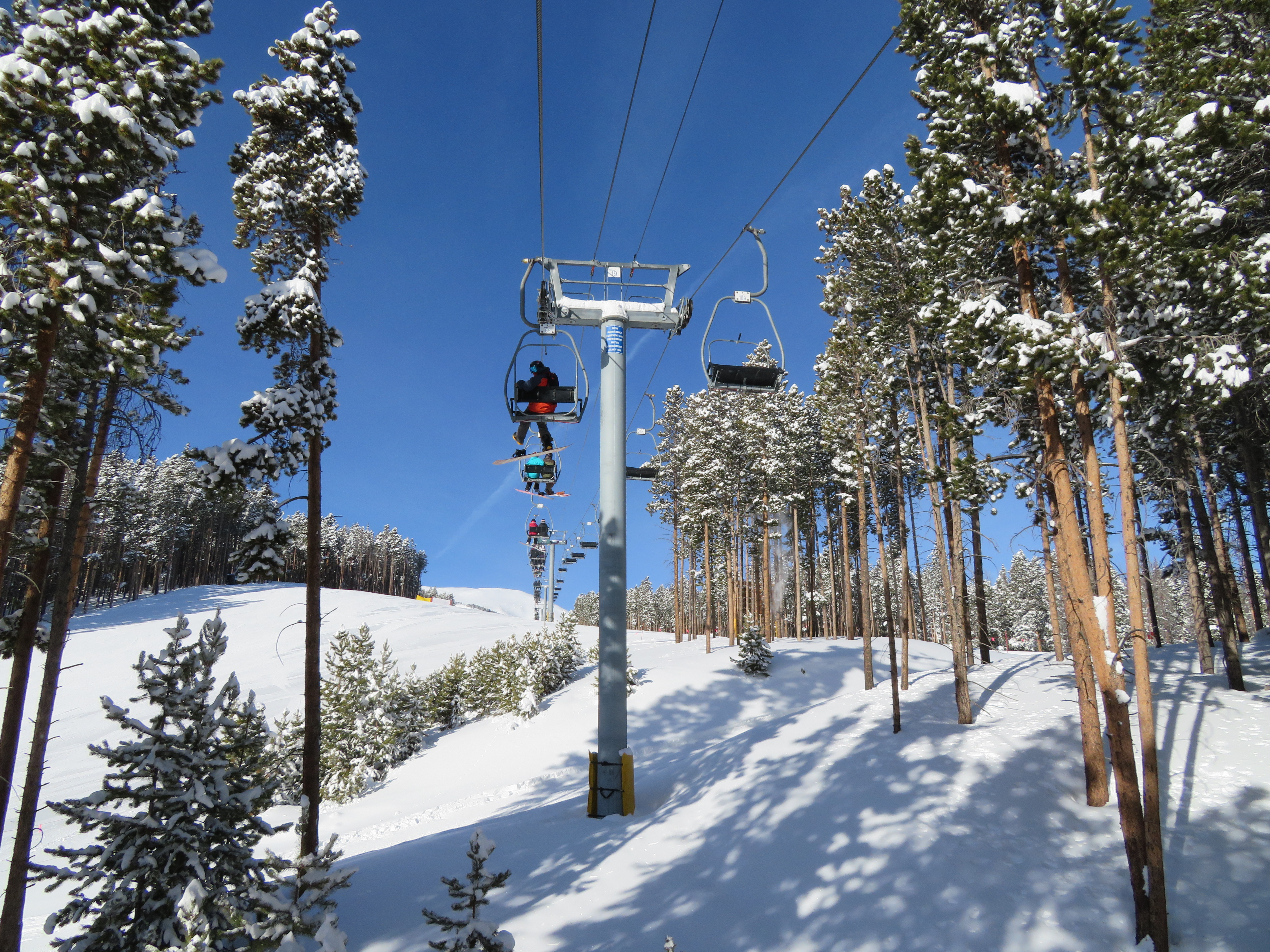

img_2752
Upper lift line.
img_2761

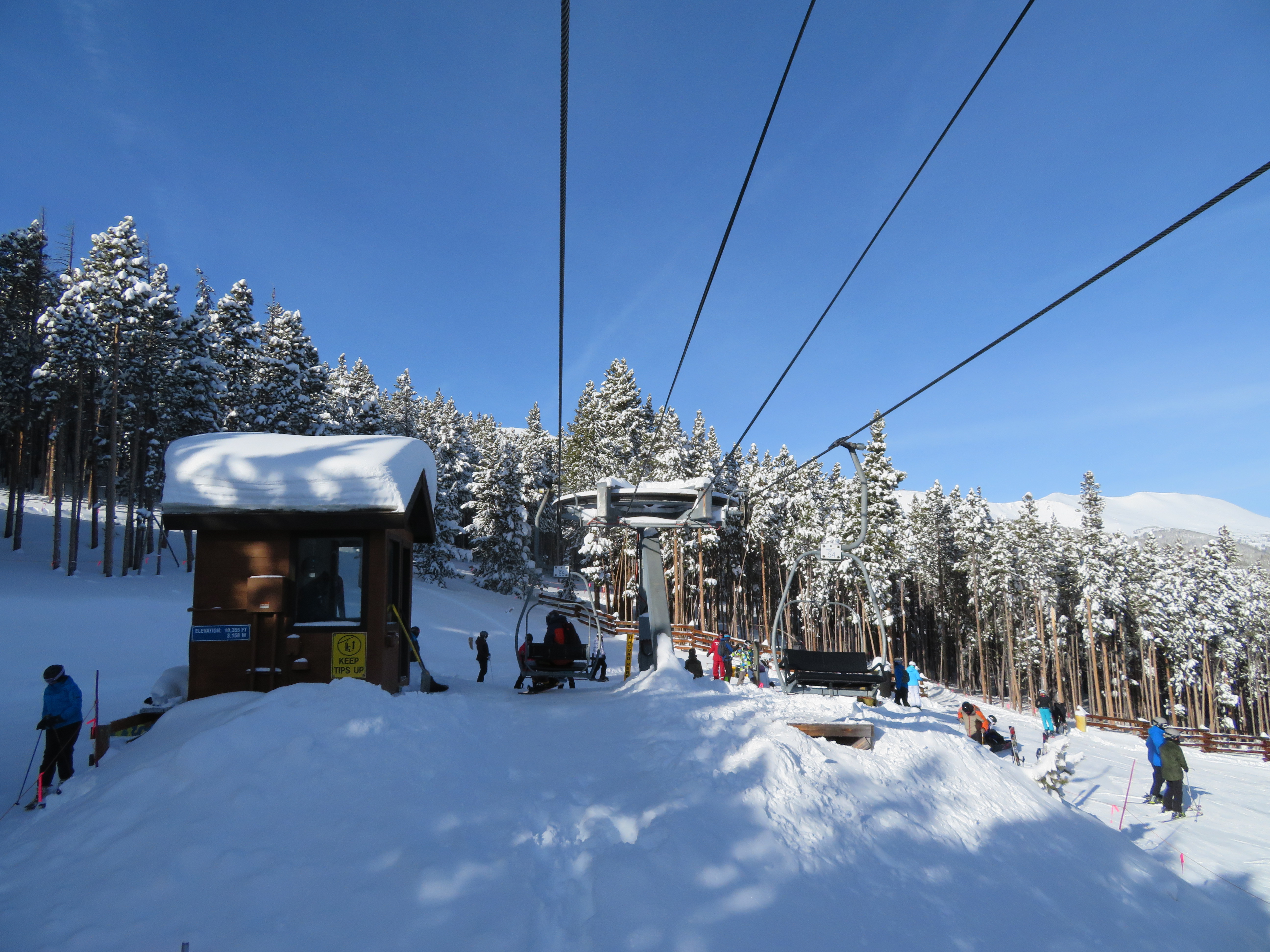

Arriving at the top.

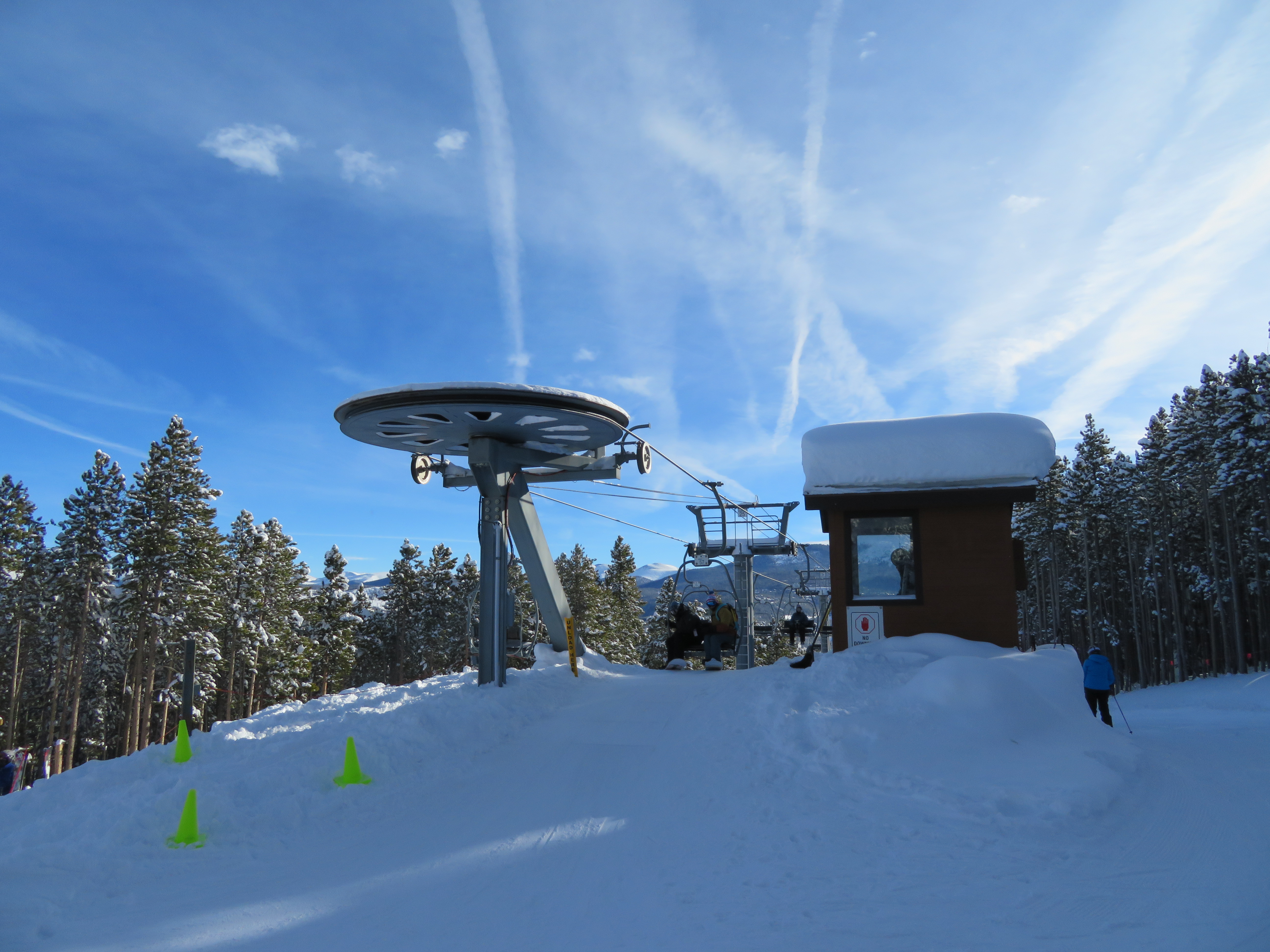

img_2762
Fixed return bullwheel.

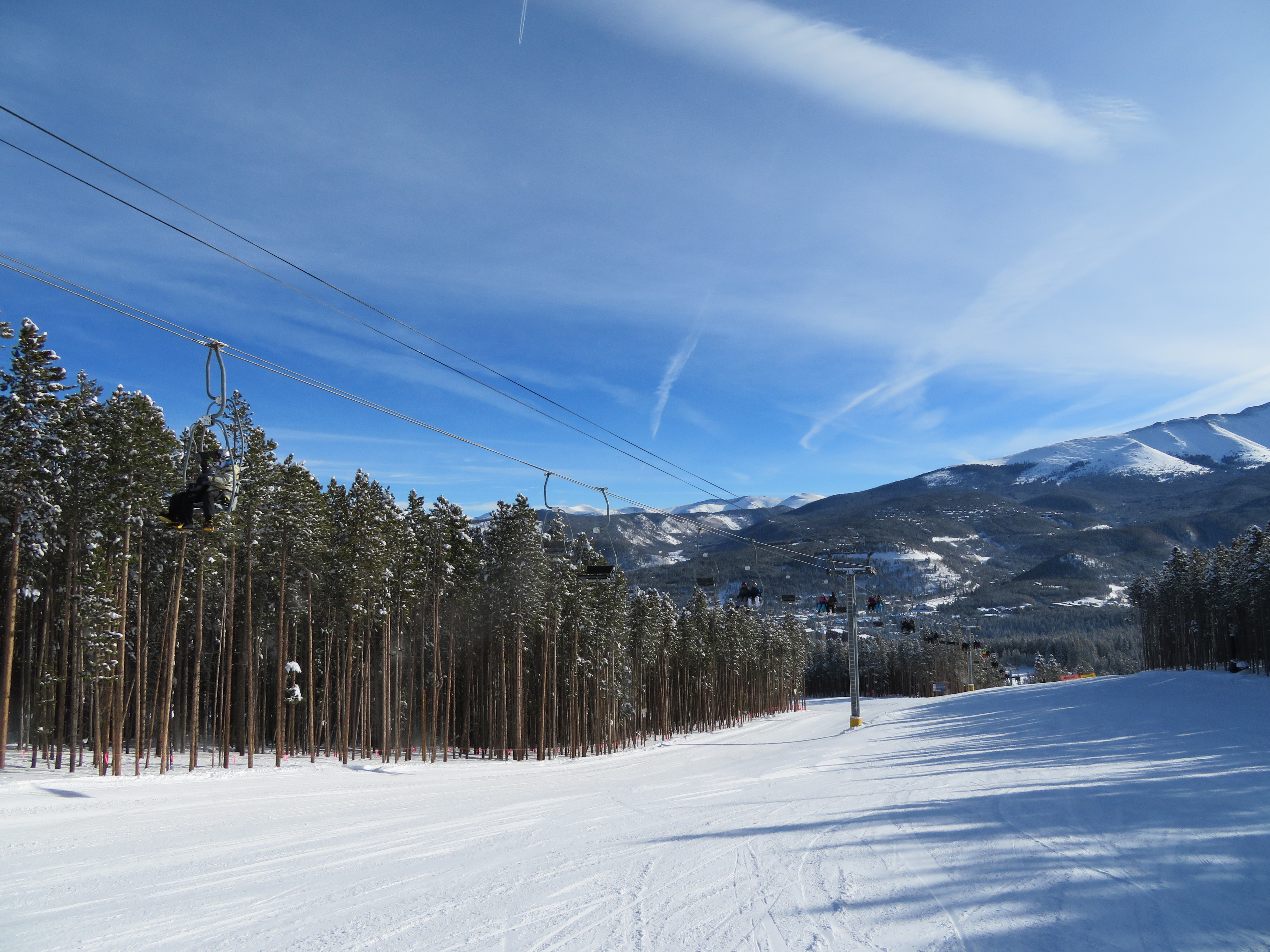

img_2789
Lift line near the top.

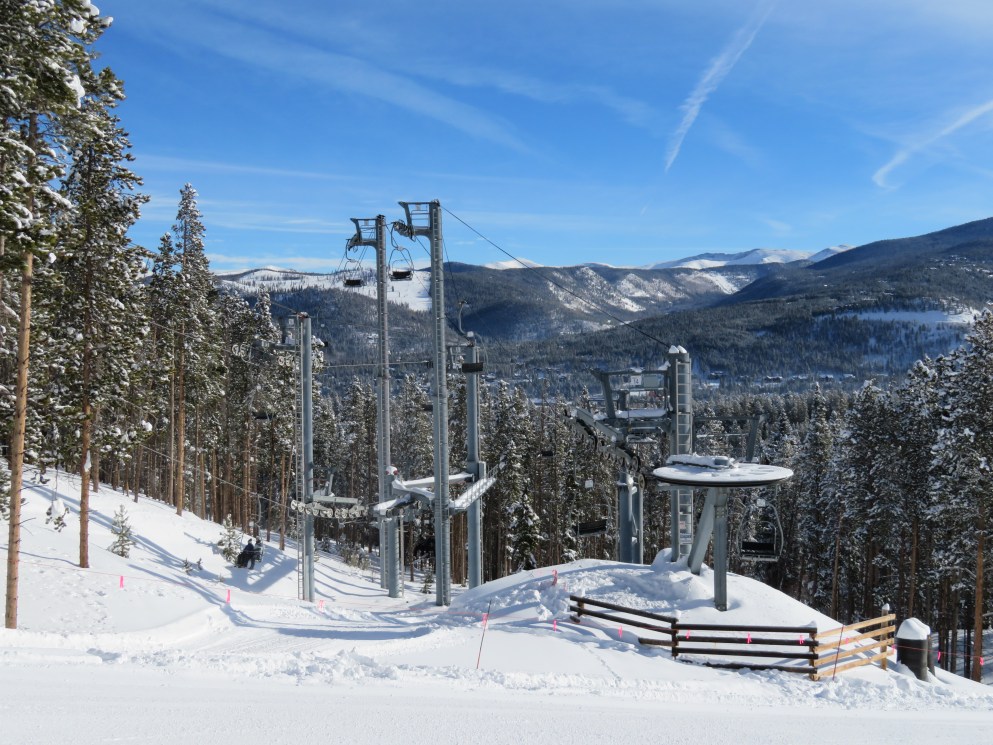

img_2790
Turn overview.

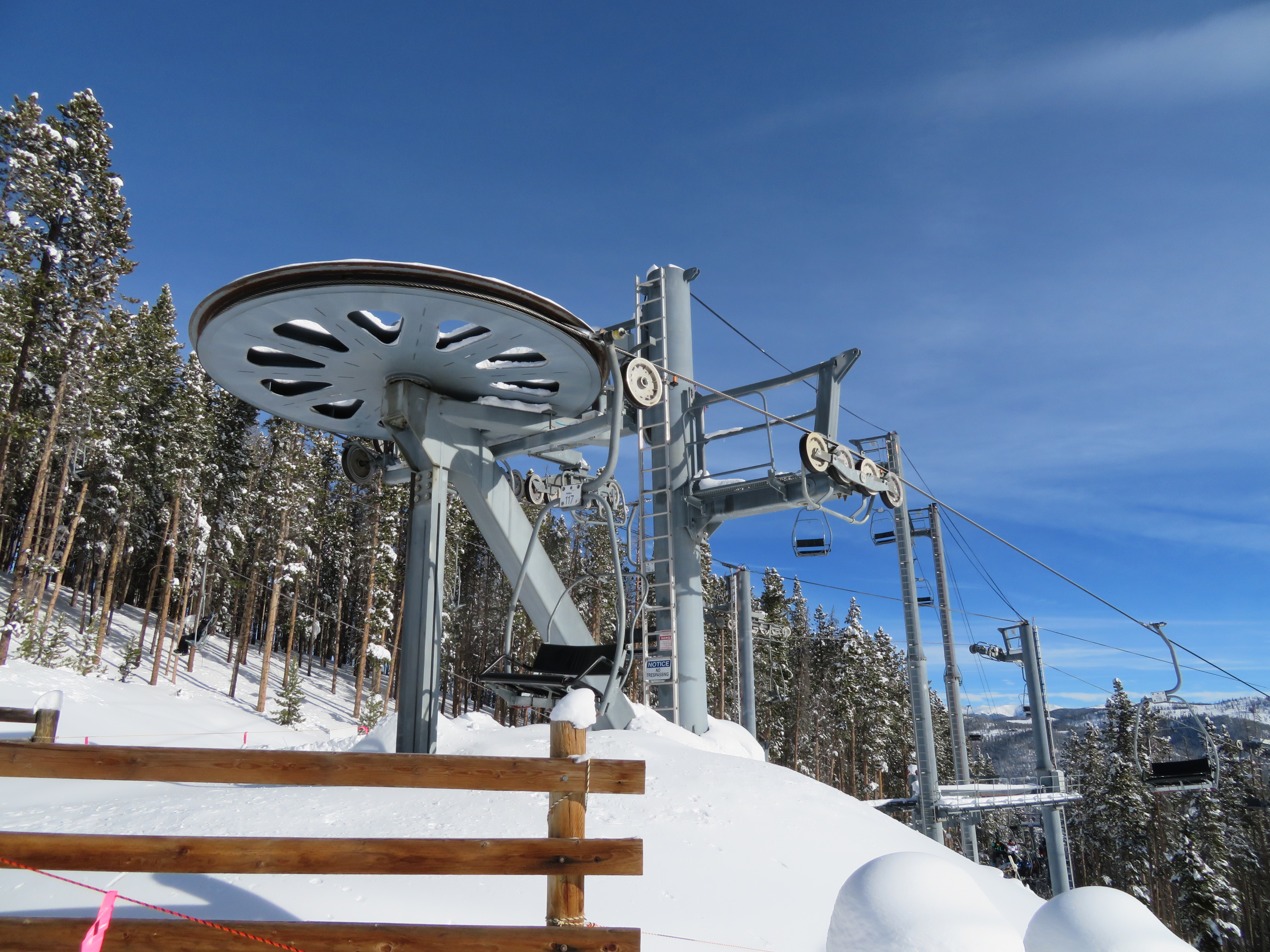

img_2794
There are four bullwheels total.

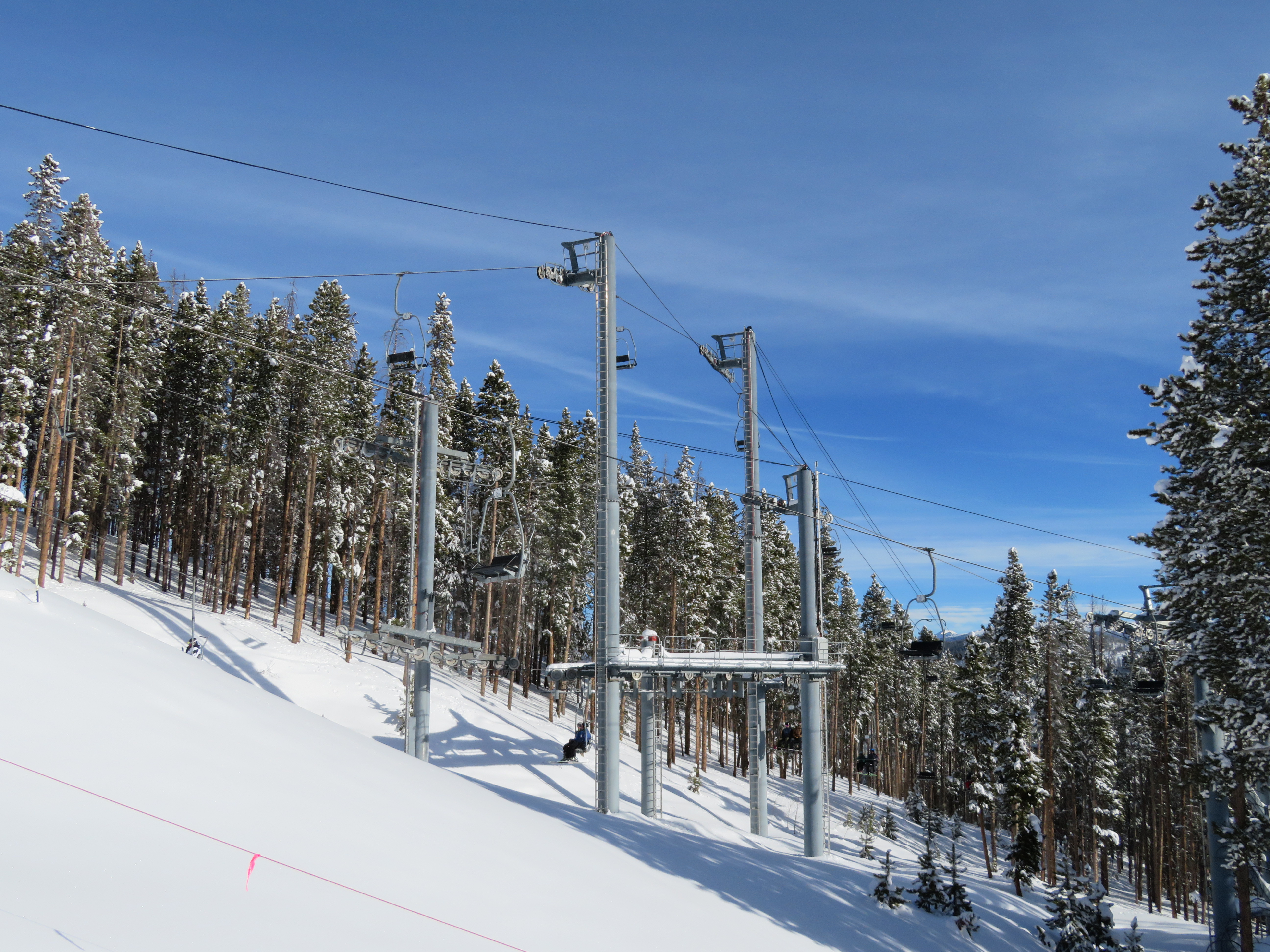

img_2797
The principle is: two sweeping right turns make a left turn.

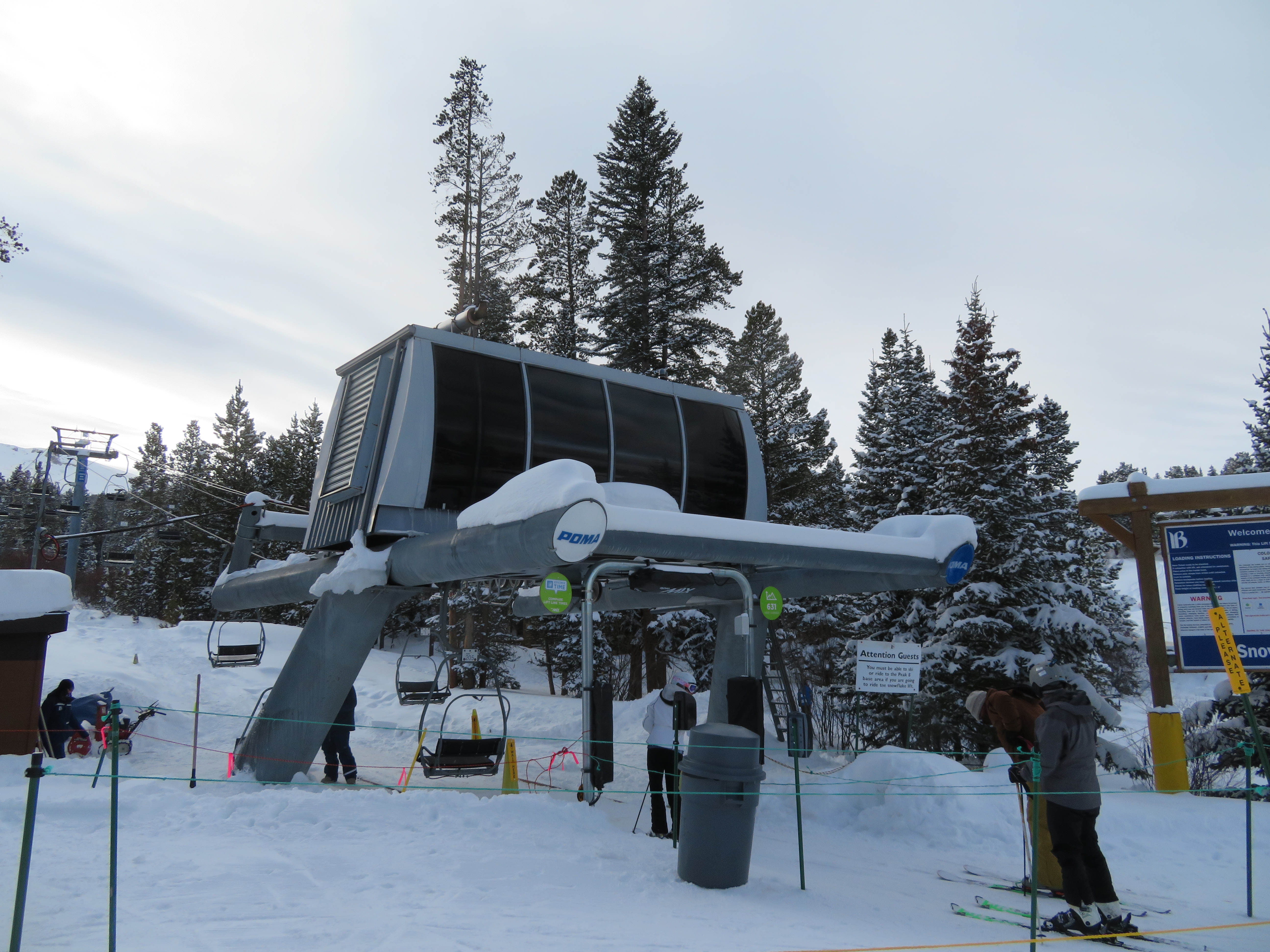

img_3477
Poma Alpha drive down below.

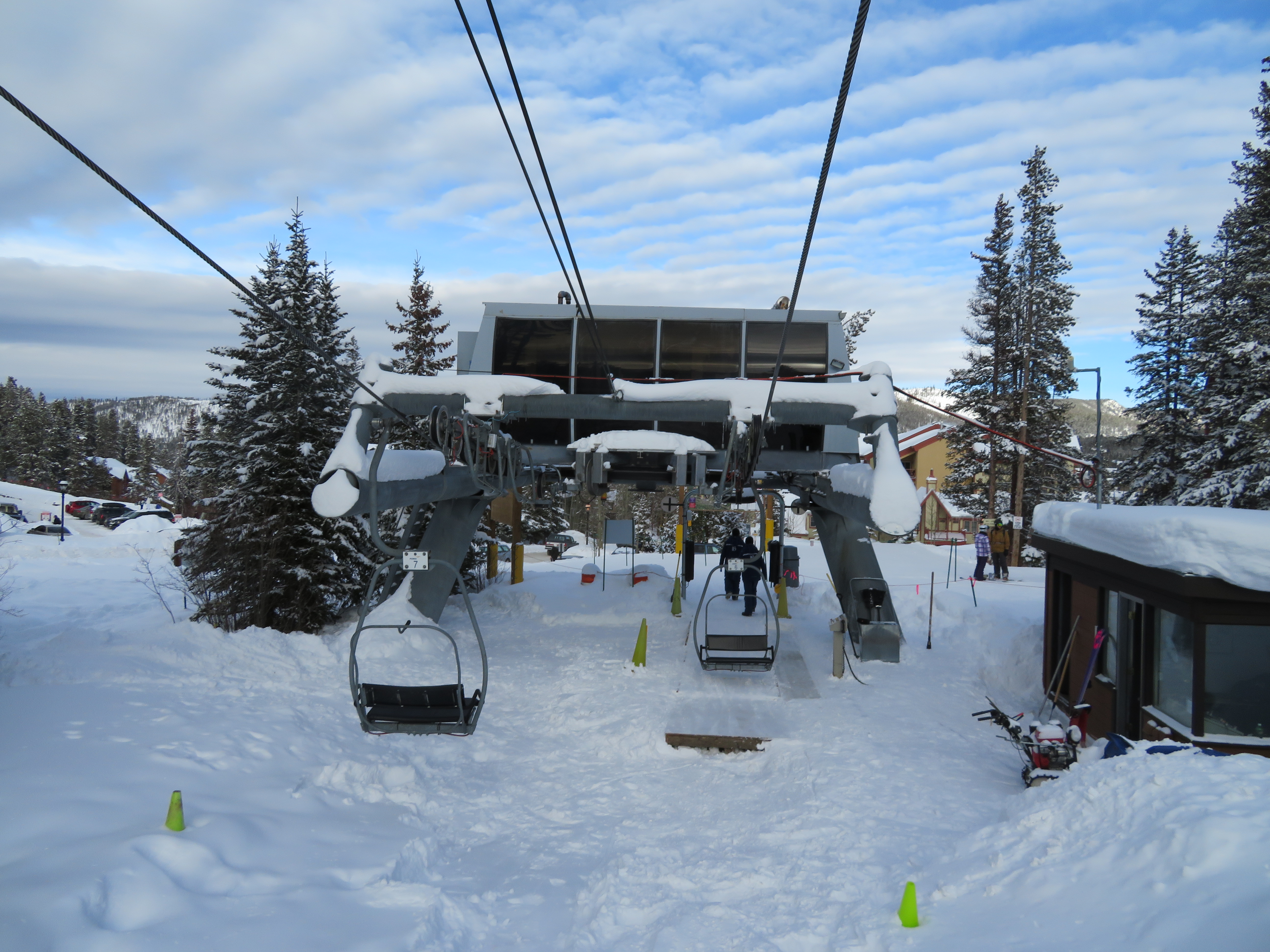

img_3480
Loading area.
img_3486

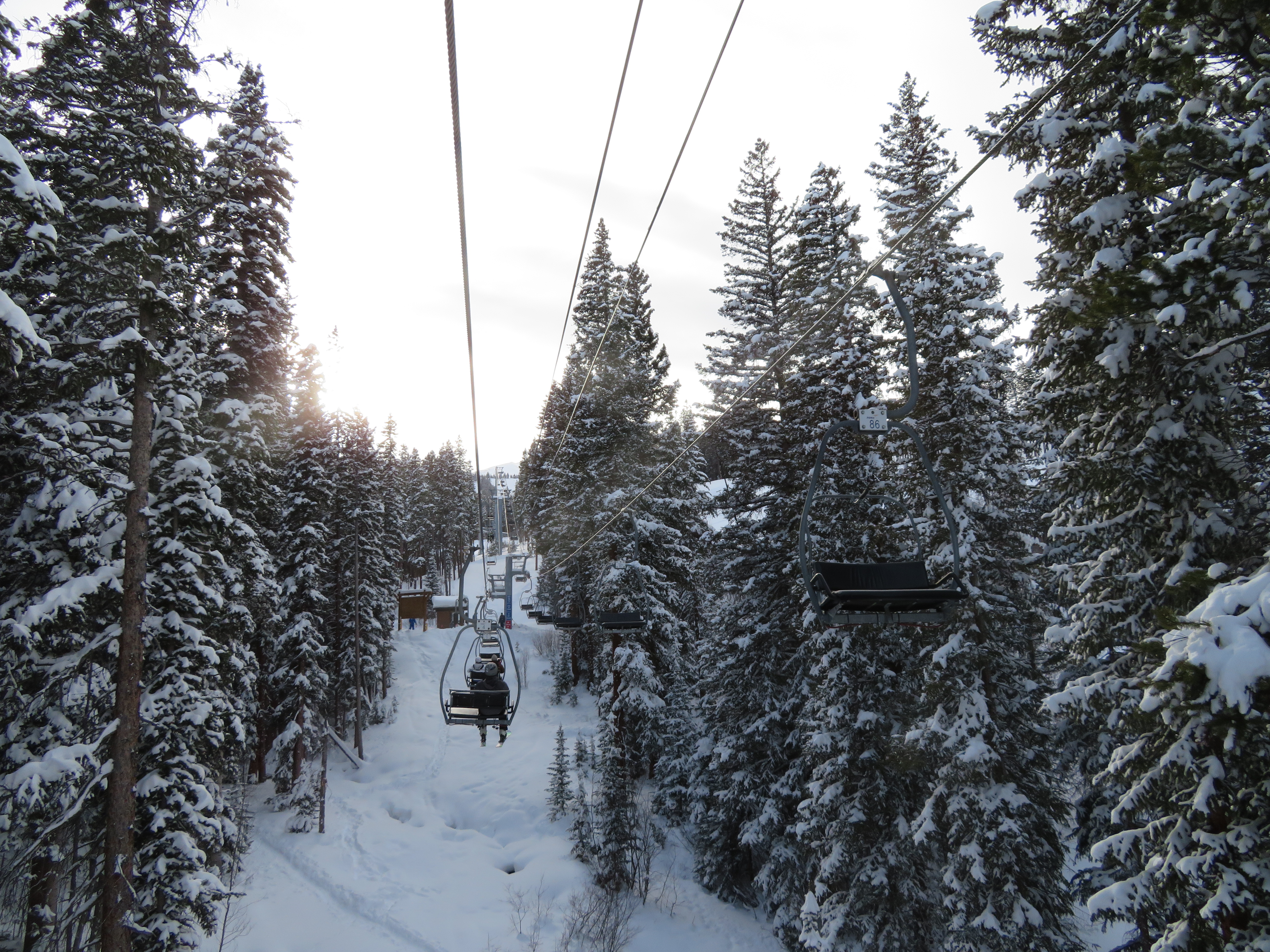

There is no ski-under clearance until the turn.

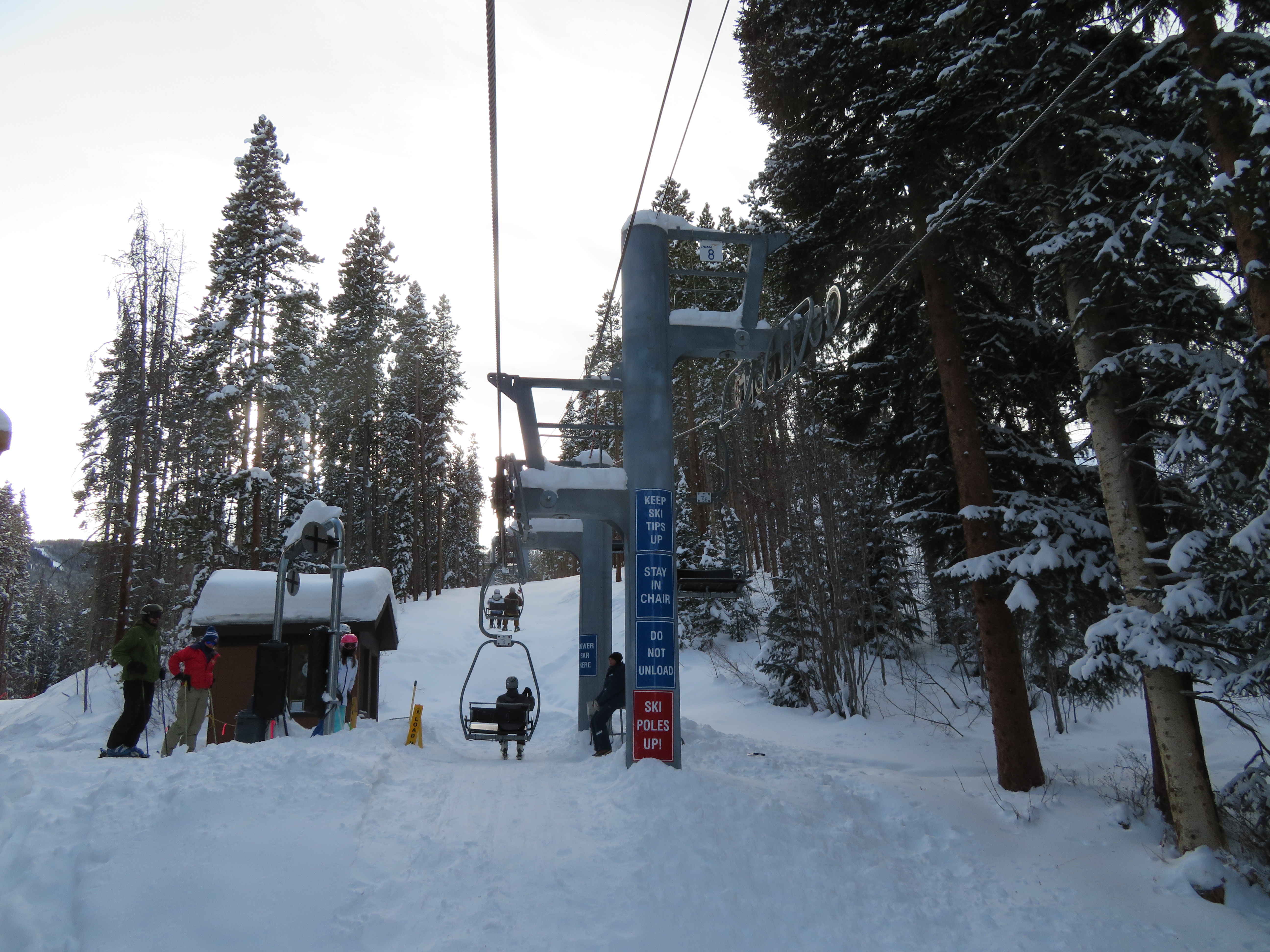

img_3490
Mid-load.
