Checking Out Vail’s New Lift 2

IMG_3482
New towers with old tower tubes.

Vail Resorts is in the midst of a major program at its four Colorado resorts to replace first-generation detachable quads with new six packs and gondolas.  Up for a refresh this summer is Chair 2 at Vail, the Avanti Express.  The 1989 detachable quad is being replaced with a Doppelmayr six-pack.  This follows the replacement of the Vista Bahn with a Leitner-Poma 10-passenger gondola and the Mountaintop Express with a Doppelmayr six-pack last summer.  Vail has been saving parts from these lifts to keep others of the same vintage going.  Lifts 7, 8, 11 and 21 are the only 1980s detachables left at Vail and will likely be replaced in the next few years.  Northwoods and Game Creek are the oldest two lifts of any kind left at Vail, dating back to 1985.

The bottom terminal will have a loading carpet.
The bottom terminal will have a loading carpet.

The new 2 is in the same alignment as the old and re-uses its tower tubes.  New, wider crossarms were flown into place a few weeks ago with the exception of towers 24 and 25 at the summit.  Concrete work for both terminals is finished except for the loading carpet pit at the bottom terminal.  Steel for the terminals has been delivered.  New chairs are staged at the summit and the haul rope spool sits at tower 9.

IMG_3562
Middle portion of the line with the haul rope ready to go.

IMG_3554

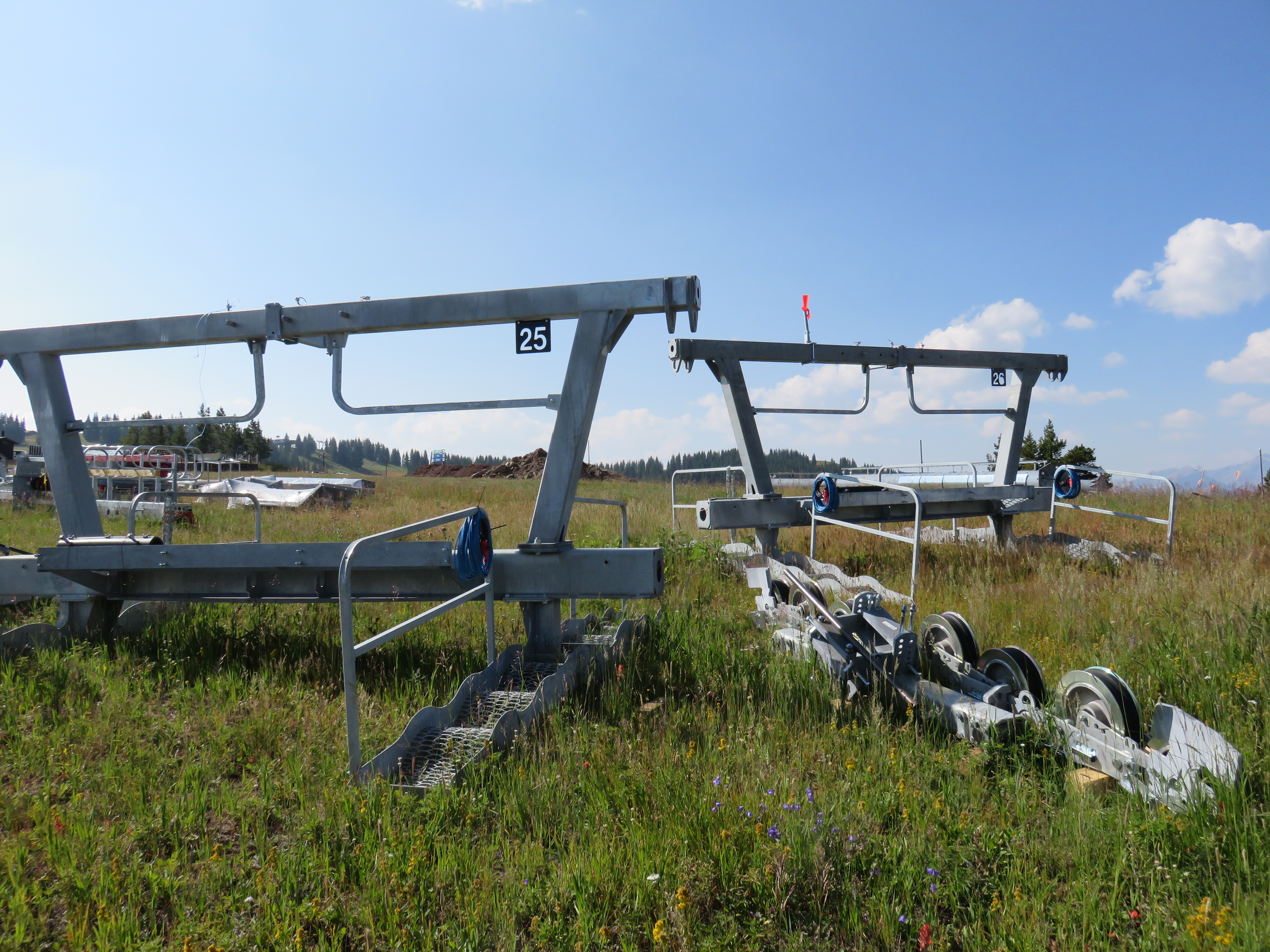

Towers 24 and 24 are at the top waiting to go vertical.
IMG_3544

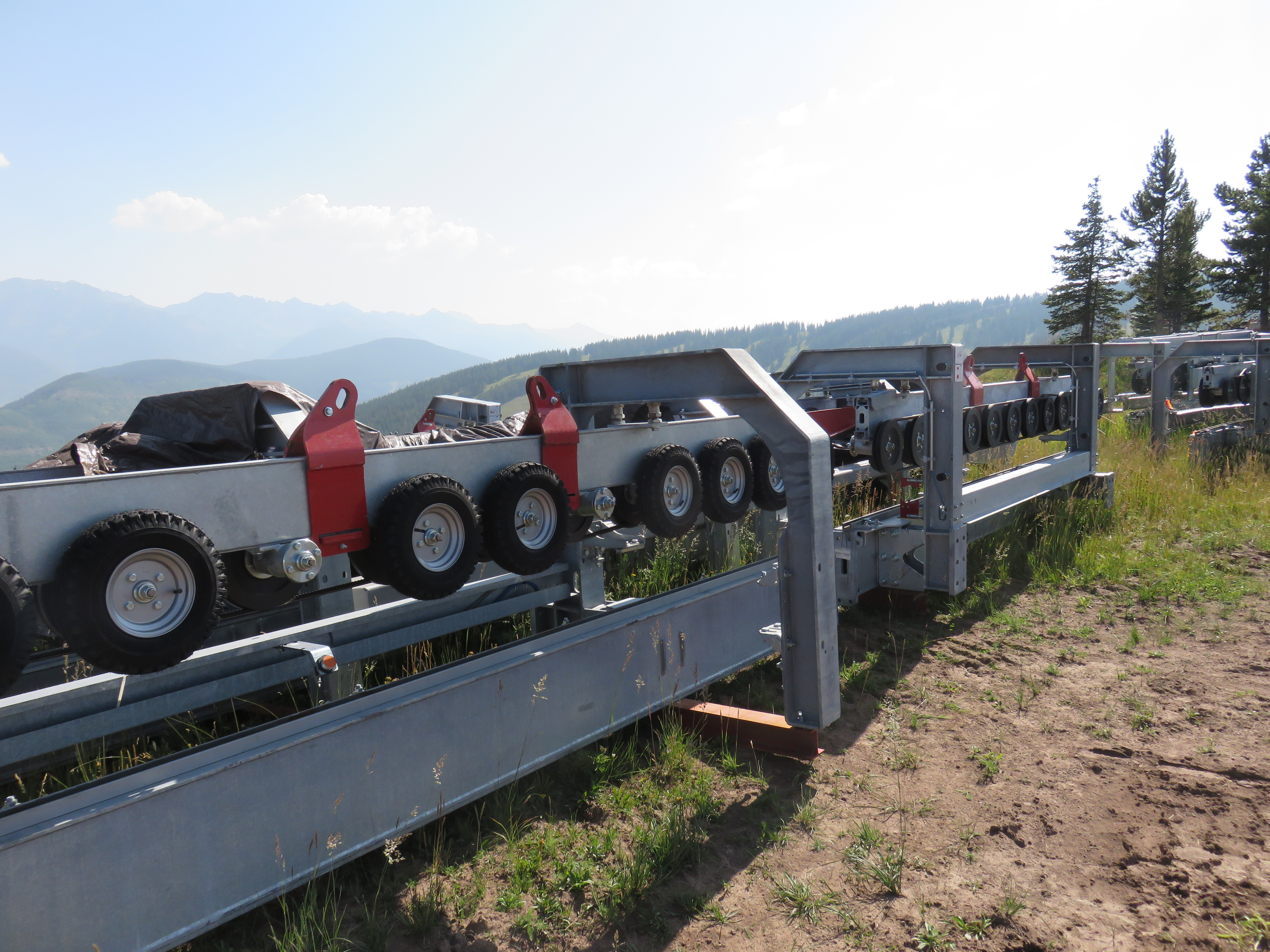

Top terminal equipment.
IMG_3537

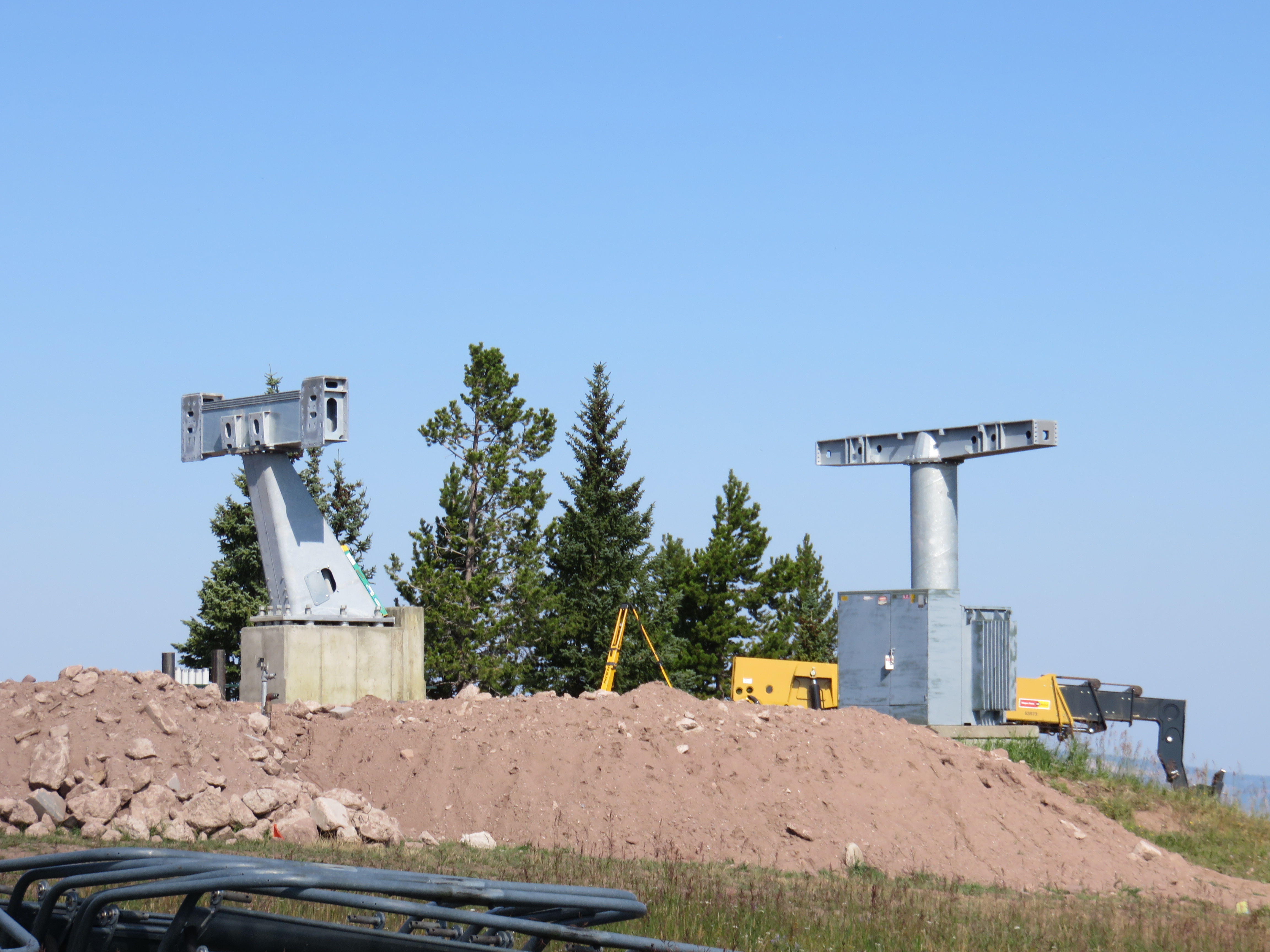

The top is a bit further along than the bottom but both have a long ways to go.
IMG_3522

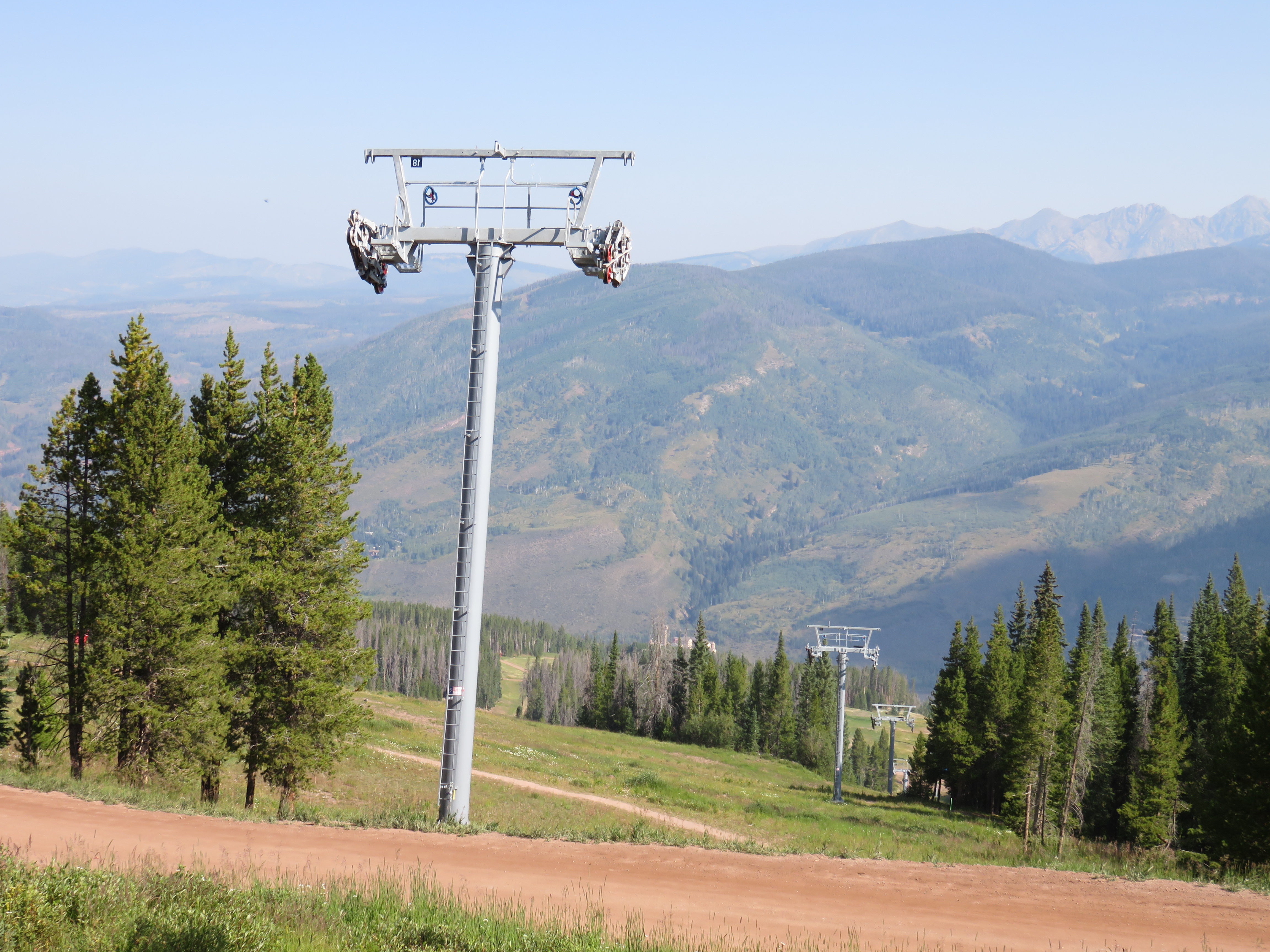

Compression tower.
IMG_3528

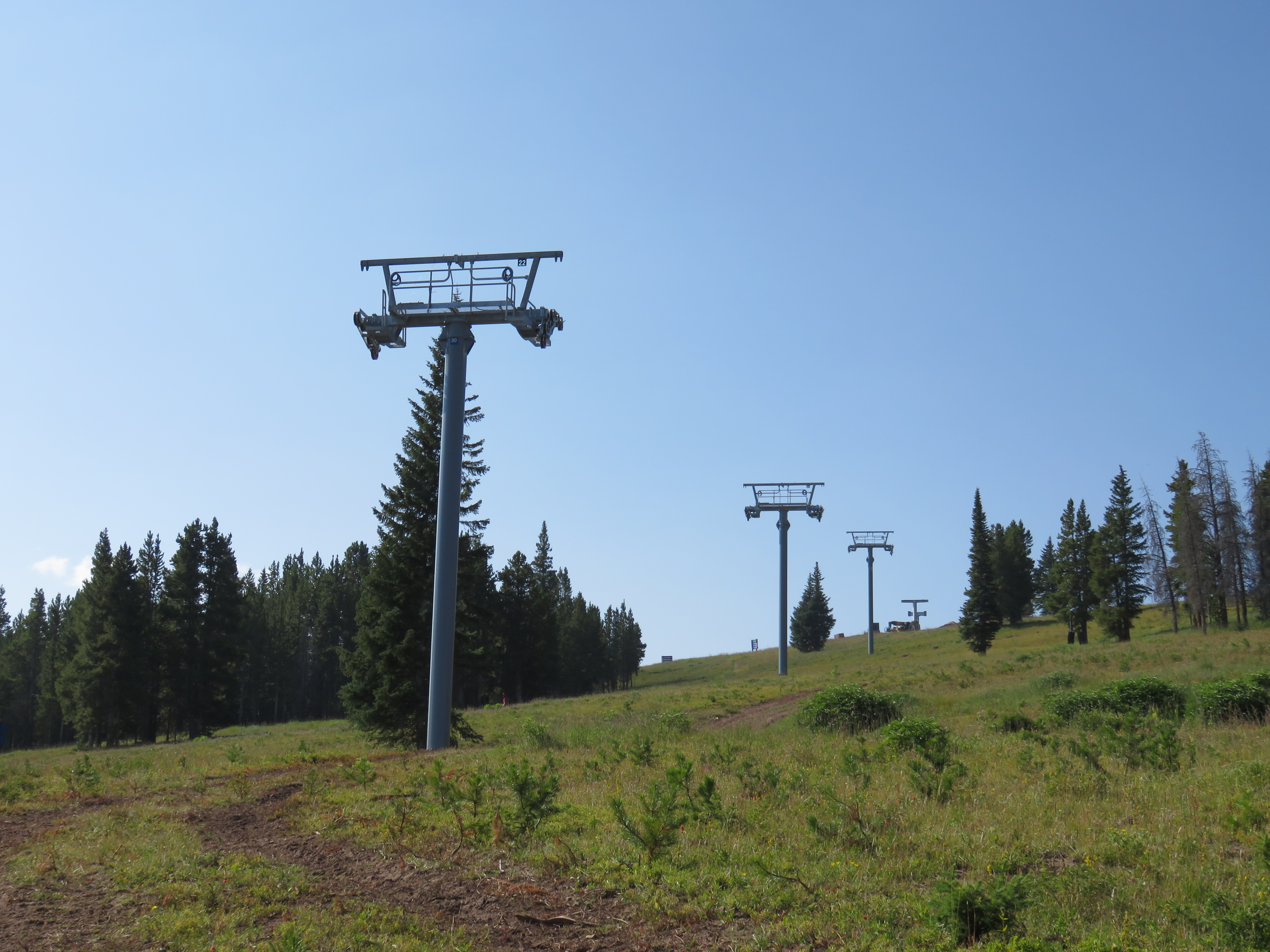

Last few towers nearing the top.
IMG_3536

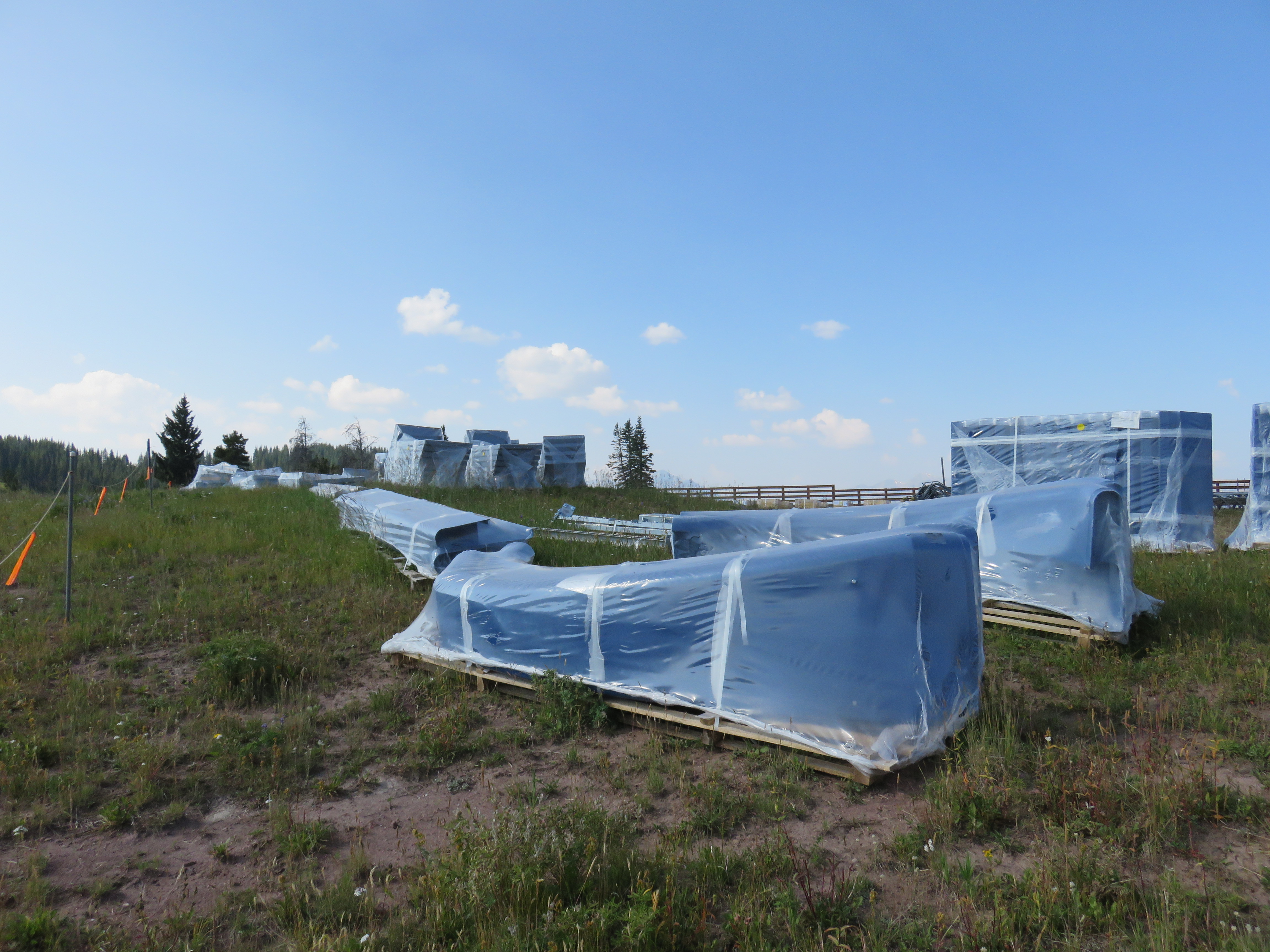

Top terminal skin which came over from Europe.
